Shadowing test. More...

#include "buildings-shadowing-test.h"

Inheritance diagram for BuildingsShadowingTestCase:

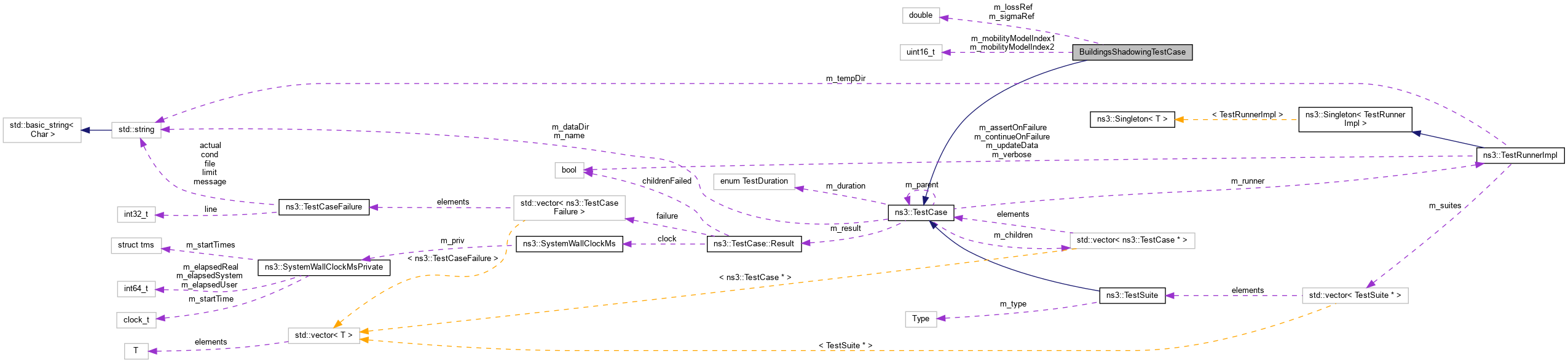

Collaboration diagram for BuildingsShadowingTestCase:

Public Member Functions
	BuildingsShadowingTestCase (uint16_t m1, uint16_t m2, double refValue, double sigmaRef, std::string name)
	Constructor. More...

virtual	~BuildingsShadowingTestCase ()

Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete

virtual	~TestCase ()
	Destructor. More...

std::string	GetName (void) const

TestCase &	operator= (const TestCase &)=delete

Private Member Functions
Ptr< MobilityModel >	CreateMobilityModel (uint16_t index)
	Create a mobility model based on its index. More...

virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...

Private Attributes
double	m_lossRef
	pathloss value (without shadowing) More...

uint16_t	m_mobilityModelIndex1
	First MobilityModel Index. More...

uint16_t	m_mobilityModelIndex2
	Second MobilityModel Index. More...

double	m_sigmaRef
	pathloss standard deviation value reference value More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...

void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...

TestCase *	GetParent () const
	Get the parent of this TestCsse. More...

bool	IsStatusFailure (void) const
	Check if any tests failed. More...

bool	IsStatusSuccess (void) const
	Check if all tests passed. More...

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...

bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...

bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

Shadowing test.

Definition at line 52 of file buildings-shadowing-test.h.

Constructor & Destructor Documentation

◆ BuildingsShadowingTestCase()

BuildingsShadowingTestCase::BuildingsShadowingTestCase	(	uint16_t	m1,
		uint16_t	m2,
		double	refValue,
		double	sigmaRef,
		std::string	name
	)

Constructor.

Parameters

m1	First MobilityModel Index
m2	Second MobilityModel Index
refValue	Theoretical loss
sigmaRef	Theoretical loss standard deviation
name	Test name

Definition at line 74 of file buildings-shadowing-test.cc.

◆ ~BuildingsShadowingTestCase()

BuildingsShadowingTestCase::~BuildingsShadowingTestCase ( )

virtual

Definition at line 83 of file buildings-shadowing-test.cc.

Member Function Documentation

◆ CreateMobilityModel()

Ptr< MobilityModel > BuildingsShadowingTestCase::CreateMobilityModel ( uint16_t index )

private

Create a mobility model based on its index.

Parameters

index MobilityModel index

Returns: The MobilityModel

Definition at line 143 of file buildings-shadowing-test.cc.

References ns3::Object::AggregateObject(), and ns3::MobilityModel::SetPosition().

Referenced by DoRun().

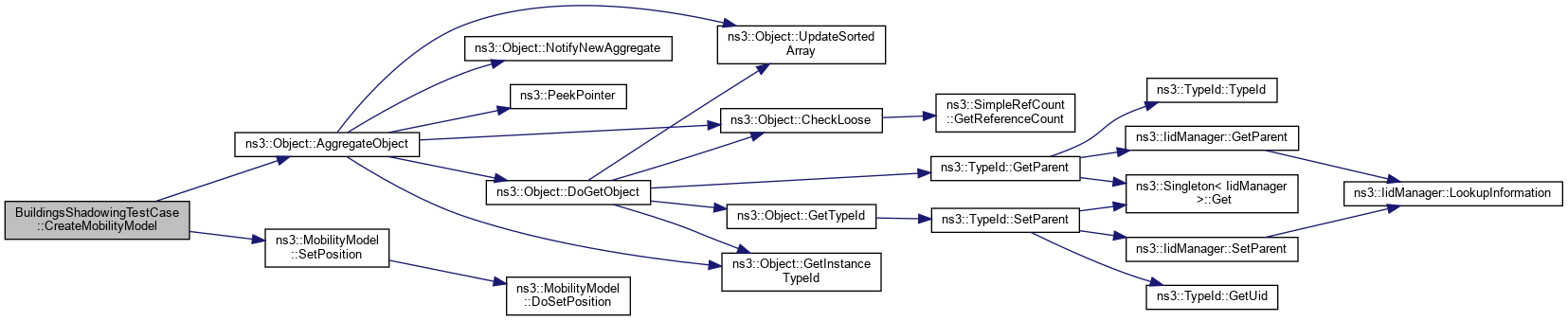

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoRun()

void BuildingsShadowingTestCase::DoRun ( void )

privatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 88 of file buildings-shadowing-test.cc.

References CreateMobilityModel(), m_lossRef, m_mobilityModelIndex1, m_mobilityModelIndex2, m_sigmaRef, NS_LOG_FUNCTION, NS_LOG_INFO, NS_TEST_ASSERT_MSG_EQ_TOL, NS_TEST_ASSERT_MSG_GT, and NS_TEST_ASSERT_MSG_LT.

Here is the call graph for this function:

Member Data Documentation

◆ m_lossRef

double BuildingsShadowingTestCase::m_lossRef

private

pathloss value (without shadowing)

Definition at line 77 of file buildings-shadowing-test.h.

Referenced by DoRun().

◆ m_mobilityModelIndex1

uint16_t BuildingsShadowingTestCase::m_mobilityModelIndex1

private

First MobilityModel Index.

Definition at line 75 of file buildings-shadowing-test.h.

Referenced by DoRun().

◆ m_mobilityModelIndex2

uint16_t BuildingsShadowingTestCase::m_mobilityModelIndex2

private

Second MobilityModel Index.

Definition at line 76 of file buildings-shadowing-test.h.

Referenced by DoRun().

◆ m_sigmaRef

double BuildingsShadowingTestCase::m_sigmaRef

private

pathloss standard deviation value reference value

Definition at line 78 of file buildings-shadowing-test.h.

Referenced by DoRun().

The documentation for this class was generated from the following files:

src/buildings/test/buildings-shadowing-test.h
src/buildings/test/buildings-shadowing-test.cc
