Base class for device energy models. More...

#include "device-energy-model.h"

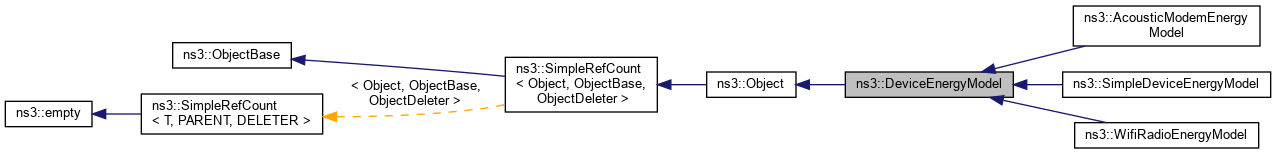

Inheritance diagram for ns3::DeviceEnergyModel:

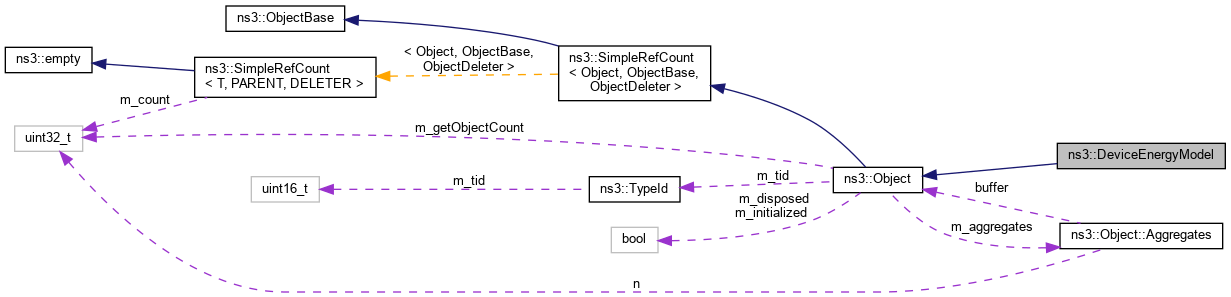

Collaboration diagram for ns3::DeviceEnergyModel:

Public Types
typedef Callback< void, int >	ChangeStateCallback
	Callback type for ChangeState function. More...

Public Member Functions
	DeviceEnergyModel ()

virtual	~DeviceEnergyModel ()

virtual void	ChangeState (int newState)=0

double	GetCurrentA (void) const

virtual double	GetTotalEnergyConsumption (void) const =0

virtual void	HandleEnergyChanged (void)=0
	This function is called by the EnergySource object when energy stored in the energy source is changed. More...

virtual void	HandleEnergyDepletion (void)=0
	This function is called by the EnergySource object when energy stored in the energy source is depleted. More...

virtual void	HandleEnergyRecharged (void)=0
	This function is called by the EnergySource object when energy stored in the energy source is recharged. More...

virtual void	SetEnergySource (Ptr< EnergySource > source)=0

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
virtual double	DoGetCurrentA (void) const

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoDispose (void)
	Destructor implementation. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Base class for device energy models.

Introspection did not find any typical Config paths.

A device energy model should represent the energy consumption behavior of a specific device. It will update remaining energy stored in the EnergySource object installed on node. When energy is depleted, each DeviceEnergyModel object installed on the same node will be informed by the EnergySource.

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 32 bytes (on a 64-bit architecture).

Definition at line 43 of file device-energy-model.h.

Member Typedef Documentation

◆ ChangeStateCallback

typedef Callback<void, int> ns3::DeviceEnergyModel::ChangeStateCallback

Callback type for ChangeState function.

Devices uses this state to notify DeviceEnergyModel of a state change.

Definition at line 50 of file device-energy-model.h.

Constructor & Destructor Documentation

◆ DeviceEnergyModel()

ns3::DeviceEnergyModel::DeviceEnergyModel ( )

Definition at line 40 of file device-energy-model.cc.

References NS_LOG_FUNCTION.

◆ ~DeviceEnergyModel()

ns3::DeviceEnergyModel::~DeviceEnergyModel ( )

virtual

Definition at line 45 of file device-energy-model.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ ChangeState()

virtual void ns3::DeviceEnergyModel::ChangeState ( int newState )

pure virtual

Parameters

newState New state the device is in.

DeviceEnergyModel is a state based model. This function is implemented by all child of DeviceEnergyModel to change the model's state. States are to be defined by each child using an enum (int).

Implemented in ns3::WifiRadioEnergyModel, ns3::AcousticModemEnergyModel, and ns3::SimpleDeviceEnergyModel.

Referenced by ns3::WifiRadioEnergyModel::WifiRadioEnergyModel(), and ns3::AcousticModemEnergyModelHelper::DoInstall().

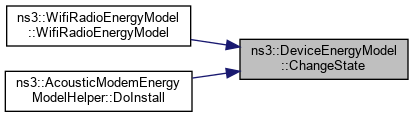

Here is the caller graph for this function:

◆ DoGetCurrentA()

double ns3::DeviceEnergyModel::DoGetCurrentA ( void ) const

privatevirtual

Returns: 0.0 as the current value, in Ampere.

Child class does not have to implement this method if current draw for its states are not know. This default method will always return 0.0A. For the devices who does know the current draw of its states, this method must be overwritten.

Reimplemented in ns3::WifiRadioEnergyModel, ns3::AcousticModemEnergyModel, and ns3::SimpleDeviceEnergyModel.

Definition at line 62 of file device-energy-model.cc.

References NS_LOG_FUNCTION.

Referenced by GetCurrentA().

Here is the caller graph for this function:

◆ GetCurrentA()

double ns3::DeviceEnergyModel::GetCurrentA ( void ) const

Returns: Current draw of the device, in Ampere.

This function returns the current draw at the device in its current state. This function is called from the EnergySource to obtain the total current draw at any given time during simulation.

Definition at line 51 of file device-energy-model.cc.

References DoGetCurrentA(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ GetTotalEnergyConsumption()

virtual double ns3::DeviceEnergyModel::GetTotalEnergyConsumption ( void ) const

pure virtual

Returns: Total energy consumption of the device.

DeviceEnergyModel records its own energy consumption during simulation.

Implemented in ns3::WifiRadioEnergyModel, ns3::AcousticModemEnergyModel, and ns3::SimpleDeviceEnergyModel.

◆ GetTypeId()

TypeId ns3::DeviceEnergyModel::GetTypeId ( void )

static

Get the type ID.

Returns: The object TypeId.

Definition at line 31 of file device-energy-model.cc.

References ns3::TypeId::SetParent().

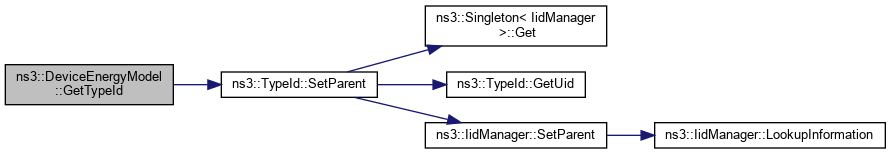

Here is the call graph for this function:

◆ HandleEnergyChanged()

virtual void ns3::DeviceEnergyModel::HandleEnergyChanged ( void )

pure virtual

This function is called by the EnergySource object when energy stored in the energy source is changed.

Should be implemented by child classes.

Implemented in ns3::WifiRadioEnergyModel, ns3::AcousticModemEnergyModel, and ns3::SimpleDeviceEnergyModel.

◆ HandleEnergyDepletion()

virtual void ns3::DeviceEnergyModel::HandleEnergyDepletion ( void )

pure virtual

This function is called by the EnergySource object when energy stored in the energy source is depleted.

Should be implemented by child classes.

Implemented in ns3::WifiRadioEnergyModel, ns3::AcousticModemEnergyModel, and ns3::SimpleDeviceEnergyModel.

◆ HandleEnergyRecharged()

virtual void ns3::DeviceEnergyModel::HandleEnergyRecharged ( void )

pure virtual

This function is called by the EnergySource object when energy stored in the energy source is recharged.

Should be implemented by child classes.

Implemented in ns3::WifiRadioEnergyModel, ns3::AcousticModemEnergyModel, and ns3::SimpleDeviceEnergyModel.

◆ SetEnergySource()

virtual void ns3::DeviceEnergyModel::SetEnergySource ( Ptr< EnergySource > source )

pure virtual

Parameters

source Pointer to energy source installed on node.

This function sets the pointer to energy source installed on node. Should be called only by DeviceEnergyModel helper classes.

Implemented in ns3::AcousticModemEnergyModel, ns3::SimpleDeviceEnergyModel, and ns3::WifiRadioEnergyModel.

The documentation for this class was generated from the following files:

src/energy/model/device-energy-model.h
src/energy/model/device-energy-model.cc
