ns3::OpenFlowSwitchHelper Class Reference

Add capability to switch multiple LAN segments (IEEE 802.1D bridging) More...

#include "openflow-switch-helper.h"

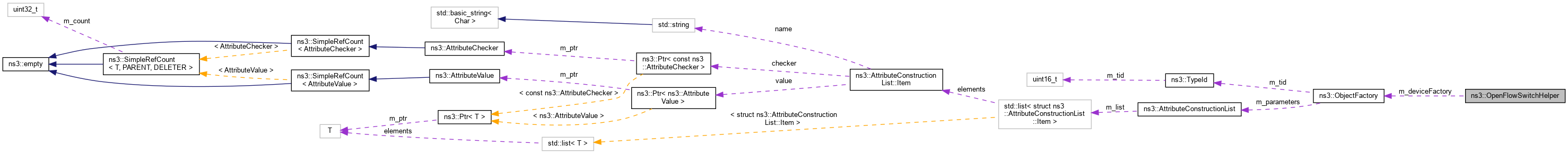

Collaboration diagram for ns3::OpenFlowSwitchHelper:

Public Member Functions
	OpenFlowSwitchHelper ()
NetDeviceContainer	Install (Ptr< Node > node, NetDeviceContainer c)
	This method creates an ns3::OpenFlowSwitchNetDevice with the attributes configured by OpenFlowSwitchHelper::SetDeviceAttribute, adds the device to the node, and attaches the given NetDevices as ports of the switch. More...
NetDeviceContainer	Install (Ptr< Node > node, NetDeviceContainer c, Ptr< ns3::ofi::Controller > controller)
	This method creates an ns3::OpenFlowSwitchNetDevice with the attributes configured by OpenFlowSwitchHelper::SetDeviceAttribute, adds the device to the node, attaches the given NetDevices as ports of the switch, and sets up a controller connection using the provided Controller. More...
NetDeviceContainer	Install (std::string nodeName, NetDeviceContainer c)
	This method creates an ns3::OpenFlowSwitchNetDevice with the attributes configured by OpenFlowSwitchHelper::SetDeviceAttribute, adds the device to the node, and attaches the given NetDevices as ports of the switch. More...
void	SetDeviceAttribute (std::string n1, const AttributeValue &v1)
	Set an attribute on each ns3::OpenFlowSwitchNetDevice created by OpenFlowSwitchHelper::Install. More...

Private Attributes
ObjectFactory	m_deviceFactory
	Object factory. More...

Detailed Description

Add capability to switch multiple LAN segments (IEEE 802.1D bridging)

Definition at line 37 of file openflow-switch-helper.h.

Constructor & Destructor Documentation

OpenFlowSwitchHelper()

ns3::OpenFlowSwitchHelper::OpenFlowSwitchHelper

(

)

Member Function Documentation

Install() [1/3]

NetDeviceContainer ns3::OpenFlowSwitchHelper::Install	(	Ptr< Node >	node,
		NetDeviceContainer	c
	)

This method creates an ns3::OpenFlowSwitchNetDevice with the attributes configured by OpenFlowSwitchHelper::SetDeviceAttribute, adds the device to the node, and attaches the given NetDevices as ports of the switch.

Parameters

node	The node to install the device in
c	Container of NetDevices to add as switch ports

Returns

A container holding the added net device.

Install() [2/3]

NetDeviceContainer ns3::OpenFlowSwitchHelper::Install	(	Ptr< Node >	node,
		NetDeviceContainer	c,
		Ptr< ns3::ofi::Controller >	controller
	)

This method creates an ns3::OpenFlowSwitchNetDevice with the attributes configured by OpenFlowSwitchHelper::SetDeviceAttribute, adds the device to the node, attaches the given NetDevices as ports of the switch, and sets up a controller connection using the provided Controller.

Parameters

node	The node to install the device in
c	Container of NetDevices to add as switch ports
controller	The controller connection.

Returns

A container holding the added net device.

Install() [3/3]

NetDeviceContainer ns3::OpenFlowSwitchHelper::Install	(	std::string	nodeName,
		NetDeviceContainer	c
	)

This method creates an ns3::OpenFlowSwitchNetDevice with the attributes configured by OpenFlowSwitchHelper::SetDeviceAttribute, adds the device to the node, and attaches the given NetDevices as ports of the switch.

Parameters

nodeName	The name of the node to install the device in
c	Container of NetDevices to add as switch ports

Returns

A container holding the added net device.

SetDeviceAttribute()

void ns3::OpenFlowSwitchHelper::SetDeviceAttribute	(	std::string	n1,
		const AttributeValue &	v1
	)

Set an attribute on each ns3::OpenFlowSwitchNetDevice created by OpenFlowSwitchHelper::Install.

Parameters

n1	the name of the attribute to set
v1	the value of the attribute to set

Member Data Documentation

m_deviceFactory

ObjectFactory ns3::OpenFlowSwitchHelper::m_deviceFactory

private

Object factory.

Definition at line 97 of file openflow-switch-helper.h.

---

The documentation for this class was generated from the following file:

• src/openflow/helper/openflow-switch-helper.h
