ns3::internal::ObjectPtrContainerChecker< T > Class Template Reference

ObjectPtrContainerChecker implementation class. More...

#include "object-ptr-container.h"

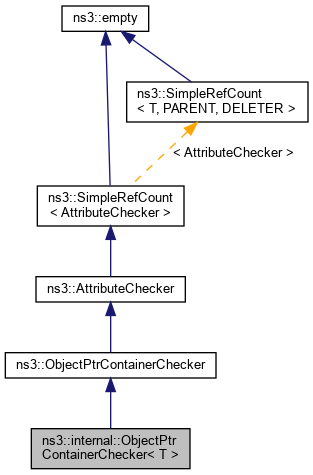

Inheritance diagram for ns3::internal::ObjectPtrContainerChecker< T >:

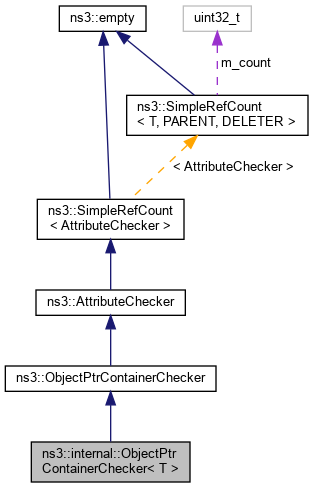

Collaboration diagram for ns3::internal::ObjectPtrContainerChecker< T >:

Public Member Functions
virtual bool	Check (const AttributeValue &value) const
virtual bool	Copy (const AttributeValue &source, AttributeValue &destination) const
	Copy the source to the destination. More...
virtual Ptr< AttributeValue >	Create (void) const
virtual TypeId	GetItemTypeId (void) const
	Get the TypeId of the container class type. More...
virtual std::string	GetUnderlyingTypeInformation (void) const
virtual std::string	GetValueTypeName (void) const
virtual bool	HasUnderlyingTypeInformation (void) const
Public Member Functions inherited from ns3::AttributeChecker
	AttributeChecker ()
virtual	~AttributeChecker ()
Ptr< AttributeValue >	CreateValidValue (const AttributeValue &value) const
	Create a valid value from the argument value, or reinterpret the argument as a string. More...
Public Member Functions inherited from ns3::SimpleRefCount< AttributeChecker >
	SimpleRefCount ()
	Default constructor. More...
	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...
uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...
SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...
void	Ref (void) const
	Increment the reference count. More...
void	Unref (void) const
	Decrement the reference count. More...

Detailed Description

template<typename T>
class ns3::internal::ObjectPtrContainerChecker< T >

ObjectPtrContainerChecker implementation class.

Definition at line 177 of file object-ptr-container.h.

Member Function Documentation

Check()

template<typename T >

virtual bool ns3::internal::ObjectPtrContainerChecker< T >::Check ( const AttributeValue &  value ) const

inlinevirtual

Parameters

[in]

value

A pointer to the value to check

Returns

true if the input value is both of the right type and if its value is within the requested range. Returns false otherwise.

Implements ns3::AttributeChecker.

Definition at line 184 of file object-ptr-container.h.

Copy()

template<typename T >

virtual bool ns3::internal::ObjectPtrContainerChecker< T >::Copy ( const AttributeValue &  source, AttributeValue &  destination  ) const

inlinevirtual

Copy the source to the destination.

Parameters

[in]	source	Source AttributeValue
[out]	destination	Destination AttributeValue

Returns

true if copy was successful

Implements ns3::AttributeChecker.

Definition at line 204 of file object-ptr-container.h.

Create()

template<typename T >

virtual Ptr<AttributeValue> ns3::internal::ObjectPtrContainerChecker< T >::Create ( void  ) const

inlinevirtual

Returns

a new instance of an AttributeValue (wrapper in an Attribute instance) which matches the type of the underlying attribute.

This method is typically used to create a temporary variable prior to calling Attribute::DeserializeFromString.

Implements ns3::AttributeChecker.

Definition at line 200 of file object-ptr-container.h.

GetItemTypeId()

template<typename T >

virtual TypeId ns3::internal::ObjectPtrContainerChecker< T >::GetItemTypeId ( void  ) const

inlinevirtual

Get the TypeId of the container class type.

Returns

The class TypeId.

Implements ns3::ObjectPtrContainerChecker.

Definition at line 180 of file object-ptr-container.h.

GetUnderlyingTypeInformation()

template<typename T >

virtual std::string ns3::internal::ObjectPtrContainerChecker< T >::GetUnderlyingTypeInformation ( void  ) const

inlinevirtual

Returns

a human-readable representation of information about the underlying C++ type.

Implements ns3::AttributeChecker.

Definition at line 196 of file object-ptr-container.h.

GetValueTypeName()

template<typename T >

virtual std::string ns3::internal::ObjectPtrContainerChecker< T >::GetValueTypeName ( void  ) const

inlinevirtual

Returns

the c++ fully-qualified typename of the subclass of the ns3::AttributeValue base class which is associated to this checker.

A typical return value here is FooValue where Foo is the name of the type being wrapped.

Implements ns3::AttributeChecker.

Definition at line 188 of file object-ptr-container.h.

HasUnderlyingTypeInformation()

template<typename T >

virtual bool ns3::internal::ObjectPtrContainerChecker< T >::HasUnderlyingTypeInformation ( void  ) const

inlinevirtual

Returns

true if this checker has information about the underlying C++ type, false otherwise.

If this method returns false, the return value of the GetUnderlyingTypeInformation method cannot be relied upon.

Implements ns3::AttributeChecker.

Definition at line 192 of file object-ptr-container.h.

---

The documentation for this class was generated from the following file:

• src/core/model/object-ptr-container.h
