ns3::LrWpanPhyPibAttributes Struct Reference
LR-WPAN models

IEEE802.15.4-2006 PHY PIB Attributes Table 23 in section 6.4.2. More...

#include "lr-wpan-phy.h"

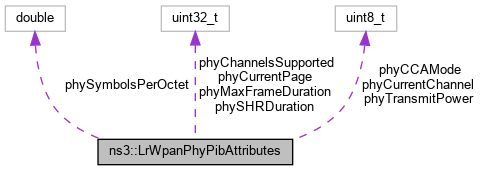

+ Collaboration diagram for ns3::LrWpanPhyPibAttributes:

Public Attributes

uint8_t phyCCAMode
 CCA mode. More...

uint32_t phyChannelsSupported [32]
 BitField representing the available channels supported by a channel page. More...

uint8_t phyCurrentChannel
 The RF channel to use. More...

uint32_t phyCurrentPage
 Current channel page. More...

uint32_t phyMaxFrameDuration
 The maximum number of symbols in a frame. More...

uint32_t phySHRDuration
 The duration of the synchronization header (SHR) in symbols. More...

double phySymbolsPerOctet
 The number of symbols per octet. More...

uint8_t phyTransmitPower
 2 MSB: tolerance on the transmit power, 6 LSB: Tx power in dBm relative to 1mW (signed int in 2-complement format) More...


Detailed Description

IEEE802.15.4-2006 PHY PIB Attributes Table 23 in section 6.4.2.

Definition at line 157 of file lr-wpan-phy.h.

Member Data Documentation

◆ phyCCAMode

uint8_t ns3::LrWpanPhyPibAttributes::phyCCAMode

CCA mode.

Definition at line 162 of file lr-wpan-phy.h.

Referenced by ns3::LrWpanPhy::LrWpanPhy(), ns3::LrWpanPhy::EndCca(), and ns3::LrWpanPhy::PlmeSetAttributeRequest().

◆ phyChannelsSupported

uint32_t ns3::LrWpanPhyPibAttributes::phyChannelsSupported[32]

BitField representing the available channels supported by a channel page.

Definition at line 160 of file lr-wpan-phy.h.

Referenced by ns3::LrWpanPhy::LrWpanPhy(), ns3::LrWpanPhy::ChannelSupported(), and ns3::LrWpanPhy::PlmeSetAttributeRequest().

◆ phyCurrentChannel

uint8_t ns3::LrWpanPhyPibAttributes::phyCurrentChannel

The RF channel to use.

Definition at line 159 of file lr-wpan-phy.h.

Referenced by ns3::LrWpanPhy::LrWpanPhy(), ns3::LrWpanPhy::CheckInterference(), ns3::LrWpanPhy::EndCca(), ns3::LrWpanPhy::EndEd(), ns3::LrWpanPhy::EndRx(), ns3::LrWpanMac::MlmeStartRequest(), ns3::LrWpanMac::MlmeSyncRequest(), ns3::LrWpanPhy::PlmeSetAttributeRequest(), ns3::LrWpanPhy::SetMyPhyOption(), and ns3::LrWpanPhy::StartRx().

◆ phyCurrentPage

uint32_t ns3::LrWpanPhyPibAttributes::phyCurrentPage

Current channel page.

Definition at line 163 of file lr-wpan-phy.h.

Referenced by ns3::LrWpanPhy::LrWpanPhy(), ns3::LrWpanMac::MlmeStartRequest(), and ns3::LrWpanPhy::SetMyPhyOption().

◆ phyMaxFrameDuration

uint32_t ns3::LrWpanPhyPibAttributes::phyMaxFrameDuration

The maximum number of symbols in a frame.

Definition at line 164 of file lr-wpan-phy.h.

◆ phySHRDuration

uint32_t ns3::LrWpanPhyPibAttributes::phySHRDuration

The duration of the synchronization header (SHR) in symbols.

Definition at line 165 of file lr-wpan-phy.h.

◆ phySymbolsPerOctet

double ns3::LrWpanPhyPibAttributes::phySymbolsPerOctet

The number of symbols per octet.

Definition at line 166 of file lr-wpan-phy.h.

◆ phyTransmitPower

uint8_t ns3::LrWpanPhyPibAttributes::phyTransmitPower

2 MSB: tolerance on the transmit power, 6 LSB: Tx power in dBm relative to 1mW (signed int in 2-complement format)

Definition at line 161 of file lr-wpan-phy.h.

Referenced by ns3::LrWpanPhy::LrWpanPhy(), and ns3::LrWpanPhy::PlmeSetAttributeRequest().

The documentation for this struct was generated from the following file:
