ns3::flame::FlameRtable::LookupResult Struct Reference

Route lookup result, return type of LookupXXX methods. More...

#include "flame-rtable.h"

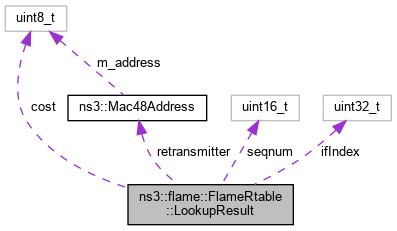

Collaboration diagram for ns3::flame::FlameRtable::LookupResult:

Public Member Functions
	LookupResult (Mac48Address r=Mac48Address::GetBroadcast(), uint32_t i=INTERFACE_ANY, uint8_t c=MAX_COST, uint16_t s=0)
	Constructor. More...
bool	IsValid () const
bool	operator== (const LookupResult &o) const
	Compare route lookup results, used by tests. More...

Public Attributes
uint8_t	cost
	cost More...
uint32_t	ifIndex
	IF index. More...
Mac48Address	retransmitter
	retransmitter More...
uint16_t	seqnum
	sequence number More...

Detailed Description

Route lookup result, return type of LookupXXX methods.

Definition at line 45 of file flame-rtable.h.

Constructor & Destructor Documentation

LookupResult()

ns3::flame::FlameRtable::LookupResult::LookupResult ( Mac48Address  r = Mac48Address::GetBroadcast (), uint32_t  i = INTERFACE_ANY, uint8_t  c = MAX_COST, uint16_t  s = 0  )

inline

Constructor.

Parameters

r	retransmitter MAC address
i	interfce index
c	cost
s	sequence number

Definition at line 59 of file flame-rtable.h.

Member Function Documentation

IsValid()

bool ns3::flame::FlameRtable::LookupResult::IsValid

(

)

const

Returns

True for valid route

Definition at line 110 of file flame-rtable.cc.

References ns3::Mac48Address::GetBroadcast(), ns3::flame::FlameRtable::INTERFACE_ANY, and ns3::flame::FlameRtable::MAX_COST.

Referenced by FlameRtableTest::TestExpire().

Here is the call graph for this function:

Here is the caller graph for this function:

operator==()

bool ns3::flame::FlameRtable::LookupResult::operator==

(

const LookupResult &

o

)

const

Compare route lookup results, used by tests.

Parameters

o	the object to compare

Returns

true if equal

Definition at line 104 of file flame-rtable.cc.

References cost, ifIndex, retransmitter, and seqnum.

Member Data Documentation

cost

uint8_t ns3::flame::FlameRtable::LookupResult::cost

cost

Definition at line 49 of file flame-rtable.h.

Referenced by operator==().

ifIndex

uint32_t ns3::flame::FlameRtable::LookupResult::ifIndex

IF index.

Definition at line 48 of file flame-rtable.h.

Referenced by operator==().

retransmitter

Mac48Address ns3::flame::FlameRtable::LookupResult::retransmitter

retransmitter

Definition at line 47 of file flame-rtable.h.

Referenced by operator==().

seqnum

uint16_t ns3::flame::FlameRtable::LookupResult::seqnum

sequence number

Definition at line 50 of file flame-rtable.h.

Referenced by operator==().

---

The documentation for this struct was generated from the following files:

• src/mesh/model/flame/flame-rtable.h
• src/mesh/model/flame/flame-rtable.cc
