ipv4-click-routing-test.cc File Reference

Click test suite. More...

#include "ns3/click-internet-stack-helper.h"
#include "ns3/ipv4-click-routing.h"
#include "ns3/ipv4-l3-protocol.h"
#include "ns3/log.h"
#include "ns3/node.h"
#include "ns3/simple-net-device.h"
#include "ns3/test.h"
#include <click/simclick.h>
#include <string>

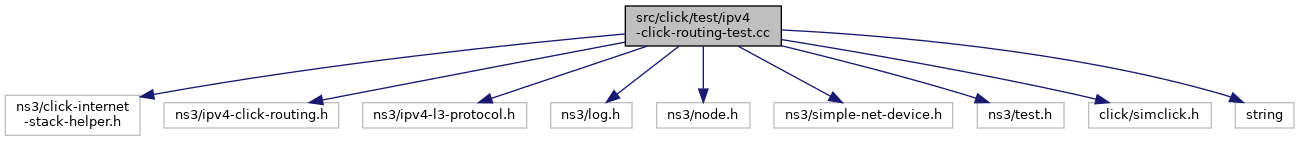

Include dependency graph for ipv4-click-routing-test.cc:

Go to the source code of this file.

Classes
class	ClickIfidFromNameTest
	Click interface ID from name test. More...
class	ClickIfidFromNameTestSuite
	Click interface ID from name test. More...
class	ClickIpMacAddressFromNameTest
	Click IP MAC address from name test. More...
class	ClickTrivialTest
	Click trivial test. More...

Functions
static void	AddClickInternetStack (Ptr< Node > node)
	Add Click Internet stack. More...
static void	AddNetworkDevice (Ptr< Node > node, Mac48Address macaddr, Ipv4Address ipv4addr, Ipv4Mask ipv4mask)
	Add network device. More...

Variables
static ClickIfidFromNameTestSuite	g_ipv4ClickRoutingTestSuite
	Static variable for test initialization. More...

Detailed Description

Click test suite.

Definition in file ipv4-click-routing-test.cc.

Function Documentation

AddClickInternetStack()

static void AddClickInternetStack ( Ptr< Node >  node )

static

Add Click Internet stack.

Parameters

node

Node.

Definition at line 45 of file ipv4-click-routing-test.cc.

References nsclick-simple-lan::internet.

Referenced by ClickIfidFromNameTest::DoRun(), ClickIpMacAddressFromNameTest::DoRun(), and ClickTrivialTest::DoRun().

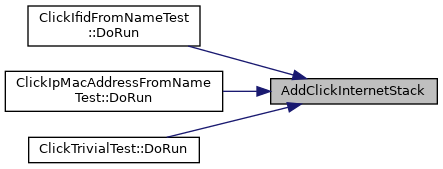

Here is the caller graph for this function:

AddNetworkDevice()

static void AddNetworkDevice ( Ptr< Node >  node, Mac48Address  macaddr, Ipv4Address  ipv4addr, Ipv4Mask  ipv4mask  )

static

Add network device.

Parameters

node	Node.
macaddr	MAC address.
ipv4addr	IPv4 address.
ipv4mask	IPv4 mask.

Definition at line 61 of file ipv4-click-routing-test.cc.

References ns3::Node::AddDevice(), ns3::Object::GetObject(), and nsclick-simple-lan::ipv4.

Referenced by ClickIfidFromNameTest::DoRun(), ClickIpMacAddressFromNameTest::DoRun(), and ClickTrivialTest::DoRun().

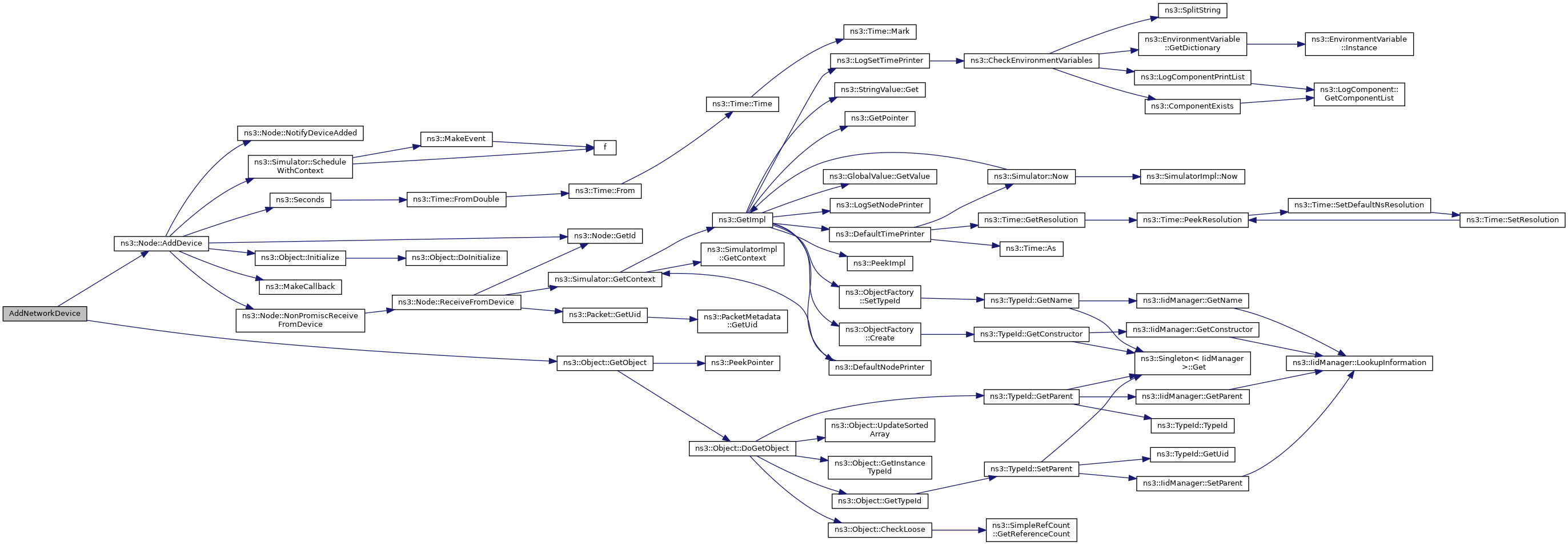

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

g_ipv4ClickRoutingTestSuite

ClickIfidFromNameTestSuite g_ipv4ClickRoutingTestSuite

static

Static variable for test initialization.

Definition at line 255 of file ipv4-click-routing-test.cc.
