Source Route (SR) Message Format. More...

#include "dsr-option-header.h"

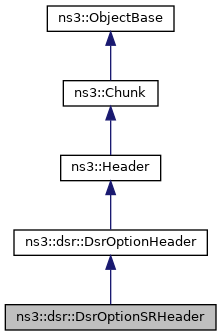

Inheritance diagram for ns3::dsr::DsrOptionSRHeader:

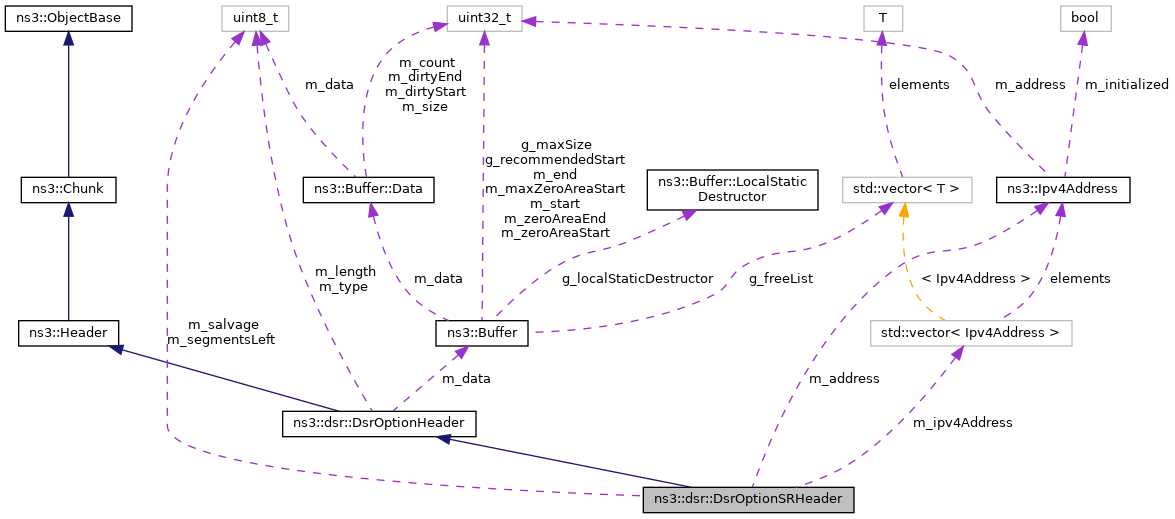

Collaboration diagram for ns3::dsr::DsrOptionSRHeader:

Public Types
typedef void(*	TracedCallback) (const DsrOptionSRHeader &header)
	TracedCallback signature for DsrOptionSrHeader. More...

Public Member Functions
	DsrOptionSRHeader ()
	Constructor. More...

	~DsrOptionSRHeader () override
	Destructor. More...

uint32_t	Deserialize (Buffer::Iterator start) override
	Deserialize the packet. More...

Alignment	GetAlignment () const override
	Get the Alignment requirement of this option header. More...

TypeId	GetInstanceTypeId () const override
	Get the instance type ID. More...

Ipv4Address	GetNodeAddress (uint8_t index) const
	Get a Node IPv4 Address. More...

uint8_t	GetNodeListSize () const
	Get the node list size which is the number of ip address of the route. More...

std::vector< Ipv4Address >	GetNodesAddress () const
	Get the vector of ipv4 address. More...

uint8_t	GetSalvage () const
	Get the salvage value for a packet. More...

uint8_t	GetSegmentsLeft () const
	Get the number of segments left to send. More...

uint32_t	GetSerializedSize () const override
	Get the serialized size of the packet. More...

void	Print (std::ostream &os) const override
	Print some information about the packet. More...

void	Serialize (Buffer::Iterator start) const override
	Serialize the packet. More...

void	SetNodeAddress (uint8_t index, Ipv4Address addr)
	Set a Node IPv4 Address. More...

void	SetNodesAddress (std::vector< Ipv4Address > ipv4Address)
	Set the vector of ipv4 address. More...

void	SetNumberAddress (uint8_t n)
	Set the number of ipv4 address. More...

void	SetSalvage (uint8_t salvage)
	Set the salvage value for a packet. More...

void	SetSegmentsLeft (uint8_t segmentsLeft)
	Set the number of segments left to send. More...

Public Member Functions inherited from ns3::dsr::DsrOptionHeader
	DsrOptionHeader ()
	Constructor. More...

	~DsrOptionHeader () override
	Destructor. More...

uint8_t	GetLength () const
	Get the option length. More...

uint8_t	GetType () const
	Get the type of the option. More...

void	SetLength (uint8_t length)
	Set the option length. More...

void	SetType (uint8_t type)
	Set the type of the option. More...

Public Member Functions inherited from ns3::Header
	~Header () override

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator. More...

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::Chunk
virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type identificator. More...

Static Public Member Functions inherited from ns3::dsr::DsrOptionHeader
static TypeId	GetTypeId ()
	Get the type identificator. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Private Types
typedef std::vector< Ipv4Address >	VectorIpv4Address_t
	A vector of IPv4 Address. More...

Private Attributes
Ipv4Address	m_address
	The ip address header deserilize to. More...

VectorIpv4Address_t	m_ipv4Address
	The vector of Nodes' IPv4 Address. More...

uint8_t	m_salvage
	Number of savlage times for a packet. More...

uint8_t	m_segmentsLeft
	Number of left segments. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Source Route (SR) Message Format.

Header of Dsr Option Source Route.

 |      0        |      1        |      2        |      3        |
 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |  Option Type |  Opt Data Len |F|L|Reservd|Salvage|  Segs Left |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |                            Address[1]                         |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |                            Address[2]                         |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |                               ...                             |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |                            Address[n]                         |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+

Definition at line 567 of file dsr-option-header.h.

Member Typedef Documentation

◆ TracedCallback

typedef void(* ns3::dsr::DsrOptionSRHeader::TracedCallback) (const DsrOptionSRHeader &header)

TracedCallback signature for DsrOptionSrHeader.

Parameters

[in] header The DsrOptionsSRHeader

Definition at line 672 of file dsr-option-header.h.

◆ VectorIpv4Address_t

typedef std::vector<Ipv4Address> ns3::dsr::DsrOptionSRHeader::VectorIpv4Address_t

private

A vector of IPv4 Address.

Definition at line 690 of file dsr-option-header.h.

Constructor & Destructor Documentation

◆ DsrOptionSRHeader()

ns3::dsr::DsrOptionSRHeader::DsrOptionSRHeader ( )

Constructor.

Definition at line 584 of file dsr-option-header.cc.

References m_ipv4Address, ns3::dsr::DsrOptionHeader::SetLength(), and ns3::dsr::DsrOptionHeader::SetType().

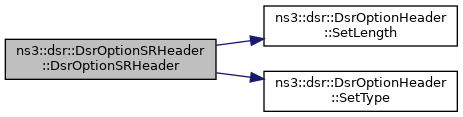

Here is the call graph for this function:

◆ ~DsrOptionSRHeader()

ns3::dsr::DsrOptionSRHeader::~DsrOptionSRHeader ( )

override

Destructor.

Definition at line 592 of file dsr-option-header.cc.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::dsr::DsrOptionSRHeader::Deserialize ( Buffer::Iterator start )

overridevirtual

Deserialize the packet.

Parameters

start Buffer iterator

Returns: size of the packet

Reimplemented from ns3::dsr::DsrOptionHeader.

Definition at line 696 of file dsr-option-header.cc.

References ns3::Ipv4Address::Deserialize(), GetSerializedSize(), m_address, m_ipv4Address, m_salvage, m_segmentsLeft, ns3::Buffer::Iterator::Read(), ns3::Buffer::Iterator::ReadU8(), ns3::dsr::DsrOptionHeader::SetLength(), SetNodeAddress(), ns3::dsr::DsrOptionHeader::SetType(), and two-ray-to-three-gpp-ch-calibration::start.

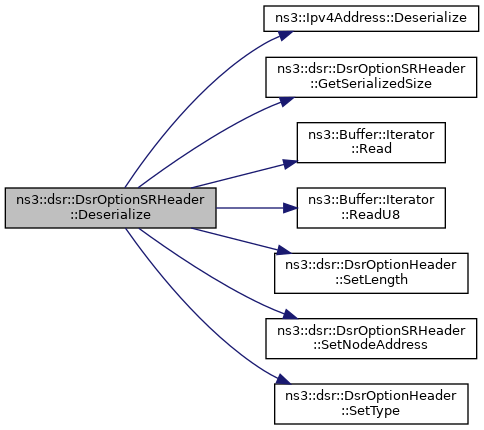

Here is the call graph for this function:

◆ GetAlignment()

DsrOptionHeader::Alignment ns3::dsr::DsrOptionSRHeader::GetAlignment ( ) const

overridevirtual

Get the Alignment requirement of this option header.

Returns: The required alignment

Reimplemented from ns3::dsr::DsrOptionHeader.

Definition at line 717 of file dsr-option-header.cc.

◆ GetInstanceTypeId()

TypeId ns3::dsr::DsrOptionSRHeader::GetInstanceTypeId ( void ) const

overridevirtual

Get the instance type ID.

Returns: instance type ID

Reimplemented from ns3::dsr::DsrOptionHeader.

Definition at line 579 of file dsr-option-header.cc.

References GetTypeId().

Here is the call graph for this function:

◆ GetNodeAddress()

Ipv4Address ns3::dsr::DsrOptionSRHeader::GetNodeAddress ( uint8_t index ) const

Get a Node IPv4 Address.

Parameters

index the index of the IPv4 Address

Returns: the router IPv4 Address

Definition at line 647 of file dsr-option-header.cc.

References m_ipv4Address.

Referenced by DsrSRHeaderTest::DoRun(), ns3::dsr::DsrOptionRerr::DoSendError(), and ns3::dsr::DsrOptionSR::Process().

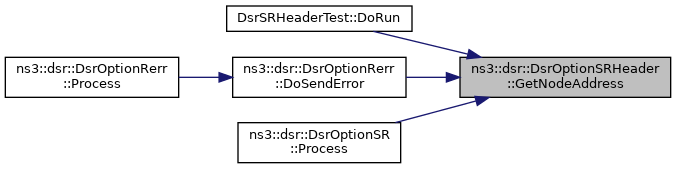

Here is the caller graph for this function:

◆ GetNodeListSize()

uint8_t ns3::dsr::DsrOptionSRHeader::GetNodeListSize ( ) const

Get the node list size which is the number of ip address of the route.

Returns: the node list size

Definition at line 653 of file dsr-option-header.cc.

References m_ipv4Address.

◆ GetNodesAddress()

std::vector< Ipv4Address > ns3::dsr::DsrOptionSRHeader::GetNodesAddress ( ) const

Get the vector of ipv4 address.

Returns: the vector of ipv4 address

Definition at line 635 of file dsr-option-header.cc.

References m_ipv4Address.

Referenced by ns3::dsr::DsrRouting::CancelPacketTimerNextHop(), ns3::dsr::DsrOptionRerr::DoSendError(), ns3::dsr::DsrOptionSR::Process(), and ns3::dsr::DsrRouting::SendPacketFromBuffer().

Here is the caller graph for this function:

◆ GetSalvage()

uint8_t ns3::dsr::DsrOptionSRHeader::GetSalvage ( ) const

Get the salvage value for a packet.

Returns: The salvage value of the packet

Definition at line 615 of file dsr-option-header.cc.

References m_salvage.

Referenced by ns3::dsr::DsrRouting::CancelPacketTimerNextHop(), DsrSRHeaderTest::DoRun(), ns3::dsr::DsrOptionRerr::DoSendError(), ns3::dsr::DsrOptionSR::Process(), and ns3::dsr::DsrRouting::SalvagePacket().

Here is the caller graph for this function:

◆ GetSegmentsLeft()

uint8_t ns3::dsr::DsrOptionSRHeader::GetSegmentsLeft ( ) const

Get the number of segments left to send.

Returns: The segments left

Definition at line 603 of file dsr-option-header.cc.

References m_segmentsLeft.

Referenced by DsrSRHeaderTest::DoRun(), ns3::dsr::DsrOptionRerr::DoSendError(), ns3::dsr::DsrRouting::ForwardPacket(), and ns3::dsr::DsrOptionSR::Process().

Here is the caller graph for this function:

◆ GetSerializedSize()

uint32_t ns3::dsr::DsrOptionSRHeader::GetSerializedSize ( ) const

overridevirtual

Get the serialized size of the packet.

Returns: size

Reimplemented from ns3::dsr::DsrOptionHeader.

Definition at line 672 of file dsr-option-header.cc.

References m_ipv4Address.

Referenced by Deserialize(), ns3::dsr::DsrOptionRerr::DoSendError(), and ns3::dsr::DsrOptionSR::Process().

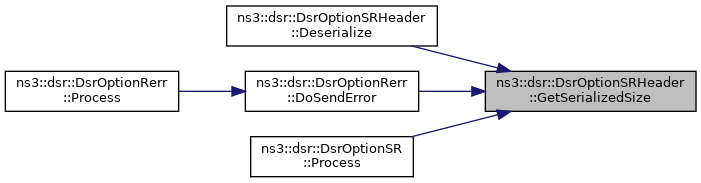

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::dsr::DsrOptionSRHeader::GetTypeId ( void )

static

Get the type identificator.

Returns: type identificator

Definition at line 569 of file dsr-option-header.cc.

References ns3::TypeId::AddConstructor().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Print()

void ns3::dsr::DsrOptionSRHeader::Print ( std::ostream & os ) const

overridevirtual

Print some information about the packet.

Parameters

os	output stream

Reimplemented from ns3::dsr::DsrOptionHeader.

Definition at line 659 of file dsr-option-header.cc.

References ns3::dsr::DsrOptionHeader::GetLength(), ns3::dsr::DsrOptionHeader::GetType(), and m_ipv4Address.

Referenced by ns3::dsr::operator<<().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Serialize()

void ns3::dsr::DsrOptionSRHeader::Serialize ( Buffer::Iterator start ) const

overridevirtual

Serialize the packet.

Parameters

start Buffer iterator

Reimplemented from ns3::dsr::DsrOptionHeader.

Definition at line 678 of file dsr-option-header.cc.

References ns3::dsr::DsrOptionHeader::GetLength(), ns3::dsr::DsrOptionHeader::GetType(), m_ipv4Address, m_salvage, m_segmentsLeft, two-ray-to-three-gpp-ch-calibration::start, ns3::Buffer::Iterator::Write(), and ns3::Buffer::Iterator::WriteU8().

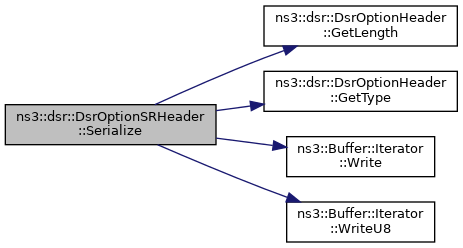

Here is the call graph for this function:

◆ SetNodeAddress()

void ns3::dsr::DsrOptionSRHeader::SetNodeAddress	(	uint8_t	index,
		Ipv4Address	addr
	)

Set a Node IPv4 Address.

Parameters

index	the index of the IPv4 Address
addr	the new IPv4 Address

Definition at line 641 of file dsr-option-header.cc.

References m_ipv4Address.

Referenced by Deserialize().

Here is the caller graph for this function:

◆ SetNodesAddress()

void ns3::dsr::DsrOptionSRHeader::SetNodesAddress ( std::vector< Ipv4Address > ipv4Address )

Set the vector of ipv4 address.

Parameters

ipv4Address the vector of ipv4 address

Definition at line 628 of file dsr-option-header.cc.

References m_ipv4Address, and ns3::dsr::DsrOptionHeader::SetLength().

Referenced by ns3::dsr::DsrRouting::CheckSendBuffer(), DsrSRHeaderTest::DoRun(), ns3::dsr::DsrOptionRerr::DoSendError(), ns3::dsr::DsrRouting::PacketNewRoute(), ns3::dsr::DsrOptionRreq::Process(), ns3::dsr::DsrOptionRrep::Process(), ns3::dsr::DsrOptionSR::Process(), ns3::dsr::DsrRouting::RouteRequestTimerExpire(), ns3::dsr::DsrRouting::SalvagePacket(), ns3::dsr::DsrRouting::Send(), ns3::dsr::DsrRouting::SendErrorRequest(), and ns3::dsr::DsrRouting::SendUnreachError().

Here is the call graph for this function:

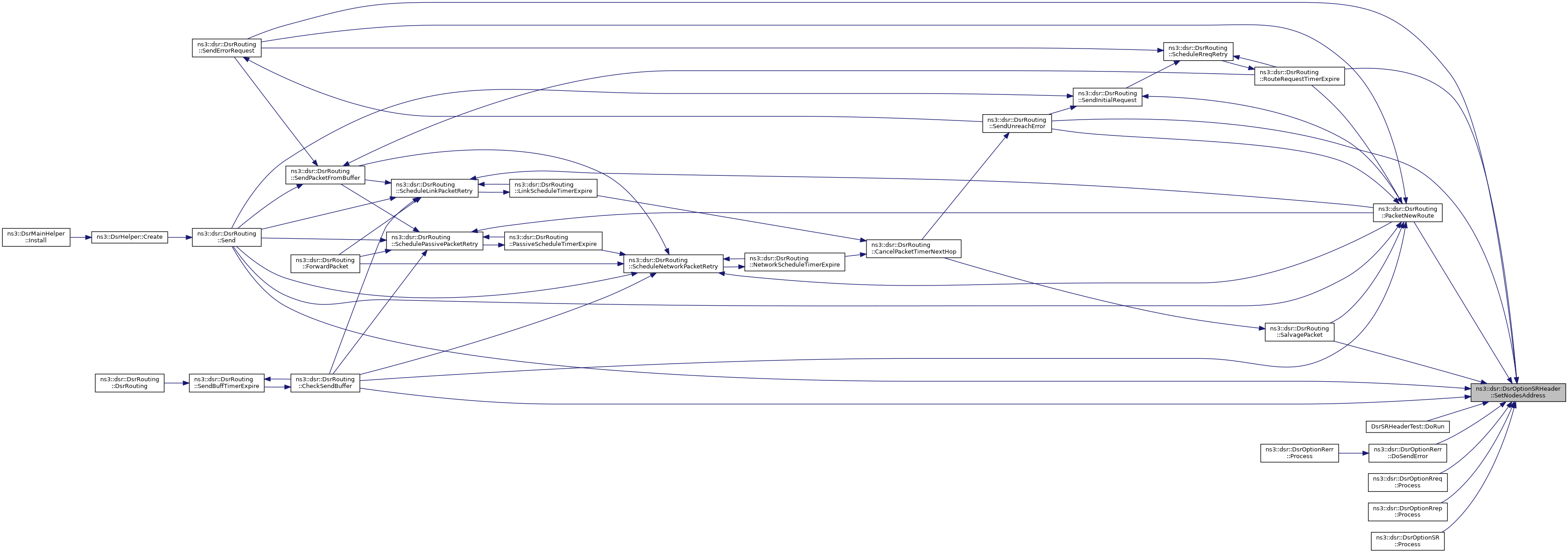

Here is the caller graph for this function:

◆ SetNumberAddress()

void ns3::dsr::DsrOptionSRHeader::SetNumberAddress ( uint8_t n )

Set the number of ipv4 address.

Parameters

n	the number of ipv4' address

Definition at line 621 of file dsr-option-header.cc.

References m_ipv4Address.

Referenced by ns3::dsr::DsrRouting::AddAckReqHeader(), ns3::dsr::DsrRouting::CancelPacketTimerNextHop(), DsrSRHeaderTest::DoRun(), ns3::dsr::DsrOptionRerr::DoSendError(), ns3::dsr::DsrOptionSR::Process(), and ns3::dsr::DsrRouting::SalvagePacket().

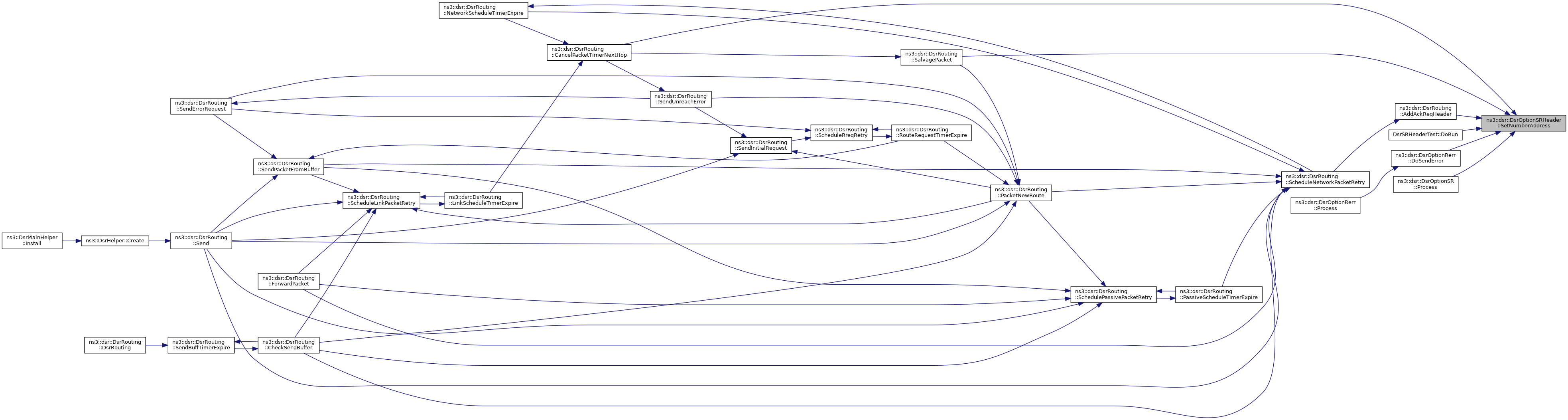

Here is the caller graph for this function:

◆ SetSalvage()

void ns3::dsr::DsrOptionSRHeader::SetSalvage ( uint8_t salvage )

Set the salvage value for a packet.

Parameters

salvage The salvage value of the packet

Definition at line 609 of file dsr-option-header.cc.

References m_salvage.

Referenced by ns3::dsr::DsrRouting::CheckSendBuffer(), DsrSRHeaderTest::DoRun(), ns3::dsr::DsrOptionRerr::DoSendError(), ns3::dsr::DsrRouting::PacketNewRoute(), ns3::dsr::DsrOptionRreq::Process(), ns3::dsr::DsrOptionRrep::Process(), ns3::dsr::DsrOptionSR::Process(), ns3::dsr::DsrRouting::RouteRequestTimerExpire(), ns3::dsr::DsrRouting::SalvagePacket(), ns3::dsr::DsrRouting::Send(), and ns3::dsr::DsrRouting::SendErrorRequest().

Here is the caller graph for this function:

◆ SetSegmentsLeft()

void ns3::dsr::DsrOptionSRHeader::SetSegmentsLeft ( uint8_t segmentsLeft )

Set the number of segments left to send.

Parameters

segmentsLeft The segments left

Definition at line 597 of file dsr-option-header.cc.

References m_segmentsLeft.

Referenced by ns3::dsr::DsrRouting::CheckSendBuffer(), DsrSRHeaderTest::DoRun(), ns3::dsr::DsrOptionRerr::DoSendError(), ns3::dsr::DsrRouting::PacketNewRoute(), ns3::dsr::DsrOptionRreq::Process(), ns3::dsr::DsrOptionRrep::Process(), ns3::dsr::DsrOptionSR::Process(), ns3::dsr::DsrRouting::RouteRequestTimerExpire(), ns3::dsr::DsrRouting::SalvagePacket(), ns3::dsr::DsrRouting::Send(), ns3::dsr::DsrRouting::SendErrorRequest(), and ns3::dsr::DsrRouting::SendUnreachError().

Here is the caller graph for this function:

Member Data Documentation

◆ m_address

Ipv4Address ns3::dsr::DsrOptionSRHeader::m_address

private

The ip address header deserilize to.

Definition at line 678 of file dsr-option-header.h.

Referenced by Deserialize().

◆ m_ipv4Address

VectorIpv4Address_t ns3::dsr::DsrOptionSRHeader::m_ipv4Address

private

The vector of Nodes' IPv4 Address.

Definition at line 694 of file dsr-option-header.h.

Referenced by DsrOptionSRHeader(), Deserialize(), GetNodeAddress(), GetNodeListSize(), GetNodesAddress(), GetSerializedSize(), Print(), Serialize(), SetNodeAddress(), SetNodesAddress(), and SetNumberAddress().

◆ m_salvage

uint8_t ns3::dsr::DsrOptionSRHeader::m_salvage

private

Number of savlage times for a packet.

Definition at line 686 of file dsr-option-header.h.

Referenced by Deserialize(), GetSalvage(), Serialize(), and SetSalvage().

◆ m_segmentsLeft

uint8_t ns3::dsr::DsrOptionSRHeader::m_segmentsLeft

private

Number of left segments.

Definition at line 682 of file dsr-option-header.h.

Referenced by Deserialize(), GetSegmentsLeft(), Serialize(), and SetSegmentsLeft().

The documentation for this class was generated from the following files:

src/dsr/model/dsr-option-header.h
src/dsr/model/dsr-option-header.cc

Public Types

Public Member Functions

Static Public Member Functions

Private Types

Private Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ TracedCallback

◆ VectorIpv4Address_t

Constructor & Destructor Documentation

◆ DsrOptionSRHeader()

◆ ~DsrOptionSRHeader()

Member Function Documentation

◆ Deserialize()

◆ GetAlignment()

◆ GetInstanceTypeId()

◆ GetNodeAddress()

◆ GetNodeListSize()

◆ GetNodesAddress()

◆ GetSalvage()

◆ GetSegmentsLeft()

◆ GetSerializedSize()

◆ GetTypeId()

◆ Print()

◆ Serialize()

◆ SetNodeAddress()

◆ SetNodesAddress()

◆ SetNumberAddress()

◆ SetSalvage()

◆ SetSegmentsLeft()

Member Data Documentation

◆ m_address

◆ m_ipv4Address

◆ m_salvage

◆ m_segmentsLeft
