Helper class providing functions to access various parts of the version string, as well as functions for composing short and long variants of the version string. More...

#include "version.h"

Static Public Member Functions
static std::string	BuildProfile ()
	Indicates the type of build that was performed (debug/release/optimized). More...

static std::string	BuildSummary ()
	Constructs a string containing the most recent tag and status flags. More...

static std::string	ClosestAncestorTag ()
	Returns the closest tag that is attached to a commit that is an ancestor of the current branch head. More...

static std::string	CommitHash ()
	Hash of the most recent commit. More...

static bool	DirtyWorkingTree ()
	Indicates whether there were uncommitted changes during the build. More...

static std::string	LongVersion ()
	Constructs a string containing all of the build details. More...

static uint32_t	Major ()
	Major component of the build version. More...

static uint32_t	Minor ()
	Minor component of the build version. More...

static uint32_t	Patch ()
	Patch component of the build version. More...

static std::string	ReleaseCandidate ()
	Release candidate component of the build version. More...

static std::string	ShortVersion ()
	Constructs a string containing the ns-3 major and minor version components, and indication of additional commits or dirty status. More...

static uint32_t	TagDistance ()
	The number of commits between the current commit and the tag returned by ClosestAncestorTag(). More...

static std::string	VersionTag ()
	Returns the ns-3 version tag of the closest ancestor commit. More...

Detailed Description

Helper class providing functions to access various parts of the version string, as well as functions for composing short and long variants of the version string.

See CommandLine::PrintVersion() for an example on how to use Version to output a version string. command-line-example has been updated to include CommandLine::PrintVersion() in its output

build-version-example.cc illustrates using each of these functions.

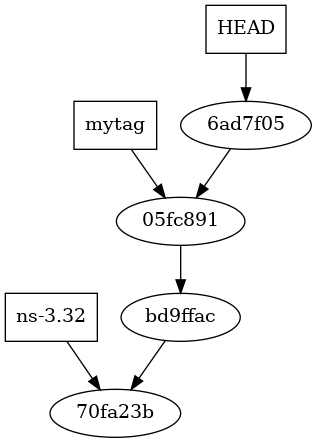

Below is a partial view of a git branch:

Note: Square nodes represent tags; Circle nodes represent commits

Here are the values that will be assigned based on this example branch:

Component	Value	Notes
VersionTag	ns-3.32
ClosestAncestorTag	mytag
Major	3
Minor	32
Patch	0	This version tag does not have a patch field
ReleaseCandidate	""	This version tag does not have a release candidate field
TagDistance	1
CommitHash	g6ad7f05	g at front of hash indicates a git hash
DirtyWorkingTree	Variable	Depends on status of git working and stage areas
BuildProfile	Variable	Depends on the value of –build-profile option of ns3 configure

|

Definition at line 101 of file version.h.

Member Function Documentation

◆ BuildProfile()

std::string ns3::Version::BuildProfile ( )

static

Indicates the type of build that was performed (debug/release/optimized).

This information is set by the –build-profile option of ns3 configure

Returns: String containing the type of build

Definition at line 90 of file version.cc.

Referenced by LongVersion().

Here is the caller graph for this function:

◆ BuildSummary()

std::string ns3::Version::BuildSummary ( )

static

Constructs a string containing the most recent tag and status flags.

In the case where closest-ancestor-tag == version-tag, the output of this function will be the same as ShortVersion()

The format of the constructed string is <closest-ancestor-tag>[flags].

flags will contain + when TagDistance() > 0
flags will contain * when DirtyWorkingTree() == true.

[flags] will contain none, one, or both characters depending on the state of the branch

Returns: String containing the closest ancestor tag and flags.

Definition at line 115 of file version.cc.

References ClosestAncestorTag(), DirtyWorkingTree(), and TagDistance().

Here is the call graph for this function:

◆ ClosestAncestorTag()

std::string ns3::Version::ClosestAncestorTag ( )

static

Returns the closest tag that is attached to a commit that is an ancestor of the current branch head.

The value returned by this function may be the same as VersionTag() if the ns-3 version tag is the closest ancestor tag.

Returns: Closest tag attached to an ancestor of the current commit

Definition at line 42 of file version.cc.

Referenced by BuildSummary(), LongVersion(), and ShortVersion().

Here is the caller graph for this function:

◆ CommitHash()

std::string ns3::Version::CommitHash ( )

static

Hash of the most recent commit.

The hash component is the id of the most recent commit. The returned value is a hexadecimal string with enough data to uniquely identify the commit.

The first character of the string is a letter indicating the type of repository that was in use: g=git

Example of hash output: g6bfb0c9

Returns: hexadecimal representation of the most recent commit id

Definition at line 84 of file version.cc.

Referenced by LongVersion().

Here is the caller graph for this function:

◆ DirtyWorkingTree()

bool ns3::Version::DirtyWorkingTree ( )

static

Indicates whether there were uncommitted changes during the build.

Returns: true if the working tree had uncommitted changes.

Definition at line 78 of file version.cc.

Referenced by BuildSummary(), LongVersion(), and ShortVersion().

Here is the caller graph for this function:

◆ LongVersion()

std::string ns3::Version::LongVersion ( )

static

Constructs a string containing all of the build details.

The format of the constructed string is

* ns-<major>.<minor>[.patch][-rc][-closest-tag]-<tag-distance>@<hash>[-dirty]-<build-profile>
*

[patch], [rc], [closest-tag], and [dirty] will only be present under certain circumstances:

[patch] is included when Patch() > 0
[rc] is included when ReleaseCandidate() is not an empty string
[closest-tag] is included when ClosestTag() != VersionTag()
[dirty] is included when DirtyWorkingTree() is true

Returns: String containing full version

Definition at line 133 of file version.cc.

References BuildProfile(), ClosestAncestorTag(), CommitHash(), DirtyWorkingTree(), TagDistance(), and VersionTag().

Referenced by ns3::CommandLine::GetVersion().

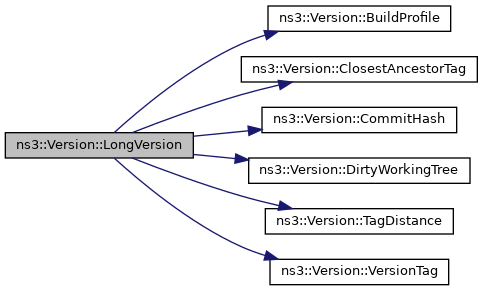

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Major()

uint32_t ns3::Version::Major ( )

static

Major component of the build version.

The format of the build version string is

ns-<major>.<minor>[.patch][-RC<digit>]

The major component is the number before the first period

Returns: The major component of the build version

Definition at line 48 of file version.cc.

◆ Minor()

uint32_t ns3::Version::Minor ( )

static

Minor component of the build version.

The format of the build version string is

ns-<major>.<minor>[.patch][-RC<digit>]

The minor component is the number after the first period

Returns: The minor component of the build version

Definition at line 54 of file version.cc.

◆ Patch()

uint32_t ns3::Version::Patch ( )

static

Patch component of the build version.

A build version with a patch component will have the format

ns-<major>.<minor>.<patch>

The patch component is the number after the second period

Returns: The patch component of the build version or 0 if the build version does not have a patch component

Definition at line 60 of file version.cc.

◆ ReleaseCandidate()

std::string ns3::Version::ReleaseCandidate ( )

static

Release candidate component of the build version.

A build version with a release candidate will have the format

ns-<major>.<minor>[.patch]-RC<digit>

The string returned by this function will have the format RC<digit>

Returns: The release candidate component of the build version or an empty string if the build version does not have a release candidate component

Definition at line 66 of file version.cc.

◆ ShortVersion()

std::string ns3::Version::ShortVersion ( )

static

Constructs a string containing the ns-3 major and minor version components, and indication of additional commits or dirty status.

The format of the constructed string is

ns-<major>.<minor>[.patch][-rc]<flags>

[patch] is included when Patch() > 0.
[-rc] is included when ReleaseCandidate() contains a non-empty string
flags will contain + when TagDistance() > 0
flags will contain * when DirtyWorkingTree() == true.

[flags] will contain none, one, or both characters depending on the state of the branch

Returns: String containing the ns-3 major and minor components and flags.

Definition at line 96 of file version.cc.

References ClosestAncestorTag(), DirtyWorkingTree(), TagDistance(), and VersionTag().

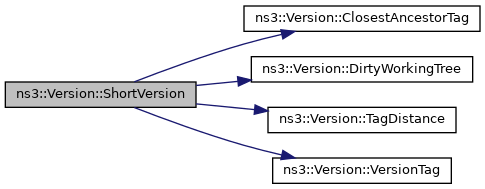

Here is the call graph for this function:

◆ TagDistance()

uint32_t ns3::Version::TagDistance ( )

static

The number of commits between the current commit and the tag returned by ClosestAncestorTag().

Returns: The number of commits made since the last tagged commit

Definition at line 72 of file version.cc.

Referenced by BuildSummary(), LongVersion(), and ShortVersion().

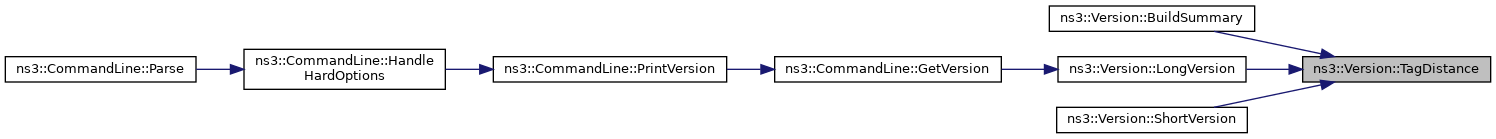

Here is the caller graph for this function:

◆ VersionTag()

std::string ns3::Version::VersionTag ( )

static

Returns the ns-3 version tag of the closest ancestor commit.

The format of the tag is

ns3-<major>.<minor>[.patch]

The patch field is optional and may not be present. The value of patch defaults to 0 if the tag does not have a patch field.

Returns: ns-3 version tag

Definition at line 36 of file version.cc.

Referenced by LongVersion(), and ShortVersion().

Here is the caller graph for this function:

The documentation for this class was generated from the following files:

src/core/model/version.h
src/core/model/version.cc
