A container for one type of attribute. More...

#include "attribute-container.h"

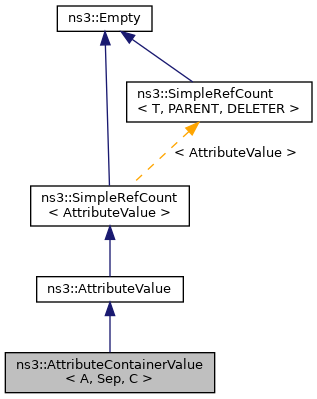

Inheritance diagram for ns3::AttributeContainerValue< A, Sep, C >:

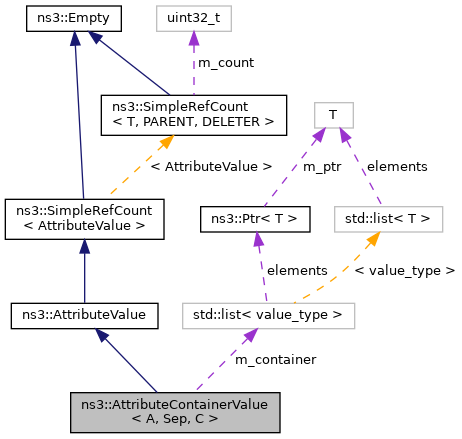

Collaboration diagram for ns3::AttributeContainerValue< A, Sep, C >:

Public Types
typedef A	attribute_type
	AttributeValue (element) type. More...

typedef container_type::const_iterator	const_iterator
	stl-style Const iterator type. More...

typedef std::list< value_type >	container_type
	Internal container type. More...

typedef std::invoke_result_t< decltype(&A::Get), A >	item_type
	Item type of container returned by Get. More...

typedef container_type::iterator	iterator
	stl-style Non-const iterator type. More...

typedef AttributeContainerValue::const_iterator	Iterator
	NS3 style iterator type. More...

typedef C< item_type >	result_type
	Type of container returned. More...

typedef container_type::size_type	size_type
	Size type for container. More...

typedef Ptr< A >	value_type
	Type actually stored within the container. More...

Public Member Functions
	AttributeContainerValue ()
	Default constructor. More...

template<class CONTAINER >
	AttributeContainerValue (const CONTAINER &c)
	Construct from another container. More...

template<class ITER >
	AttributeContainerValue (const ITER begin, const ITER end)
	Construct from iterators. More...

	~AttributeContainerValue () override
	Destructor. More...

Iterator	Begin ()
	NS3-style beginning of container. More...

iterator	begin ()
	STL-style beginning of container. More...

const_iterator	begin () const
	STL-style const beginning of container. More...

Ptr< AttributeValue >	Copy () const override

bool	DeserializeFromString (std::string value, Ptr< const AttributeChecker > checker) override

Iterator	End ()
	NS3-style ending of container. More...

iterator	end ()
	STL-style end of container. More...

const_iterator	end () const
	STL-style const end of container. More...

result_type	Get () const
	Return a container of items. More...

template<typename T >
bool	GetAccessor (T &value) const
	Set the given variable to the values stored by this TupleValue object. More...

size_type	GetN () const
	NS3-style Number of items. More...

std::string	SerializeToString (Ptr< const AttributeChecker > checker) const override

template<class T >
void	Set (const T &c)
	Copy items from container c. More...

size_type	size () const
	STL-style number of items in container. More...

Public Member Functions inherited from ns3::AttributeValue
	AttributeValue ()

virtual	~AttributeValue ()

Public Member Functions inherited from ns3::SimpleRefCount< AttributeValue >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Private Member Functions
template<class ITER >
Ptr< AttributeContainerValue< A, Sep, C > >	CopyFrom (const ITER begin, const ITER end)
	Copy items from begin to end. More...

Private Attributes
container_type	m_container
	Internal container. More...

Detailed Description

template<class A, char Sep = ',', template< class... > class C = std::list>
class ns3::AttributeContainerValue< A, Sep, C >

A container for one type of attribute.

The container uses A to parse items into elements. Internally the container is always a list but an instance can return the items in a container specified by C.

Template Parameters

A	AttributeValue type to be contained.
Sep	Character separator between elements for parsing.
C	Possibly templated container class returned by Get.

Definition at line 52 of file attribute-container.h.

Member Typedef Documentation

◆ attribute_type

template<class A , char Sep = ',', template< class... > class C = std::list>

typedef A ns3::AttributeContainerValue< A, Sep, C >::attribute_type

AttributeValue (element) type.

Definition at line 56 of file attribute-container.h.

◆ const_iterator

template<class A , char Sep = ',', template< class... > class C = std::list>

typedef container_type::const_iterator ns3::AttributeContainerValue< A, Sep, C >::const_iterator

stl-style Const iterator type.

Definition at line 62 of file attribute-container.h.

◆ container_type

template<class A , char Sep = ',', template< class... > class C = std::list>

typedef std::list<value_type> ns3::AttributeContainerValue< A, Sep, C >::container_type

Internal container type.

Definition at line 60 of file attribute-container.h.

◆ item_type

template<class A , char Sep = ',', template< class... > class C = std::list>

typedef std::invoke_result_t<decltype(&A::Get), A> ns3::AttributeContainerValue< A, Sep, C >::item_type

Item type of container returned by Get.

Definition at line 72 of file attribute-container.h.

◆ iterator

template<class A , char Sep = ',', template< class... > class C = std::list>

typedef container_type::iterator ns3::AttributeContainerValue< A, Sep, C >::iterator

stl-style Non-const iterator type.

Definition at line 64 of file attribute-container.h.

◆ Iterator

template<class A , char Sep = ',', template< class... > class C = std::list>

typedef AttributeContainerValue::const_iterator ns3::AttributeContainerValue< A, Sep, C >::Iterator

NS3 style iterator type.

Definition at line 68 of file attribute-container.h.

◆ result_type

template<class A , char Sep = ',', template< class... > class C = std::list>

typedef C<item_type> ns3::AttributeContainerValue< A, Sep, C >::result_type

Type of container returned.

Definition at line 74 of file attribute-container.h.

◆ size_type

template<class A , char Sep = ',', template< class... > class C = std::list>

typedef container_type::size_type ns3::AttributeContainerValue< A, Sep, C >::size_type

Size type for container.

Definition at line 66 of file attribute-container.h.

◆ value_type

template<class A , char Sep = ',', template< class... > class C = std::list>

typedef Ptr<A> ns3::AttributeContainerValue< A, Sep, C >::value_type

Type actually stored within the container.

Definition at line 58 of file attribute-container.h.

Constructor & Destructor Documentation

◆ AttributeContainerValue() [1/3]

template<class A , char Sep, template< class... > class C>

ns3::AttributeContainerValue< A, Sep, C >::AttributeContainerValue

Default constructor.

Definition at line 384 of file attribute-container.h.

◆ AttributeContainerValue() [2/3]

template<class A , char Sep, template< class... > class C>

template<class CONTAINER >

ns3::AttributeContainerValue< A, Sep, C >::AttributeContainerValue ( const CONTAINER & c )

Construct from another container.

Template Parameters

CONTAINER [deduced] type of container passed for initialization.

Parameters

c	Instance of CONTAINER with which to initialize AttributeContainerValue.

Definition at line 390 of file attribute-container.h.

◆ AttributeContainerValue() [3/3]

template<class A , char Sep, template< class... > class C>

template<class ITER >

ns3::AttributeContainerValue< A, Sep, C >::AttributeContainerValue	(	const ITER	begin,
		const ITER	end
	)

Construct from iterators.

Template Parameters

ITER	[deduced] type of iterator.

Parameters

[in]	begin	Iterator that points to first initialization item.
[in]	end	Iterator that points ones past last initialization item.

Definition at line 397 of file attribute-container.h.

References ns3::AttributeContainerValue< A, Sep, C >::begin(), ns3::AttributeContainerValue< A, Sep, C >::CopyFrom(), and ns3::AttributeContainerValue< A, Sep, C >::end().

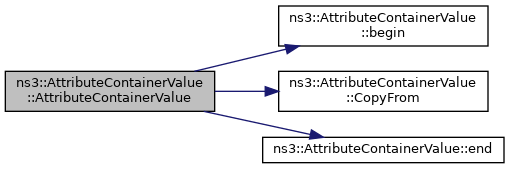

Here is the call graph for this function:

◆ ~AttributeContainerValue()

template<class A , char Sep, template< class... > class C>

ns3::AttributeContainerValue< A, Sep, C >::~AttributeContainerValue

override

Destructor.

Definition at line 404 of file attribute-container.h.

Member Function Documentation

◆ Begin()

template<class A , char Sep, template< class... > class C>

AttributeContainerValue< A, Sep, C >::Iterator ns3::AttributeContainerValue< A, Sep, C >::Begin

NS3-style beginning of container.

Returns: Iterator pointing to first time in container.

Definition at line 509 of file attribute-container.h.

Referenced by AttributeContainerTestCase::DoRun().

Here is the caller graph for this function:

◆ begin() [1/2]

template<class A , char Sep, template< class... > class C>

AttributeContainerValue< A, Sep, C >::iterator ns3::AttributeContainerValue< A, Sep, C >::begin

STL-style beginning of container.

Returns: Iterator pointing to first item in container.

Definition at line 530 of file attribute-container.h.

Referenced by ns3::AttributeContainerValue< A, Sep, C >::AttributeContainerValue(), and AttributeContainerSetGetTestCase::DoRun().

Here is the caller graph for this function:

◆ begin() [2/2]

template<class A , char Sep, template< class... > class C>

AttributeContainerValue< A, Sep, C >::const_iterator ns3::AttributeContainerValue< A, Sep, C >::begin

STL-style const beginning of container.

Returns: Const iterator pointing to first item in container.

Definition at line 544 of file attribute-container.h.

◆ Copy()

template<class A , char Sep, template< class... > class C>

Ptr< AttributeValue > ns3::AttributeContainerValue< A, Sep, C >::Copy ( ) const

overridevirtual

Returns: a deep copy of this class, wrapped into an Attribute object.

Implements ns3::AttributeValue.

Definition at line 411 of file attribute-container.h.

◆ CopyFrom()

template<class A , char Sep, template< class... > class C>

template<class ITER >

Ptr< AttributeContainerValue< A, Sep, C > > ns3::AttributeContainerValue< A, Sep, C >::CopyFrom	(	const ITER	begin,
		const ITER	end
	)

private

Copy items from begin to end.

The internal container is cleared before values are copied using the push_back method.

Template Parameters

ITER	[deduced] iterator type

Parameters

[in]	begin	Points to first item to copy
[in]	end	Points to one after last item to copy

Returns: This object with items copied.

Definition at line 559 of file attribute-container.h.

Referenced by ns3::AttributeContainerValue< A, Sep, C >::AttributeContainerValue().

Here is the caller graph for this function:

◆ DeserializeFromString()

template<class A , char Sep, template< class... > class C>

bool ns3::AttributeContainerValue< A, Sep, C >::DeserializeFromString	(	std::string	value,
		Ptr< const AttributeChecker >	checker
	)

overridevirtual

Parameters

[in]	value	A string representation of the value
[in]	checker	A pointer to the checker associated to the attribute.

Returns: true if the input string was correctly-formatted and could be successfully deserialized, false otherwise.

Upon return of this function, this AttributeValue instance contains the deserialized value. In most cases, this method will not make any use of the checker argument. However, in a very limited set of cases, the checker argument is needed to perform proper serialization. A nice example of code which needs it is the EnumValue::SerializeToString code.

Implements ns3::AttributeValue.

Definition at line 420 of file attribute-container.h.

Referenced by AttributeContainerSerializationTestCase::DoRun().

Here is the caller graph for this function:

◆ End()

template<class A , char Sep, template< class... > class C>

AttributeContainerValue< A, Sep, C >::Iterator ns3::AttributeContainerValue< A, Sep, C >::End

NS3-style ending of container.

Returns: Iterator pointing one past last item of container.

Definition at line 516 of file attribute-container.h.

Referenced by AttributeContainerTestCase::DoRun().

Here is the caller graph for this function:

◆ end() [1/2]

template<class A , char Sep, template< class... > class C>

AttributeContainerValue< A, Sep, C >::iterator ns3::AttributeContainerValue< A, Sep, C >::end

STL-style end of container.

Returns: Iterator pointing to one past last item in container.

Definition at line 537 of file attribute-container.h.

Referenced by ns3::AttributeContainerValue< A, Sep, C >::AttributeContainerValue(), grid.TimelinesRenderer::draw_events(), and grid.TimelinesRenderer::draw_ranges().

Here is the caller graph for this function:

◆ end() [2/2]

template<class A , char Sep, template< class... > class C>

AttributeContainerValue< A, Sep, C >::const_iterator ns3::AttributeContainerValue< A, Sep, C >::end

STL-style const end of container.

Returns: Const iterator pointing to one past last item in container.

Definition at line 551 of file attribute-container.h.

Referenced by grid.TimelinesRenderer::draw_events(), and grid.TimelinesRenderer::draw_ranges().

Here is the caller graph for this function:

◆ Get()

template<class A , char Sep, template< class... > class C>

AttributeContainerValue< A, Sep, C >::result_type ns3::AttributeContainerValue< A, Sep, C >::Get

Return a container of items.

Returns: Container of items.

Definition at line 470 of file attribute-container.h.

◆ GetAccessor()

template<class A , char Sep, template< class... > class C>

template<typename T >

bool ns3::AttributeContainerValue< A, Sep, C >::GetAccessor ( T & value ) const

Set the given variable to the values stored by this TupleValue object.

Template Parameters

T	[deduced] the type of the given variable (normally, the argument type of a set method or the type of a data member)

Parameters

value the given variable

Returns: true if the given variable was set

Definition at line 483 of file attribute-container.h.

◆ GetN()

template<class A , char Sep, template< class... > class C>

AttributeContainerValue< A, Sep, C >::size_type ns3::AttributeContainerValue< A, Sep, C >::GetN

NS3-style Number of items.

Returns: Number of items in container.

Definition at line 502 of file attribute-container.h.

Referenced by AttributeContainerTestCase::DoRun(), and AttributeContainerSerializationTestCase::DoRun().

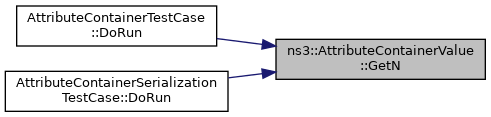

Here is the caller graph for this function:

◆ SerializeToString()

template<class A , char Sep, template< class... > class C>

std::string ns3::AttributeContainerValue< A, Sep, C >::SerializeToString ( Ptr< const AttributeChecker > checker ) const

overridevirtual

Parameters

[in] checker The checker associated to the attribute

Returns: A string representation of this value.

In most cases, this method will not make any use of the checker argument. However, in a very limited set of cases, the checker argument is needed to perform proper serialization. A nice example of code which needs it is the EnumValue::SerializeToString code.

Implements ns3::AttributeValue.

Definition at line 452 of file attribute-container.h.

Referenced by AttributeContainerSerializationTestCase::DoRun().

Here is the caller graph for this function:

◆ Set()

template<class A , char Sep, template< class... > class C>

template<class T >

void ns3::AttributeContainerValue< A, Sep, C >::Set ( const T & c )

Copy items from container c.

This method assumes c has stl-style begin and end methods. The AttributeContainerValue value is cleared before copying from c.

Template Parameters

T	type of container.

Parameters

c	Container from which to copy items.

Definition at line 494 of file attribute-container.h.

◆ size()

template<class A , char Sep, template< class... > class C>

AttributeContainerValue< A, Sep, C >::size_type ns3::AttributeContainerValue< A, Sep, C >::size

STL-style number of items in container.

Returns: number of items in container.

Definition at line 523 of file attribute-container.h.

Referenced by AttributeContainerSetGetTestCase::DoRun().

Here is the caller graph for this function:

Member Data Documentation

◆ m_container

template<class A , char Sep = ',', template< class... > class C = std::list>

container_type ns3::AttributeContainerValue< A, Sep, C >::m_container

private

Internal container.

Definition at line 191 of file attribute-container.h.

The documentation for this class was generated from the following file:

src/core/model/attribute-container.h

Public Types

Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

template<class A, char Sep = ',', template< class... > class C = std::list> class ns3::AttributeContainerValue< A, Sep, C >

Member Typedef Documentation

◆ attribute_type

◆ const_iterator

◆ container_type

◆ item_type

◆ iterator

◆ Iterator

◆ result_type

◆ size_type

◆ value_type

Constructor & Destructor Documentation

◆ AttributeContainerValue() [1/3]

◆ AttributeContainerValue() [2/3]

◆ AttributeContainerValue() [3/3]

◆ ~AttributeContainerValue()

Member Function Documentation

◆ Begin()

◆ begin() [1/2]

◆ begin() [2/2]

◆ Copy()

◆ CopyFrom()

◆ DeserializeFromString()

◆ End()

◆ end() [1/2]

◆ end() [2/2]

◆ Get()

◆ GetAccessor()

◆ GetN()

◆ SerializeToString()

◆ Set()

◆ size()

Member Data Documentation

◆ m_container

template<class A, char Sep = ',', template< class... > class C = std::list>
class ns3::AttributeContainerValue< A, Sep, C >
