Public Member Functions | Public Attributes | List of all members
ns3::olsr::RoutingTableEntry Struct Reference
OLSR Routing

An OLSR's routing table entry. More...

#include "olsr-routing-protocol.h"

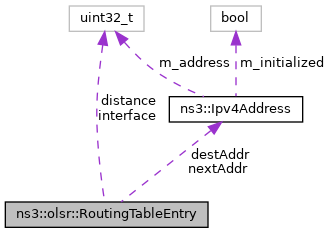

+ Collaboration diagram for ns3::olsr::RoutingTableEntry:

Public Member Functions

 RoutingTableEntry ()


Public Attributes

Ipv4Address destAddr
 Address of the destination node. More...

uint32_t distance
 Distance in hops to the destination. More...

uint32_t interface
 Interface index. More...

Ipv4Address nextAddr
 Address of the next hop. More...


Detailed Description

An OLSR's routing table entry.

Definition at line 60 of file olsr-routing-protocol.h.

Constructor & Destructor Documentation

◆ RoutingTableEntry()

ns3::olsr::RoutingTableEntry::RoutingTableEntry ( )
inline

Definition at line 67 of file olsr-routing-protocol.h.

Member Data Documentation

◆ destAddr

Ipv4Address ns3::olsr::RoutingTableEntry::destAddr

Address of the destination node.

Definition at line 62 of file olsr-routing-protocol.h.

Referenced by ns3::olsr::RoutingProtocol::AddEntry(), and ns3::olsr::RoutingProtocol::FindSendEntry().

◆ distance

uint32_t ns3::olsr::RoutingTableEntry::distance

Distance in hops to the destination.

Definition at line 65 of file olsr-routing-protocol.h.

Referenced by ns3::olsr::RoutingProtocol::AddEntry(), and ns3::olsr::RoutingProtocol::RoutingTableComputation().

◆ interface

uint32_t ns3::olsr::RoutingTableEntry::interface

Interface index.

Definition at line 64 of file olsr-routing-protocol.h.

Referenced by ns3::olsr::RoutingProtocol::AddEntry(), ns3::olsr::RoutingProtocol::RouteInput(), ns3::olsr::RoutingProtocol::RouteOutput(), and ns3::olsr::RoutingProtocol::RoutingTableComputation().

◆ nextAddr

Ipv4Address ns3::olsr::RoutingTableEntry::nextAddr

Address of the next hop.

Definition at line 63 of file olsr-routing-protocol.h.

Referenced by ns3::olsr::RoutingProtocol::AddEntry(), ns3::olsr::RoutingProtocol::FindSendEntry(), ns3::olsr::RoutingProtocol::RouteInput(), ns3::olsr::RoutingProtocol::RouteOutput(), and ns3::olsr::RoutingProtocol::RoutingTableComputation().

The documentation for this struct was generated from the following file:
