Represent the Superframe Specification information field. More...

#include "lr-wpan-fields.h"

Collaboration diagram for ns3::SuperframeField:

Public Member Functions
	SuperframeField ()

	SuperframeField (uint16_t bitmap)
	Create a superframe Specification Information field with the information specified in the bitmap. More...

uint8_t	GetBeaconOrder () const
	Get the Superframe Specification Beacon Order field. More...

uint8_t	GetFinalCapSlot () const
	Get the the Final CAP Slot. More...

uint8_t	GetFrameOrder () const
	Get the Superframe Specification Frame Order field. More...

uint16_t	GetSuperframe () const
	Get the Superframe specification information field. More...

bool	IsAssocPermit () const
	Check if the Association Permit bit is enabled. More...

bool	IsBattLifeExt () const
	Check if the Battery Life Extension bit is enabled. More...

bool	IsPanCoor () const
	Check if the PAN Coordinator bit is enabled. More...

void	SetAssocPermit (bool assocPermit)
	Set the Superframe Specification Association Permit field. More...

void	SetBattLifeExt (bool battLifeExt)
	Set the Superframe Specification Battery Life Extension (BLE). More...

void	SetBeaconOrder (uint8_t bcnOrder)
	Set the superframe specification Beacon Order field. More...

void	SetFinalCapSlot (uint8_t capSlot)
	Set the superframe specification Final CAP slot field. More...

void	SetPanCoor (bool panCoor)
	Set the Superframe Specification PAN coordinator field. More...

void	SetSuperframe (uint16_t superFrm)
	Set the whole Superframe Specification Information field. More...

void	SetSuperframeOrder (uint8_t frmOrder)
	Set the superframe specification Superframe Order field. More...

Private Attributes
bool	m_sspecAssocPermit
	Superframe Specification field Association Permit (Bit 15) More...

bool	m_sspecBatLifeExt
	Superframe Specification field Battery Life Extension (Bit 12) More...

uint8_t	m_sspecBcnOrder
	Superframe Specification field Beacon Order (Bit 0-3) More...

uint8_t	m_sspecFnlCapSlot
	Superframe Specification field Final CAP slot (Bit 8-11) More...

bool	m_sspecPanCoor
	Superframe Specification field PAN Coordinator (Bit 14) More...

uint8_t	m_sspecSprFrmOrder
	Superframe Specification field Superframe Order (Bit 4-7) More...

Detailed Description

Represent the Superframe Specification information field.

See IEEE 802.15.4-2011 Section 5.2.2.1.2 Figure 41

Definition at line 53 of file lr-wpan-fields.h.

Constructor & Destructor Documentation

◆ SuperframeField() [1/2]

ns3::SuperframeField::SuperframeField ( )

Definition at line 28 of file lr-wpan-fields.cc.

References SetAssocPermit(), SetBattLifeExt(), SetBeaconOrder(), SetFinalCapSlot(), SetPanCoor(), and SetSuperframeOrder().

Here is the call graph for this function:

◆ SuperframeField() [2/2]

ns3::SuperframeField::SuperframeField ( uint16_t bitmap )

Create a superframe Specification Information field with the information specified in the bitmap.

Parameters

bitmap The superframe in bitmap form

Definition at line 38 of file lr-wpan-fields.cc.

References SetSuperframe().

Here is the call graph for this function:

Member Function Documentation

◆ GetBeaconOrder()

uint8_t ns3::SuperframeField::GetBeaconOrder ( ) const

Get the Superframe Specification Beacon Order field.

Returns: the Superframe Specification Beacon Order field.

Definition at line 113 of file lr-wpan-fields.cc.

References m_sspecBcnOrder.

Referenced by ns3::operator<<(), and ns3::LrWpanMac::PdDataIndication().

Here is the caller graph for this function:

◆ GetFinalCapSlot()

uint8_t ns3::SuperframeField::GetFinalCapSlot ( ) const

Get the the Final CAP Slot.

Returns: The Final CAP Slot

Definition at line 125 of file lr-wpan-fields.cc.

References m_sspecFnlCapSlot.

Referenced by ns3::operator<<(), and ns3::LrWpanMac::PdDataIndication().

Here is the caller graph for this function:

◆ GetFrameOrder()

uint8_t ns3::SuperframeField::GetFrameOrder ( ) const

Get the Superframe Specification Frame Order field.

Returns: The Superframe Specification Frame Order field.

Definition at line 119 of file lr-wpan-fields.cc.

References m_sspecSprFrmOrder.

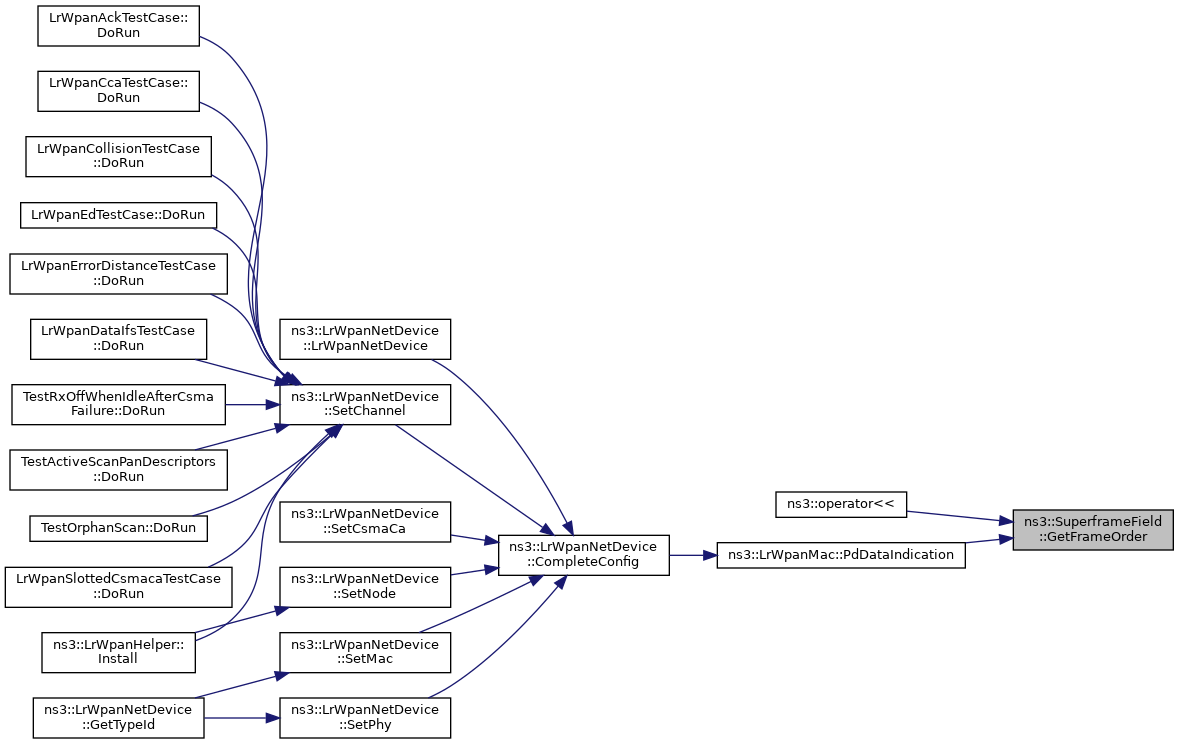

Referenced by ns3::operator<<(), and ns3::LrWpanMac::PdDataIndication().

Here is the caller graph for this function:

◆ GetSuperframe()

uint16_t ns3::SuperframeField::GetSuperframe ( ) const

Get the Superframe specification information field.

Returns: the Superframe Specification Information field bits.

Definition at line 149 of file lr-wpan-fields.cc.

References m_sspecAssocPermit, m_sspecBatLifeExt, m_sspecBcnOrder, m_sspecFnlCapSlot, m_sspecPanCoor, and m_sspecSprFrmOrder.

Referenced by ns3::LrWpanMac::GetSuperframeField().

Here is the caller graph for this function:

◆ IsAssocPermit()

bool ns3::SuperframeField::IsAssocPermit ( ) const

Check if the Association Permit bit is enabled.

Returns: true if the Association Permit bit is enabled

Definition at line 143 of file lr-wpan-fields.cc.

References m_sspecAssocPermit.

Referenced by ns3::operator<<(), and ScanConfirm().

Here is the caller graph for this function:

◆ IsBattLifeExt()

bool ns3::SuperframeField::IsBattLifeExt ( ) const

Check if the Battery Life Extension bit is enabled.

Returns: true if the Battery Life Extension bit is enabled

Definition at line 131 of file lr-wpan-fields.cc.

References m_sspecBatLifeExt.

Referenced by ns3::operator<<(), and ns3::LrWpanMac::PdDataIndication().

Here is the caller graph for this function:

◆ IsPanCoor()

bool ns3::SuperframeField::IsPanCoor ( ) const

Check if the PAN Coordinator bit is enabled.

Returns: true if the PAN Coordinator bit is enabled

Definition at line 137 of file lr-wpan-fields.cc.

References m_sspecPanCoor.

Referenced by ns3::operator<<().

Here is the caller graph for this function:

◆ SetAssocPermit()

void ns3::SuperframeField::SetAssocPermit ( bool assocPermit )

Set the Superframe Specification Association Permit field.

Parameters

assocPermit set true or false the value of the Association Permit flag of the superframe field.

Definition at line 107 of file lr-wpan-fields.cc.

References m_sspecAssocPermit.

Referenced by SuperframeField(), and ns3::LrWpanMac::GetSuperframeField().

Here is the caller graph for this function:

◆ SetBattLifeExt()

void ns3::SuperframeField::SetBattLifeExt ( bool battLifeExt )

Set the Superframe Specification Battery Life Extension (BLE).

Parameters

battLifeExt Sets true or false the value of the Battery Life Extension flag of the superframe field.

Definition at line 95 of file lr-wpan-fields.cc.

References m_sspecBatLifeExt.

Referenced by SuperframeField(), and ns3::LrWpanMac::GetSuperframeField().

Here is the caller graph for this function:

◆ SetBeaconOrder()

void ns3::SuperframeField::SetBeaconOrder ( uint8_t bcnOrder )

Set the superframe specification Beacon Order field.

Parameters

bcnOrder The beacon order value to set in the superframe.

Definition at line 56 of file lr-wpan-fields.cc.

References m_sspecBcnOrder, and NS_ABORT_MSG.

Referenced by SuperframeField(), and ns3::LrWpanMac::GetSuperframeField().

Here is the caller graph for this function:

◆ SetFinalCapSlot()

void ns3::SuperframeField::SetFinalCapSlot ( uint8_t capSlot )

Set the superframe specification Final CAP slot field.

Parameters

capSlot Set the final slot of the Contention Access Period (CAP).

Definition at line 82 of file lr-wpan-fields.cc.

References m_sspecFnlCapSlot, and NS_ABORT_MSG.

Referenced by SuperframeField(), and ns3::LrWpanMac::GetSuperframeField().

Here is the caller graph for this function:

◆ SetPanCoor()

void ns3::SuperframeField::SetPanCoor ( bool panCoor )

Set the Superframe Specification PAN coordinator field.

Parameters

panCoor set true or false the value for the PAN Coordinator flag of the superframe field.

Definition at line 101 of file lr-wpan-fields.cc.

References m_sspecPanCoor.

Referenced by SuperframeField(), and ns3::LrWpanMac::GetSuperframeField().

Here is the caller graph for this function:

◆ SetSuperframe()

void ns3::SuperframeField::SetSuperframe ( uint16_t superFrm )

Set the whole Superframe Specification Information field.

Parameters

superFrm The Superframe Specification information field.

Definition at line 44 of file lr-wpan-fields.cc.

References m_sspecAssocPermit, m_sspecBatLifeExt, m_sspecBcnOrder, m_sspecFnlCapSlot, m_sspecPanCoor, and m_sspecSprFrmOrder.

Referenced by SuperframeField().

Here is the caller graph for this function:

◆ SetSuperframeOrder()

void ns3::SuperframeField::SetSuperframeOrder ( uint8_t frmOrder )

Set the superframe specification Superframe Order field.

Parameters

frmOrder The frame Order value to set on the superframe.

Definition at line 69 of file lr-wpan-fields.cc.

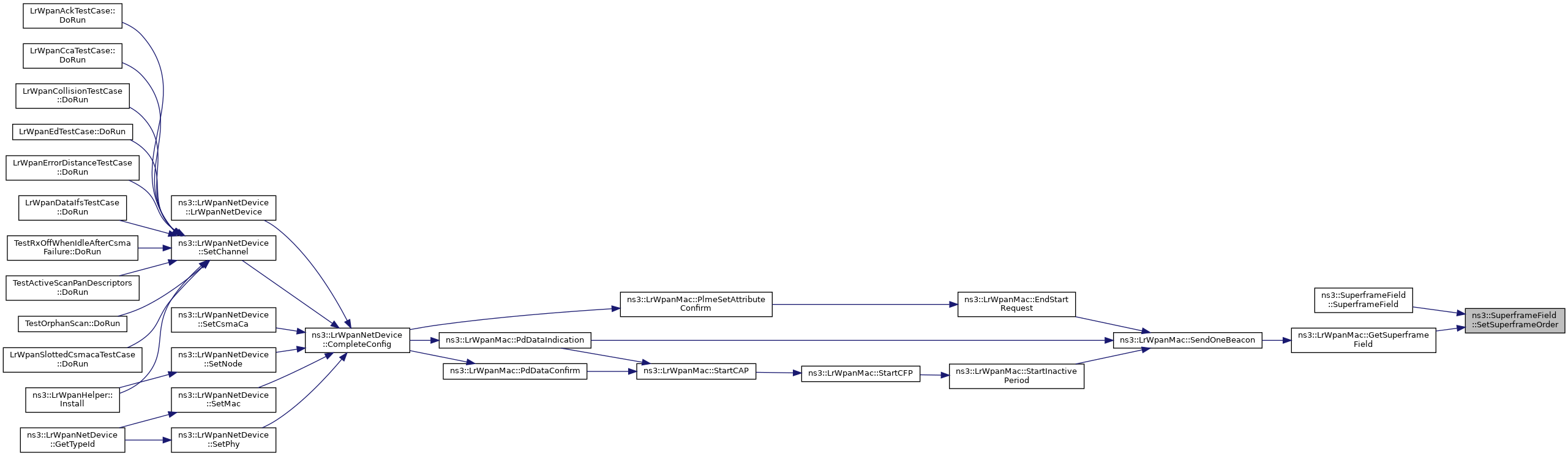

References m_sspecSprFrmOrder, and NS_ABORT_MSG.

Referenced by SuperframeField(), and ns3::LrWpanMac::GetSuperframeField().

Here is the caller graph for this function:

Member Data Documentation

◆ m_sspecAssocPermit

bool ns3::SuperframeField::m_sspecAssocPermit

private

Superframe Specification field Association Permit (Bit 15)

Definition at line 148 of file lr-wpan-fields.h.

Referenced by GetSuperframe(), IsAssocPermit(), SetAssocPermit(), and SetSuperframe().

◆ m_sspecBatLifeExt

bool ns3::SuperframeField::m_sspecBatLifeExt

private

Superframe Specification field Battery Life Extension (Bit 12)

Superframe Specification field Reserved (not necessary) (Bit 13)

Definition at line 145 of file lr-wpan-fields.h.

Referenced by GetSuperframe(), IsBattLifeExt(), SetBattLifeExt(), and SetSuperframe().

◆ m_sspecBcnOrder

uint8_t ns3::SuperframeField::m_sspecBcnOrder

private

Superframe Specification field Beacon Order (Bit 0-3)

Definition at line 142 of file lr-wpan-fields.h.

Referenced by GetBeaconOrder(), GetSuperframe(), SetBeaconOrder(), and SetSuperframe().

◆ m_sspecFnlCapSlot

uint8_t ns3::SuperframeField::m_sspecFnlCapSlot

private

Superframe Specification field Final CAP slot (Bit 8-11)

Definition at line 144 of file lr-wpan-fields.h.

Referenced by GetFinalCapSlot(), GetSuperframe(), SetFinalCapSlot(), and SetSuperframe().

◆ m_sspecPanCoor

bool ns3::SuperframeField::m_sspecPanCoor

private

Superframe Specification field PAN Coordinator (Bit 14)

Definition at line 147 of file lr-wpan-fields.h.

Referenced by GetSuperframe(), IsPanCoor(), SetPanCoor(), and SetSuperframe().

◆ m_sspecSprFrmOrder

uint8_t ns3::SuperframeField::m_sspecSprFrmOrder

private

Superframe Specification field Superframe Order (Bit 4-7)

Definition at line 143 of file lr-wpan-fields.h.

Referenced by GetFrameOrder(), GetSuperframe(), SetSuperframe(), and SetSuperframeOrder().

The documentation for this class was generated from the following files:

src/lr-wpan/model/lr-wpan-fields.h
src/lr-wpan/model/lr-wpan-fields.cc
