ns3::dot11s::DestinationAddressUnit Class Reference

Describes an address unit in PREQ information element See 7.3.2.96 for more details. More...

#include "ie-dot11s-preq.h"

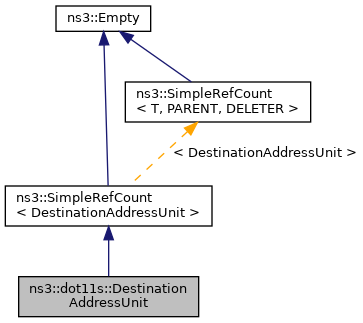

Inheritance diagram for ns3::dot11s::DestinationAddressUnit:

Collaboration diagram for ns3::dot11s::DestinationAddressUnit:

Public Member Functions
	DestinationAddressUnit ()
Mac48Address	GetDestinationAddress () const
	Get destination address function. More...
uint32_t	GetDestSeqNumber () const
	Get destination sequence number. More...
bool	IsDo () const
	Is do function. More...
bool	IsRf () const
	is RF function More...
bool	IsUsn () const
	Is USN function. More...
void	SetDestinationAddress (Mac48Address dest_address)
	Set destination address function. More...
void	SetDestSeqNumber (uint32_t dest_seq_number)
	Set destination sequence number. More...
void	SetFlags (bool doFlag, bool rfFlag, bool usnFlag)
	Set flags function. More...
Public Member Functions inherited from ns3::SimpleRefCount< DestinationAddressUnit >
	SimpleRefCount ()
	Default constructor. More...
	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...
uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...
SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...
void	Ref () const
	Increment the reference count. More...
void	Unref () const
	Decrement the reference count. More...

Private Attributes
Mac48Address	m_destinationAddress
	destination address More...
uint32_t	m_destSeqNumber
	destination sequence number More...
bool	m_do
	DO. More...
bool	m_rf
	RF. More...
bool	m_usn
	USN. More...

Friends
bool	operator== (const DestinationAddressUnit &a, const DestinationAddressUnit &b)
	equality operator More...

Detailed Description

Describes an address unit in PREQ information element See 7.3.2.96 for more details.

Definition at line 37 of file ie-dot11s-preq.h.

Constructor & Destructor Documentation

DestinationAddressUnit()

ns3::dot11s::DestinationAddressUnit::DestinationAddressUnit

(

)

Definition at line 33 of file ie-dot11s-preq.cc.

Member Function Documentation

GetDestinationAddress()

Mac48Address ns3::dot11s::DestinationAddressUnit::GetDestinationAddress

(

)

const

Get destination address function.

Returns

the MAC address

Definition at line 91 of file ie-dot11s-preq.cc.

References m_destinationAddress.

GetDestSeqNumber()

uint32_t ns3::dot11s::DestinationAddressUnit::GetDestSeqNumber

(

)

const

Get destination sequence number.

Returns

the destination sequence number

Definition at line 85 of file ie-dot11s-preq.cc.

References m_destSeqNumber.

IsDo()

bool ns3::dot11s::DestinationAddressUnit::IsDo

(

)

const

Is do function.

Returns

true if DO flag is set

Definition at line 67 of file ie-dot11s-preq.cc.

References m_do.

IsRf()

bool ns3::dot11s::DestinationAddressUnit::IsRf

(

)

const

is RF function

Returns

true if RF flag is set

Definition at line 73 of file ie-dot11s-preq.cc.

References m_rf.

IsUsn()

bool ns3::dot11s::DestinationAddressUnit::IsUsn

(

)

const

Is USN function.

Returns

true if USN flag set

Definition at line 79 of file ie-dot11s-preq.cc.

References m_usn.

SetDestinationAddress()

void ns3::dot11s::DestinationAddressUnit::SetDestinationAddress

(

Mac48Address

dest_address

)

Set destination address function.

Parameters

dest_address

the destination MAC address

Definition at line 61 of file ie-dot11s-preq.cc.

References m_destinationAddress.

SetDestSeqNumber()

void ns3::dot11s::DestinationAddressUnit::SetDestSeqNumber

(

uint32_t

dest_seq_number

)

Set destination sequence number.

Parameters

dest_seq_number

the destination sequence number

Definition at line 51 of file ie-dot11s-preq.cc.

References m_destSeqNumber, and m_usn.

SetFlags()

void ns3::dot11s::DestinationAddressUnit::SetFlags	(	bool	doFlag,
		bool	rfFlag,
		bool	usnFlag
	)

Set flags function.

Parameters

doFlag	the DO flag
rfFlag	the RF flag
usnFlag	the USN flag

Definition at line 43 of file ie-dot11s-preq.cc.

References m_do, m_rf, and m_usn.

Friends And Related Function Documentation

operator==

bool operator== ( const DestinationAddressUnit &  a, const DestinationAddressUnit &  b  )

friend

equality operator

Parameters

a	lhs
b	rhs

Returns

true if equal

Definition at line 429 of file ie-dot11s-preq.cc.

Member Data Documentation

m_destinationAddress

Mac48Address ns3::dot11s::DestinationAddressUnit::m_destinationAddress

private

destination address

Definition at line 88 of file ie-dot11s-preq.h.

Referenced by GetDestinationAddress(), and SetDestinationAddress().

m_destSeqNumber

uint32_t ns3::dot11s::DestinationAddressUnit::m_destSeqNumber

private

destination sequence number

Definition at line 89 of file ie-dot11s-preq.h.

Referenced by GetDestSeqNumber(), and SetDestSeqNumber().

m_do

bool ns3::dot11s::DestinationAddressUnit::m_do

private

DO.

Definition at line 85 of file ie-dot11s-preq.h.

Referenced by IsDo(), and SetFlags().

m_rf

bool ns3::dot11s::DestinationAddressUnit::m_rf

private

RF.

Definition at line 86 of file ie-dot11s-preq.h.

Referenced by IsRf(), and SetFlags().

m_usn

bool ns3::dot11s::DestinationAddressUnit::m_usn

private

USN.

Definition at line 87 of file ie-dot11s-preq.h.

Referenced by IsUsn(), SetDestSeqNumber(), and SetFlags().

---

The documentation for this class was generated from the following files:

• src/mesh/model/dot11s/ie-dot11s-preq.h
• src/mesh/model/dot11s/ie-dot11s-preq.cc
