Provide a list of Packet uids to corrupt. More...

#include "error-model.h"

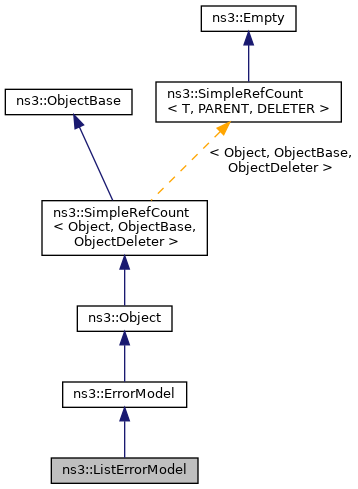

Inheritance diagram for ns3::ListErrorModel:

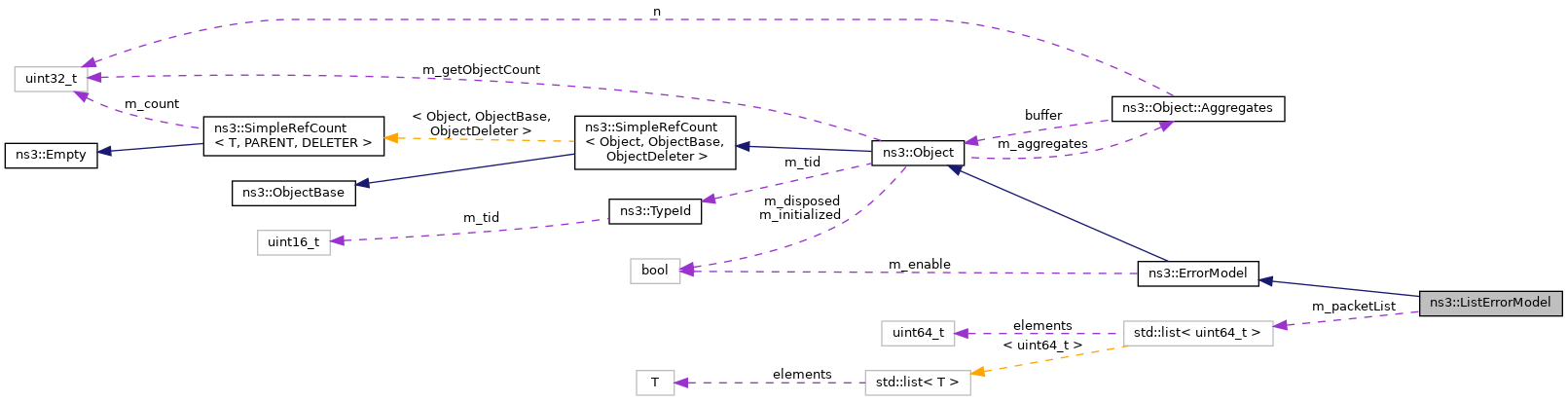

Collaboration diagram for ns3::ListErrorModel:

Public Member Functions
	ListErrorModel ()

	~ListErrorModel () override

std::list< uint64_t >	GetList () const

void	SetList (const std::list< uint64_t > &packetlist)

Public Member Functions inherited from ns3::ErrorModel
	ErrorModel ()

	~ErrorModel () override

void	Disable ()
	Disable the error model. More...

void	Enable ()
	Enable the error model. More...

bool	IsCorrupt (Ptr< Packet > pkt)
	Note: Depending on the error model, this function may or may not alter the contents of the packet upon returning true. More...

bool	IsEnabled () const

void	Reset ()
	Reset any state associated with the error model. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ErrorModel
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Private Types
typedef std::list< uint64_t >	PacketList
	Typedef: packet Uid list. More...

typedef std::list< uint64_t >::const_iterator	PacketListCI
	Typedef: packet Uid list const iterator. More...

Private Member Functions
bool	DoCorrupt (Ptr< Packet > p) override
	Corrupt a packet according to the specified model. More...

void	DoReset () override
	Re-initialize any state. More...

Private Attributes
PacketList	m_packetList
	container of Uid of packets to corrupt More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoDispose ()
	Destructor implementation. More...

virtual void	DoInitialize ()
	Initialize() implementation. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Provide a list of Packet uids to corrupt.

This object is used to flag packets as being lost/errored or not. A note on performance: the list is assumed to be unordered, and in general, Packet uids received may be unordered. Therefore, each call to IsCorrupt() will result in a walk of the list with the present underlying implementation.

Note also that if one wants to target multiple packets from looking at an (unerrored) trace file, the act of erroring a given packet may cause subsequent packet uids to change. For instance, suppose one wants to error packets 11 and 17 on a given device. It may be that erroring packet 11 will cause the subsequent uid stream to change and 17 may no longer correspond to the second packet that one wants to lose. Therefore, be advised that it might take some trial and error to select the right uids when multiple are provided.

Reset() on this model will clear the list

IsCorrupt() will not modify the packet data buffer

Definition at line 377 of file error-model.h.
