LteFrTestCase Class Reference

Test frequency reuse algorithm. More...

#include "lte-test-frequency-reuse.h"

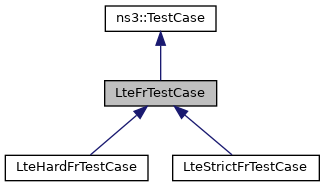

+ Inheritance diagram for LteFrTestCase:

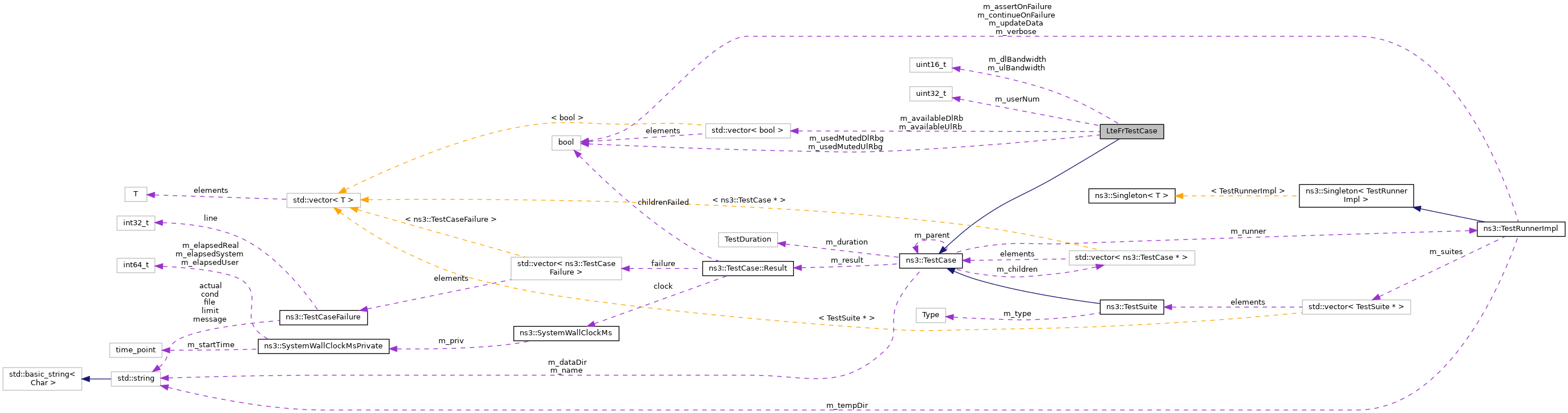

+ Collaboration diagram for LteFrTestCase:

Public Member Functions

 LteFrTestCase (std::string name, uint32_t userNum, uint16_t dlBandwidth, uint16_t ulBandwidth, std::vector< bool > availableDlRb, std::vector< bool > availableUlRb)
 Constructor. More...

 ~LteFrTestCase () override

void DlDataRxStart (Ptr< const SpectrumValue > spectrumValue)
 DL data receive start function. More...

void UlDataRxStart (Ptr< const SpectrumValue > spectrumValue)
 UL data receive start function. More...

- Public Member Functions inherited from ns3::TestCase
 TestCase (const TestCase &)=delete

virtual ~TestCase ()
 Destructor. More...

std::string GetName () const

TestCaseoperator= (const TestCase &)=delete


Protected Member Functions

void DoRun () override
 Implementation to actually run this TestCase. More...

- Protected Member Functions inherited from ns3::TestCase
 TestCase (std::string name)
 Constructor. More...

void AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
 Add an individual child TestCase to this test suite. More...

TestCaseGetParent () const
 Get the parent of this TestCase. More...

bool IsStatusFailure () const
 Check if any tests failed. More...

bool IsStatusSuccess () const
 Check if all tests passed. More...

void SetDataDir (std::string directory)
 Set the data directory where reference trace files can be found. More...

void ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
 Log the failure of this TestCase. More...

bool MustAssertOnFailure () const
 Check if this run should assert on failure. More...

bool MustContinueOnFailure () const
 Check if this run should continue on failure. More...

std::string CreateDataDirFilename (std::string filename)
 Construct the full path to a file in the data directory. More...

std::string CreateTempDirFilename (std::string filename)
 Construct the full path to a file in a temporary directory. More...


Protected Attributes

std::vector< bool > m_availableDlRb
 the available DL for each RB More...

std::vector< bool > m_availableUlRb
 the available UL for each RB More...

uint16_t m_dlBandwidth
 the DL bandwidth More...

uint16_t m_ulBandwidth
 the UL bandwidth More...

bool m_usedMutedDlRbg
 used muted DL RBG? More...

bool m_usedMutedUlRbg
 used muted UL RBG? More...

uint32_t m_userNum
 the number of UE nodes More...


Additional Inherited Members

- Public Types inherited from ns3::TestCase
enum  TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
 How long the test takes to execute. More...


Detailed Description

Test frequency reuse algorithm.

Test fails if the muted frequencies are being used.

Definition at line 55 of file lte-test-frequency-reuse.h.

Constructor & Destructor Documentation

◆ LteFrTestCase()

LteFrTestCase::LteFrTestCase ( std::string  name,
uint32_t  userNum,
uint16_t  dlBandwidth,
uint16_t  ulBandwidth,
std::vector< bool >  availableDlRb,
std::vector< bool >  availableUlRb
)

Constructor.

Parameters
namethe reference name
userNumthe number of UE nodes
dlBandwidththe DL bandwidth
ulBandwidththe UL bandwidth
availableDlRbthe available DL per RB
availableUlRbthe available UL per RB

Definition at line 458 of file lte-test-frequency-reuse.cc.

◆ ~LteFrTestCase()

LteFrTestCase::~LteFrTestCase ( )
override

Definition at line 475 of file lte-test-frequency-reuse.cc.

Member Function Documentation

◆ DlDataRxStart()

void LteFrTestCase::DlDataRxStart ( Ptr< const SpectrumValue spectrumValue)

DL data receive start function.

Parameters
spectrumValuethe DL data receive spectrum value

Definition at line 480 of file lte-test-frequency-reuse.cc.

References m_availableDlRb, m_dlBandwidth, m_usedMutedDlRbg, and NS_LOG_DEBUG.

Referenced by DlDataRxStartNotification().

+ Here is the caller graph for this function:

◆ DoRun()

void LteFrTestCase::DoRun ( )
overrideprotectedvirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Reimplemented in LteStrictFrTestCase, and LteHardFrTestCase.

Definition at line 518 of file lte-test-frequency-reuse.cc.

◆ UlDataRxStart()

void LteFrTestCase::UlDataRxStart ( Ptr< const SpectrumValue spectrumValue)

UL data receive start function.

Parameters
spectrumValuethe UL data receive spectrum value

Definition at line 499 of file lte-test-frequency-reuse.cc.

References m_availableUlRb, m_ulBandwidth, m_usedMutedUlRbg, and NS_LOG_DEBUG.

Referenced by UlDataRxStartNotification().

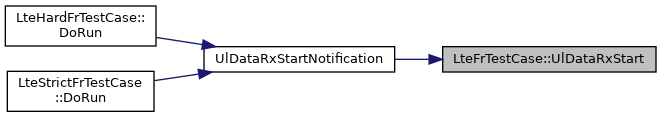

+ Here is the caller graph for this function:

Member Data Documentation

◆ m_availableDlRb

std::vector<bool> LteFrTestCase::m_availableDlRb
protected

the available DL for each RB

Definition at line 94 of file lte-test-frequency-reuse.h.

Referenced by DlDataRxStart().

◆ m_availableUlRb

std::vector<bool> LteFrTestCase::m_availableUlRb
protected

the available UL for each RB

Definition at line 97 of file lte-test-frequency-reuse.h.

Referenced by UlDataRxStart().

◆ m_dlBandwidth

uint16_t LteFrTestCase::m_dlBandwidth
protected

the DL bandwidth

Definition at line 91 of file lte-test-frequency-reuse.h.

Referenced by DlDataRxStart(), LteHardFrTestCase::DoRun(), and LteStrictFrTestCase::DoRun().

◆ m_ulBandwidth

uint16_t LteFrTestCase::m_ulBandwidth
protected

the UL bandwidth

Definition at line 92 of file lte-test-frequency-reuse.h.

Referenced by LteHardFrTestCase::DoRun(), LteStrictFrTestCase::DoRun(), and UlDataRxStart().

◆ m_usedMutedDlRbg

bool LteFrTestCase::m_usedMutedDlRbg
protected

used muted DL RBG?

Definition at line 95 of file lte-test-frequency-reuse.h.

Referenced by DlDataRxStart(), LteHardFrTestCase::DoRun(), and LteStrictFrTestCase::DoRun().

◆ m_usedMutedUlRbg

bool LteFrTestCase::m_usedMutedUlRbg
protected

used muted UL RBG?

Definition at line 98 of file lte-test-frequency-reuse.h.

Referenced by LteHardFrTestCase::DoRun(), LteStrictFrTestCase::DoRun(), and UlDataRxStart().

◆ m_userNum

uint32_t LteFrTestCase::m_userNum
protected

the number of UE nodes

Definition at line 90 of file lte-test-frequency-reuse.h.

Referenced by LteHardFrTestCase::DoRun(), and LteStrictFrTestCase::DoRun().


The documentation for this class was generated from the following files:
