Pure virtual base class for the interface between ns-3 and the parallel communication layer being used. More...

#include "parallel-communication-interface.h"

Inheritance diagram for ns3::ParallelCommunicationInterface:

Public Member Functions
virtual	~ParallelCommunicationInterface ()
	Destructor. More...

virtual void	Destroy ()=0
	Deletes storage used by the parallel environment. More...

virtual void	Disable ()=0
	Clean up the ns-3 parallel communications interface. More...

virtual void	Enable (int pargc, char **pargv)=0
	Setup the parallel communication interface. More...

virtual void	Enable (MPI_Comm communicator)=0
	Setup the parallel communication interface using the specified communicator. More...

virtual MPI_Comm	GetCommunicator ()=0
	Return the communicator used to run ns-3. More...

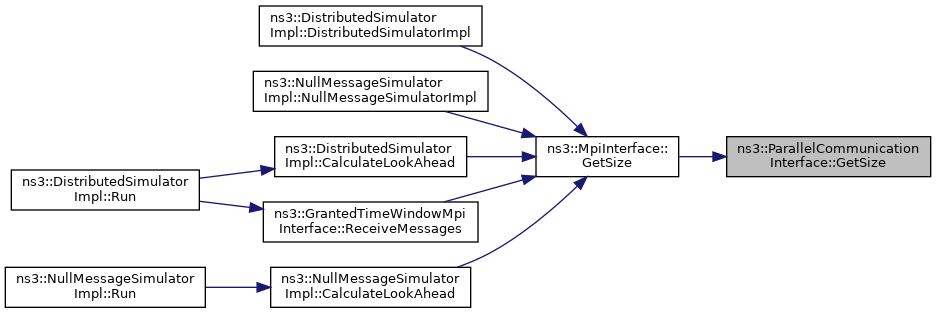

virtual uint32_t	GetSize ()=0
	Get the number of ranks used by ns-3. More...

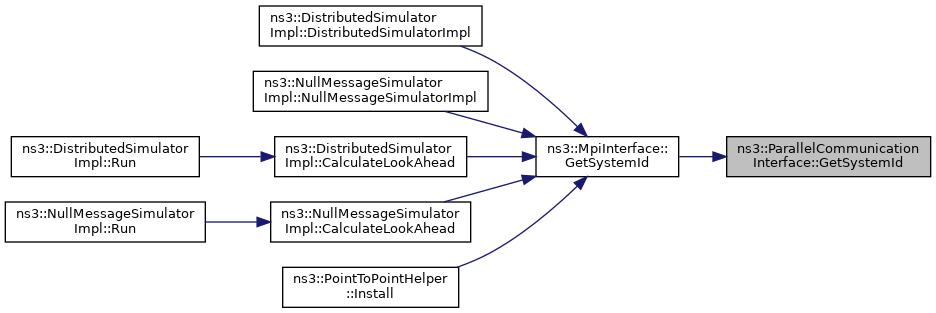

virtual uint32_t	GetSystemId ()=0
	Get the id number of this rank. More...

virtual bool	IsEnabled ()=0
	Returns enabled state of parallel environment. More...

virtual void	SendPacket (Ptr< Packet > p, const Time &rxTime, uint32_t node, uint32_t dev)=0
	Send a packet to a remote node. More...

Detailed Description

Pure virtual base class for the interface between ns-3 and the parallel communication layer being used.

This class is implemented for each of the parallel versions of SimulatorImpl to manage communication between process (ranks).

This interface is called through the singleton MpiInterface class. MpiInterface has the same API as ParallelCommunicationInterface but being a singleton uses static methods to delegate to methods defined in classes that implement the ParallelCommunicationInterface. For example, SendPacket is likely to be specialized for a specific parallel SimulatorImpl.

Definition at line 58 of file parallel-communication-interface.h.

Constructor & Destructor Documentation

◆ ~ParallelCommunicationInterface()

virtual ns3::ParallelCommunicationInterface::~ParallelCommunicationInterface ( )

inlinevirtual

Destructor.

Definition at line 64 of file parallel-communication-interface.h.

Member Function Documentation

◆ Destroy()

virtual void ns3::ParallelCommunicationInterface::Destroy ( )

pure virtual

Deletes storage used by the parallel environment.

Implemented in ns3::NullMessageMpiInterface, and ns3::GrantedTimeWindowMpiInterface.

Referenced by ns3::MpiInterface::Destroy().

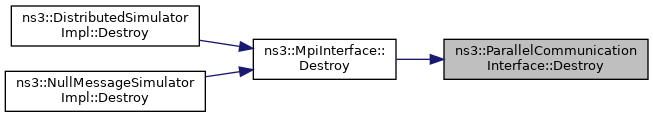

Here is the caller graph for this function:

◆ Disable()

virtual void ns3::ParallelCommunicationInterface::Disable ( )

pure virtual

Clean up the ns-3 parallel communications interface.

MPI_Finalize will be called only if Enable (int* pargc, char*** pargv) was called.

Implemented in ns3::NullMessageMpiInterface, and ns3::GrantedTimeWindowMpiInterface.

Referenced by ns3::MpiInterface::Disable().

Here is the caller graph for this function:

◆ Enable() [1/2]

virtual void ns3::ParallelCommunicationInterface::Enable	(	int *	pargc,
		char ***	pargv
	)

pure virtual

Setup the parallel communication interface.

There are two ways to setup the communications interface. This Enable method is the easiest method and should be used in most situations.

Disable() must be invoked at end of an ns-3 application to properly cleanup the parallel communication interface.

This method will call MPI_Init and configure ns-3 to use the MPI_COMM_WORLD communicator.

For more complex situations, such as embedding ns-3 with other MPI simulators or libraries, the Enable(MPI_Comm communcicator) may be used if MPI is initialized externally or if ns-3 needs to be run unique communicator. For example if there are two parallel simulators and the goal is to run each simulator on a different set of ranks.

Note: The `SimulatorImplementationType attribute in ns3::GlobalValues must be set before calling Enable()

Parameters

pargc	number of command line arguments
pargv	command line arguments

Implemented in ns3::NullMessageMpiInterface, and ns3::GrantedTimeWindowMpiInterface.

Referenced by ns3::MpiInterface::Enable().

Here is the caller graph for this function:

◆ Enable() [2/2]

virtual void ns3::ParallelCommunicationInterface::Enable ( MPI_Comm communicator )

pure virtual

Setup the parallel communication interface using the specified communicator.

See Enable (int* pargc, char*** pargv) for additional information.

Parameters

communicator MPI Communicator that should be used by ns-3

Implemented in ns3::NullMessageMpiInterface, and ns3::GrantedTimeWindowMpiInterface.

◆ GetCommunicator()

virtual MPI_Comm ns3::ParallelCommunicationInterface::GetCommunicator ( )

pure virtual

Return the communicator used to run ns-3.

The communicator returned will be MPI_COMM_WORLD if Enable (int* pargc, char*** pargv) is used to enable or the user specified communicator if Enable (MPI_Comm communicator) is used.
