Implementation of the cairo_x functions which implement high precision arithmetic. More...

#include "cairo-wideint-private.h"
#include <climits>

Include dependency graph for cairo-wideint.c:

This graph shows which files directly or indirectly include this file:

Macros
#define	_cairo_msbset64(q) (q & ((uint64_t) 1 << 63))

#define	_cairo_uint32s_to_uint64(h, l) ((uint64_t) (h) << 32 \| (l))

#define	uint64_carry32 (((uint64_t) 1) << 32)

#define	uint64_hi(i) ((i) >> 32)

#define	uint64_hi32(i) ((i) >> 32)

#define	uint64_lo(i) ((i) & 0xffffffff)

#define	uint64_lo32(i) ((i) & 0xffffffff)

#define	uint64_shift32(i) ((i) << 32)

Functions
cairo_quorem128_t	_cairo_int128_divrem (cairo_int128_t num, cairo_int128_t den)

int	_cairo_int128_lt (cairo_int128_t a, cairo_int128_t b)

cairo_int128_t	_cairo_int32_to_int128 (int32_t i)

cairo_quorem64_t	_cairo_int64_divrem (cairo_int64_t num, cairo_int64_t den)

cairo_int128_t	_cairo_int64_to_int128 (cairo_int64_t i)

cairo_int128_t	_cairo_int64x64_128_mul (cairo_int64_t a, cairo_int64_t b)

cairo_quorem64_t	_cairo_int_96by64_32x64_divrem (cairo_int128_t num, cairo_int64_t den)

cairo_uint128_t	_cairo_uint128_add (cairo_uint128_t a, cairo_uint128_t b)

cairo_uquorem128_t	_cairo_uint128_divrem (cairo_uint128_t num, cairo_uint128_t den)

int	_cairo_uint128_eq (cairo_uint128_t a, cairo_uint128_t b)

cairo_uint128_t	_cairo_uint128_lsl (cairo_uint128_t a, int shift)

int	_cairo_uint128_lt (cairo_uint128_t a, cairo_uint128_t b)

cairo_uint128_t	_cairo_uint128_mul (cairo_uint128_t a, cairo_uint128_t b)

cairo_uint128_t	_cairo_uint128_negate (cairo_uint128_t a)

cairo_uint128_t	_cairo_uint128_not (cairo_uint128_t a)

cairo_uint128_t	_cairo_uint128_rsa (cairo_int128_t a, int shift)

cairo_uint128_t	_cairo_uint128_rsl (cairo_uint128_t a, int shift)

cairo_uint128_t	_cairo_uint128_sub (cairo_uint128_t a, cairo_uint128_t b)

cairo_uint128_t	_cairo_uint32_to_uint128 (uint32_t i)

cairo_uquorem64_t	_cairo_uint64_divrem (cairo_uint64_t num, cairo_uint64_t den)

cairo_uint128_t	_cairo_uint64_to_uint128 (cairo_uint64_t i)

cairo_uint128_t	_cairo_uint64x64_128_mul (cairo_uint64_t a, cairo_uint64_t b)

cairo_uquorem64_t	_cairo_uint_96by64_32x64_divrem (cairo_uint128_t num, cairo_uint64_t den)
	_cairo_uint_96by64_32x64_divrem: More...

Variables
const char *	cairo_impl128 = "cairo_uint64_t"

const char *	cairo_impl64 = "uint64_t"

Detailed Description

Implementation of the cairo_x functions which implement high precision arithmetic.

Definition in file cairo-wideint.c.

Macro Definition Documentation

◆ _cairo_msbset64

#define _cairo_msbset64 ( q ) (q & ((uint64_t) 1 << 63))

Definition at line 596 of file cairo-wideint.c.

◆ _cairo_uint32s_to_uint64

#define _cairo_uint32s_to_uint64	(	h,
		l
	)	((uint64_t) (h) << 32 \| (l))

Definition at line 50 of file cairo-wideint.c.

◆ uint64_carry32

#define uint64_carry32 (((uint64_t) 1) << 32)

Definition at line 419 of file cairo-wideint.c.

◆ uint64_hi

#define uint64_hi ( i ) ((i) >> 32)

Definition at line 417 of file cairo-wideint.c.

◆ uint64_hi32

#define uint64_hi32 ( i ) ((i) >> 32)

Definition at line 415 of file cairo-wideint.c.

◆ uint64_lo

#define uint64_lo ( i ) ((i) & 0xffffffff)

Definition at line 416 of file cairo-wideint.c.

◆ uint64_lo32

#define uint64_lo32 ( i ) ((i) & 0xffffffff)

Definition at line 414 of file cairo-wideint.c.

◆ uint64_shift32

#define uint64_shift32 ( i ) ((i) << 32)

Definition at line 418 of file cairo-wideint.c.

Function Documentation

◆ _cairo_int128_divrem()

cairo_quorem128_t _cairo_int128_divrem	(	cairo_int128_t	num,
		cairo_int128_t	den
	)

Definition at line 653 of file cairo-wideint.c.

References _cairo_int128_negate, _cairo_int128_negative, _cairo_uint128_divrem(), two-ray-to-three-gpp-ch-calibration::num, cairo_uquorem128_t::quo, cairo_quorem128_t::quo, cairo_uquorem128_t::rem, and cairo_quorem128_t::rem.

Here is the call graph for this function:

◆ _cairo_int128_lt()

int _cairo_int128_lt	(	cairo_int128_t	a,
		cairo_int128_t	b
	)

Definition at line 579 of file cairo-wideint.c.

References _cairo_int128_negative, and _cairo_uint128_lt().

Here is the call graph for this function:

◆ _cairo_int32_to_int128()

cairo_int128_t _cairo_int32_to_int128 ( int32_t i )

Definition at line 359 of file cairo-wideint.c.

References _cairo_int32_to_int64, cairo_int128_t::hi, and cairo_int128_t::lo.

◆ _cairo_int64_divrem()

cairo_quorem64_t _cairo_int64_divrem	(	cairo_int64_t	num,
		cairo_int64_t	den
	)

Definition at line 307 of file cairo-wideint.c.

References _cairo_int64_negate, _cairo_int64_negative, _cairo_uint64_divrem(), two-ray-to-three-gpp-ch-calibration::num, cairo_uquorem64_t::quo, cairo_quorem64_t::quo, cairo_uquorem64_t::rem, and cairo_quorem64_t::rem.

Here is the call graph for this function:

◆ _cairo_int64_to_int128()

cairo_int128_t _cairo_int64_to_int128 ( cairo_int64_t i )

Definition at line 379 of file cairo-wideint.c.

References _cairo_int32_to_int64, _cairo_int64_negative, cairo_int128_t::hi, and cairo_int128_t::lo.

◆ _cairo_int64x64_128_mul()

cairo_int128_t _cairo_int64x64_128_mul	(	cairo_int64_t	a,
		cairo_int64_t	b
	)

Definition at line 489 of file cairo-wideint.c.

References _cairo_int64_negative, _cairo_int64_to_uint64, _cairo_uint64_sub, _cairo_uint64x64_128_mul(), and cairo_int128_t::hi.

Here is the call graph for this function:

◆ _cairo_int_96by64_32x64_divrem()

cairo_quorem64_t _cairo_int_96by64_32x64_divrem	(	cairo_int128_t	num,
		cairo_int64_t	den
	)

Definition at line 796 of file cairo-wideint.c.

References _cairo_int128_negate, _cairo_int128_negative, _cairo_int64_negate, _cairo_int64_negative, _cairo_int64_to_uint64, _cairo_uint32s_to_uint64, _cairo_uint64_eq, _cairo_uint_96by64_32x64_divrem(), two-ray-to-three-gpp-ch-calibration::num, cairo_uquorem64_t::quo, cairo_quorem64_t::quo, cairo_uquorem64_t::rem, and cairo_quorem64_t::rem.

Here is the call graph for this function:

◆ _cairo_uint128_add()

cairo_uint128_t _cairo_uint128_add	(	cairo_uint128_t	a,
		cairo_uint128_t	b
	)

Definition at line 389 of file cairo-wideint.c.

References _cairo_uint32_to_uint64, _cairo_uint64_add, and _cairo_uint64_lt.

Referenced by _cairo_uint128_divrem(), _cairo_uint128_negate(), and ns3::int64x64_t::Round().

Here is the caller graph for this function:

◆ _cairo_uint128_divrem()

cairo_uquorem128_t _cairo_uint128_divrem	(	cairo_uint128_t	num,
		cairo_uint128_t	den
	)

Definition at line 602 of file cairo-wideint.c.

References _cairo_msbset64, _cairo_uint128_add(), _cairo_uint128_le, _cairo_uint128_lsl(), _cairo_uint128_lt(), _cairo_uint128_ne, _cairo_uint128_rsl(), _cairo_uint128_sub(), _cairo_uint32_to_uint128(), two-ray-to-three-gpp-ch-calibration::num, cairo_uquorem128_t::quo, and cairo_uquorem128_t::rem.

Referenced by _cairo_int128_divrem().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ _cairo_uint128_eq()

int _cairo_uint128_eq	(	cairo_uint128_t	a,
		cairo_uint128_t	b
	)

Definition at line 589 of file cairo-wideint.c.

References _cairo_uint64_eq.

◆ _cairo_uint128_lsl()

cairo_uint128_t _cairo_uint128_lsl	(	cairo_uint128_t	a,
		int	shift
	)

Definition at line 517 of file cairo-wideint.c.

References _cairo_uint32_to_uint64, _cairo_uint64_add, _cairo_uint64_lsl, and _cairo_uint64_rsl.

Referenced by _cairo_uint128_divrem().

Here is the caller graph for this function:

◆ _cairo_uint128_lt()

int _cairo_uint128_lt	(	cairo_uint128_t	a,
		cairo_uint128_t	b
	)

Definition at line 571 of file cairo-wideint.c.

References _cairo_uint64_eq, and _cairo_uint64_lt.

Referenced by _cairo_int128_lt(), and _cairo_uint128_divrem().

Here is the caller graph for this function:

◆ _cairo_uint128_mul()

cairo_uint128_t _cairo_uint128_mul	(	cairo_uint128_t	a,
		cairo_uint128_t	b
	)

Definition at line 504 of file cairo-wideint.c.

References _cairo_uint64_add, _cairo_uint64_mul, and _cairo_uint64x64_128_mul().

Here is the call graph for this function:

◆ _cairo_uint128_negate()

cairo_uint128_t _cairo_uint128_negate ( cairo_uint128_t a )

Definition at line 635 of file cairo-wideint.c.

References _cairo_uint128_add(), _cairo_uint32_to_uint128(), and _cairo_uint64_not.

Referenced by ns3::output_sign().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ _cairo_uint128_not()

cairo_uint128_t _cairo_uint128_not ( cairo_uint128_t a )

Definition at line 643 of file cairo-wideint.c.

References _cairo_uint64_not.

◆ _cairo_uint128_rsa()

cairo_uint128_t _cairo_uint128_rsa	(	cairo_int128_t	a,
		int	shift
	)

Definition at line 553 of file cairo-wideint.c.

References _cairo_uint64_add, _cairo_uint64_lsl, _cairo_uint64_rsa, _cairo_uint64_rsl, cairo_int128_t::hi, and cairo_int128_t::lo.

◆ _cairo_uint128_rsl()

cairo_uint128_t _cairo_uint128_rsl	(	cairo_uint128_t	a,
		int	shift
	)

Definition at line 535 of file cairo-wideint.c.

References _cairo_uint32_to_uint64, _cairo_uint64_add, _cairo_uint64_lsl, and _cairo_uint64_rsl.

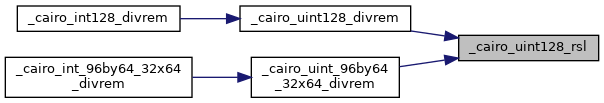

Referenced by _cairo_uint128_divrem(), and _cairo_uint_96by64_32x64_divrem().

Here is the caller graph for this function:

◆ _cairo_uint128_sub()

cairo_uint128_t _cairo_uint128_sub	(	cairo_uint128_t	a,
		cairo_uint128_t	b
	)

Definition at line 401 of file cairo-wideint.c.

References _cairo_uint32_to_uint64, _cairo_uint64_gt, and _cairo_uint64_sub.

Referenced by _cairo_uint128_divrem().

Here is the caller graph for this function:

◆ _cairo_uint32_to_uint128()

cairo_uint128_t _cairo_uint32_to_uint128 ( uint32_t i )

Definition at line 349 of file cairo-wideint.c.

References _cairo_uint32_to_uint64.

Referenced by _cairo_uint128_divrem(), and _cairo_uint128_negate().

Here is the caller graph for this function:

◆ _cairo_uint64_divrem()

cairo_uquorem64_t _cairo_uint64_divrem	(	cairo_uint64_t	num,
		cairo_uint64_t	den
	)

Definition at line 53 of file cairo-wideint.c.

References two-ray-to-three-gpp-ch-calibration::num, cairo_uquorem64_t::quo, and cairo_uquorem64_t::rem.

Referenced by _cairo_int64_divrem(), and _cairo_uint_96by64_32x64_divrem().

Here is the caller graph for this function:

◆ _cairo_uint64_to_uint128()

cairo_uint128_t _cairo_uint64_to_uint128 ( cairo_uint64_t i )

Definition at line 369 of file cairo-wideint.c.

References _cairo_uint32_to_uint64.

◆ _cairo_uint64x64_128_mul()

cairo_uint128_t _cairo_uint64x64_128_mul	(	cairo_uint64_t	a,
		cairo_uint64_t	b
	)

Definition at line 461 of file cairo-wideint.c.

References _cairo_uint32x32_64_mul, _cairo_uint64_add, _cairo_uint64_lt, uint64_carry32, uint64_hi, uint64_hi32, uint64_lo, uint64_lo32, and uint64_shift32.

Referenced by _cairo_int64x64_128_mul(), and _cairo_uint128_mul().

Here is the caller graph for this function:

◆ _cairo_uint_96by64_32x64_divrem()

cairo_uquorem64_t _cairo_uint_96by64_32x64_divrem	(	cairo_uint128_t	num,
		cairo_uint64_t	den
	)

_cairo_uint_96by64_32x64_divrem:

Compute a 32 bit quotient and 64 bit remainder of a 96 bit unsigned dividend and 64 bit divisor. If the quotient doesn't fit into 32 bits then the returned remainder is equal to the divisor, and the quotient is the largest representable 64 bit integer. It is an error to call this function with the high 32 bits of ‘num’ being non-zero.

Definition at line 686 of file cairo-wideint.c.

References _cairo_uint128_rsl(), _cairo_uint128_to_uint32, _cairo_uint128_to_uint64, _cairo_uint32_to_uint64, _cairo_uint32s_to_uint64, _cairo_uint32x32_64_mul, _cairo_uint64_add, _cairo_uint64_divrem(), _cairo_uint64_ge, _cairo_uint64_lt, _cairo_uint64_sub, _cairo_uint64_to_uint32, two-ray-to-three-gpp-ch-calibration::num, cairo_uquorem64_t::quo, cairo_uquorem64_t::rem, uint64_hi32, and two-ray-to-three-gpp-ch-calibration::x.

Referenced by _cairo_int_96by64_32x64_divrem().

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

◆ cairo_impl128

const char* cairo_impl128 = "cairo_uint64_t"

Definition at line 346 of file cairo-wideint.c.

Referenced by ns3::int64x64::test::Int64x64ImplTestCase::DoRun().

◆ cairo_impl64

const char* cairo_impl64 = "uint64_t"

Definition at line 48 of file cairo-wideint.c.

Referenced by ns3::int64x64::test::Int64x64ImplTestCase::DoRun().
