Structure holding information specific to a single link. More...

#include "txop.h"

Inheritance diagram for ns3::Txop::LinkEntity:

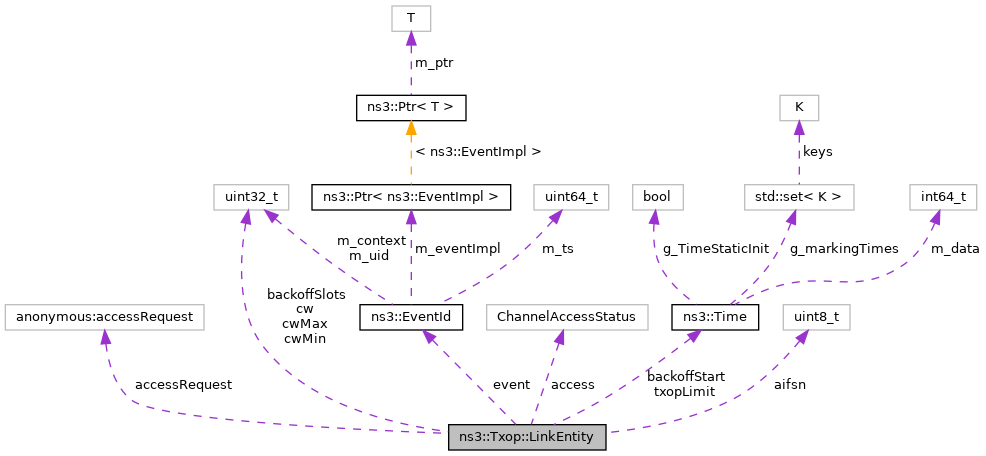

Collaboration diagram for ns3::Txop::LinkEntity:

Public Member Functions
virtual	~LinkEntity ()=default
	Destructor (a virtual method is needed to make this struct polymorphic) More...

Public Attributes
ChannelAccessStatus	access {NOT_REQUESTED}
	channel access status More...

class {
EventId event

}	accessRequest
	access request event, to be used by Txop::Queue() only More...

uint8_t	aifsn {0}
	the AIFSN More...

uint32_t	backoffSlots {0}
	the number of backoff slots More...

Time	backoffStart {0}
	the backoffStart variable is used to keep track of the time at which a backoff was started or the time at which the backoff counter was last updated More...

uint32_t	cw {0}
	the current contention window More...

uint32_t	cwMax {0}
	the maximum contention window More...

uint32_t	cwMin {0}
	the minimum contention window More...

Time	txopLimit {0}
	the TXOP limit time More...

Detailed Description

Structure holding information specific to a single link.

Here, the meaning of "link" is that of the 11be amendment which introduced multi-link devices. For previous amendments, only one link can be created.

Definition at line 515 of file txop.h.

Constructor & Destructor Documentation

◆ ~LinkEntity()

virtual ns3::Txop::LinkEntity::~LinkEntity ( )

virtualdefault

Destructor (a virtual method is needed to make this struct polymorphic)

Member Data Documentation

◆ access

ChannelAccessStatus ns3::Txop::LinkEntity::access {NOT_REQUESTED}

channel access status

Definition at line 530 of file txop.h.

Referenced by ns3::Txop::GetAccessStatus(), ns3::Txop::NotifyAccessRequested(), ns3::Txop::NotifyChannelAccessed(), ns3::Txop::NotifyChannelReleased(), ns3::QosTxop::NotifyChannelReleased(), and ns3::ChannelAccessManager::ResetBackoff().

◆

class { ... } ns3::Txop::LinkEntity::accessRequest

access request event, to be used by Txop::Queue() only

◆ aifsn

uint8_t ns3::Txop::LinkEntity::aifsn {0}

the AIFSN

Definition at line 528 of file txop.h.

Referenced by ns3::Txop::GetAifsn(), ns3::QosTxop::GetAifsn(), and ns3::Txop::SetAifsn().

◆ backoffSlots

uint32_t ns3::Txop::LinkEntity::backoffSlots {0}

the number of backoff slots

Definition at line 520 of file txop.h.

Referenced by ns3::Txop::GetBackoffSlots().

◆ backoffStart

Time ns3::Txop::LinkEntity::backoffStart {0}

the backoffStart variable is used to keep track of the time at which a backoff was started or the time at which the backoff counter was last updated

Definition at line 521 of file txop.h.

Referenced by ns3::Txop::GetBackoffStart().

◆ cw

uint32_t ns3::Txop::LinkEntity::cw {0}

the current contention window

Definition at line 525 of file txop.h.

Referenced by ns3::Txop::GetCw().

◆ cwMax

uint32_t ns3::Txop::LinkEntity::cwMax {0}

the maximum contention window

Definition at line 527 of file txop.h.

Referenced by ns3::Txop::GetMaxCw(), and ns3::QosTxop::GetMaxCw().

◆ cwMin

uint32_t ns3::Txop::LinkEntity::cwMin {0}

the minimum contention window

Definition at line 526 of file txop.h.

Referenced by ns3::Txop::GetMinCw(), and ns3::QosTxop::GetMinCw().

◆ event

EventId ns3::Txop::LinkEntity::event

private

Definition at line 535 of file txop.h.

Referenced by ns3::Txop::Queue().

◆ txopLimit

Time ns3::Txop::LinkEntity::txopLimit {0}

the TXOP limit time

Definition at line 529 of file txop.h.

Referenced by ns3::Txop::GetTxopLimit(), and ns3::Txop::SetTxopLimit().

The documentation for this struct was generated from the following file:

src/wifi/model/txop.h
