ns3::ConstantPositionMobilityModel Class Reference

Mobility model for which the current position does not change once it has been set and until it is set again explicitly to a new value. More...

#include "constant-position-mobility-model.h"

+ Inheritance diagram for ns3::ConstantPositionMobilityModel:

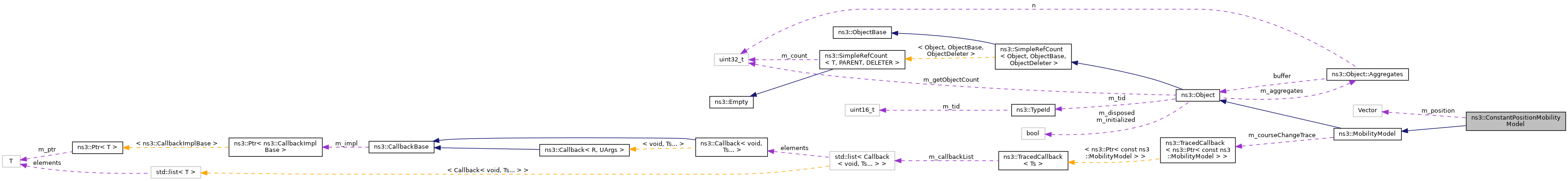

+ Collaboration diagram for ns3::ConstantPositionMobilityModel:

Public Member Functions

 ConstantPositionMobilityModel ()
 Create a position located at coordinates (0,0,0) More...

 ~ConstantPositionMobilityModel () override

- Public Member Functions inherited from ns3::MobilityModel
 MobilityModel ()

 ~MobilityModel () override=0

int64_t AssignStreams (int64_t stream)
 Assign a fixed random variable stream number to the random variables used by this model. More...

double GetDistanceFrom (Ptr< const MobilityModel > position) const

Vector GetPosition () const

Vector GetPositionWithReference (const Vector &referencePosition) const
 This method may be used if the position returned may depend on some reference position provided. More...

double GetRelativeSpeed (Ptr< const MobilityModel > other) const

Vector GetVelocity () const

void SetPosition (const Vector &position)

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor. More...

 ~Object () override
 Destructor. More...

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together. More...

void Dispose ()
 Dispose of this Object. More...

AggregateIterator GetAggregateIterator () const
 Get an iterator to the Objects aggregated to this one. More...

TypeId GetInstanceTypeId () const override
 Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T > GetObject () const
 Get a pointer to the requested aggregated Object. More...

template<>
Ptr< ObjectGetObject () const
 Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< ObjectGetObject (TypeId tid) const
 Specialization of (TypeId tid) for objects of type ns3::Object. More...

void Initialize ()
 Invoke DoInitialize on all Objects aggregated to this one. More...

bool IsInitialized () const
 Check if the object has been initialized. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor. More...

 SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
 Copy constructor. More...

uint32_t GetReferenceCount () const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o[[maybe_unused]])
 Assignment operator. More...

void Ref () const
 Increment the reference count. More...

void Unref () const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising errors. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId ()
 Register this type with the TypeId system. More...

- Static Public Member Functions inherited from ns3::MobilityModel
static TypeId GetTypeId ()
 Register this type with the TypeId system. More...

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId ()
 Register this type. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId ()
 Get the type ID. More...


Private Member Functions

Vector DoGetPosition () const override

Vector DoGetVelocity () const override

void DoSetPosition (const Vector &position) override


Private Attributes

Vector m_position
 the constant position More...


Additional Inherited Members

- Public Types inherited from ns3::MobilityModel
typedef void(* TracedCallback) (Ptr< const MobilityModel > model)
 TracedCallback signature. More...

- Protected Member Functions inherited from ns3::MobilityModel
void NotifyCourseChange () const
 Must be invoked by subclasses when the course of the position changes to notify course change listeners. More...

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object. More...

virtual void DoDispose ()
 Destructor implementation. More...

virtual void DoInitialize ()
 Initialize() implementation. More...

virtual void NotifyNewAggregate ()
 Notify all Objects aggregated to this one of a new Object being aggregated. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted ()
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

Mobility model for which the current position does not change once it has been set and until it is set again explicitly to a new value.

Definition at line 33 of file constant-position-mobility-model.h.

Constructor & Destructor Documentation

◆ ConstantPositionMobilityModel()

ns3::ConstantPositionMobilityModel::ConstantPositionMobilityModel ( )

Create a position located at coordinates (0,0,0)

Definition at line 36 of file constant-position-mobility-model.cc.

◆ ~ConstantPositionMobilityModel()

ns3::ConstantPositionMobilityModel::~ConstantPositionMobilityModel ( )
override

Definition at line 40 of file constant-position-mobility-model.cc.

Member Function Documentation

◆ DoGetPosition()

Vector ns3::ConstantPositionMobilityModel::DoGetPosition ( ) const
overrideprivatevirtual
Returns
the current position.

Concrete subclasses of this base class must implement this method.

Implements ns3::MobilityModel.

Definition at line 45 of file constant-position-mobility-model.cc.

References m_position.

◆ DoGetVelocity()

Vector ns3::ConstantPositionMobilityModel::DoGetVelocity ( ) const
overrideprivatevirtual
Returns
the current velocity.

Concrete subclasses of this base class must implement this method.

Implements ns3::MobilityModel.

Definition at line 58 of file constant-position-mobility-model.cc.

◆ DoSetPosition()

void ns3::ConstantPositionMobilityModel::DoSetPosition ( const Vector &  position)
overrideprivatevirtual
Parameters
positionthe position to set.

Concrete subclasses of this base class must implement this method.

Implements ns3::MobilityModel.

Definition at line 51 of file constant-position-mobility-model.cc.

References m_position, and ns3::MobilityModel::NotifyCourseChange().

+ Here is the call graph for this function:

◆ GetTypeId()

TypeId ns3::ConstantPositionMobilityModel::GetTypeId ( void  )
static

Register this type with the TypeId system.

Returns
the object TypeId

Definition at line 27 of file constant-position-mobility-model.cc.

References ns3::TypeId::SetParent().

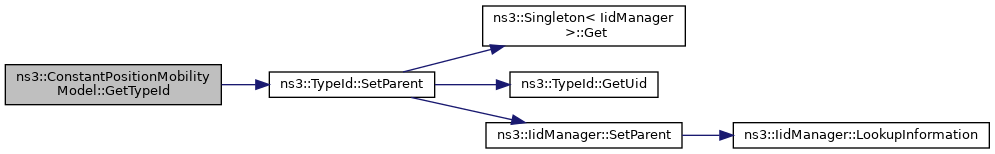

+ Here is the call graph for this function:

Member Data Documentation

◆ m_position

Vector ns3::ConstantPositionMobilityModel::m_position
private

the constant position

Definition at line 52 of file constant-position-mobility-model.h.

Referenced by DoGetPosition(), and DoSetPosition().


The documentation for this class was generated from the following files:
