This class defines all functions to create spectrum model for lte. More...

#include "lte-spectrum-value-helper.h"

Static Public Member Functions
static Ptr< SpectrumValue >	CreateNoisePowerSpectralDensity (double noiseFigure, Ptr< SpectrumModel > spectrumModel)
	create a SpectrumValue that models the power spectral density of AWGN More...

static Ptr< SpectrumValue >	CreateNoisePowerSpectralDensity (uint32_t earfcn, uint16_t bandwidth, double noiseFigure)
	create a SpectrumValue that models the power spectral density of AWGN More...

static Ptr< SpectrumValue >	CreateTxPowerSpectralDensity (uint32_t earfcn, uint16_t bandwidth, double powerTx, std::map< int, double > powerTxMap, std::vector< int > activeRbs)
	create a spectrum value representing the power spectral density of a signal to be transmitted. More...

static Ptr< SpectrumValue >	CreateTxPowerSpectralDensity (uint32_t earfcn, uint16_t bandwidth, double powerTx, std::vector< int > activeRbs)
	create a spectrum value representing the power spectral density of a signal to be transmitted. More...

static Ptr< SpectrumValue >	CreateUlTxPowerSpectralDensity (uint16_t earfcn, uint16_t bandwidth, double powerTx, std::vector< int > activeRbs)
	create a spectrum value representing the uplink power spectral density of a signal to be transmitted. More...

static double	GetCarrierFrequency (uint32_t earfcn)
	Calculates the carrier frequency from the E-UTRA Absolute Radio Frequency Channel Number (EARFCN) according to 3GPP TS 36.101 section 5.7.3 "Carrier frequency and EARFCN". More...

static double	GetChannelBandwidth (uint16_t txBandwidthConf)

static uint16_t	GetDownlinkCarrierBand (uint32_t nDl)
	Converts downlink EARFCN to corresponding LTE frequency band number. More...

static double	GetDownlinkCarrierFrequency (uint32_t earfcn)
	Calculates the downlink carrier frequency from the E-UTRA Absolute Radio Frequency Channel Number (EARFCN) using the formula in 3GPP TS 36.101 section 5.7.3 "Carrier frequency and EARFCN". More...

static Ptr< SpectrumModel >	GetSpectrumModel (uint32_t earfcn, uint16_t bandwidth)

static uint16_t	GetUplinkCarrierBand (uint32_t nUl)
	Converts uplink EARFCN to corresponding LTE frequency band number. More...

static double	GetUplinkCarrierFrequency (uint32_t earfcn)
	Calculates the uplink carrier frequency from the E-UTRA Absolute Radio Frequency Channel Number (EARFCN) using the formula in 3GPP TS 36.101 section 5.7.3 "Carrier frequency and EARFCN". More...

Detailed Description

This class defines all functions to create spectrum model for lte.

Definition at line 36 of file lte-spectrum-value-helper.h.

Member Function Documentation

◆ CreateNoisePowerSpectralDensity() [1/2]

Ptr< SpectrumValue > ns3::LteSpectrumValueHelper::CreateNoisePowerSpectralDensity	(	double	noiseFigure,
		Ptr< SpectrumModel >	spectrumModel
	)

static

create a SpectrumValue that models the power spectral density of AWGN

Parameters

noiseFigure	the noise figure in dB w.r.t. a reference temperature of 290K
spectrumModel	the SpectrumModel instance to be used

Returns: a pointer to a newly allocated SpectrumValue representing the noise Power Spectral Density in W/Hz for each Resource Block

Definition at line 390 of file lte-spectrum-value-helper.cc.

References NS_LOG_FUNCTION.

◆ CreateNoisePowerSpectralDensity() [2/2]

Ptr< SpectrumValue > ns3::LteSpectrumValueHelper::CreateNoisePowerSpectralDensity	(	uint32_t	earfcn,
		uint16_t	bandwidth,
		double	noiseFigure
	)

static

create a SpectrumValue that models the power spectral density of AWGN

Parameters

earfcn	the carrier frequency (EARFCN) at which reception is made
bandwidth	the Transmission Bandwidth Configuration in number of resource blocks
noiseFigure	the noise figure in dB w.r.t. a reference temperature of 290K

Returns: a pointer to a newly allocated SpectrumValue representing the noise Power Spectral Density in W/Hz for each Resource Block

Definition at line 380 of file lte-spectrum-value-helper.cc.

References GetSpectrumModel(), and NS_LOG_FUNCTION.

Referenced by ComputeSnr(), ns3::LteEnbPhy::DoInitialize(), and ns3::LteUePhy::DoSetDlBandwidth().

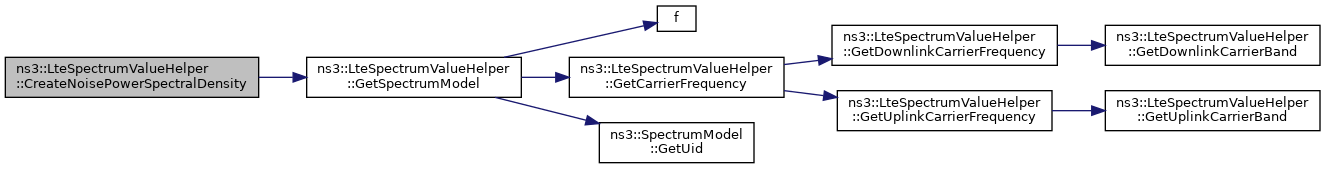

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateTxPowerSpectralDensity() [1/2]

Ptr< SpectrumValue > ns3::LteSpectrumValueHelper::CreateTxPowerSpectralDensity	(	uint32_t	earfcn,
		uint16_t	bandwidth,
		double	powerTx,
		std::map< int, double >	powerTxMap,
		std::vector< int >	activeRbs
	)

static

create a spectrum value representing the power spectral density of a signal to be transmitted.

See 3GPP TS 36.101 for a definition of most of the parameters described here.

Parameters

earfcn	the carrier frequency (EARFCN) of the transmission
bandwidth	the Transmission Bandwidth Configuration in number of resource blocks
powerTx	the total power in dBm over the whole bandwidth
powerTxMap	the map of power in dBm for each RB, if map contain power for RB, powerTx is not used for this RB, otherwise powerTx is set for this RB
activeRbs	the list of Active Resource Blocks (PRBs)

Returns: a pointer to a newly allocated SpectrumValue representing the TX Power Spectral Density in W/Hz for each Resource Block

Definition at line 312 of file lte-spectrum-value-helper.cc.

References GetSpectrumModel(), NS_LOG_FUNCTION, and NS_LOG_LOGIC.

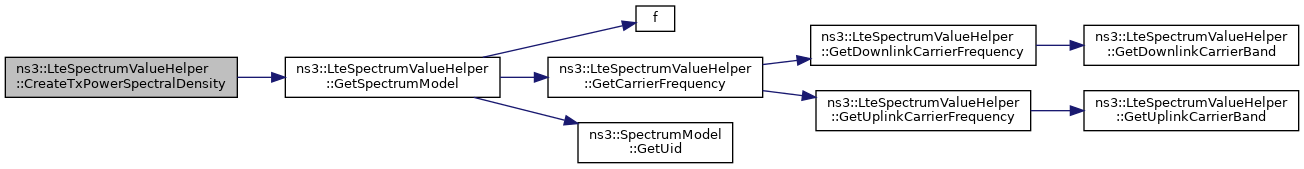

Here is the call graph for this function:

◆ CreateTxPowerSpectralDensity() [2/2]

Ptr< SpectrumValue > ns3::LteSpectrumValueHelper::CreateTxPowerSpectralDensity	(	uint32_t	earfcn,
		uint16_t	bandwidth,
		double	powerTx,
		std::vector< int >	activeRbs
	)

static

create a spectrum value representing the power spectral density of a signal to be transmitted.

See 3GPP TS 36.101 for a definition of most of the parameters described here.

Parameters

earfcn	the carrier frequency (EARFCN) of the transmission
bandwidth	the Transmission Bandwidth Configuration in number of resource blocks
powerTx	the total power in dBm over the whole bandwidth
activeRbs	the list of Active Resource Blocks (PRBs)

Returns: a pointer to a newly allocated SpectrumValue representing the TX Power Spectral Density in W/Hz for each Resource Block

Definition at line 285 of file lte-spectrum-value-helper.cc.

References GetSpectrumModel(), NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by ComputeSnr(), ns3::LteEnbPhy::CreateTxPowerSpectralDensity(), and ns3::LteEnbPhy::CreateTxPowerSpectralDensityWithPowerAllocation().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateUlTxPowerSpectralDensity()

Ptr< SpectrumValue > ns3::LteSpectrumValueHelper::CreateUlTxPowerSpectralDensity	(	uint16_t	earfcn,
		uint16_t	bandwidth,
		double	powerTx,
		std::vector< int >	activeRbs
	)

static

create a spectrum value representing the uplink power spectral density of a signal to be transmitted.

See 3GPP TS 36.101 for a definition of most of the parameters described here. This function splits the power over the active RBs instead of the entire bandwidth

Parameters

earfcn	the carrier frequency (EARFCN) of the transmission
bandwidth	the Transmission Bandwidth Configuration in number of resource blocks
powerTx	the total power in dBm over the whole bandwidth
activeRbs	the list of Active Resource Blocks (PRBs)

Returns: a pointer to a newly allocated SpectrumValue representing the TX Power Spectral Density in W/Hz for each Resource Block

Definition at line 353 of file lte-spectrum-value-helper.cc.

References GetSpectrumModel(), NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by ns3::LteUePhy::CreateTxPowerSpectralDensity().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetCarrierFrequency()

double ns3::LteSpectrumValueHelper::GetCarrierFrequency ( uint32_t earfcn )

static

Calculates the carrier frequency from the E-UTRA Absolute Radio Frequency Channel Number (EARFCN) according to 3GPP TS 36.101 section 5.7.3 "Carrier frequency and EARFCN".

Parameters

earfcn the EARFCN

Returns: the carrier frequency in Hz

Definition at line 117 of file lte-spectrum-value-helper.cc.

References GetDownlinkCarrierFrequency(), GetUplinkCarrierFrequency(), and NS_LOG_FUNCTION.

Referenced by GetSpectrumModel(), and ns3::LteHelper::InstallSingleEnbDevice().

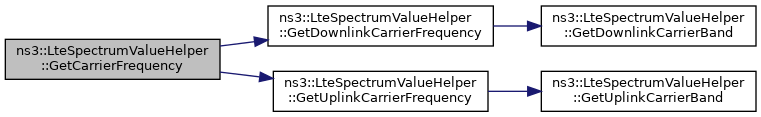

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetChannelBandwidth()

double ns3::LteSpectrumValueHelper::GetChannelBandwidth ( uint16_t txBandwidthConf )

static

Parameters

txBandwidthConf the transmission bandwidth configuration in number of resource blocks

Returns: the nominal channel bandwidth in Hz as per 3GPP TS 36.101

Definition at line 191 of file lte-spectrum-value-helper.cc.

References NS_FATAL_ERROR, and NS_LOG_FUNCTION.

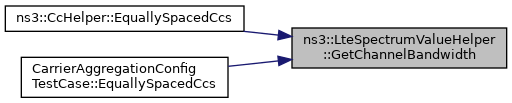

Referenced by ns3::CcHelper::EquallySpacedCcs(), and CarrierAggregationConfigTestCase::EquallySpacedCcs().

Here is the caller graph for this function:

◆ GetDownlinkCarrierBand()

uint16_t ns3::LteSpectrumValueHelper::GetDownlinkCarrierBand ( uint32_t nDl )

static

Converts downlink EARFCN to corresponding LTE frequency band number.

Parameters

nDl	the EARFCN

Returns: the downlink carrier band

Definition at line 133 of file lte-spectrum-value-helper.cc.

References ns3::g_eutraChannelNumbers, NS_LOG_ERROR, NS_LOG_FUNCTION, NS_LOG_LOGIC, and NUM_EUTRA_BANDS.

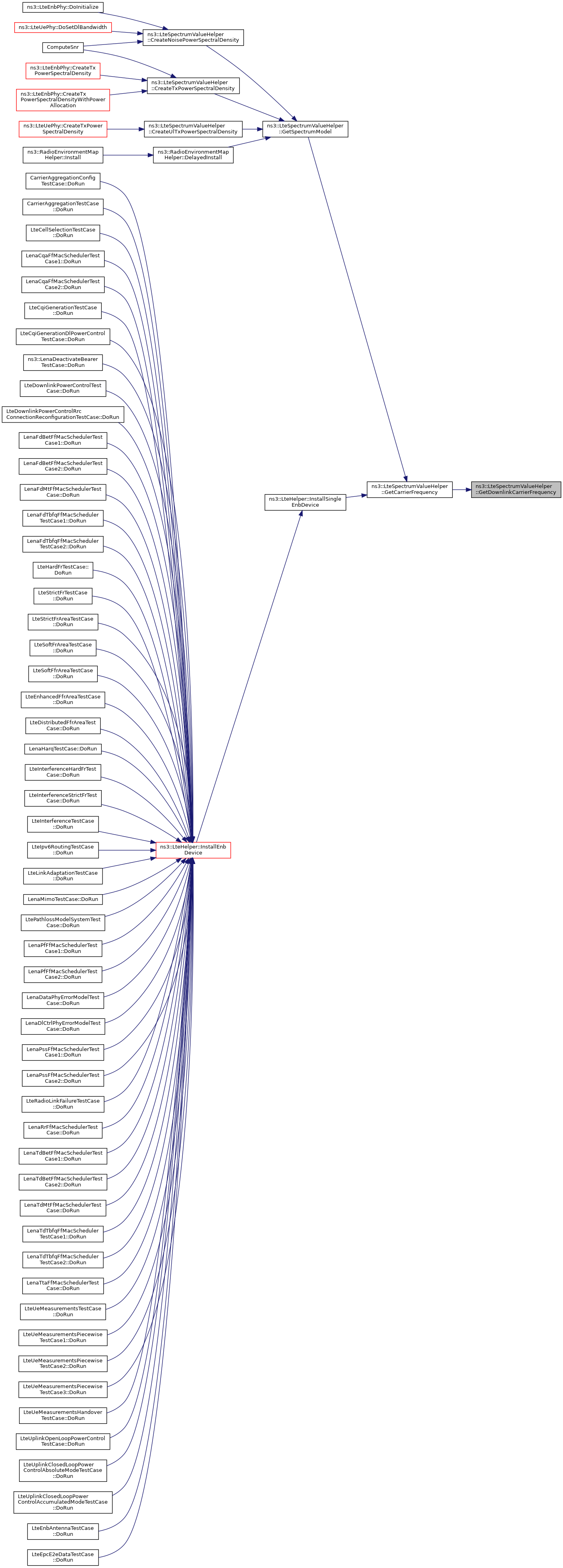

Referenced by ns3::CcHelper::EquallySpacedCcs(), CarrierAggregationConfigTestCase::EquallySpacedCcs(), and GetDownlinkCarrierFrequency().

Here is the caller graph for this function:

◆ GetDownlinkCarrierFrequency()

double ns3::LteSpectrumValueHelper::GetDownlinkCarrierFrequency ( uint32_t earfcn )

static

Calculates the downlink carrier frequency from the E-UTRA Absolute Radio Frequency Channel Number (EARFCN) using the formula in 3GPP TS 36.101 section 5.7.3 "Carrier frequency and EARFCN".

Parameters

earfcn the EARFCN

Returns: the downlink carrier frequency in Hz

Definition at line 165 of file lte-spectrum-value-helper.cc.

References ns3::EutraChannelNumbers::fDlLow, ns3::g_eutraChannelNumbers, GetDownlinkCarrierBand(), ns3::EutraChannelNumbers::nOffsDl, NS_LOG_FUNCTION, and NUM_EUTRA_BANDS.

Referenced by GetCarrierFrequency().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetSpectrumModel()

Ptr< SpectrumModel > ns3::LteSpectrumValueHelper::GetSpectrumModel	(	uint32_t	earfcn,
		uint16_t	bandwidth
	)

static

Parameters

earfcn	the carrier frequency (EARFCN) at which reception is made
bandwidth	the Transmission Bandwidth Configuration in number of resource blocks

Returns: the static SpectrumModel instance corresponding to the given carrier frequency and transmission bandwidth configuration. If such SpectrumModel does not exist, it is created.

Definition at line 250 of file lte-spectrum-value-helper.cc.

References f(), ns3::BandInfo::fc, ns3::BandInfo::fh, ns3::BandInfo::fl, ns3::g_lteSpectrumModelMap, GetCarrierFrequency(), ns3::SpectrumModel::GetUid(), NS_ASSERT_MSG, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

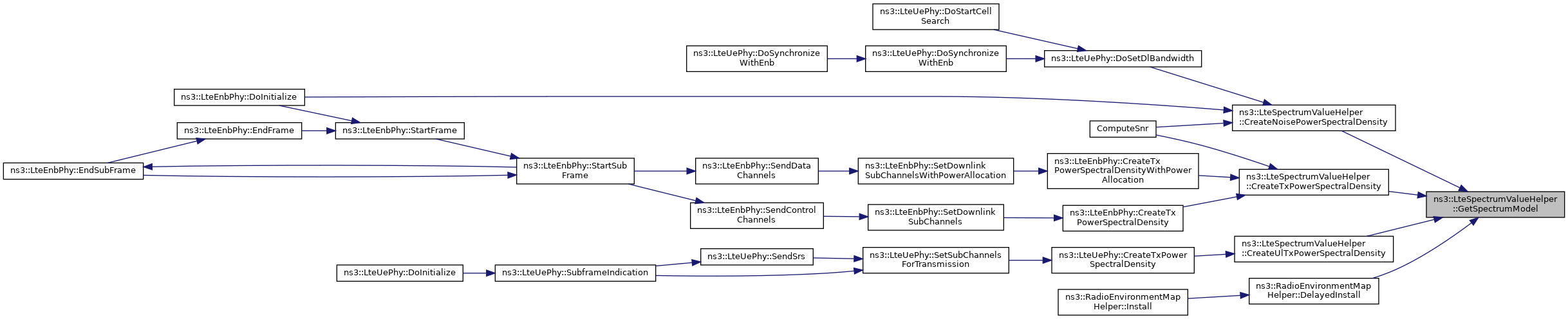

Referenced by CreateNoisePowerSpectralDensity(), CreateTxPowerSpectralDensity(), CreateUlTxPowerSpectralDensity(), and ns3::RadioEnvironmentMapHelper::DelayedInstall().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetUplinkCarrierBand()

uint16_t ns3::LteSpectrumValueHelper::GetUplinkCarrierBand ( uint32_t nUl )

static

Converts uplink EARFCN to corresponding LTE frequency band number.

Parameters

nUl	the EARFCN

Returns: the uplink carrier band

Definition at line 149 of file lte-spectrum-value-helper.cc.

References ns3::g_eutraChannelNumbers, NS_LOG_ERROR, NS_LOG_FUNCTION, NS_LOG_LOGIC, and NUM_EUTRA_BANDS.

Referenced by ns3::CcHelper::EquallySpacedCcs(), CarrierAggregationConfigTestCase::EquallySpacedCcs(), and GetUplinkCarrierFrequency().

Here is the caller graph for this function:

◆ GetUplinkCarrierFrequency()

double ns3::LteSpectrumValueHelper::GetUplinkCarrierFrequency ( uint32_t earfcn )

static

Calculates the uplink carrier frequency from the E-UTRA Absolute Radio Frequency Channel Number (EARFCN) using the formula in 3GPP TS 36.101 section 5.7.3 "Carrier frequency and EARFCN".

Parameters

earfcn the EARFCN
