Helper class used to make gnuplot plots. More...

#include "gnuplot-helper.h"

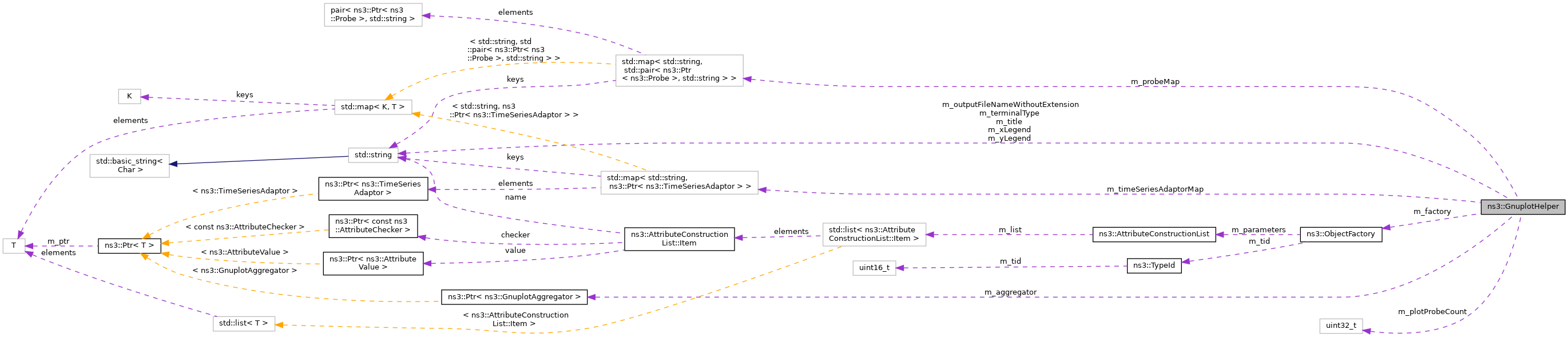

Collaboration diagram for ns3::GnuplotHelper:

Public Member Functions
	GnuplotHelper ()
	Constructs a gnuplot helper that will create a space separated gnuplot data file named "gnuplot-helper.dat", a gnuplot control file named "gnuplot-helper.plt", and a shell script to generate the gnuplot named "gnuplot-helper.sh" unless it is later configured otherwise. More...

	GnuplotHelper (const std::string &outputFileNameWithoutExtension, const std::string &title, const std::string &xLegend, const std::string &yLegend, const std::string &terminalType="png")

virtual	~GnuplotHelper ()

void	AddTimeSeriesAdaptor (const std::string &adaptorName)
	Adds a time series adaptor to be used to make the plot. More...

void	ConfigurePlot (const std::string &outputFileNameWithoutExtension, const std::string &title, const std::string &xLegend, const std::string &yLegend, const std::string &terminalType="png")

Ptr< GnuplotAggregator >	GetAggregator ()
	Gets the aggregator. More...

Ptr< Probe >	GetProbe (std::string probeName) const
	Gets the specified probe. More...

void	PlotProbe (const std::string &typeId, const std::string &path, const std::string &probeTraceSource, const std::string &title, GnuplotAggregator::KeyLocation keyLocation=GnuplotAggregator::KEY_INSIDE)

Private Member Functions
void	AddProbe (const std::string &typeId, const std::string &probeName, const std::string &path)
	Adds a probe to be used to make the plot. More...

void	ConnectProbeToAggregator (const std::string &typeId, const std::string &matchIdentifier, const std::string &path, const std::string &probeTraceSource, const std::string &title)
	Connects the probe to the aggregator. More...

void	ConstructAggregator ()
	Constructs the aggregator. More...

Private Attributes
Ptr< GnuplotAggregator >	m_aggregator
	The aggregator used to make the plots. More...

ObjectFactory	m_factory
	Used to create the probes and collectors as they are added. More...

std::string	m_outputFileNameWithoutExtension
	The name of the output file to created without its extension. More...

uint32_t	m_plotProbeCount
	Number of plot probes that have been created. More...

std::map< std::string, std::pair< Ptr< Probe >, std::string > >	m_probeMap
	Maps probe names to probes. More...

std::string	m_terminalType
	Terminal type for the plot. More...

std::map< std::string, Ptr< TimeSeriesAdaptor > >	m_timeSeriesAdaptorMap
	Maps time series adaptor names to time series adaptors. More...

std::string	m_title
	Title string to use for this plot. More...

std::string	m_xLegend
	Legend for the x axis. More...

std::string	m_yLegend
	Legend for the y axis. More...

Detailed Description

Helper class used to make gnuplot plots.

Definition at line 40 of file gnuplot-helper.h.

Constructor & Destructor Documentation

◆ GnuplotHelper() [1/2]

ns3::GnuplotHelper::GnuplotHelper ( )

Constructs a gnuplot helper that will create a space separated gnuplot data file named "gnuplot-helper.dat", a gnuplot control file named "gnuplot-helper.plt", and a shell script to generate the gnuplot named "gnuplot-helper.sh" unless it is later configured otherwise.

Definition at line 38 of file gnuplot-helper.cc.

References NS_LOG_FUNCTION.

◆ GnuplotHelper() [2/2]

ns3::GnuplotHelper::GnuplotHelper	(	const std::string &	outputFileNameWithoutExtension,
		const std::string &	title,
		const std::string &	xLegend,
		const std::string &	yLegend,
		const std::string &	terminalType = `"png"`
	)

Parameters

outputFileNameWithoutExtension	name of gnuplot related files to write with no extension
title	plot title string to use for this plot.
xLegend	the legend for the x horizontal axis.
yLegend	the legend for the y vertical axis.
terminalType	terminal type setting string for output. The default terminal type is "png"

Constructs a gnuplot helper that will create a space separated gnuplot data file named outputFileNameWithoutExtension + ".dat", a gnuplot control file named outputFileNameWithoutExtension + ".plt", and a shell script to generate the gnuplot named outputFileNameWithoutExtension + ".sh".

Definition at line 53 of file gnuplot-helper.cc.

References ConstructAggregator(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ ~GnuplotHelper()

ns3::GnuplotHelper::~GnuplotHelper ( )

virtual

Definition at line 72 of file gnuplot-helper.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ AddProbe()

void ns3::GnuplotHelper::AddProbe	(	const std::string &	typeId,
		const std::string &	probeName,
		const std::string &	path
	)

private

Adds a probe to be used to make the plot.

Parameters

typeId	the type ID for the probe used when it is created.
probeName	the probe's name.
path	Config path to access the probe.

Definition at line 200 of file gnuplot-helper.cc.

References ns3::ObjectFactory::Create(), ns3::Object::GetObject(), m_factory, m_probeMap, NS_ABORT_MSG, NS_LOG_FUNCTION, and ns3::ObjectFactory::SetTypeId().

Referenced by ConnectProbeToAggregator().

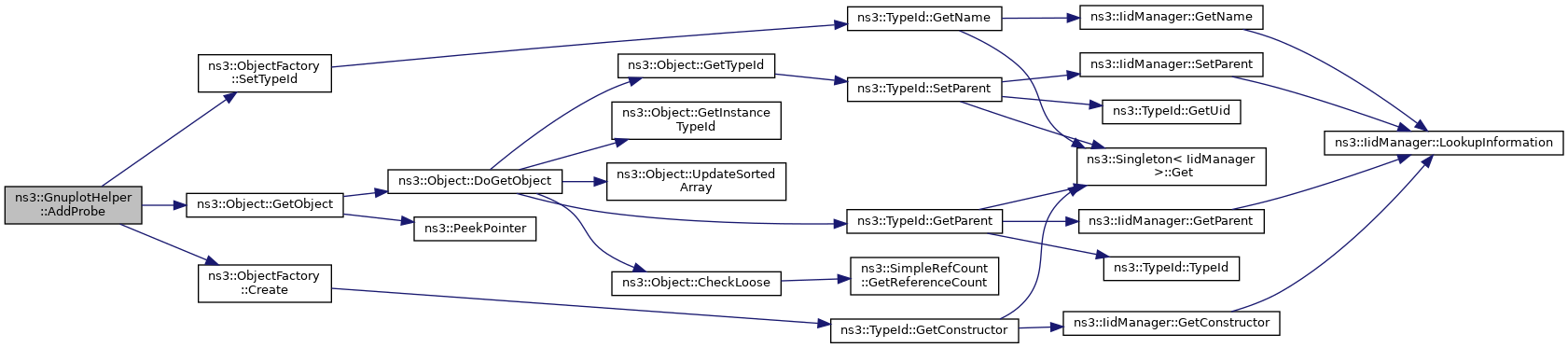

Here is the call graph for this function:

Here is the caller graph for this function:

◆ AddTimeSeriesAdaptor()

void ns3::GnuplotHelper::AddTimeSeriesAdaptor ( const std::string & adaptorName )

Adds a time series adaptor to be used to make the plot.

Parameters

adaptorName the timeSeriesAdaptor's name.

Definition at line 236 of file gnuplot-helper.cc.

References m_timeSeriesAdaptorMap, NS_ABORT_MSG, and NS_LOG_FUNCTION.

Referenced by ConnectProbeToAggregator().

Here is the caller graph for this function:

◆ ConfigurePlot()

void ns3::GnuplotHelper::ConfigurePlot	(	const std::string &	outputFileNameWithoutExtension,
		const std::string &	title,
		const std::string &	xLegend,
		const std::string &	yLegend,
		const std::string &	terminalType = `"png"`
	)

Parameters

outputFileNameWithoutExtension	name of gnuplot related files to write with no extension
title	plot title string to use for this plot.
xLegend	the legend for the x horizontal axis.
yLegend	the legend for the y vertical axis.
terminalType	terminal type setting string for output. The default terminal type is "png"

Configures plot related parameters for this gnuplot helper so that it will create a space separated gnuplot data file named outputFileNameWithoutExtension + ".dat", a gnuplot control file named outputFileNameWithoutExtension + ".plt", and a shell script to generate the gnuplot named outputFileNameWithoutExtension + ".sh".

Definition at line 78 of file gnuplot-helper.cc.

References ConstructAggregator(), m_aggregator, m_outputFileNameWithoutExtension, m_terminalType, m_title, m_xLegend, m_yLegend, NS_LOG_FUNCTION, and NS_LOG_WARN.

Here is the call graph for this function:

◆ ConnectProbeToAggregator()

void ns3::GnuplotHelper::ConnectProbeToAggregator	(	const std::string &	typeId,
		const std::string &	matchIdentifier,
		const std::string &	path,
		const std::string &	probeTraceSource,
		const std::string &	title
	)

private

Connects the probe to the aggregator.

Parameters

typeId	the type ID for the probe used when it is created.
matchIdentifier	this string is used to make the probe's context be unique.
path	Config path to access the probe.
probeTraceSource	the probe trace source to access.
title	the title to be associated to this dataset.

Definition at line 305 of file gnuplot-helper.cc.

References AddProbe(), AddTimeSeriesAdaptor(), GetAggregator(), m_plotProbeCount, m_probeMap, m_timeSeriesAdaptorMap, ns3::MakeCallback(), NS_FATAL_ERROR, NS_LOG_FUNCTION, ns3::TimeSeriesAdaptor::TraceSinkBoolean(), ns3::TimeSeriesAdaptor::TraceSinkDouble(), ns3::TimeSeriesAdaptor::TraceSinkUinteger16(), ns3::TimeSeriesAdaptor::TraceSinkUinteger32(), ns3::TimeSeriesAdaptor::TraceSinkUinteger8(), and ns3::GnuplotAggregator::Write2d().

Referenced by PlotProbe().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ConstructAggregator()

void ns3::GnuplotHelper::ConstructAggregator ( )

private

Constructs the aggregator.

Definition at line 288 of file gnuplot-helper.cc.

References m_aggregator, m_outputFileNameWithoutExtension, m_terminalType, m_title, m_xLegend, m_yLegend, and NS_LOG_FUNCTION.

Referenced by GnuplotHelper(), ConfigurePlot(), and GetAggregator().

Here is the caller graph for this function:

◆ GetAggregator()

Ptr< GnuplotAggregator > ns3::GnuplotHelper::GetAggregator ( )

Gets the aggregator.

Returns: Ptr to GnuplotAggregator object

This function is non-const because an aggregator may be lazily created by this method.

Definition at line 274 of file gnuplot-helper.cc.

References ConstructAggregator(), m_aggregator, and NS_LOG_FUNCTION.

Referenced by ConnectProbeToAggregator(), and PlotProbe().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetProbe()

Ptr< Probe > ns3::GnuplotHelper::GetProbe ( std::string probeName ) const

Gets the specified probe.

Parameters

probeName the probe's name.

Returns: Ptr to probe

Definition at line 257 of file gnuplot-helper.cc.

References m_probeMap, and NS_ABORT_MSG.

◆ PlotProbe()

void ns3::GnuplotHelper::PlotProbe	(	const std::string &	typeId,
		const std::string &	path,
		const std::string &	probeTraceSource,
		const std::string &	title,
		GnuplotAggregator::KeyLocation	keyLocation = `GnuplotAggregator::KEY_INSIDE`
	)

Parameters

typeId	the type ID for the probe used when it is created.
path	Config path for underlying trace source to be probed
probeTraceSource	the probe trace source to access.
title	the title to be associated to this dataset
keyLocation	the location of the key in the plot.

Plots a dataset generated by hooking the ns-3 trace source with a probe, and then plot the values from the probeTraceSource. The dataset will have the provided title, and will consist of the 'newValue' at each timestamp.

This method will create one or more probes according to the TypeId provided, connect the probe(s) to the trace source specified by the config path, and hook the probeTraceSource(s) to the downstream aggregator.

If the config path has more than one match in the system (e.g. there is a wildcard), then one dataset for each match will be plotted. The dataset titles will be suffixed with the matched characters for each of the wildcards in the config path, separated by spaces. For example, if the proposed dataset title is the string "bytes", and there are two wildcards in the path, then dataset titles like "bytes-0 0" or "bytes-12 9" will be possible as labels for the datasets that are plotted.

Definition at line 106 of file gnuplot-helper.cc.

References ConnectProbeToAggregator(), GetAggregator(), ns3::Config::MatchContainer::GetMatchedPath(), ns3::Config::MatchContainer::GetN(), ns3::GetWildcardMatches(), ns3::Gnuplot2dDataset::LINES_POINTS, ns3::Config::LookupMatches(), m_title, NS_FATAL_ERROR, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Here is the call graph for this function:

Member Data Documentation

◆ m_aggregator

Ptr<GnuplotAggregator> ns3::GnuplotHelper::m_aggregator

private

The aggregator used to make the plots.

Definition at line 187 of file gnuplot-helper.h.

Referenced by ConfigurePlot(), ConstructAggregator(), and GetAggregator().

◆ m_factory

ObjectFactory ns3::GnuplotHelper::m_factory

private

Used to create the probes and collectors as they are added.

Definition at line 184 of file gnuplot-helper.h.

Referenced by AddProbe().

◆ m_outputFileNameWithoutExtension

std::string ns3::GnuplotHelper::m_outputFileNameWithoutExtension

private

The name of the output file to created without its extension.

Definition at line 199 of file gnuplot-helper.h.

Referenced by ConfigurePlot(), and ConstructAggregator().

◆ m_plotProbeCount

uint32_t ns3::GnuplotHelper::m_plotProbeCount

private

Number of plot probes that have been created.

Definition at line 196 of file gnuplot-helper.h.

Referenced by ConnectProbeToAggregator().

◆ m_probeMap

std::map<std::string, std::pair<Ptr<Probe>, std::string> > ns3::GnuplotHelper::m_probeMap

private

Maps probe names to probes.

Definition at line 190 of file gnuplot-helper.h.

Referenced by AddProbe(), ConnectProbeToAggregator(), and GetProbe().

◆ m_terminalType

std::string ns3::GnuplotHelper::m_terminalType

private

Terminal type for the plot.

Definition at line 211 of file gnuplot-helper.h.

Referenced by ConfigurePlot(), and ConstructAggregator().

◆ m_timeSeriesAdaptorMap

std::map<std::string, Ptr<TimeSeriesAdaptor> > ns3::GnuplotHelper::m_timeSeriesAdaptorMap

private

Maps time series adaptor names to time series adaptors.

Definition at line 193 of file gnuplot-helper.h.

Referenced by AddTimeSeriesAdaptor(), and ConnectProbeToAggregator().

◆ m_title

std::string ns3::GnuplotHelper::m_title

private

Title string to use for this plot.

Definition at line 202 of file gnuplot-helper.h.

Referenced by ConfigurePlot(), ConstructAggregator(), and PlotProbe().

◆ m_xLegend

std::string ns3::GnuplotHelper::m_xLegend

private

Legend for the x axis.

Definition at line 205 of file gnuplot-helper.h.

Referenced by ConfigurePlot(), and ConstructAggregator().

◆ m_yLegend

std::string ns3::GnuplotHelper::m_yLegend

private

Legend for the y axis.

Definition at line 208 of file gnuplot-helper.h.

Referenced by ConfigurePlot(), and ConstructAggregator().

The documentation for this class was generated from the following files:

src/stats/helper/gnuplot-helper.h
src/stats/helper/gnuplot-helper.cc
