ns3::Rectangle Class Reference

a 2d rectangle More...

#include "rectangle.h"

+ Collaboration diagram for ns3::Rectangle:

Public Types

enum  Side {
  RIGHTSIDE = 0 , LEFTSIDE , TOPSIDE , BOTTOMSIDE ,
  TOPRIGHTCORNER , TOPLEFTCORNER , BOTTOMRIGHTCORNER , BOTTOMLEFTCORNER
}
 enum for naming sides More...


Public Member Functions

 Rectangle ()
 Create a zero-sized rectangle located at coordinates (0.0,0.0) More...

 Rectangle (double _xMin, double _xMax, double _yMin, double _yMax)

Vector CalculateIntersection (const Vector &current, const Vector &speed) const

Side GetClosestSideOrCorner (const Vector &position) const

bool IsInside (const Vector &position) const

bool IsOnTheBorder (const Vector &position) const


Public Attributes

double xMax
 The x coordinate of the right bound of the rectangle. More...

double xMin
 The x coordinate of the left bound of the rectangle. More...

double yMax
 The y coordinate of the top bound of the rectangle. More...

double yMin
 The y coordinate of the bottom bound of the rectangle. More...


Detailed Description

a 2d rectangle

See also
attribute_Rectangle

Definition at line 34 of file rectangle.h.

Member Enumeration Documentation

◆ Side

enum for naming sides

Enumerator
RIGHTSIDE
LEFTSIDE
TOPSIDE
BOTTOMSIDE
TOPRIGHTCORNER
TOPLEFTCORNER
BOTTOMRIGHTCORNER
BOTTOMLEFTCORNER

Definition at line 40 of file rectangle.h.

Constructor & Destructor Documentation

◆ Rectangle() [1/2]

ns3::Rectangle::Rectangle ( double  _xMin,
double  _xMax,
double  _yMin,
double  _yMax
)
Parameters
_xMinx coordinates of left boundary.
_xMaxx coordinates of right boundary.
_yMiny coordinates of bottom boundary.
_yMaxy coordinates of top boundary.

Create a rectangle.

Definition at line 33 of file rectangle.cc.

◆ Rectangle() [2/2]

ns3::Rectangle::Rectangle ( )

Create a zero-sized rectangle located at coordinates (0.0,0.0)

Definition at line 41 of file rectangle.cc.

Member Function Documentation

◆ CalculateIntersection()

Vector ns3::Rectangle::CalculateIntersection ( const Vector &  current,
const Vector &  speed
) const
Parameters
currentthe current position
speedthe current speed
Returns
the intersection point between the rectangle and the current+speed vector.

This method assumes that the current position is located inside the rectangle and checks for this with an assert. This method compares only the x and y coordinates of the input position and speed. It ignores the z coordinate.

Definition at line 152 of file rectangle.cc.

References IsInside(), NS_ASSERT, xMax, xMin, yMax, and yMin.

Referenced by ns3::RandomWalk2dOutdoorMobilityModel::DoWalk(), ns3::RandomWalk2dMobilityModel::DoWalk(), and ns3::RandomDirection2dMobilityModel::SetDirectionAndSpeed().

+ Here is the call graph for this function:

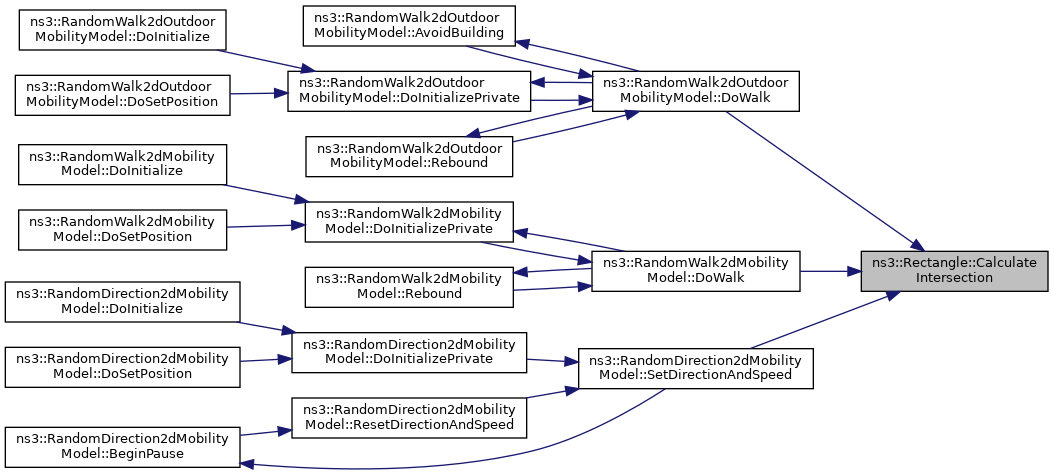

+ Here is the caller graph for this function:

◆ GetClosestSideOrCorner()

Rectangle::Side ns3::Rectangle::GetClosestSideOrCorner ( const Vector &  position) const
Parameters
positionthe position to test.
Returns
the side of the rectangle the input position is closest to.

This method compares only the x and y coordinates of the input position. It ignores the z coordinate.

This method assumes assumes a right-handed Cartesian orientation, so that (xMin, yMin) is the BOTTOMLEFTCORNER, the TOP and BOTTOM sides are parallel to the x-axis, the LEFT and RIGHT sides are parallel to the y-axis, and the (xMax, yMax) point is the TOPRIGHTCORNER.

Beware: the method has an ambiguity in the "center" of the rectangle. Assume a rectangle between the points (0, 0) and (4, 2), i.e., wider than taller. All the points on the line between (1, 1) and (3, 1) are equally closer to the TOP and BOTTOM than to the other sides of the Rectangle. These points are classified as TOPSIDE by convention.

Similarly, for a Rectangle taller than wider, the "center" points will be classified as RIGHTSIDE, and for a square box, the center will return RIGHTSIDE.

Definition at line 64 of file rectangle.cc.

References BOTTOMLEFTCORNER, BOTTOMRIGHTCORNER, BOTTOMSIDE, IsInside(), LEFTSIDE, max, NS_ASSERT, NS_FATAL_ERROR, RIGHTSIDE, TOPLEFTCORNER, TOPRIGHTCORNER, TOPSIDE, xMax, and yMax.

Referenced by ns3::RandomWalk2dOutdoorMobilityModel::CalculateIntersectionFromOutside(), ns3::RandomWalk2dMobilityModel::DoInitializePrivate(), RectangleClosestBorderTestCase::DoRun(), ns3::RandomWalk2dOutdoorMobilityModel::Rebound(), ns3::RandomWalk2dMobilityModel::Rebound(), and ns3::RandomDirection2dMobilityModel::ResetDirectionAndSpeed().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ IsInside()

bool ns3::Rectangle::IsInside ( const Vector &  position) const
Parameters
positionthe position to test.
Returns
true if the input position is located within the rectangle, false otherwise.

This method compares only the x and y coordinates of the input position. It ignores the z coordinate.

Definition at line 50 of file rectangle.cc.

References xMax, xMin, yMax, and yMin.

Referenced by ns3::RandomWalk2dOutdoorMobilityModel::AvoidBuilding(), CalculateIntersection(), ns3::RandomWalk2dOutdoorMobilityModel::DoSetPosition(), ns3::RandomWalk2dMobilityModel::DoSetPosition(), ns3::RandomWalk2dOutdoorMobilityModel::DoWalk(), ns3::RandomWalk2dMobilityModel::DoWalk(), and GetClosestSideOrCorner().

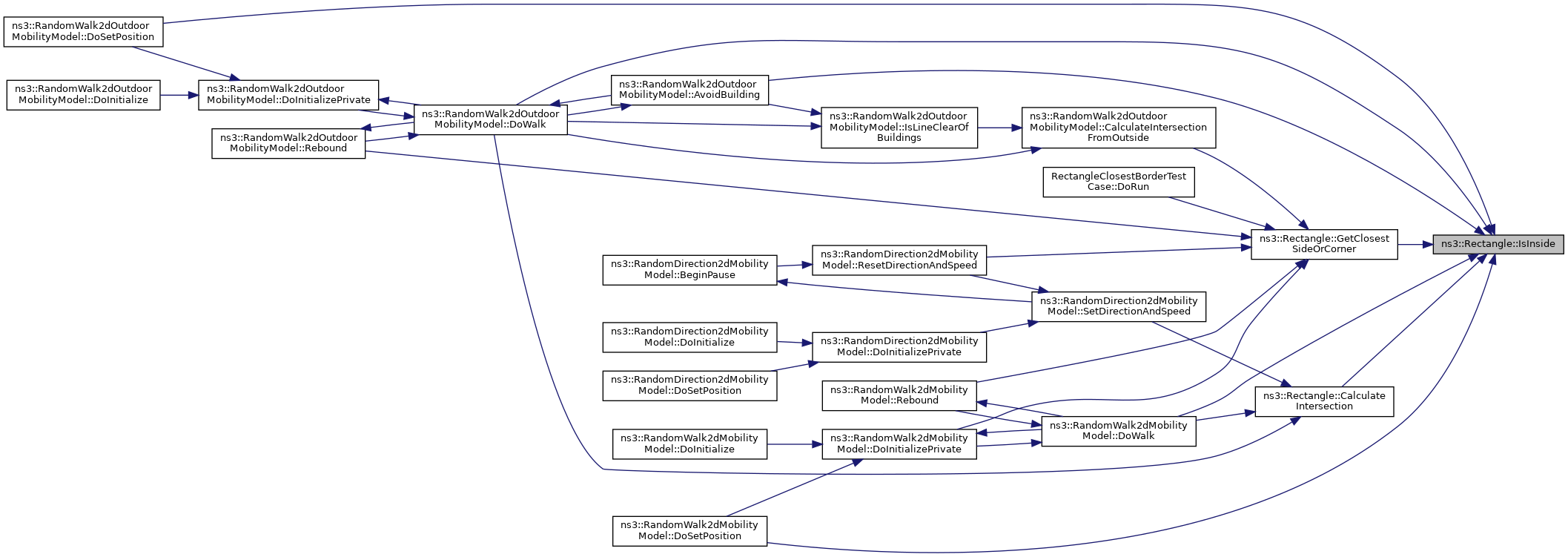

+ Here is the caller graph for this function:

◆ IsOnTheBorder()

bool ns3::Rectangle::IsOnTheBorder ( const Vector &  position) const
Parameters
positionthe position to test.
Returns
true if the input position is located on the rectable border, false otherwise.

This method compares only the x and y coordinates of the input position. It ignores the z coordinate.

Definition at line 57 of file rectangle.cc.

References xMax, xMin, yMax, and yMin.

Referenced by ns3::RandomWalk2dMobilityModel::DoInitializePrivate().

+ Here is the caller graph for this function:

Member Data Documentation

◆ xMax

double ns3::Rectangle::xMax

◆ xMin

double ns3::Rectangle::xMin

◆ yMax

double ns3::Rectangle::yMax

◆ yMin

double ns3::Rectangle::yMin
