ns3::dot11s::IeMeshId Class Reference

a IEEE 802.11 Mesh ID element (Section 8.4.2.101 of IEEE 802.11-2012) More...

#include "ie-dot11s-id.h"

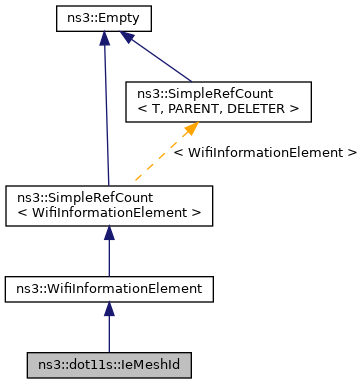

+ Inheritance diagram for ns3::dot11s::IeMeshId:
+ Collaboration diagram for ns3::dot11s::IeMeshId:

Public Member Functions

 IeMeshId ()

 IeMeshId (std::string s)
 Constructor. More...

uint16_t DeserializeInformationField (Buffer::Iterator start, uint16_t length) override
 Deserialize information (i.e., the body of the IE, not including the Element ID and length octets) More...

WifiInformationElementId ElementId () const override
 Get the wifi information element ID. More...

uint16_t GetInformationFieldSize () const override
 Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets. More...

bool IsBroadcast () const
 Return true if broadcast (if first octet of Mesh ID is zero) More...

bool IsEqual (const IeMeshId &o) const
 Equality test. More...

char * PeekString () const
 Peek the IeMeshId as a string value. More...

void Print (std::ostream &os) const override
 Generate human-readable form of IE. More...

void SerializeInformationField (Buffer::Iterator i) const override
 Serialize information (i.e., the body of the IE, not including the Element ID and length octets) More...

- Public Member Functions inherited from ns3::WifiInformationElement
virtual ~WifiInformationElement ()

Buffer::Iterator Deserialize (Buffer::Iterator i)
 Deserialize entire IE (which may possibly be fragmented into multiple elements), which must be present. More...

Buffer::Iterator DeserializeIfPresent (Buffer::Iterator i)
 Deserialize entire IE (which may possibly be fragmented into multiple elements) if it is present. More...

virtual WifiInformationElementId ElementIdExt () const
 Get the wifi information element ID extension. More...

uint16_t GetSerializedSize () const
 Get the size of the serialized IE including Element ID and length fields (for every element this IE is possibly fragmented into). More...

virtual bool operator== (const WifiInformationElement &a) const
 Compare two IEs for equality by ID & Length, and then through memcmp of serialised version. More...

Buffer::Iterator Serialize (Buffer::Iterator i) const
 Serialize entire IE including Element ID and length fields. More...

- Public Member Functions inherited from ns3::SimpleRefCount< WifiInformationElement >
 SimpleRefCount ()
 Default constructor. More...

 SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
 Copy constructor. More...

uint32_t GetReferenceCount () const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o[[maybe_unused]])
 Assignment operator. More...

void Ref () const
 Increment the reference count. More...

void Unref () const
 Decrement the reference count. More...


Private Attributes

uint8_t m_meshId [33]
 mesh ID More...


Friends

bool operator== (const IeMeshId &a, const IeMeshId &b)
 equality operator More...


Detailed Description

a IEEE 802.11 Mesh ID element (Section 8.4.2.101 of IEEE 802.11-2012)

See also
attribute_IeMeshId

Definition at line 37 of file ie-dot11s-id.h.

Constructor & Destructor Documentation

◆ IeMeshId() [1/2]

ns3::dot11s::IeMeshId::IeMeshId ( )

Definition at line 29 of file ie-dot11s-id.cc.

References m_meshId.

◆ IeMeshId() [2/2]

ns3::dot11s::IeMeshId::IeMeshId ( std::string  s)

Constructor.

Parameters
sreference id

Definition at line 37 of file ie-dot11s-id.cc.

References m_meshId, and NS_ASSERT.

Member Function Documentation

◆ DeserializeInformationField()

uint16_t ns3::dot11s::IeMeshId::DeserializeInformationField ( Buffer::Iterator  start,
uint16_t  length
)
overridevirtual

Deserialize information (i.e., the body of the IE, not including the Element ID and length octets)

Parameters
startan iterator which points to where the information should be written.
lengththe expected number of bytes to read
Returns
the number of bytes read

Implements ns3::WifiInformationElement.

Definition at line 109 of file ie-dot11s-id.cc.

References ns3::Buffer::Iterator::GetDistanceFrom(), m_meshId, NS_ASSERT, ns3::Buffer::Iterator::Read(), and two-ray-to-three-gpp-ch-calibration::start.

Referenced by ns3::dot11s::PeerLinkOpenStart::Deserialize(), and ns3::dot11s::PeerLinkCloseStart::Deserialize().

+ Here is the call graph for this function:

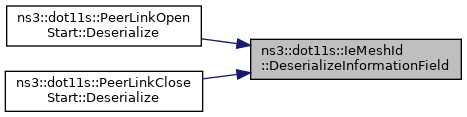

+ Here is the caller graph for this function:

◆ ElementId()

WifiInformationElementId ns3::dot11s::IeMeshId::ElementId ( ) const
overridevirtual

Get the wifi information element ID.

Returns
the wifi information element ID

Implements ns3::WifiInformationElement.

Definition at line 57 of file ie-dot11s-id.cc.

References IE_MESH_ID.

Referenced by ns3::dot11s::PeerLinkOpenStart::Deserialize(), and ns3::dot11s::PeerLinkCloseStart::Deserialize().

+ Here is the caller graph for this function:

◆ GetInformationFieldSize()

uint16_t ns3::dot11s::IeMeshId::GetInformationFieldSize ( ) const
overridevirtual

Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets.

This is the value that will appear in the second octet of the entire IE - the length field - if the IE is not fragmented)

Returns
the length of serialized information

Implements ns3::WifiInformationElement.

Definition at line 86 of file ie-dot11s-id.cc.

References m_meshId, and NS_ASSERT.

Referenced by ns3::dot11s::PeerLinkOpenStart::Deserialize(), ns3::dot11s::PeerLinkCloseStart::Deserialize(), ns3::dot11s::PeerLinkOpenStart::GetSerializedSize(), and ns3::dot11s::PeerLinkCloseStart::GetSerializedSize().

+ Here is the caller graph for this function:

◆ IsBroadcast()

bool ns3::dot11s::IeMeshId::IsBroadcast ( ) const

Return true if broadcast (if first octet of Mesh ID is zero)

Returns
true if broadcast

Definition at line 74 of file ie-dot11s-id.cc.

References m_meshId.

◆ IsEqual()

bool ns3::dot11s::IeMeshId::IsEqual ( const IeMeshId o) const

Equality test.

Parameters
oanother IeMeshId
Returns
true if equal

Definition at line 63 of file ie-dot11s-id.cc.

References m_meshId.

Referenced by ns3::dot11s::PeerManagementProtocolMac::Receive().

+ Here is the caller graph for this function:

◆ PeekString()

char * ns3::dot11s::IeMeshId::PeekString ( ) const

Peek the IeMeshId as a string value.

Returns
the mesh ID as a string

Definition at line 80 of file ie-dot11s-id.cc.

References m_meshId.

Referenced by Print().

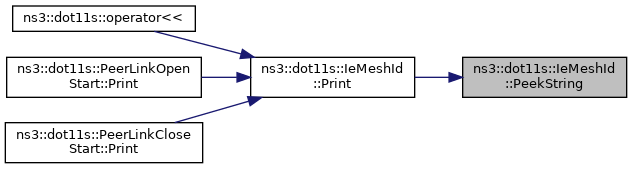

+ Here is the caller graph for this function:

◆ Print()

void ns3::dot11s::IeMeshId::Print ( std::ostream &  os) const
overridevirtual

Generate human-readable form of IE.

Parameters
osoutput stream

Reimplemented from ns3::WifiInformationElement.

Definition at line 119 of file ie-dot11s-id.cc.

References PeekString().

Referenced by ns3::dot11s::operator<<(), ns3::dot11s::PeerLinkOpenStart::Print(), and ns3::dot11s::PeerLinkCloseStart::Print().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ SerializeInformationField()

void ns3::dot11s::IeMeshId::SerializeInformationField ( Buffer::Iterator  start) const
overridevirtual

Serialize information (i.e., the body of the IE, not including the Element ID and length octets)

Parameters
startan iterator which points to where the information should be written.

Implements ns3::WifiInformationElement.

Definition at line 98 of file ie-dot11s-id.cc.

References m_meshId, and ns3::Buffer::Iterator::WriteU8().

+ Here is the call graph for this function:

Friends And Related Function Documentation

◆ operator==

bool operator== ( const IeMeshId a,
const IeMeshId b
)
friend

equality operator

Parameters
alhs
blhs
Returns
true if equal

Definition at line 125 of file ie-dot11s-id.cc.

Member Data Documentation

◆ m_meshId

uint8_t ns3::dot11s::IeMeshId::m_meshId[33]
private

The documentation for this class was generated from the following files:
