Testing UE measurements in LTE with simulation of 3 eNodeB and 1 UE in piecewise configuration and 240 ms report interval. More...

#include "lte-test-ue-measurements.h"

Inheritance diagram for LteUeMeasurementsPiecewiseTestCase3:

Collaboration diagram for LteUeMeasurementsPiecewiseTestCase3:

Public Member Functions
	LteUeMeasurementsPiecewiseTestCase3 (std::string name, LteRrcSap::ReportConfigEutra config, std::vector< Time > expectedTime)
	Constructor. More...

	~LteUeMeasurementsPiecewiseTestCase3 () override

void	RecvMeasurementReportCallback (std::string context, uint64_t imsi, uint16_t cellId, uint16_t rnti, LteRrcSap::MeasurementReport report)
	Triggers when eNodeB receives measurement report from UE, then perform verification on it. More...

Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete

virtual	~TestCase ()
	Destructor. More...

std::string	GetName () const

TestCase &	operator= (const TestCase &)=delete

Private Member Functions
void	DoRun () override
	Setup the simulation with the intended UE measurement reporting configuration, run it, and connect the `RecvMeasurementReportCallback` function to the `LteUeRrc::RecvMeasurementReport` trace source. More...

void	DoTeardown () override
	Runs at the end of the simulation, verifying that all expected measurement reports have been examined. More...

void	TeleportEnbNear ()
	Teleport the eNb near function. More...

Private Attributes
LteRrcSap::ReportConfigEutra	m_config
	The active report triggering configuration. More...

Ptr< MobilityModel >	m_enbMobility
	the mobility model More...

uint8_t	m_expectedMeasId
	The measurement identity being tested. More...

std::vector< Time >	m_expectedTime
	The list of expected time when measurement reports are received by eNodeB. More...

std::vector< Time >::iterator	m_itExpectedTime
	Pointer to the element of `m_expectedTime` which is expected to occur next in the simulation. More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...

void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...

TestCase *	GetParent () const
	Get the parent of this TestCase. More...

bool	IsStatusFailure () const
	Check if any tests failed. More...

bool	IsStatusSuccess () const
	Check if all tests passed. More...

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...

bool	MustAssertOnFailure () const
	Check if this run should assert on failure. More...

bool	MustContinueOnFailure () const
	Check if this run should continue on failure. More...

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

Testing UE measurements in LTE with simulation of 3 eNodeB and 1 UE in piecewise configuration and 240 ms report interval.

This test is to cover a corner case using event A4, which is not covered by LteUeMeasurementsPiecewiseTestCase1 and LteUeMeasurementsPiecewiseTestCase2. In this case, we test that the UE measurements at eNB are arriving 240 ms apart. Please note, the scenario simulated is engineered to specifically test the corner case in which whenever a new neighbour fulfils the entry condition for event A4, the UE RRC calls VarMeasReportListAdd method to include the new cell id in cellsTriggeredList, and then it schedules the SendMeasurementReport for periodic reporting. However, if the UE has already started the periodic reporting, scheduling the SendMeasurementReport method again causes following buggy behaviors:

It generates an intermediate measurement event, which then leads to parallel intermediate measurement reports from a UE to its eNB.
The old EvenId is overwritten by the new EventId stored in VarMeasReportList. This makes us lose control over the old EventId and it is impossible to cancel its events later on.

These buggy behaviors generated an issue reported in https://gitlab.com/nsnam/ns-3-dev/-/issues/224, where a UE try to send measurement reports after the RLF, even though all the measurement events are properly cancelled upon detecting RLF.

The correct behaviour should be that if a UE has already started the periodic reporting, and once a new neighbour fulfils the entry condition, we just need to add its cell id in cellsTriggeredList, without scheduling a new periodic event.

Definition at line 444 of file lte-test-ue-measurements.h.

Constructor & Destructor Documentation

◆ LteUeMeasurementsPiecewiseTestCase3()

LteUeMeasurementsPiecewiseTestCase3::LteUeMeasurementsPiecewiseTestCase3	(	std::string	name,
		LteRrcSap::ReportConfigEutra	config,
		std::vector< Time >	expectedTime
	)

Constructor.

Parameters

name	the reference name
config	LteRrcSap::ReportConfigEutra
expectedTime	the expected time

Definition at line 1740 of file lte-test-ue-measurements.cc.

References m_expectedMeasId, m_expectedTime, m_itExpectedTime, max, and NS_LOG_INFO.

◆ ~LteUeMeasurementsPiecewiseTestCase3()

LteUeMeasurementsPiecewiseTestCase3::~LteUeMeasurementsPiecewiseTestCase3 ( )

override

Definition at line 1755 of file lte-test-ue-measurements.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ DoRun()

void LteUeMeasurementsPiecewiseTestCase3::DoRun ( void )

overrideprivatevirtual

Setup the simulation with the intended UE measurement reporting configuration, run it, and connect the RecvMeasurementReportCallback function to the LteUeRrc::RecvMeasurementReport trace source.

Implements ns3::TestCase.

Definition at line 1761 of file lte-test-ue-measurements.cc.

References ns3::LteHelper::ActivateDataRadioBearer(), ns3::LteHelper::Attach(), ns3::Config::Connect(), ns3::NodeContainer::Create(), ns3::NetDeviceContainer::Get(), ns3::NodeContainer::Get(), ns3::TestCase::GetName(), ns3::Object::GetObject(), ns3::LteHelper::InstallEnbDevice(), ns3::LteHelper::InstallUeDevice(), m_config, m_enbMobility, m_expectedMeasId, ns3::MakeCallback(), ns3::MilliSeconds(), third::mobility, NS_LOG_INFO, RecvMeasurementReportCallback(), ns3::Seconds(), ns3::ObjectBase::SetAttribute(), ns3::Config::SetDefault(), ns3::LteHelper::SetSchedulerAttribute(), ns3::LteHelper::SetSchedulerType(), and TeleportEnbNear().

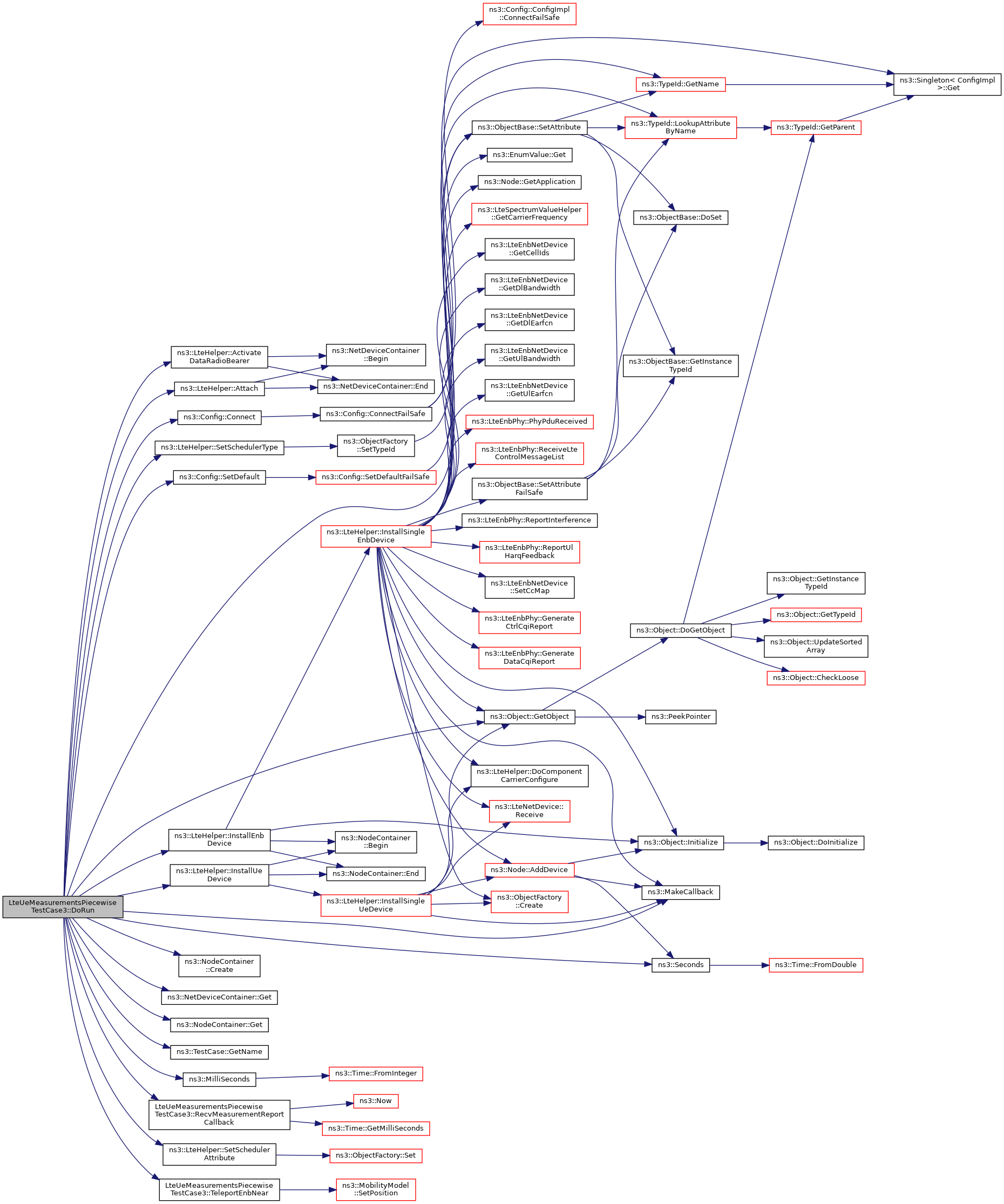

Here is the call graph for this function:

◆ DoTeardown()

void LteUeMeasurementsPiecewiseTestCase3::DoTeardown ( )

overrideprivatevirtual

Runs at the end of the simulation, verifying that all expected measurement reports have been examined.

Reimplemented from ns3::TestCase.

Definition at line 1855 of file lte-test-ue-measurements.cc.

References m_expectedTime, m_itExpectedTime, NS_LOG_FUNCTION, and NS_TEST_ASSERT_MSG_EQ.

◆ RecvMeasurementReportCallback()

void LteUeMeasurementsPiecewiseTestCase3::RecvMeasurementReportCallback	(	std::string	context,
		uint64_t	imsi,
		uint16_t	cellId,
		uint16_t	rnti,
		LteRrcSap::MeasurementReport	report
	)
