ns3::TcpTxItem::RateInformation Struct Reference

Various rate-related information, can be accessed by TcpRateOps. More...

#include "tcp-tx-item.h"

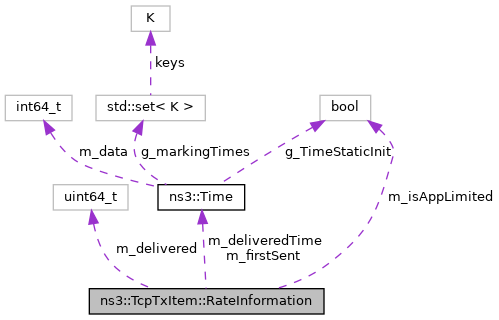

+ Collaboration diagram for ns3::TcpTxItem::RateInformation:

Public Attributes

uint64_t m_delivered {0}
 Connection's delivered data at the time the packet was sent. More...

Time m_deliveredTime
 Connection's delivered time at the time the packet was sent. More...

Time m_firstSent
 Connection's first sent time at the time the packet was sent. More...

bool m_isAppLimited {false}
 Connection's app limited at the time the packet was sent. More...


Detailed Description

Various rate-related information, can be accessed by TcpRateOps.

Note: This is not enforced through C++, but you developer must honour this description.

Definition at line 87 of file tcp-tx-item.h.

Member Data Documentation

◆ m_delivered

uint64_t ns3::TcpTxItem::RateInformation::m_delivered {0}

Connection's delivered data at the time the packet was sent.

Definition at line 89 of file tcp-tx-item.h.

Referenced by TcpRateLinuxBasicTest::SendSkb(), ns3::TcpRateLinux::SkbDelivered(), and ns3::TcpRateLinux::SkbSent().

◆ m_deliveredTime

Time ns3::TcpTxItem::RateInformation::m_deliveredTime
Initial value:
{
static Time Max()
Maximum representable Time Not to be confused with Max(Time,Time).
Definition: nstime.h:297

Connection's delivered time at the time the packet was sent.

Definition at line 90 of file tcp-tx-item.h.

Referenced by TcpRateLinuxBasicTest::SendSkb(), TcpRateLinuxBasicTest::SkbDelivered(), ns3::TcpRateLinux::SkbDelivered(), and ns3::TcpRateLinux::SkbSent().

◆ m_firstSent

Time ns3::TcpTxItem::RateInformation::m_firstSent
Initial value:
{

Connection's first sent time at the time the packet was sent.

Definition at line 92 of file tcp-tx-item.h.

Referenced by ns3::TcpRateLinux::SkbDelivered(), and ns3::TcpRateLinux::SkbSent().

◆ m_isAppLimited

bool ns3::TcpTxItem::RateInformation::m_isAppLimited {false}

Connection's app limited at the time the packet was sent.

Definition at line 94 of file tcp-tx-item.h.

Referenced by TcpRateLinuxBasicTest::SkbDelivered(), ns3::TcpRateLinux::SkbDelivered(), and ns3::TcpRateLinux::SkbSent().


The documentation for this struct was generated from the following file:
