IPv6 Extension Routing Demux. More...

#include "ipv6-extension.h"

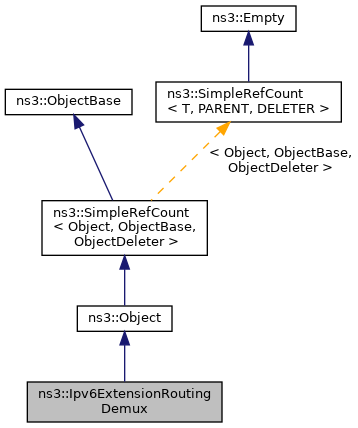

Inheritance diagram for ns3::Ipv6ExtensionRoutingDemux:

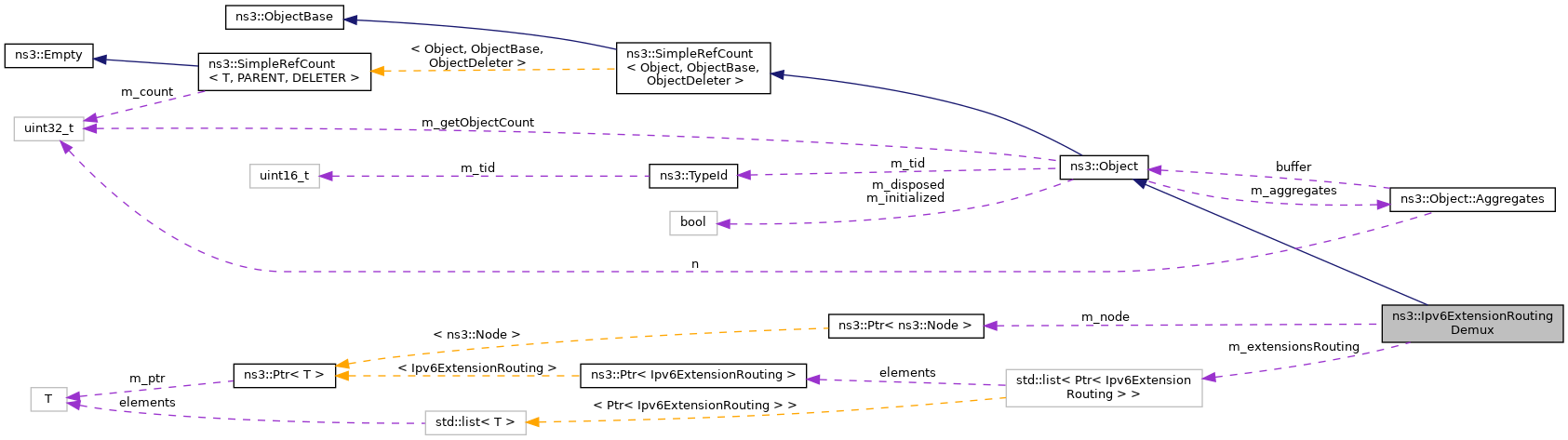

Collaboration diagram for ns3::Ipv6ExtensionRoutingDemux:

Public Member Functions
	Ipv6ExtensionRoutingDemux ()
	Constructor. More...

	~Ipv6ExtensionRoutingDemux () override
	Destructor. More...

Ptr< Ipv6ExtensionRouting >	GetExtensionRouting (uint8_t typeRouting)
	Get the routing extension corresponding to typeRouting. More...

Ipv6ExtensionRoutingHeader *	GetExtensionRoutingHeaderPtr (uint8_t typeRouting)
	Get a pointer to a new routing extension header corresponding to typeRouting. More...

void	Insert (Ptr< Ipv6ExtensionRouting > extensionRouting)
	Insert a new IPv6 Routing Extension. More...

void	Remove (Ptr< Ipv6ExtensionRouting > extensionRouting)
	Remove a routing extension from this demux. More...

void	SetNode (Ptr< Node > node)
	Set the node. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	The interface ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Protected Member Functions
void	DoDispose () override
	Dispose this object. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize ()
	Initialize() implementation. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Private Types
typedef std::list< Ptr< Ipv6ExtensionRouting > >	Ipv6ExtensionRoutingList_t
	Container for the extension routing. More...

Private Attributes
Ipv6ExtensionRoutingList_t	m_extensionsRouting
	List of IPv6 Routing Extensions supported. More...

Ptr< Node >	m_node
	The node. More...

Additional Inherited Members
Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

IPv6 Extension Routing Demux.

Definition at line 541 of file ipv6-extension.h.

Member Typedef Documentation

◆ Ipv6ExtensionRoutingList_t

typedef std::list<Ptr<Ipv6ExtensionRouting> > ns3::Ipv6ExtensionRoutingDemux::Ipv6ExtensionRoutingList_t

private

Container for the extension routing.

Definition at line 603 of file ipv6-extension.h.

Constructor & Destructor Documentation

◆ Ipv6ExtensionRoutingDemux()

ns3::Ipv6ExtensionRoutingDemux::Ipv6ExtensionRoutingDemux ( )

Constructor.

Definition at line 967 of file ipv6-extension.cc.

◆ ~Ipv6ExtensionRoutingDemux()

ns3::Ipv6ExtensionRoutingDemux::~Ipv6ExtensionRoutingDemux ( )

override

Destructor.

Definition at line 971 of file ipv6-extension.cc.

Member Function Documentation

◆ DoDispose()

void ns3::Ipv6ExtensionRoutingDemux::DoDispose ( void )

overrideprotectedvirtual

Dispose this object.

Reimplemented from ns3::Object.

Definition at line 976 of file ipv6-extension.cc.

References ns3::Object::DoDispose(), ns3::Ipv6Extension::m_node, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ GetExtensionRouting()

Ptr< Ipv6ExtensionRouting > ns3::Ipv6ExtensionRoutingDemux::GetExtensionRouting ( uint8_t typeRouting )

Get the routing extension corresponding to typeRouting.

Parameters

typeRouting the number of the routing extension to retrieve

Returns: a matching IPv6 routing extension

Definition at line 1004 of file ipv6-extension.cc.

◆ GetExtensionRoutingHeaderPtr()

Ipv6ExtensionRoutingHeader * ns3::Ipv6ExtensionRoutingDemux::GetExtensionRoutingHeaderPtr ( uint8_t typeRouting )

Get a pointer to a new routing extension header corresponding to typeRouting.

The ownership is transferred to the caller.

Parameters

typeRouting the number of the routing extension to retrieve

Returns: a pointer to a new routing extension header matching IPv6 routing extension

Definition at line 1018 of file ipv6-extension.cc.

References NS_LOG_FUNCTION.

◆ GetTypeId()

TypeId ns3::Ipv6ExtensionRoutingDemux::GetTypeId ( void )

static

The interface ID.

Returns: type ID

Definition at line 953 of file ipv6-extension.cc.

References m_extensionsRouting, ns3::MakeObjectVectorAccessor(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

◆ Insert()

void ns3::Ipv6ExtensionRoutingDemux::Insert ( Ptr< Ipv6ExtensionRouting > extensionRouting )

Insert a new IPv6 Routing Extension.

Parameters

extensionRouting the routing extension to insert

Definition at line 997 of file ipv6-extension.cc.

References NS_LOG_FUNCTION.

◆ Remove()

void ns3::Ipv6ExtensionRoutingDemux::Remove ( Ptr< Ipv6ExtensionRouting > extensionRouting )

Remove a routing extension from this demux.

Parameters

extensionRouting pointer on the extension to remove

Definition at line 1034 of file ipv6-extension.cc.

References NS_LOG_FUNCTION.

◆ SetNode()

void ns3::Ipv6ExtensionRoutingDemux::SetNode ( Ptr< Node > node )

Set the node.

Parameters

node	the node to set

Definition at line 990 of file ipv6-extension.cc.

References ns3::Ipv6Extension::m_node, and NS_LOG_FUNCTION.

Member Data Documentation

◆ m_extensionsRouting

Ipv6ExtensionRoutingList_t ns3::Ipv6ExtensionRoutingDemux::m_extensionsRouting

private

List of IPv6 Routing Extensions supported.

Definition at line 608 of file ipv6-extension.h.

Referenced by GetTypeId().

◆ m_node

Ptr<Node> ns3::Ipv6ExtensionRoutingDemux::m_node

private

The node.

Definition at line 613 of file ipv6-extension.h.

The documentation for this class was generated from the following files:

src/internet/model/ipv6-extension.h
src/internet/model/ipv6-extension.cc
