ICMPv6 Neighbor Advertisement header. More...

#include "icmpv6-header.h"

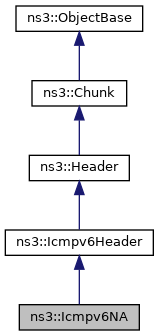

Inheritance diagram for ns3::Icmpv6NA:

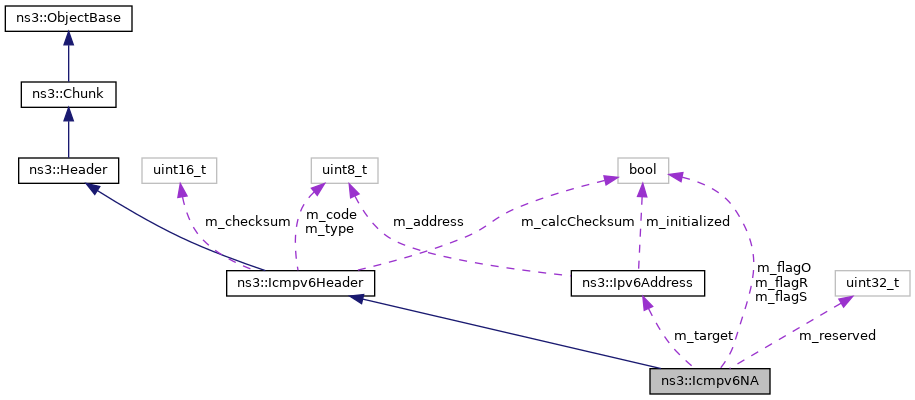

Collaboration diagram for ns3::Icmpv6NA:

Public Member Functions
	Icmpv6NA ()
	Constructor. More...

	~Icmpv6NA () override
	Destructor. More...

uint32_t	Deserialize (Buffer::Iterator start) override
	Deserialize the packet. More...

bool	GetFlagO () const
	Get the O flag. More...

bool	GetFlagR () const
	Get the R flag. More...

bool	GetFlagS () const
	Get the S flag. More...

TypeId	GetInstanceTypeId () const override
	Get the instance type ID. More...

Ipv6Address	GetIpv6Target () const
	Get the IPv6 target field. More...

uint32_t	GetReserved () const
	Get the reserved field. More...

uint32_t	GetSerializedSize () const override
	Get the serialized size. More...

void	Print (std::ostream &os) const override
	Print information. More...

void	Serialize (Buffer::Iterator start) const override
	Serialize the packet. More...

void	SetFlagO (bool o)
	Set the O flag. More...

void	SetFlagR (bool r)
	Set the R flag. More...

void	SetFlagS (bool s)
	Set the S flag. More...

void	SetIpv6Target (Ipv6Address target)
	Set the IPv6 target field. More...

void	SetReserved (uint32_t reserved)
	Set the reserved field. More...

Public Member Functions inherited from ns3::Icmpv6Header
	Icmpv6Header ()
	Constructor. More...

	~Icmpv6Header () override
	Destructor. More...

void	CalculatePseudoHeaderChecksum (Ipv6Address src, Ipv6Address dst, uint16_t length, uint8_t protocol)
	Calculate pseudo header checksum for IPv6. More...

uint16_t	GetChecksum () const
	Get the checksum. More...

uint8_t	GetCode () const
	Get the code field. More...

uint8_t	GetType () const
	Get the type field. More...

void	SetChecksum (uint16_t checksum)
	Set the checksum. More...

void	SetCode (uint8_t code)
	Set the code field. More...

void	SetType (uint8_t type)
	Set the type. More...

Public Member Functions inherited from ns3::Header
	~Header () override

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator. More...

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::Chunk
virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the UID of this class. More...

Static Public Member Functions inherited from ns3::Icmpv6Header
static TypeId	GetTypeId ()
	Get the UID of this class. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Private Attributes
bool	m_flagO
	The M flag. More...

bool	m_flagR
	The R flag. More...

bool	m_flagS
	The O flag. More...

uint32_t	m_reserved
	The reserved value. More...

Ipv6Address	m_target
	The IPv6 target address. More...

Additional Inherited Members
Public Types inherited from ns3::Icmpv6Header
enum	ErrorDestinationUnreachable_e { ICMPV6_NO_ROUTE = 0 , ICMPV6_ADM_PROHIBITED , ICMPV6_NOT_NEIGHBOUR , ICMPV6_ADDR_UNREACHABLE , ICMPV6_PORT_UNREACHABLE }
	ICMPv6 error code : Destination Unreachable. More...

enum	ErrorParameterError_e { ICMPV6_MALFORMED_HEADER = 0 , ICMPV6_UNKNOWN_NEXT_HEADER , ICMPV6_UNKNOWN_OPTION }
	ICMPv6 error code : Parameter Error. More...

enum	ErrorTimeExceeded_e { ICMPV6_HOPLIMIT = 0 , ICMPV6_FRAGTIME }
	ICMPv6 error code : Time Exceeded. More...

enum	OptionType_e { ICMPV6_OPT_LINK_LAYER_SOURCE = 1 , ICMPV6_OPT_LINK_LAYER_TARGET , ICMPV6_OPT_PREFIX , ICMPV6_OPT_REDIRECTED , ICMPV6_OPT_MTU }
	ICMPv6 Option type code. More...

enum	Type_e { ICMPV6_ERROR_DESTINATION_UNREACHABLE = 1 , ICMPV6_ERROR_PACKET_TOO_BIG , ICMPV6_ERROR_TIME_EXCEEDED , ICMPV6_ERROR_PARAMETER_ERROR , ICMPV6_ECHO_REQUEST = 128 , ICMPV6_ECHO_REPLY , ICMPV6_SUBSCRIBE_REQUEST , ICMPV6_SUBSCRIBE_REPORT , ICMPV6_SUBSCRIVE_END , ICMPV6_ND_ROUTER_SOLICITATION , ICMPV6_ND_ROUTER_ADVERTISEMENT , ICMPV6_ND_NEIGHBOR_SOLICITATION , ICMPV6_ND_NEIGHBOR_ADVERTISEMENT , ICMPV6_ND_REDIRECTION , ICMPV6_ROUTER_RENUMBER , ICMPV6_INFORMATION_REQUEST , ICMPV6_INFORMATION_RESPONSE , ICMPV6_INVERSE_ND_SOLICITATION , ICMPV6_INVERSE_ND_ADVERSTISEMENT , ICMPV6_MLDV2_SUBSCRIBE_REPORT , ICMPV6_MOBILITY_HA_DISCOVER_REQUEST , ICMPV6_MOBILITY_HA_DISCOVER_RESPONSE , ICMPV6_MOBILITY_MOBILE_PREFIX_SOLICITATION , ICMPV6_SECURE_ND_CERTIFICATE_PATH_SOLICITATION , ICMPV6_SECURE_ND_CERTIFICATE_PATH_ADVERTISEMENT , ICMPV6_EXPERIMENTAL_MOBILITY }
	ICMPv6 type code. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Protected Attributes inherited from ns3::Icmpv6Header
bool	m_calcChecksum
	Checksum enable or not. More...

uint16_t	m_checksum
	The checksum. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

ICMPv6 Neighbor Advertisement header.

Definition at line 428 of file icmpv6-header.h.

Constructor & Destructor Documentation

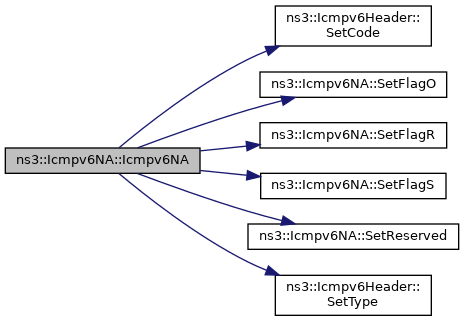

◆ Icmpv6NA()

ns3::Icmpv6NA::Icmpv6NA ( )

Constructor.

Definition at line 343 of file icmpv6-header.cc.

References ns3::Icmpv6Header::ICMPV6_ND_NEIGHBOR_ADVERTISEMENT, ns3::Icmpv6Header::m_checksum, NS_LOG_FUNCTION, ns3::Icmpv6Header::SetCode(), SetFlagO(), SetFlagR(), SetFlagS(), SetReserved(), and ns3::Icmpv6Header::SetType().

Here is the call graph for this function:

◆ ~Icmpv6NA()

ns3::Icmpv6NA::~Icmpv6NA ( )

override

Destructor.

Definition at line 355 of file icmpv6-header.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::Icmpv6NA::Deserialize ( Buffer::Iterator start )

overridevirtual

Deserialize the packet.

Parameters

start start offset

Returns: length of packet

Reimplemented from ns3::Icmpv6Header.

Definition at line 488 of file icmpv6-header.cc.

References GetSerializedSize(), ns3::Icmpv6Header::m_checksum, m_flagO, m_flagR, m_flagS, m_reserved, m_target, NS_LOG_FUNCTION, ns3::Buffer::Iterator::Read(), ns3::Buffer::Iterator::ReadNtohU32(), ns3::Buffer::Iterator::ReadU16(), ns3::Buffer::Iterator::ReadU8(), ns3::Ipv6Address::Set(), ns3::Icmpv6Header::SetCode(), ns3::Icmpv6Header::SetType(), and two-ray-to-three-gpp-ch-calibration::start.

Here is the call graph for this function:

◆ GetFlagO()

bool ns3::Icmpv6NA::GetFlagO ( ) const

Get the O flag.

Returns: O flag

Definition at line 410 of file icmpv6-header.cc.

References m_flagO, and NS_LOG_FUNCTION.

Referenced by ns3::Icmpv6L4Protocol::HandleNA().

Here is the caller graph for this function:

◆ GetFlagR()

bool ns3::Icmpv6NA::GetFlagR ( ) const

Get the R flag.

Returns: R flag

Definition at line 382 of file icmpv6-header.cc.

References m_flagR, and NS_LOG_FUNCTION.

Referenced by ns3::Icmpv6L4Protocol::HandleNA().

Here is the caller graph for this function:

◆ GetFlagS()

bool ns3::Icmpv6NA::GetFlagS ( ) const

Get the S flag.

Returns: S flag

Definition at line 396 of file icmpv6-header.cc.

References m_flagS, and NS_LOG_FUNCTION.

Referenced by ns3::Icmpv6L4Protocol::HandleNA().

Here is the caller graph for this function:

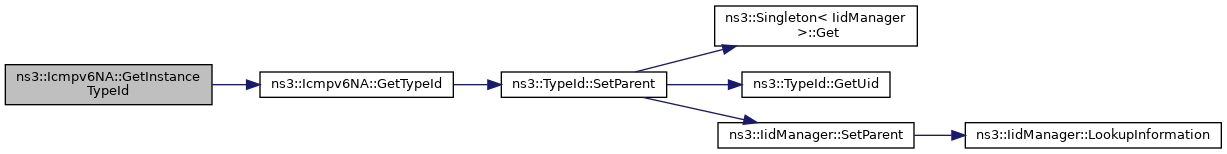

◆ GetInstanceTypeId()

TypeId ns3::Icmpv6NA::GetInstanceTypeId ( void ) const

overridevirtual

Get the instance type ID.

Returns: instance type ID

Reimplemented from ns3::Icmpv6Header.

Definition at line 337 of file icmpv6-header.cc.

References GetTypeId(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ GetIpv6Target()

Ipv6Address ns3::Icmpv6NA::GetIpv6Target ( ) const

Get the IPv6 target field.

Returns: IPv6 address

Definition at line 375 of file icmpv6-header.cc.

References m_target, and NS_LOG_FUNCTION.

Referenced by ns3::Icmpv6L4Protocol::HandleNA().

Here is the caller graph for this function:

◆ GetReserved()

uint32_t ns3::Icmpv6NA::GetReserved ( ) const

Get the reserved field.

Returns: reserved value

Definition at line 361 of file icmpv6-header.cc.

References m_reserved, and NS_LOG_FUNCTION.

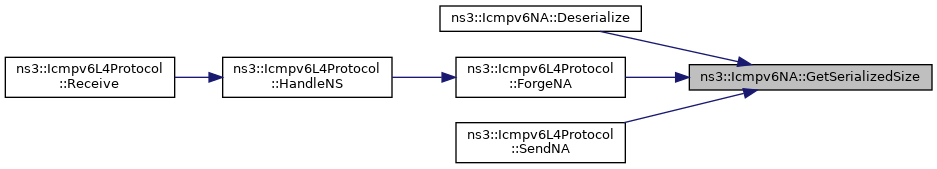

◆ GetSerializedSize()

uint32_t ns3::Icmpv6NA::GetSerializedSize ( ) const

overridevirtual

Get the serialized size.

Returns: serialized size

Reimplemented from ns3::Icmpv6Header.

Definition at line 439 of file icmpv6-header.cc.

References NS_LOG_FUNCTION.

Referenced by Deserialize(), ns3::Icmpv6L4Protocol::ForgeNA(), and ns3::Icmpv6L4Protocol::SendNA().

Here is the caller graph for this function:

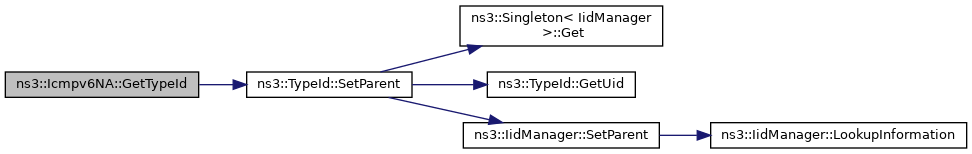

◆ GetTypeId()

TypeId ns3::Icmpv6NA::GetTypeId ( void )

static

Get the UID of this class.

Returns: UID

Definition at line 327 of file icmpv6-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Print()

void ns3::Icmpv6NA::Print ( std::ostream & os ) const

overridevirtual

Print information.

Parameters

os	output stream

Reimplemented from ns3::Icmpv6Header.

Definition at line 431 of file icmpv6-header.cc.

References ns3::Icmpv6Header::GetChecksum(), ns3::Icmpv6Header::GetCode(), ns3::Icmpv6Header::GetType(), and NS_LOG_FUNCTION.

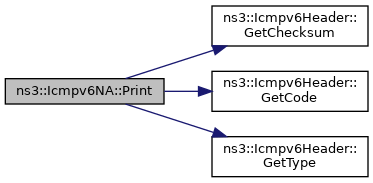

Here is the call graph for this function:

◆ Serialize()

void ns3::Icmpv6NA::Serialize ( Buffer::Iterator start ) const

overridevirtual

Serialize the packet.

Parameters

start start offset

Reimplemented from ns3::Icmpv6Header.

Definition at line 446 of file icmpv6-header.cc.

References ns3::Buffer::Iterator::CalculateIpChecksum(), ns3::Icmpv6Header::GetChecksum(), ns3::Icmpv6Header::GetCode(), ns3::Buffer::Iterator::GetSize(), ns3::Icmpv6Header::GetType(), ns3::Icmpv6Header::m_calcChecksum, m_flagO, m_flagR, m_flagS, m_reserved, m_target, ns3::Buffer::Iterator::Next(), NS_LOG_FUNCTION, ns3::Ipv6Address::Serialize(), two-ray-to-three-gpp-ch-calibration::start, ns3::Buffer::Iterator::Write(), ns3::Buffer::Iterator::WriteHtonU32(), ns3::Buffer::Iterator::WriteU16(), and ns3::Buffer::Iterator::WriteU8().

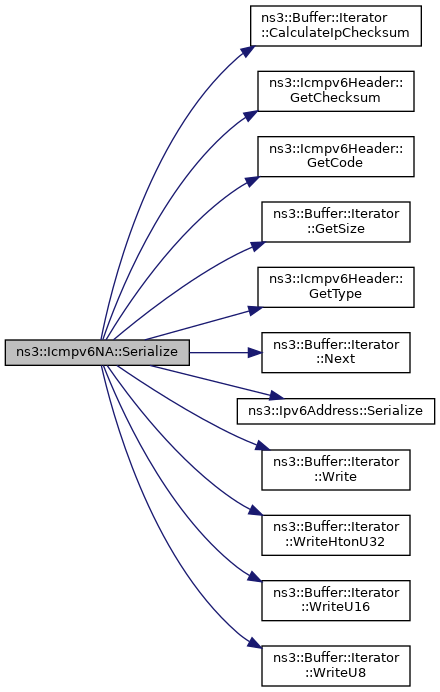

Here is the call graph for this function:

◆ SetFlagO()

void ns3::Icmpv6NA::SetFlagO ( bool o )

Set the O flag.

Parameters

o value

Definition at line 417 of file icmpv6-header.cc.

References m_flagO, and NS_LOG_FUNCTION.

Referenced by Icmpv6NA(), ns3::Icmpv6L4Protocol::ForgeNA(), and ns3::Icmpv6L4Protocol::SendNA().

Here is the caller graph for this function:

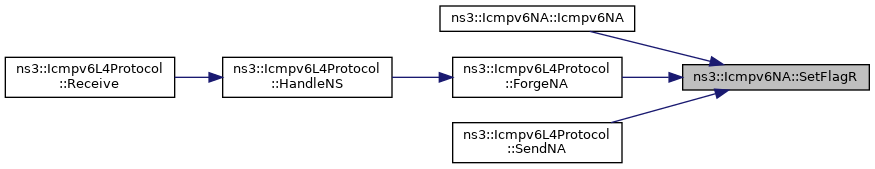

◆ SetFlagR()

void ns3::Icmpv6NA::SetFlagR ( bool r )

Set the R flag.

Parameters

r value

Definition at line 389 of file icmpv6-header.cc.

References m_flagR, and NS_LOG_FUNCTION.

Referenced by Icmpv6NA(), ns3::Icmpv6L4Protocol::ForgeNA(), and ns3::Icmpv6L4Protocol::SendNA().

Here is the caller graph for this function:

◆ SetFlagS()

void ns3::Icmpv6NA::SetFlagS ( bool s )

Set the S flag.

Parameters

s value

Definition at line 403 of file icmpv6-header.cc.

References m_flagS, and NS_LOG_FUNCTION.

Referenced by Icmpv6NA(), ns3::Icmpv6L4Protocol::ForgeNA(), and ns3::Icmpv6L4Protocol::SendNA().

Here is the caller graph for this function:

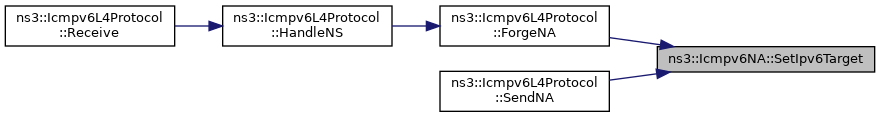

◆ SetIpv6Target()

void ns3::Icmpv6NA::SetIpv6Target ( Ipv6Address target )

Set the IPv6 target field.

Parameters

target IPv6 address

Definition at line 424 of file icmpv6-header.cc.

References m_target, and NS_LOG_FUNCTION.

Referenced by ns3::Icmpv6L4Protocol::ForgeNA(), and ns3::Icmpv6L4Protocol::SendNA().

Here is the caller graph for this function:

◆ SetReserved()

void ns3::Icmpv6NA::SetReserved ( uint32_t reserved )

Set the reserved field.

Parameters

reserved the reserved value

Definition at line 368 of file icmpv6-header.cc.

References m_reserved, and NS_LOG_FUNCTION.

Referenced by Icmpv6NA().

Here is the caller graph for this function:

Member Data Documentation

◆ m_flagO

bool ns3::Icmpv6NA::m_flagO

private

The M flag.

Definition at line 552 of file icmpv6-header.h.

Referenced by Deserialize(), GetFlagO(), Serialize(), and SetFlagO().

◆ m_flagR

bool ns3::Icmpv6NA::m_flagR

private

The R flag.

Definition at line 542 of file icmpv6-header.h.

Referenced by Deserialize(), GetFlagR(), Serialize(), and SetFlagR().

◆ m_flagS

bool ns3::Icmpv6NA::m_flagS

private

The O flag.

Definition at line 547 of file icmpv6-header.h.

Referenced by Deserialize(), GetFlagS(), Serialize(), and SetFlagS().

◆ m_reserved

uint32_t ns3::Icmpv6NA::m_reserved

private

The reserved value.

Definition at line 557 of file icmpv6-header.h.

Referenced by Deserialize(), GetReserved(), Serialize(), and SetReserved().

◆ m_target

Ipv6Address ns3::Icmpv6NA::m_target

private

The IPv6 target address.

Definition at line 562 of file icmpv6-header.h.

Referenced by Deserialize(), GetIpv6Target(), Serialize(), and SetIpv6Target().

The documentation for this class was generated from the following files:

src/internet/model/icmpv6-header.h
src/internet/model/icmpv6-header.cc

Public Member Functions

Static Public Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ Icmpv6NA()

◆ ~Icmpv6NA()

Member Function Documentation

◆ Deserialize()

◆ GetFlagO()

◆ GetFlagR()

◆ GetFlagS()

◆ GetInstanceTypeId()

◆ GetIpv6Target()

◆ GetReserved()

◆ GetSerializedSize()

◆ GetTypeId()

◆ Print()

◆ Serialize()

◆ SetFlagO()

◆ SetFlagR()

◆ SetFlagS()

◆ SetIpv6Target()

◆ SetReserved()

Member Data Documentation

◆ m_flagO

◆ m_flagR

◆ m_flagS

◆ m_reserved

◆ m_target
