Container of various random variables to assist in generating web browsing traffic pattern. More...

#include "three-gpp-http-variables.h"

Inheritance diagram for ns3::ThreeGppHttpVariables:

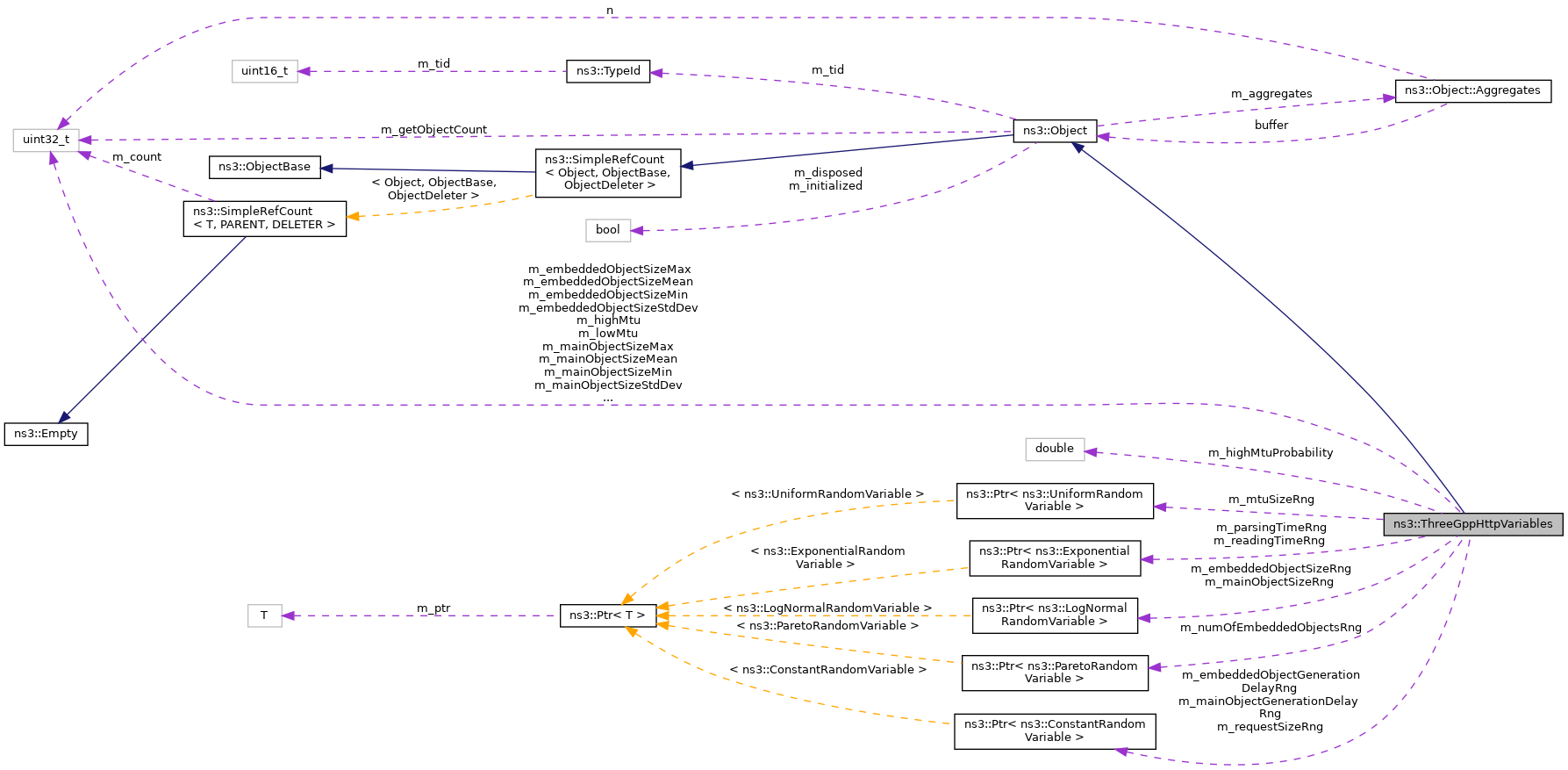

Collaboration diagram for ns3::ThreeGppHttpVariables:

Public Member Functions
	ThreeGppHttpVariables ()
	Create a new instance with default configuration of random distributions. More...

int64_t	AssignStreams (int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

Time	GetEmbeddedObjectGenerationDelay ()
	Returns the constant length of time needed by an HTTP server to generate an embedded object. More...

uint32_t	GetEmbeddedObjectSize ()
	Draws a random embedded object size (in bytes) to be sent by an HTTP server. More...

Time	GetMainObjectGenerationDelay ()
	Returns the constant length of time needed by an HTTP server to generate a main object. More...

uint32_t	GetMainObjectSize ()
	Draws a random main object size (in bytes) to be sent by an HTTP server. More...

uint32_t	GetMtuSize ()
	Draws a random value of maximum transmission unit (MTU) size in bytes. More...

uint32_t	GetNumOfEmbeddedObjects ()
	Draws a random integer indicating the number of embedded objects in a main object. More...

Time	GetParsingTime ()
	Draws a random length of time which simulate the small delay caused by HTTP client looking for any embedded objects within the received main object. More...

Time	GetReadingTime ()
	Draws a random length of time which is spent by a hypothetical human user (HTTP client) to read a web page before transitioning to another web page. More...

uint32_t	GetRequestSize ()
	Returns the constant HTTP request size in bytes. More...

void	SetEmbeddedObjectGenerationDelay (Time constant)

void	SetEmbeddedObjectSizeMean (uint32_t mean)

void	SetEmbeddedObjectSizeStdDev (uint32_t stdDev)

void	SetMainObjectGenerationDelay (Time constant)

void	SetMainObjectSizeMean (uint32_t mean)

void	SetMainObjectSizeStdDev (uint32_t stdDev)

void	SetNumOfEmbeddedObjectsMax (uint32_t max)

void	SetNumOfEmbeddedObjectsScale (uint32_t scale)

void	SetNumOfEmbeddedObjectsShape (double shape)

void	SetParsingTimeMean (Time mean)

void	SetReadingTimeMean (Time mean)

void	SetRequestSize (uint32_t constant)

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Returns the object TypeId. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Private Member Functions
void	DoInitialize () override
	Initialize() implementation. More...

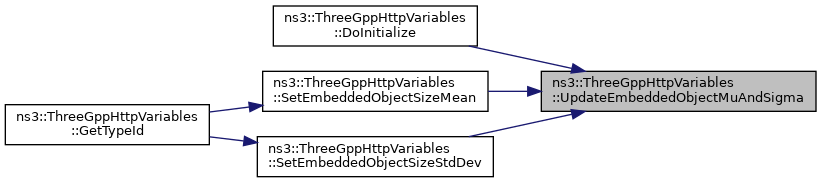

void	UpdateEmbeddedObjectMuAndSigma ()
	Upon and after object initialization, update random variable Mu and Sigma based on changes to attribute values. More...

void	UpdateMainObjectMuAndSigma ()
	Upon and after object initialization, update random variable Mu and Sigma based on changes to attribute values. More...

Private Attributes
Ptr< ConstantRandomVariable >	m_embeddedObjectGenerationDelayRng
	Random variable for determining the delay needed to generate an embedded object (in seconds). More...

uint32_t	m_embeddedObjectSizeMax
	Upper bound parameter for m_embeddedObjectSizeRng. More...

uint32_t	m_embeddedObjectSizeMean
	Mean parameter for m_embeddedObjectSizeRng. More...

uint32_t	m_embeddedObjectSizeMin
	Lower bound parameter for m_embeddedObjectSizeRng. More...

Ptr< LogNormalRandomVariable >	m_embeddedObjectSizeRng
	Random variable for determining embedded object size (in bytes). More...

uint32_t	m_embeddedObjectSizeStdDev
	Standard deviation parameter for m_embeddedObjectSizeRng. More...

uint32_t	m_highMtu
	Higher MTU size. More...

double	m_highMtuProbability
	High MTU size probability. More...

uint32_t	m_lowMtu
	Lower MTU size. More...

Ptr< ConstantRandomVariable >	m_mainObjectGenerationDelayRng
	Random variable for determining the delay needed to generate a main object (in seconds). More...

uint32_t	m_mainObjectSizeMax
	Upper bound parameter for m_mainObjectSizeRng;. More...

uint32_t	m_mainObjectSizeMean
	Mean parameter for m_mainObjectSizeRng;. More...

uint32_t	m_mainObjectSizeMin
	Lower bound parameter for m_mainObjectSizeRng;. More...

Ptr< LogNormalRandomVariable >	m_mainObjectSizeRng
	Random variable for determining main object size (in bytes). More...

uint32_t	m_mainObjectSizeStdDev
	Standard deviation parameter for m_mainObjectSizeRng;. More...

Ptr< UniformRandomVariable >	m_mtuSizeRng
	Random variable for determining MTU size (in bytes). More...

Ptr< ParetoRandomVariable >	m_numOfEmbeddedObjectsRng
	Random variable for determining the number of embedded objects. More...

uint32_t	m_numOfEmbeddedObjectsScale
	Scale parameter for m_numOfEmbeddedObjectsRng. More...

Ptr< ExponentialRandomVariable >	m_parsingTimeRng
	Random variable for determining the length of parsing time (in seconds). More...

Ptr< ExponentialRandomVariable >	m_readingTimeRng
	Random variable for determining the length of reading time (in seconds). More...

Ptr< ConstantRandomVariable >	m_requestSizeRng
	Random variable for determining request size (in bytes). More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoDispose ()
	Destructor implementation. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Container of various random variables to assist in generating web browsing traffic pattern.

The available random values to be retrieved are:

MTU size — 536 bytes or 1460 bytes;
request size — constant 350 bytes;
delay in generating a main object — 0 second;

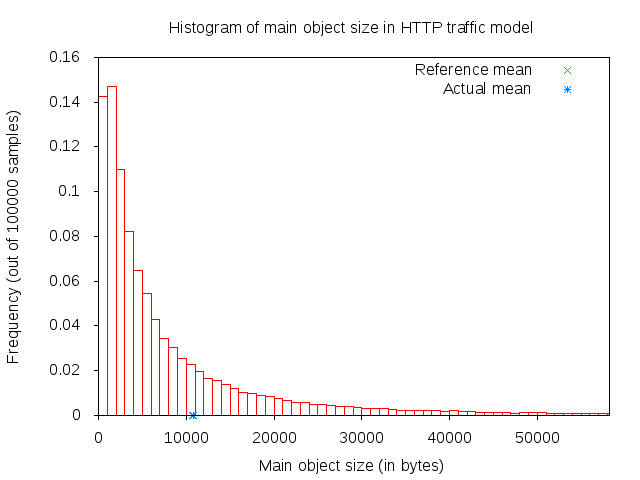

main object size — truncated LogNormal distribution with a mean of 10710 bytes;
delay in generating an embedded object — 0 second;
embedded object size (in bytes) — truncated LogNormal distribution with a mean of 7758 bytes;
number of embedded object per web page — truncated Pareto distribution with a mean of approximately 3.95 (after truncation);

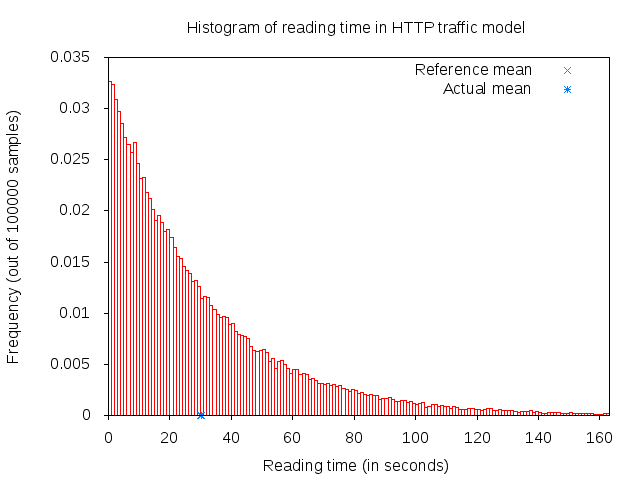

length of reading time (in seconds) — unbounded exponential distribution with a mean of 30 seconds; and
length of parsing time (in seconds) — unbounded exponential distribution with a mean of 0.13 seconds.

Most parameters of the random distributions are configurable via attributes and methods of this class. The default values are according to the following references:

3GPP TR 25.892, "Feasibility Study for Orthogonal Frequency Division Multiplexing (OFDM) for UTRAN enhancement"
IEEE 802.16m, "Evaluation Methodology Document (EMD)", IEEE 802.16m-08/004r5, July 2008.
NGMN Alliance, "NGMN Radio Access Performance Evaluation Methodology", v1.0, January 2008.
3GPP2-TSGC5, "HTTP, FTP and TCP models for 1xEV-DV simulations", 2001.

Definition at line 68 of file three-gpp-http-variables.h.

Constructor & Destructor Documentation

◆ ThreeGppHttpVariables()

ns3::ThreeGppHttpVariables::ThreeGppHttpVariables ( )

Create a new instance with default configuration of random distributions.

Definition at line 36 of file three-gpp-http-variables.cc.

References m_embeddedObjectGenerationDelayRng, m_embeddedObjectSizeRng, m_mainObjectGenerationDelayRng, m_mainObjectSizeRng, m_mtuSizeRng, m_numOfEmbeddedObjectsRng, m_parsingTimeRng, m_readingTimeRng, m_requestSizeRng, and NS_LOG_FUNCTION.

Member Function Documentation

◆ AssignStreams()

int64_t ns3::ThreeGppHttpVariables::AssignStreams ( int64_t stream )

Assign a fixed random variable stream number to the random variables used by this model.

Different random variable stream number makes random number generators to produce different set of random values, thus possibly resulting to different simulation results. On the other hand, two identical simulations which use the same stream number should produce identical results (the repeatability property of ns-3 simulation).

Parameters

stream The first stream index to use.

Returns: The number of stream indices assigned by this model.

Definition at line 309 of file three-gpp-http-variables.cc.

References m_embeddedObjectGenerationDelayRng, m_embeddedObjectSizeRng, m_mainObjectGenerationDelayRng, m_mainObjectSizeRng, m_mtuSizeRng, m_numOfEmbeddedObjectsRng, m_parsingTimeRng, m_readingTimeRng, m_requestSizeRng, NS_LOG_FUNCTION, and ns3::RandomVariableStream::SetStream().

Here is the call graph for this function:

◆ DoInitialize()

void ns3::ThreeGppHttpVariables::DoInitialize ( void )

overrideprivatevirtual

Initialize() implementation.

This method is called only once by Initialize(). If the user calls Initialize() multiple times, DoInitialize() is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 327 of file three-gpp-http-variables.cc.

References NS_LOG_FUNCTION, UpdateEmbeddedObjectMuAndSigma(), and UpdateMainObjectMuAndSigma().

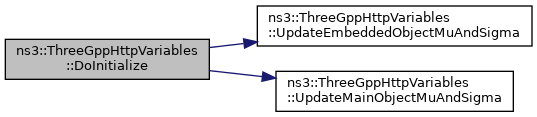

Here is the call graph for this function:

◆ GetEmbeddedObjectGenerationDelay()

Time ns3::ThreeGppHttpVariables::GetEmbeddedObjectGenerationDelay ( )

Returns the constant length of time needed by an HTTP server to generate an embedded object.

By default, embedded objects are generated instantly, i.e., zero delay. This can be modified by setting the EmbeddedObjectGenerationDelay attribute or by calling the SetEmbeddedObjectGenerationDelay() method.

Returns: The delay for generating an embedded object.

Definition at line 236 of file three-gpp-http-variables.cc.

References ns3::ConstantRandomVariable::GetValue(), m_embeddedObjectGenerationDelayRng, and ns3::Seconds().

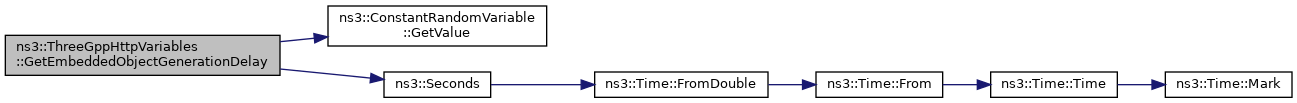

Here is the call graph for this function:

◆ GetEmbeddedObjectSize()

uint32_t ns3::ThreeGppHttpVariables::GetEmbeddedObjectSize ( )

Draws a random embedded object size (in bytes) to be sent by an HTTP server.

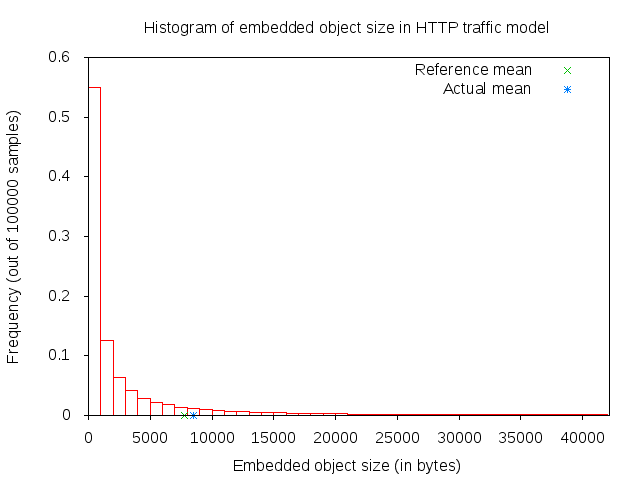

The size of embedded objects are determined by a truncated log-normal random distribution. The default distribution settings produces random integers with a mean of 7758 bytes and a standard deviation of 126168 bytes, and then truncated to fit between 50 bytes and 2 MB. These default settings can be modified via attributes or class methods.

Returns: Embedded object size in bytes.

Definition at line 242 of file three-gpp-http-variables.cc.

References m_embeddedObjectSizeMax, m_embeddedObjectSizeMin, m_embeddedObjectSizeRng, and NS_FATAL_ERROR.

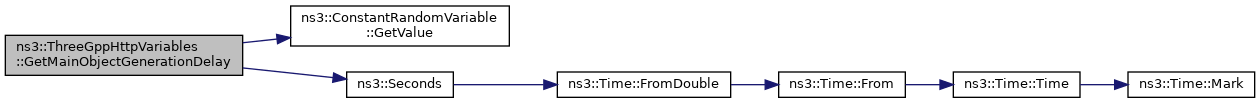

◆ GetMainObjectGenerationDelay()

Time ns3::ThreeGppHttpVariables::GetMainObjectGenerationDelay ( )

Returns the constant length of time needed by an HTTP server to generate a main object.

By default, main objects are generated instantly, i.e., zero delay. This can be modified by setting the MainObjectGenerationDelay attribute or by calling the SetMainObjectGenerationDelay() method.

Returns: The delay for generating a main object.

Definition at line 205 of file three-gpp-http-variables.cc.

References ns3::ConstantRandomVariable::GetValue(), m_mainObjectGenerationDelayRng, and ns3::Seconds().

Here is the call graph for this function:

◆ GetMainObjectSize()

uint32_t ns3::ThreeGppHttpVariables::GetMainObjectSize ( )

Draws a random main object size (in bytes) to be sent by an HTTP server.

The size of main objects are determined by a truncated log-normal random distribution. The default distribution settings produces random integers with a mean of 10710 bytes and a standard deviation of 25032 bytes, and then truncated to fit between 100 bytes and 2 MB. These default settings can be modified via attributes or class methods.

Returns: Main object size in bytes.

Definition at line 211 of file three-gpp-http-variables.cc.

References m_mainObjectSizeMax, m_mainObjectSizeMin, m_mainObjectSizeRng, and NS_FATAL_ERROR.

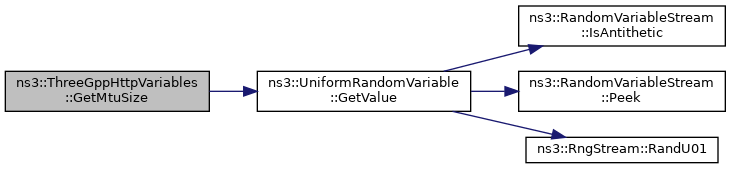

◆ GetMtuSize()

uint32_t ns3::ThreeGppHttpVariables::GetMtuSize ( )

Draws a random value of maximum transmission unit (MTU) size in bytes.

The possible MTU sizes are 1460 bytes and 536 bytes with 76% and 24% chances, respectively. The selected value is typically used by the sockets of HTTP servers to send the response packets (both main objects and embedded objects) to the requesting HTTP clients.

Returns: MTU size in bytes.

Definition at line 183 of file three-gpp-http-variables.cc.

References ns3::UniformRandomVariable::GetValue(), m_highMtu, m_highMtuProbability, m_lowMtu, m_mtuSizeRng, and NS_ASSERT.

Here is the call graph for this function:

◆ GetNumOfEmbeddedObjects()

uint32_t ns3::ThreeGppHttpVariables::GetNumOfEmbeddedObjects ( )

Draws a random integer indicating the number of embedded objects in a main object.

The number of embedded objects in a main object is typically discovered when the HTTP client is parsing the main object in question. This number is determined by a truncated Pareto distribution. The default distribution settings produces (after truncation) random integers within [0, 53) interval, with an actual mean of approximately 3.95.

Returns: The number of embedded objects.

Definition at line 267 of file three-gpp-http-variables.cc.

References m_numOfEmbeddedObjectsRng, m_numOfEmbeddedObjectsScale, and NS_FATAL_ERROR.

◆ GetParsingTime()

Time ns3::ThreeGppHttpVariables::GetParsingTime ( )

Draws a random length of time which simulate the small delay caused by HTTP client looking for any embedded objects within the received main object.

Parsing time is determined by an exponential distribution. The default distribution settings produces random values with a mean of 130 ms without any maximum bound. The mean can be modified by setting the ParsingTimeMean attribute or by calling the SetParsingTimeMean() method.

Returns: time interval for parsing a main object

Definition at line 303 of file three-gpp-http-variables.cc.

References ns3::ExponentialRandomVariable::GetValue(), m_parsingTimeRng, and ns3::Seconds().

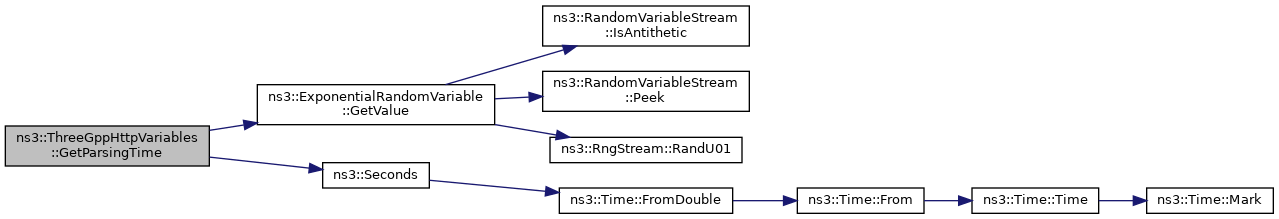

Here is the call graph for this function:

◆ GetReadingTime()

Time ns3::ThreeGppHttpVariables::GetReadingTime ( )

Draws a random length of time which is spent by a hypothetical human user (HTTP client) to read a web page before transitioning to another web page.

Reading time is determined by an exponential distribution. The default distribution settings produces random values with a mean of 30 seconds without any maximum bound. The mean can be modified by setting the ReadingTimeMean attribute or by calling the SetReadingTimeMean() method.

Returns: Time interval for reading a web page.

Definition at line 297 of file three-gpp-http-variables.cc.

References ns3::ExponentialRandomVariable::GetValue(), m_readingTimeRng, and ns3::Seconds().

Here is the call graph for this function:

◆ GetRequestSize()

uint32_t ns3::ThreeGppHttpVariables::GetRequestSize ( )

Returns the constant HTTP request size in bytes.

By default, HTTP request size is 350 bytes, which can be modified by setting the RequestSize attribute or calling the SetRequestSize() method. This value applies to requests by HTTP client for main objects and embedded objects alike.

Returns: Request size in bytes.

Definition at line 199 of file three-gpp-http-variables.cc.

References ns3::ConstantRandomVariable::GetInteger(), and m_requestSizeRng.

Here is the call graph for this function:

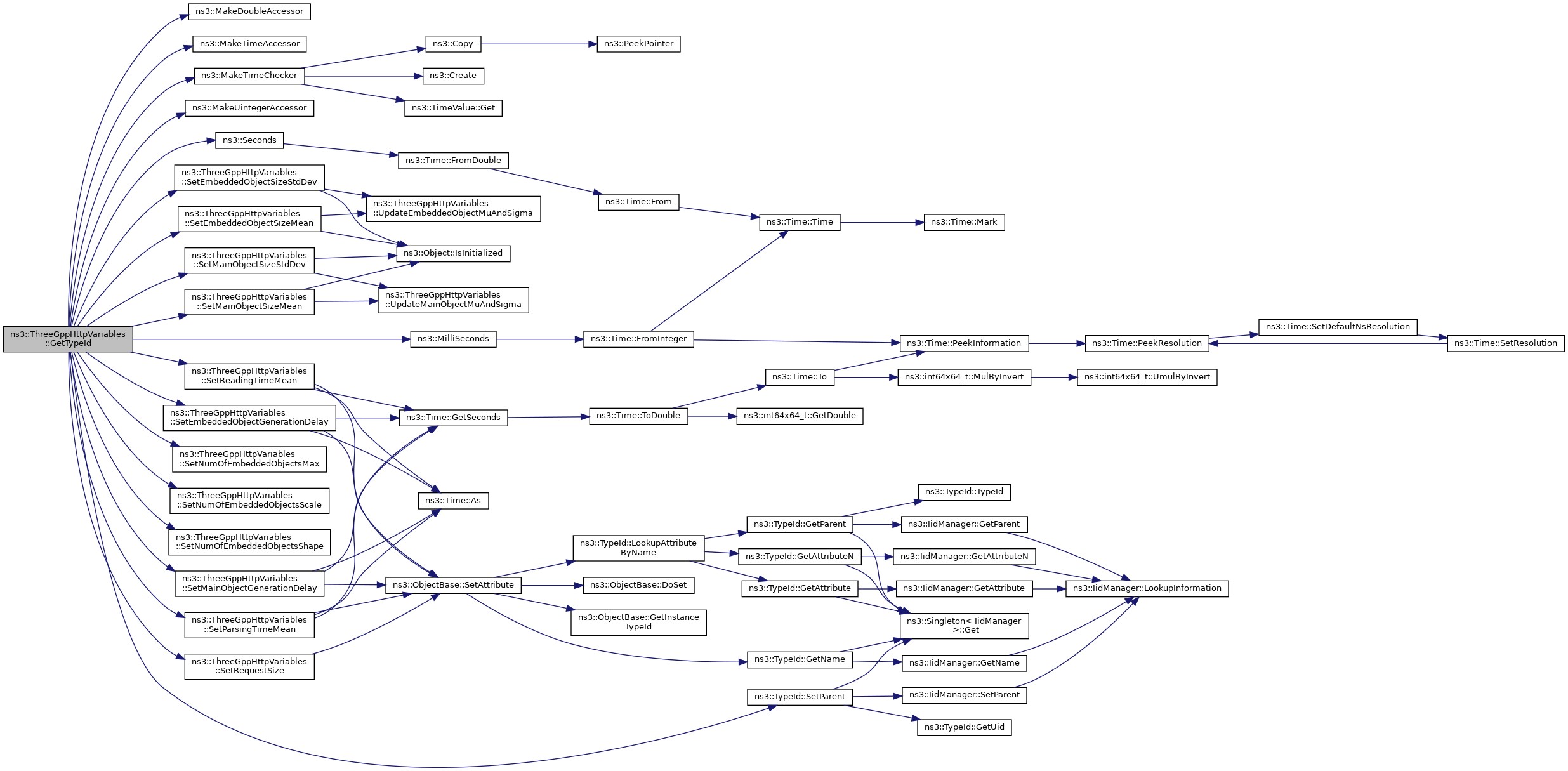

◆ GetTypeId()

TypeId ns3::ThreeGppHttpVariables::GetTypeId ( void )

static

Returns the object TypeId.

Returns: The object TypeId.

Definition at line 52 of file three-gpp-http-variables.cc.

References m_embeddedObjectSizeMax, m_embeddedObjectSizeMin, m_highMtu, m_highMtuProbability, m_lowMtu, m_mainObjectSizeMax, m_mainObjectSizeMin, ns3::MakeDoubleAccessor(), ns3::MakeTimeAccessor(), ns3::MakeTimeChecker(), ns3::MakeUintegerAccessor(), ns3::MilliSeconds(), ns3::Seconds(), SetEmbeddedObjectGenerationDelay(), SetEmbeddedObjectSizeMean(), SetEmbeddedObjectSizeStdDev(), SetMainObjectGenerationDelay(), SetMainObjectSizeMean(), SetMainObjectSizeStdDev(), SetNumOfEmbeddedObjectsMax(), SetNumOfEmbeddedObjectsScale(), SetNumOfEmbeddedObjectsShape(), ns3::TypeId::SetParent(), SetParsingTimeMean(), SetReadingTimeMean(), and SetRequestSize().

Here is the call graph for this function:

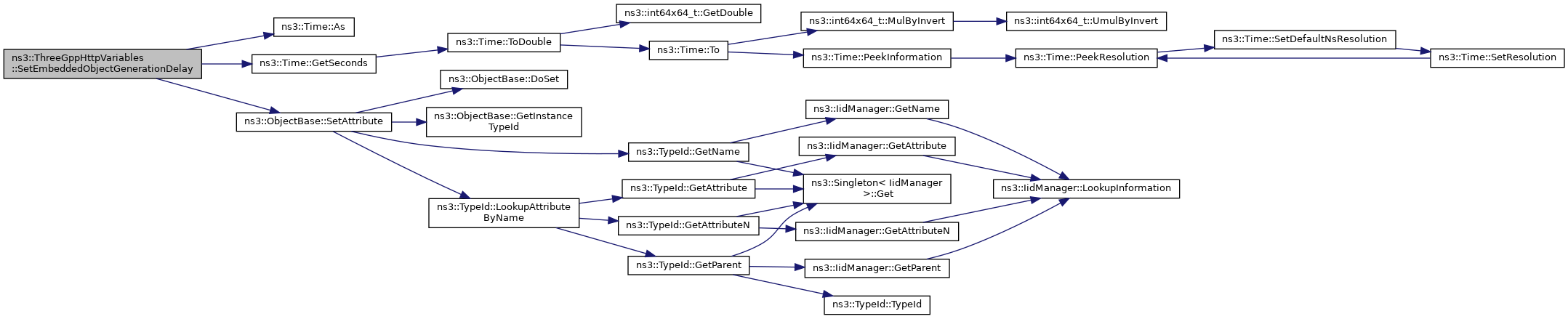

◆ SetEmbeddedObjectGenerationDelay()

void ns3::ThreeGppHttpVariables::SetEmbeddedObjectGenerationDelay ( Time constant )

Parameters

constant The delay for generating an embedded object.

Definition at line 404 of file three-gpp-http-variables.cc.

References ns3::Time::As(), ns3::Time::GetSeconds(), m_embeddedObjectGenerationDelayRng, NS_LOG_FUNCTION, ns3::Time::S, and ns3::ObjectBase::SetAttribute().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

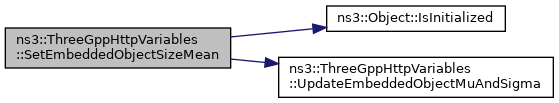

◆ SetEmbeddedObjectSizeMean()

void ns3::ThreeGppHttpVariables::SetEmbeddedObjectSizeMean ( uint32_t mean )

Parameters

mean	The mean of embedded object sizes in bytes. Must be greater than zero.

Definition at line 412 of file three-gpp-http-variables.cc.

References ns3::Object::IsInitialized(), m_embeddedObjectSizeMean, NS_ASSERT_MSG, NS_LOG_FUNCTION, and UpdateEmbeddedObjectMuAndSigma().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetEmbeddedObjectSizeStdDev()

void ns3::ThreeGppHttpVariables::SetEmbeddedObjectSizeStdDev ( uint32_t stdDev )

Parameters

stdDev The standard deviation of embedded object sizes in bytes.

Definition at line 425 of file three-gpp-http-variables.cc.

References ns3::Object::IsInitialized(), m_embeddedObjectSizeStdDev, NS_LOG_FUNCTION, and UpdateEmbeddedObjectMuAndSigma().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetMainObjectGenerationDelay()

void ns3::ThreeGppHttpVariables::SetMainObjectGenerationDelay ( Time constant )

Parameters

constant The delay for generating a main object.

Definition at line 344 of file three-gpp-http-variables.cc.

References ns3::Time::As(), ns3::Time::GetSeconds(), m_mainObjectGenerationDelayRng, NS_LOG_FUNCTION, ns3::Time::S, and ns3::ObjectBase::SetAttribute().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

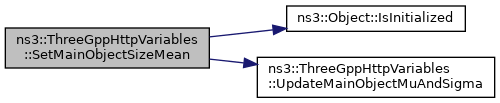

◆ SetMainObjectSizeMean()

void ns3::ThreeGppHttpVariables::SetMainObjectSizeMean ( uint32_t mean )

Parameters

mean	The mean of main object sizes in bytes. Must be greater than zero.

Definition at line 379 of file three-gpp-http-variables.cc.

References ns3::Object::IsInitialized(), m_mainObjectSizeMean, NS_ASSERT_MSG, NS_LOG_FUNCTION, and UpdateMainObjectMuAndSigma().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetMainObjectSizeStdDev()

void ns3::ThreeGppHttpVariables::SetMainObjectSizeStdDev ( uint32_t stdDev )

Parameters

stdDev The standard deviation of main object sizes in bytes.

Definition at line 392 of file three-gpp-http-variables.cc.

References ns3::Object::IsInitialized(), m_mainObjectSizeStdDev, NS_LOG_FUNCTION, and UpdateMainObjectMuAndSigma().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetNumOfEmbeddedObjectsMax()

void ns3::ThreeGppHttpVariables::SetNumOfEmbeddedObjectsMax ( uint32_t max )

Parameters

max	The upper bound parameter of the Pareto distribution for determining the number of embedded objects per web page.

Definition at line 437 of file three-gpp-http-variables.cc.

References m_numOfEmbeddedObjectsRng, max, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetNumOfEmbeddedObjectsScale()

void ns3::ThreeGppHttpVariables::SetNumOfEmbeddedObjectsScale ( uint32_t scale )

Parameters

scale The scale parameter of the Pareto distribution for determining the number of embedded objects per web page.

Definition at line 452 of file three-gpp-http-variables.cc.

References m_numOfEmbeddedObjectsRng, m_numOfEmbeddedObjectsScale, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetNumOfEmbeddedObjectsShape()

void ns3::ThreeGppHttpVariables::SetNumOfEmbeddedObjectsShape ( double shape )

Parameters

shape The shape parameter of the Pareto distribution for determining the number of embedded objects per web page.

Definition at line 444 of file three-gpp-http-variables.cc.

References m_numOfEmbeddedObjectsRng, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetParsingTimeMean()

void ns3::ThreeGppHttpVariables::SetParsingTimeMean ( Time mean )

Parameters

mean	The mean length of time needed for parsing a main object.

Definition at line 468 of file three-gpp-http-variables.cc.

References ns3::Time::As(), ns3::Time::GetSeconds(), m_parsingTimeRng, NS_LOG_FUNCTION, ns3::Time::S, and ns3::ObjectBase::SetAttribute().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

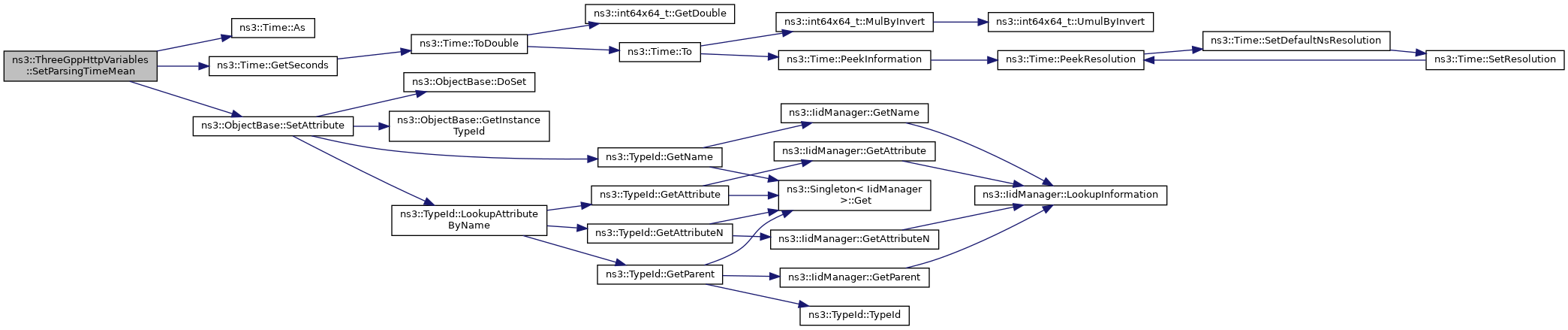

◆ SetReadingTimeMean()

void ns3::ThreeGppHttpVariables::SetReadingTimeMean ( Time mean )

Parameters

mean	The mean length of time needed for reading a web page.

Definition at line 461 of file three-gpp-http-variables.cc.

References ns3::Time::As(), ns3::Time::GetSeconds(), m_readingTimeRng, NS_LOG_FUNCTION, ns3::Time::S, and ns3::ObjectBase::SetAttribute().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetRequestSize()

void ns3::ThreeGppHttpVariables::SetRequestSize ( uint32_t constant )

Parameters

constant Request size in bytes.

Definition at line 337 of file three-gpp-http-variables.cc.

References m_requestSizeRng, NS_LOG_FUNCTION, and ns3::ObjectBase::SetAttribute().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ UpdateEmbeddedObjectMuAndSigma()

void ns3::ThreeGppHttpVariables::UpdateEmbeddedObjectMuAndSigma ( )

private

Upon and after object initialization, update random variable Mu and Sigma based on changes to attribute values.

Definition at line 365 of file three-gpp-http-variables.cc.

References m_embeddedObjectSizeMean, m_embeddedObjectSizeRng, m_embeddedObjectSizeStdDev, NS_LOG_DEBUG, NS_LOG_FUNCTION, and two-ray-to-three-gpp-ch-calibration::sigma.

Referenced by DoInitialize(), SetEmbeddedObjectSizeMean(), and SetEmbeddedObjectSizeStdDev().

Here is the caller graph for this function:

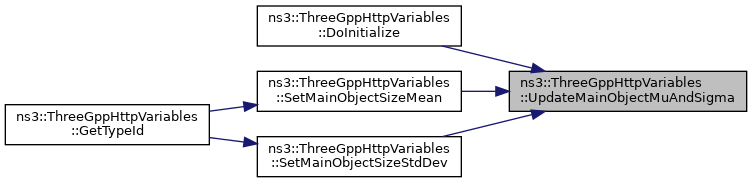

◆ UpdateMainObjectMuAndSigma()

void ns3::ThreeGppHttpVariables::UpdateMainObjectMuAndSigma ( )

private

Upon and after object initialization, update random variable Mu and Sigma based on changes to attribute values.

Definition at line 351 of file three-gpp-http-variables.cc.

References m_mainObjectSizeMean, m_mainObjectSizeRng, m_mainObjectSizeStdDev, NS_LOG_DEBUG, NS_LOG_FUNCTION, and two-ray-to-three-gpp-ch-calibration::sigma.

Referenced by DoInitialize(), SetMainObjectSizeMean(), and SetMainObjectSizeStdDev().

Here is the caller graph for this function:

Member Data Documentation

◆ m_embeddedObjectGenerationDelayRng

Ptr<ConstantRandomVariable> ns3::ThreeGppHttpVariables::m_embeddedObjectGenerationDelayRng

private

Random variable for determining the delay needed to generate an embedded object (in seconds).

Definition at line 316 of file three-gpp-http-variables.h.

Referenced by ThreeGppHttpVariables(), AssignStreams(), GetEmbeddedObjectGenerationDelay(), and SetEmbeddedObjectGenerationDelay().

◆ m_embeddedObjectSizeMax

uint32_t ns3::ThreeGppHttpVariables::m_embeddedObjectSizeMax

private

Upper bound parameter for m_embeddedObjectSizeRng.

Definition at line 328 of file three-gpp-http-variables.h.

Referenced by GetEmbeddedObjectSize(), and GetTypeId().

◆ m_embeddedObjectSizeMean

uint32_t ns3::ThreeGppHttpVariables::m_embeddedObjectSizeMean

private

Mean parameter for m_embeddedObjectSizeRng.

Definition at line 322 of file three-gpp-http-variables.h.

Referenced by SetEmbeddedObjectSizeMean(), and UpdateEmbeddedObjectMuAndSigma().

◆ m_embeddedObjectSizeMin

uint32_t ns3::ThreeGppHttpVariables::m_embeddedObjectSizeMin

private

Lower bound parameter for m_embeddedObjectSizeRng.

Definition at line 326 of file three-gpp-http-variables.h.

Referenced by GetEmbeddedObjectSize(), and GetTypeId().

◆ m_embeddedObjectSizeRng

Ptr<LogNormalRandomVariable> ns3::ThreeGppHttpVariables::m_embeddedObjectSizeRng

private

Random variable for determining embedded object size (in bytes).

Definition at line 320 of file three-gpp-http-variables.h.

Referenced by ThreeGppHttpVariables(), AssignStreams(), GetEmbeddedObjectSize(), and UpdateEmbeddedObjectMuAndSigma().

◆ m_embeddedObjectSizeStdDev

uint32_t ns3::ThreeGppHttpVariables::m_embeddedObjectSizeStdDev

private

Standard deviation parameter for m_embeddedObjectSizeRng.

Definition at line 324 of file three-gpp-http-variables.h.

Referenced by SetEmbeddedObjectSizeStdDev(), and UpdateEmbeddedObjectMuAndSigma().

◆ m_highMtu

uint32_t ns3::ThreeGppHttpVariables::m_highMtu

private

Higher MTU size.

Definition at line 309 of file three-gpp-http-variables.h.

Referenced by GetMtuSize(), and GetTypeId().

◆ m_highMtuProbability

double ns3::ThreeGppHttpVariables::m_highMtuProbability

private

High MTU size probability.

Definition at line 311 of file three-gpp-http-variables.h.

Referenced by GetMtuSize(), and GetTypeId().

◆ m_lowMtu

uint32_t ns3::ThreeGppHttpVariables::m_lowMtu

private

Lower MTU size.

Definition at line 307 of file three-gpp-http-variables.h.

Referenced by GetMtuSize(), and GetTypeId().

◆ m_mainObjectGenerationDelayRng

Ptr<ConstantRandomVariable> ns3::ThreeGppHttpVariables::m_mainObjectGenerationDelayRng

private

Random variable for determining the delay needed to generate a main object (in seconds).

Definition at line 293 of file three-gpp-http-variables.h.

Referenced by ThreeGppHttpVariables(), AssignStreams(), GetMainObjectGenerationDelay(), and SetMainObjectGenerationDelay().

◆ m_mainObjectSizeMax

uint32_t ns3::ThreeGppHttpVariables::m_mainObjectSizeMax

private

Upper bound parameter for m_mainObjectSizeRng;.

Definition at line 305 of file three-gpp-http-variables.h.

Referenced by GetMainObjectSize(), and GetTypeId().

◆ m_mainObjectSizeMean

uint32_t ns3::ThreeGppHttpVariables::m_mainObjectSizeMean

private

Mean parameter for m_mainObjectSizeRng;.

Definition at line 299 of file three-gpp-http-variables.h.

Referenced by SetMainObjectSizeMean(), and UpdateMainObjectMuAndSigma().

◆ m_mainObjectSizeMin

uint32_t ns3::ThreeGppHttpVariables::m_mainObjectSizeMin

private

Lower bound parameter for m_mainObjectSizeRng;.

Definition at line 303 of file three-gpp-http-variables.h.

Referenced by GetMainObjectSize(), and GetTypeId().

◆ m_mainObjectSizeRng

Ptr<LogNormalRandomVariable> ns3::ThreeGppHttpVariables::m_mainObjectSizeRng

private

Random variable for determining main object size (in bytes).

Definition at line 297 of file three-gpp-http-variables.h.

Referenced by ThreeGppHttpVariables(), AssignStreams(), GetMainObjectSize(), and UpdateMainObjectMuAndSigma().

◆ m_mainObjectSizeStdDev

uint32_t ns3::ThreeGppHttpVariables::m_mainObjectSizeStdDev

private

Standard deviation parameter for m_mainObjectSizeRng;.

Definition at line 301 of file three-gpp-http-variables.h.

Referenced by SetMainObjectSizeStdDev(), and UpdateMainObjectMuAndSigma().

◆ m_mtuSizeRng

Ptr<UniformRandomVariable> ns3::ThreeGppHttpVariables::m_mtuSizeRng

private

Random variable for determining MTU size (in bytes).

Definition at line 284 of file three-gpp-http-variables.h.

Referenced by ThreeGppHttpVariables(), AssignStreams(), and GetMtuSize().

◆ m_numOfEmbeddedObjectsRng

Ptr<ParetoRandomVariable> ns3::ThreeGppHttpVariables::m_numOfEmbeddedObjectsRng

private

Random variable for determining the number of embedded objects.

Definition at line 332 of file three-gpp-http-variables.h.

Referenced by ThreeGppHttpVariables(), AssignStreams(), GetNumOfEmbeddedObjects(), SetNumOfEmbeddedObjectsMax(), SetNumOfEmbeddedObjectsScale(), and SetNumOfEmbeddedObjectsShape().

◆ m_numOfEmbeddedObjectsScale

uint32_t ns3::ThreeGppHttpVariables::m_numOfEmbeddedObjectsScale

private

Scale parameter for m_numOfEmbeddedObjectsRng.

Definition at line 334 of file three-gpp-http-variables.h.

Referenced by GetNumOfEmbeddedObjects(), and SetNumOfEmbeddedObjectsScale().

◆ m_parsingTimeRng

Ptr<ExponentialRandomVariable> ns3::ThreeGppHttpVariables::m_parsingTimeRng

private

Random variable for determining the length of parsing time (in seconds).

Definition at line 342 of file three-gpp-http-variables.h.

Referenced by ThreeGppHttpVariables(), AssignStreams(), GetParsingTime(), and SetParsingTimeMean().

◆ m_readingTimeRng

Ptr<ExponentialRandomVariable> ns3::ThreeGppHttpVariables::m_readingTimeRng

private

Random variable for determining the length of reading time (in seconds).

Definition at line 338 of file three-gpp-http-variables.h.

Referenced by ThreeGppHttpVariables(), AssignStreams(), GetReadingTime(), and SetReadingTimeMean().

◆ m_requestSizeRng

Ptr<ConstantRandomVariable> ns3::ThreeGppHttpVariables::m_requestSizeRng

private

Random variable for determining request size (in bytes).

Definition at line 288 of file three-gpp-http-variables.h.

Referenced by ThreeGppHttpVariables(), AssignStreams(), GetRequestSize(), and SetRequestSize().

The documentation for this class was generated from the following files:

src/applications/model/three-gpp-http-variables.h
src/applications/model/three-gpp-http-variables.cc

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ThreeGppHttpVariables()

Member Function Documentation

◆ AssignStreams()

◆ DoInitialize()

◆ GetEmbeddedObjectGenerationDelay()

◆ GetEmbeddedObjectSize()

◆ GetMainObjectGenerationDelay()

◆ GetMainObjectSize()

◆ GetMtuSize()

◆ GetNumOfEmbeddedObjects()

◆ GetParsingTime()

◆ GetReadingTime()

◆ GetRequestSize()

◆ GetTypeId()

◆ SetEmbeddedObjectGenerationDelay()

◆ SetEmbeddedObjectSizeMean()

◆ SetEmbeddedObjectSizeStdDev()

◆ SetMainObjectGenerationDelay()

◆ SetMainObjectSizeMean()

◆ SetMainObjectSizeStdDev()

◆ SetNumOfEmbeddedObjectsMax()

◆ SetNumOfEmbeddedObjectsScale()

◆ SetNumOfEmbeddedObjectsShape()

◆ SetParsingTimeMean()

◆ SetReadingTimeMean()

◆ SetRequestSize()

◆ UpdateEmbeddedObjectMuAndSigma()

◆ UpdateMainObjectMuAndSigma()

Member Data Documentation

◆ m_embeddedObjectGenerationDelayRng

◆ m_embeddedObjectSizeMax

◆ m_embeddedObjectSizeMean

◆ m_embeddedObjectSizeMin

◆ m_embeddedObjectSizeRng

◆ m_embeddedObjectSizeStdDev

◆ m_highMtu

◆ m_highMtuProbability

◆ m_lowMtu

◆ m_mainObjectGenerationDelayRng

◆ m_mainObjectSizeMax

◆ m_mainObjectSizeMean

◆ m_mainObjectSizeMin

◆ m_mainObjectSizeRng

◆ m_mainObjectSizeStdDev

◆ m_mtuSizeRng

◆ m_numOfEmbeddedObjectsRng

◆ m_numOfEmbeddedObjectsScale

◆ m_parsingTimeRng

◆ m_readingTimeRng

◆ m_requestSizeRng
