#include "snr-tag.h"

Inheritance diagram for ns3::SnrTag:

Collaboration diagram for ns3::SnrTag:

Public Member Functions
	SnrTag ()
	Create a SnrTag with the default SNR 0. More...

void	Deserialize (TagBuffer i) override

double	Get () const
	Return the SNR value. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

uint32_t	GetSerializedSize () const override

void	Print (std::ostream &os) const override

void	Serialize (TagBuffer i) const override

void	Set (double snr)
	Set the SNR to the given value. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Tag
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Private Attributes
double	m_snr
	SNR value in linear scale. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Definition at line 34 of file snr-tag.h.

Constructor & Destructor Documentation

◆ SnrTag()

ns3::SnrTag::SnrTag ( )

Create a SnrTag with the default SNR 0.

Definition at line 54 of file snr-tag.cc.

Member Function Documentation

◆ Deserialize()

void ns3::SnrTag::Deserialize ( TagBuffer i )

overridevirtual

Parameters

i	the buffer to read data from.

Read the content of the tag from the provided tag buffer. DO NOT attempt to read more bytes than you wrote with Tag::Serialize.

Implements ns3::Tag.

Definition at line 72 of file snr-tag.cc.

References m_snr, and ns3::TagBuffer::ReadDouble().

Here is the call graph for this function:

◆ Get()

double ns3::SnrTag::Get ( ) const

Return the SNR value.

Returns: the SNR value in linear scale

Definition at line 90 of file snr-tag.cc.

References m_snr.

Referenced by GetTypeId(), ns3::StaWifiMac::ReceiveBeacon(), ns3::FrameExchangeManager::ReceiveMpdu(), ns3::HeFrameExchangeManager::ReceiveMpdu(), ns3::HtFrameExchangeManager::ReceiveMpdu(), and ns3::StaWifiMac::ReceiveProbeResp().

Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::SnrTag::GetInstanceTypeId ( ) const

overridevirtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns: The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 49 of file snr-tag.cc.

References GetTypeId().

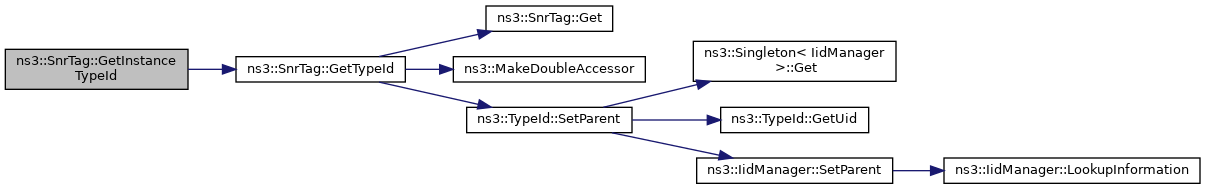

Here is the call graph for this function:

◆ GetSerializedSize()

uint32_t ns3::SnrTag::GetSerializedSize ( ) const

overridevirtual

Returns: the number of bytes required to serialize the data of the tag.

This method is typically invoked by Packet::AddPacketTag or Packet::AddByteTag just prior to calling Tag::Serialize.

Implements ns3::Tag.

Definition at line 60 of file snr-tag.cc.

◆ GetTypeId()

TypeId ns3::SnrTag::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 34 of file snr-tag.cc.

References Get(), ns3::MakeDoubleAccessor(), and ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Print()

void ns3::SnrTag::Print ( std::ostream & os ) const

overridevirtual

Parameters

os	the stream to print to

This method is typically invoked from the Packet::PrintByteTags or Packet::PrintPacketTags methods.

Implements ns3::Tag.

Definition at line 78 of file snr-tag.cc.

References m_snr.

◆ Serialize()

void ns3::SnrTag::Serialize ( TagBuffer i ) const

overridevirtual

Parameters

i	the buffer to write data into.

Write the content of the tag in the provided tag buffer. DO NOT attempt to write more bytes than you requested with Tag::GetSerializedSize.

Implements ns3::Tag.

Definition at line 66 of file snr-tag.cc.

References m_snr, and ns3::TagBuffer::WriteDouble().

Here is the call graph for this function:

◆ Set()

void ns3::SnrTag::Set ( double snr )

Set the SNR to the given value.

Parameters

snr	the value of the SNR to set in linear scale

Definition at line 84 of file snr-tag.cc.

References m_snr.

Referenced by ns3::FrameExchangeManager::DoSendCtsAfterRts(), ns3::FrameExchangeManager::ReceiveMpdu(), ns3::HtFrameExchangeManager::SendBlockAck(), and ns3::FrameExchangeManager::SendNormalAck().

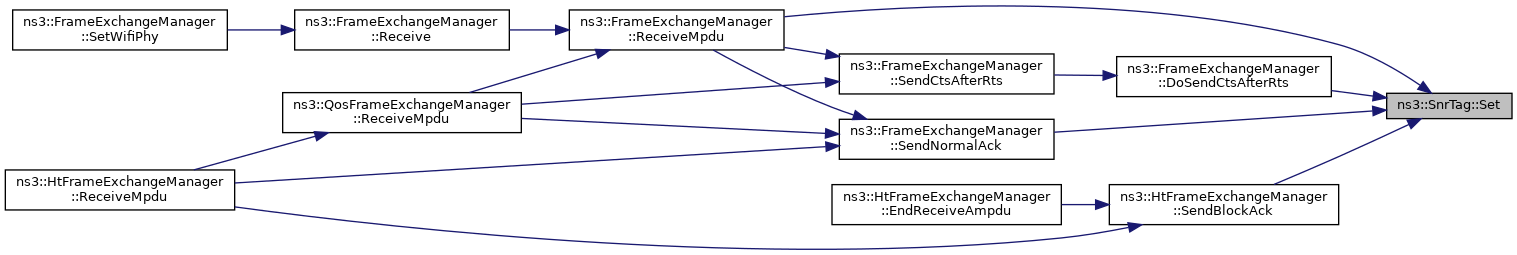

Here is the caller graph for this function:

Member Data Documentation

◆ m_snr

double ns3::SnrTag::m_snr

private

SNR value in linear scale.

Definition at line 68 of file snr-tag.h.

Referenced by Deserialize(), Get(), Print(), Serialize(), and Set().

The documentation for this class was generated from the following files:

src/wifi/model/snr-tag.h
src/wifi/model/snr-tag.cc
