Rip Routing Table Entry. More...

#include "rip.h"

Inheritance diagram for ns3::RipRoutingTableEntry:

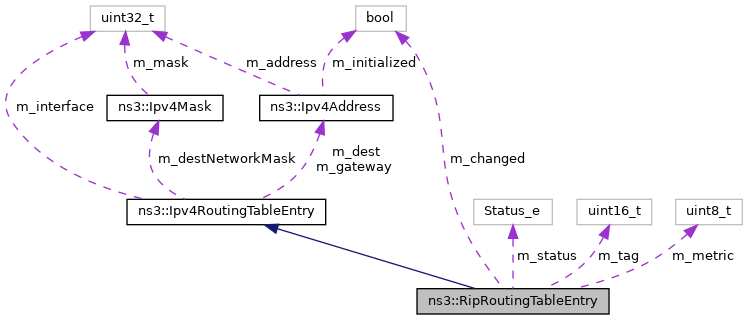

Collaboration diagram for ns3::RipRoutingTableEntry:

Public Types
enum	Status_e { RIP_VALID , RIP_INVALID }
	Route status. More...

Public Member Functions
	RipRoutingTableEntry ()

	RipRoutingTableEntry (Ipv4Address network, Ipv4Mask networkPrefix, Ipv4Address nextHop, uint32_t interface)
	Constructor. More...

	RipRoutingTableEntry (Ipv4Address network, Ipv4Mask networkPrefix, uint32_t interface)
	Constructor. More...

virtual	~RipRoutingTableEntry ()

uint8_t	GetRouteMetric () const
	Get the route metric. More...

Status_e	GetRouteStatus () const
	Get the route status. More...

uint16_t	GetRouteTag () const
	Get the route tag. More...

bool	IsRouteChanged () const
	Get the route changed status. More...

void	SetRouteChanged (bool changed)
	Set the route as changed. More...

void	SetRouteMetric (uint8_t routeMetric)
	Set the route metric. More...

void	SetRouteStatus (Status_e status)
	Set the route status. More...

void	SetRouteTag (uint16_t routeTag)
	Set the route tag. More...

Public Member Functions inherited from ns3::Ipv4RoutingTableEntry
	Ipv4RoutingTableEntry ()
	This constructor does nothing. More...

	Ipv4RoutingTableEntry (const Ipv4RoutingTableEntry &route)
	Copy Constructor. More...

	Ipv4RoutingTableEntry (const Ipv4RoutingTableEntry *route)
	Copy Constructor. More...

Ipv4Address	GetDest () const

Ipv4Address	GetDestNetwork () const

Ipv4Mask	GetDestNetworkMask () const

Ipv4Address	GetGateway () const

uint32_t	GetInterface () const

bool	IsDefault () const

bool	IsGateway () const

bool	IsHost () const

bool	IsNetwork () const

Private Attributes
bool	m_changed
	route has been updated More...

uint8_t	m_metric
	route metric More...

Status_e	m_status
	route status More...

uint16_t	m_tag
	route tag More...

Additional Inherited Members
Static Public Member Functions inherited from ns3::Ipv4RoutingTableEntry
static Ipv4RoutingTableEntry	CreateDefaultRoute (Ipv4Address nextHop, uint32_t interface)

static Ipv4RoutingTableEntry	CreateHostRouteTo (Ipv4Address dest, Ipv4Address nextHop, uint32_t interface)

static Ipv4RoutingTableEntry	CreateHostRouteTo (Ipv4Address dest, uint32_t interface)

static Ipv4RoutingTableEntry	CreateNetworkRouteTo (Ipv4Address network, Ipv4Mask networkMask, Ipv4Address nextHop, uint32_t interface)

static Ipv4RoutingTableEntry	CreateNetworkRouteTo (Ipv4Address network, Ipv4Mask networkMask, uint32_t interface)

Detailed Description

Rip Routing Table Entry.

Definition at line 64 of file rip.h.

Member Enumeration Documentation

◆ Status_e

enum ns3::RipRoutingTableEntry::Status_e

Route status.

Enumerator
RIP_VALID
RIP_INVALID

Definition at line 70 of file rip.h.

Constructor & Destructor Documentation

◆ RipRoutingTableEntry() [1/3]

ns3::RipRoutingTableEntry::RipRoutingTableEntry ( )

Definition at line 1409 of file rip.cc.

◆ RipRoutingTableEntry() [2/3]

ns3::RipRoutingTableEntry::RipRoutingTableEntry	(	Ipv4Address	network,
		Ipv4Mask	networkPrefix,
		Ipv4Address	nextHop,
		uint32_t	interface
	)

Constructor.

Parameters

network	network address
networkPrefix	network prefix
nextHop	next hop address to route the packet
interface	interface index

Definition at line 1417 of file rip.cc.

◆ RipRoutingTableEntry() [3/3]

ns3::RipRoutingTableEntry::RipRoutingTableEntry	(	Ipv4Address	network,
		Ipv4Mask	networkPrefix,
		uint32_t	interface
	)

Constructor.

Parameters

network	network address
networkPrefix	network prefix
interface	interface index

Definition at line 1430 of file rip.cc.

◆ ~RipRoutingTableEntry()

ns3::RipRoutingTableEntry::~RipRoutingTableEntry ( )

virtual

Definition at line 1442 of file rip.cc.

Member Function Documentation

◆ GetRouteMetric()

uint8_t ns3::RipRoutingTableEntry::GetRouteMetric ( ) const

Get the route metric.

Returns: the route metric

Definition at line 1473 of file rip.cc.

References m_metric.

Referenced by ns3::operator<<(), and ns3::Rip::PrintRoutingTable().

Here is the caller graph for this function:

◆ GetRouteStatus()

RipRoutingTableEntry::Status_e ns3::RipRoutingTableEntry::GetRouteStatus ( ) const

Get the route status.

Returns: the route status

Definition at line 1489 of file rip.cc.

References m_status.

Referenced by ns3::Rip::Lookup(), and ns3::Rip::PrintRoutingTable().

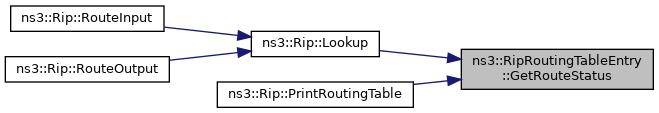

Here is the caller graph for this function:

◆ GetRouteTag()

uint16_t ns3::RipRoutingTableEntry::GetRouteTag ( ) const

Get the route tag.

Returns: the route tag

Definition at line 1457 of file rip.cc.

References m_tag.

Referenced by ns3::operator<<().

Here is the caller graph for this function:

◆ IsRouteChanged()

bool ns3::RipRoutingTableEntry::IsRouteChanged ( ) const

Get the route changed status.

Returns: true if route is changed

Definition at line 1501 of file rip.cc.

References m_changed.

◆ SetRouteChanged()

void ns3::RipRoutingTableEntry::SetRouteChanged ( bool changed )

Set the route as changed.

The changed routes are scheduled for a Triggered Update. After a Triggered Update, all the changed flags are cleared from the routing table.

Parameters

changed true if route is changed

Definition at line 1495 of file rip.cc.

References m_changed.

Referenced by ns3::Rip::InvalidateRoute().

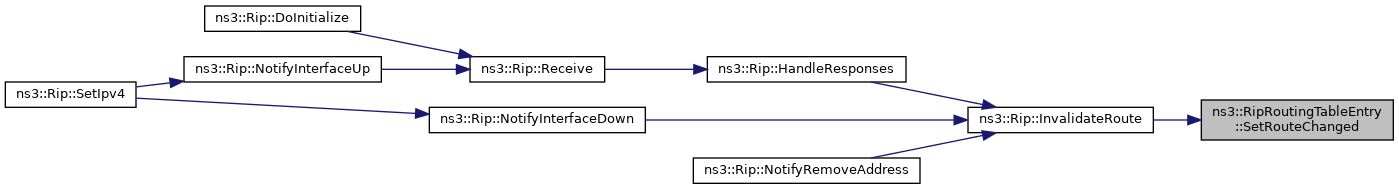

Here is the caller graph for this function:

◆ SetRouteMetric()

void ns3::RipRoutingTableEntry::SetRouteMetric ( uint8_t routeMetric )

Set the route metric.

Parameters

routeMetric the route metric

Definition at line 1463 of file rip.cc.

References m_changed, and m_metric.

Referenced by ns3::Rip::InvalidateRoute().

Here is the caller graph for this function:

◆ SetRouteStatus()

void ns3::RipRoutingTableEntry::SetRouteStatus ( Status_e status )

Set the route status.

Parameters

status the route status

Definition at line 1479 of file rip.cc.

References m_changed, and m_status.

Referenced by ns3::Rip::InvalidateRoute().

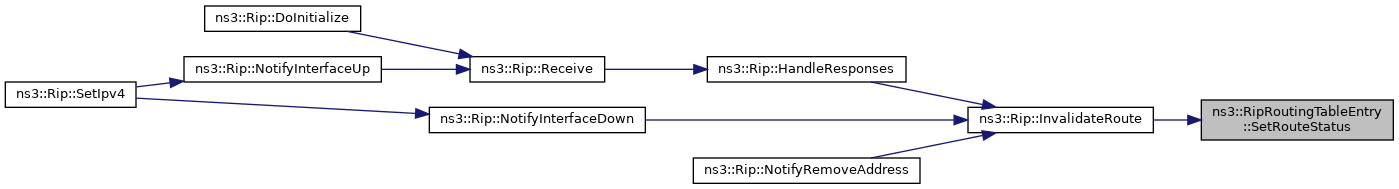

Here is the caller graph for this function:

◆ SetRouteTag()

void ns3::RipRoutingTableEntry::SetRouteTag ( uint16_t routeTag )

Set the route tag.

Parameters

routeTag the route tag

Definition at line 1447 of file rip.cc.

References m_changed, and m_tag.

Member Data Documentation

◆ m_changed

bool ns3::RipRoutingTableEntry::m_changed

private

route has been updated

Definition at line 158 of file rip.h.

Referenced by IsRouteChanged(), SetRouteChanged(), SetRouteMetric(), SetRouteStatus(), and SetRouteTag().

◆ m_metric

uint8_t ns3::RipRoutingTableEntry::m_metric

private

route metric

Definition at line 156 of file rip.h.

Referenced by GetRouteMetric(), and SetRouteMetric().

◆ m_status

Status_e ns3::RipRoutingTableEntry::m_status

private

route status

Definition at line 157 of file rip.h.

Referenced by GetRouteStatus(), and SetRouteStatus().

◆ m_tag

uint16_t ns3::RipRoutingTableEntry::m_tag

private

route tag

Definition at line 155 of file rip.h.

Referenced by GetRouteTag(), and SetRouteTag().

The documentation for this class was generated from the following files:

src/internet/model/rip.h
src/internet/model/rip.cc
