ns3::UniformRandomBitGenerator Class Reference

Wraps a UniformRandomVariable into a class that meets the requirements of a UniformRandomBitGenerator as specified by the C++11 standard, thus allowing the usage of ns-3 style UniformRandomVariables as generators in the functions of the standard random library. More...

#include "uniform-random-bit-generator.h"

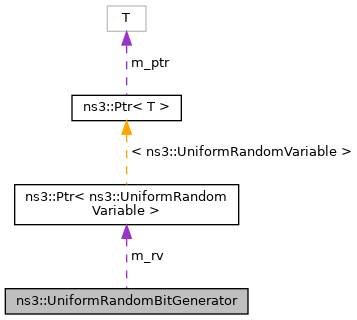

Collaboration diagram for ns3::UniformRandomBitGenerator:

Public Types
using	result_type = uint32_t
	Typedef needed to meet requirements. Result type must be an unsigned integer type. More...

Public Member Functions
	UniformRandomBitGenerator ()
Ptr< UniformRandomVariable >	GetRv () const
result_type	operator() ()

Static Public Member Functions
static constexpr result_type	max ()
static constexpr result_type	min ()

Private Attributes
Ptr< UniformRandomVariable >	m_rv
	ns-3 style uniform random variable More...

Detailed Description

Wraps a UniformRandomVariable into a class that meets the requirements of a UniformRandomBitGenerator as specified by the C++11 standard, thus allowing the usage of ns-3 style UniformRandomVariables as generators in the functions of the standard random library.

Definition at line 35 of file uniform-random-bit-generator.h.

Member Typedef Documentation

result_type

using ns3::UniformRandomBitGenerator::result_type = uint32_t

Typedef needed to meet requirements. Result type must be an unsigned integer type.

Definition at line 52 of file uniform-random-bit-generator.h.

Constructor & Destructor Documentation

UniformRandomBitGenerator()

ns3::UniformRandomBitGenerator::UniformRandomBitGenerator ( )

inline

Definition at line 38 of file uniform-random-bit-generator.h.

Member Function Documentation

GetRv()

Ptr<UniformRandomVariable> ns3::UniformRandomBitGenerator::GetRv ( ) const

inline

Returns

the ns-3 style uniform random variable

Definition at line 46 of file uniform-random-bit-generator.h.

References m_rv.

max()

static constexpr result_type ns3::UniformRandomBitGenerator::max ( )

inlinestaticconstexpr

Returns

the largest value that operator() may return

Definition at line 65 of file uniform-random-bit-generator.h.

References max.

Referenced by operator()().

Here is the caller graph for this function:

min()

static constexpr result_type ns3::UniformRandomBitGenerator::min ( )

inlinestaticconstexpr

Returns

the smallest value that operator() may return

Definition at line 57 of file uniform-random-bit-generator.h.

Referenced by operator()().

Here is the caller graph for this function:

operator()()

result_type ns3::UniformRandomBitGenerator::operator() ( )

inline

Returns

a value in the closed interval [min(), max()]

Definition at line 73 of file uniform-random-bit-generator.h.

References ns3::UniformRandomVariable::GetInteger(), m_rv, max(), and min().

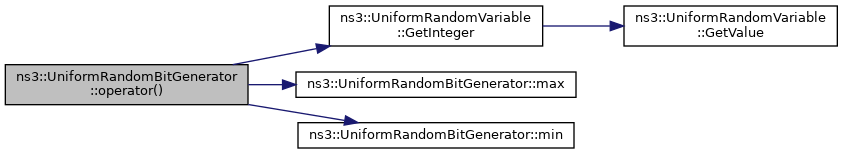

Here is the call graph for this function:

Member Data Documentation

m_rv

Ptr<UniformRandomVariable> ns3::UniformRandomBitGenerator::m_rv

private

ns-3 style uniform random variable

Definition at line 79 of file uniform-random-bit-generator.h.

Referenced by GetRv(), and operator()().

---

The documentation for this class was generated from the following file:

• src/core/model/uniform-random-bit-generator.h
