ns3::MeshWifiInterfaceMacPlugin Class Reference

Common interface for mesh point interface MAC plugins. More...

#include "mesh-wifi-interface-mac-plugin.h"

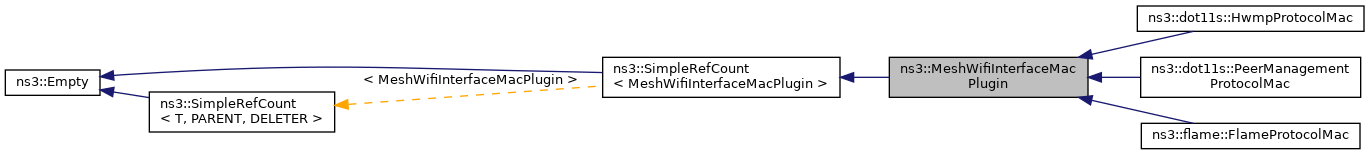

Inheritance diagram for ns3::MeshWifiInterfaceMacPlugin:

Collaboration diagram for ns3::MeshWifiInterfaceMacPlugin:

Public Member Functions
virtual	~MeshWifiInterfaceMacPlugin ()
	This is for subclasses. More...
virtual int64_t	AssignStreams (int64_t stream)=0
	Assign a fixed random variable stream number to the random variables used by this model. More...
virtual bool	Receive (Ptr< Packet > packet, const WifiMacHeader &header)=0
	Process received frame. More...
virtual void	SetParent (Ptr< MeshWifiInterfaceMac > parent)=0
	Each plugin must be installed on an interface to work. More...
virtual void	UpdateBeacon (MeshWifiBeacon &beacon) const =0
	Update beacon before it will be formed and sent. More...
virtual bool	UpdateOutcomingFrame (Ptr< Packet > packet, WifiMacHeader &header, Mac48Address from, Mac48Address to)=0
	Update frame before it will be forwarded down. More...
Public Member Functions inherited from ns3::SimpleRefCount< MeshWifiInterfaceMacPlugin >
	SimpleRefCount ()
	Default constructor. More...
	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...
uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...
SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...
void	Ref () const
	Increment the reference count. More...
void	Unref () const
	Decrement the reference count. More...

Detailed Description

Common interface for mesh point interface MAC plugins.

Todo:

plugins description

Definition at line 41 of file mesh-wifi-interface-mac-plugin.h.

Constructor & Destructor Documentation

~MeshWifiInterfaceMacPlugin()

virtual ns3::MeshWifiInterfaceMacPlugin::~MeshWifiInterfaceMacPlugin ( )

inlinevirtual

This is for subclasses.

Definition at line 45 of file mesh-wifi-interface-mac-plugin.h.

Member Function Documentation

AssignStreams()

virtual int64_t ns3::MeshWifiInterfaceMacPlugin::AssignStreams ( int64_t  stream )

pure virtual

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

Parameters

stream

first stream index to use

Returns

the number of stream indices assigned by this model

Implemented in ns3::flame::FlameProtocolMac, ns3::dot11s::PeerManagementProtocolMac, and ns3::dot11s::HwmpProtocolMac.

Receive()

virtual bool ns3::MeshWifiInterfaceMacPlugin::Receive ( Ptr< Packet >  packet, const WifiMacHeader &  header  )

pure virtual

Process received frame.

Parameters

packet
header

Returns

false if (and only if) frame should be dropped

Todo:

define when MAC call this

Implemented in ns3::flame::FlameProtocolMac, ns3::dot11s::PeerManagementProtocolMac, and ns3::dot11s::HwmpProtocolMac.

SetParent()

virtual void ns3::MeshWifiInterfaceMacPlugin::SetParent ( Ptr< MeshWifiInterfaceMac >  parent )

pure virtual

Each plugin must be installed on an interface to work.

Parameters

parent

the parent object

Implemented in ns3::flame::FlameProtocolMac, ns3::dot11s::PeerManagementProtocolMac, and ns3::dot11s::HwmpProtocolMac.

Referenced by ns3::MeshWifiInterfaceMac::InstallPlugin().

Here is the caller graph for this function:

UpdateBeacon()

virtual void ns3::MeshWifiInterfaceMacPlugin::UpdateBeacon ( MeshWifiBeacon &  beacon ) const

pure virtual

Update beacon before it will be formed and sent.

Parameters

beacon

Todo:

define when MAC call this

Implemented in ns3::flame::FlameProtocolMac, ns3::dot11s::PeerManagementProtocolMac, and ns3::dot11s::HwmpProtocolMac.

UpdateOutcomingFrame()

virtual bool ns3::MeshWifiInterfaceMacPlugin::UpdateOutcomingFrame ( Ptr< Packet >  packet, WifiMacHeader &  header, Mac48Address  from, Mac48Address  to  )

pure virtual

Update frame before it will be forwarded down.

Parameters

packet
header
from
to

Returns

false if (and only if) frame should be dropped

Todo:

define when MAC call this, preconditions & postconditions

Implemented in ns3::flame::FlameProtocolMac, ns3::dot11s::PeerManagementProtocolMac, and ns3::dot11s::HwmpProtocolMac.

---

The documentation for this class was generated from the following file:

• src/mesh/model/mesh-wifi-interface-mac-plugin.h
