ns3::RawTextConfigSave Class Reference

A class to enable saving of configuration store in a raw text file. More...

#include "raw-text-config.h"

Inheritance diagram for ns3::RawTextConfigSave:

Collaboration diagram for ns3::RawTextConfigSave:

Public Member Functions
	RawTextConfigSave ()
	default constructor More...
	~RawTextConfigSave () override
	destructor More...
void	Attributes () override
	Load or save the attributes values. More...
void	Default () override
	Load or save the default values. More...
void	Global () override
	Load or save the global values. More...
void	SetFilename (std::string filename) override
	Set the file name. More...
Public Member Functions inherited from ns3::FileConfig
virtual	~FileConfig ()
void	SetSaveDeprecated (bool saveDeprecated)
	Set if to save deprecated attributes. More...

Private Attributes
std::ofstream *	m_os
	Config store output stream. More...

Additional Inherited Members
Protected Attributes inherited from ns3::FileConfig
bool	m_saveDeprecated
	save deprecated attributes More...

Detailed Description

A class to enable saving of configuration store in a raw text file.

Definition at line 36 of file raw-text-config.h.

Constructor & Destructor Documentation

RawTextConfigSave()

ns3::RawTextConfigSave::RawTextConfigSave

(

)

default constructor

Definition at line 40 of file raw-text-config.cc.

References NS_LOG_FUNCTION.

~RawTextConfigSave()

ns3::RawTextConfigSave::~RawTextConfigSave ( )

override

destructor

Definition at line 46 of file raw-text-config.cc.

References m_os, and NS_LOG_FUNCTION.

Member Function Documentation

Attributes()

void ns3::RawTextConfigSave::Attributes ( )

overridevirtual

Load or save the attributes values.

Implements ns3::FileConfig.

Definition at line 144 of file raw-text-config.cc.

References ns3::StringValue::Get(), ns3::TypeId::GetAttribute(), ns3::TypeId::GetAttributeN(), m_os, ns3::FileConfig::m_saveDeprecated, ns3::TypeId::AttributeInformation::name, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_WARN, ns3::FileConfig::SetSaveDeprecated(), and ns3::TypeId::AttributeInformation::supportLevel.

Referenced by ns3::save_clicked_attribute().

Here is the call graph for this function:

Here is the caller graph for this function:

Default()

void ns3::RawTextConfigSave::Default ( )

overridevirtual

Load or save the default values.

Implements ns3::FileConfig.

Definition at line 66 of file raw-text-config.cc.

References ns3::TypeId::GetAttribute(), ns3::TypeId::GetAttributeN(), ns3::TypeId::LookupByName(), m_os, ns3::FileConfig::m_saveDeprecated, ns3::TypeId::AttributeInformation::name, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_WARN, ns3::FileConfig::SetSaveDeprecated(), and ns3::TypeId::AttributeInformation::supportLevel.

Referenced by ns3::save_clicked_default().

Here is the call graph for this function:

Here is the caller graph for this function:

Global()

void ns3::RawTextConfigSave::Global ( )

overridevirtual

Load or save the global values.

Implements ns3::FileConfig.

Definition at line 131 of file raw-text-config.cc.

References ns3::GlobalValue::Begin(), ns3::GlobalValue::End(), m_os, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Here is the call graph for this function:

SetFilename()

void ns3::RawTextConfigSave::SetFilename ( std::string  filename )

overridevirtual

Set the file name.

Parameters

filename

the filename

Implements ns3::FileConfig.

Definition at line 58 of file raw-text-config.cc.

References m_os, and NS_LOG_FUNCTION.

Referenced by ns3::save_clicked_attribute(), and ns3::save_clicked_default().

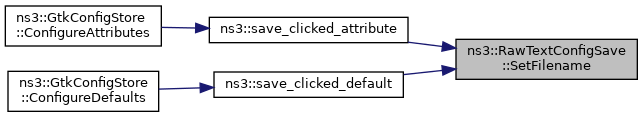

Here is the caller graph for this function:

Member Data Documentation

m_os

std::ofstream* ns3::RawTextConfigSave::m_os

private

Config store output stream.

Definition at line 49 of file raw-text-config.h.

Referenced by ~RawTextConfigSave(), Attributes(), Default(), Global(), and SetFilename().

---

The documentation for this class was generated from the following files:

• src/config-store/model/raw-text-config.h
• src/config-store/model/raw-text-config.cc
