ns3::olsr::MessageHeader::Mid Struct Reference

MID Message Format. More...

#include "olsr-header.h"

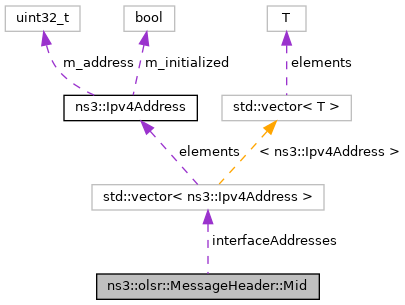

Collaboration diagram for ns3::olsr::MessageHeader::Mid:

Public Member Functions
uint32_t	Deserialize (Buffer::Iterator start, uint32_t messageSize)
	This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. More...
uint32_t	GetSerializedSize () const
	Returns the expected size of the header. More...
void	Print (std::ostream &os) const
	This method is used to print the content of a MID message. More...
void	Serialize (Buffer::Iterator start) const
	This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. More...

Public Attributes
std::vector< Ipv4Address >	interfaceAddresses
	Interface Address container. More...

Detailed Description

MID Message Format.

  0                   1                   2                   3
  0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |                    OLSR Interface Address                     |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |                    OLSR Interface Address                     |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |                              ...                              |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+

Definition at line 322 of file olsr-header.h.

Member Function Documentation

Deserialize()

uint32_t ns3::olsr::MessageHeader::Mid::Deserialize	(	Buffer::Iterator	start,
		uint32_t	messageSize
	)

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet.

Parameters

start	an iterator which points to where the header should read from.
messageSize	the message size.

Returns

the number of bytes read.

Definition at line 363 of file olsr-header.cc.

References ns3::olsr::MessageHeader::GetSerializedSize(), IPV4_ADDRESS_SIZE, NS_ASSERT, ns3::Buffer::Iterator::ReadNtohU32(), and two-ray-to-three-gpp-ch-calibration::start.

Here is the call graph for this function:

GetSerializedSize()

uint32_t ns3::olsr::MessageHeader::Mid::GetSerializedSize

(

)

const

Returns the expected size of the header.

Returns

the expected size of the header.

Definition at line 325 of file olsr-header.cc.

References interfaceAddresses, and IPV4_ADDRESS_SIZE.

Print()

void ns3::olsr::MessageHeader::Mid::Print

(

std::ostream &

os

)

const

This method is used to print the content of a MID message.

Parameters

os	output stream

Definition at line 331 of file olsr-header.cc.

Serialize()

void ns3::olsr::MessageHeader::Mid::Serialize

(

Buffer::Iterator

start

)

const

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet.

Parameters

start

an iterator which points to where the header should be written.

Definition at line 351 of file olsr-header.cc.

References two-ray-to-three-gpp-ch-calibration::start, and ns3::Buffer::Iterator::WriteHtonU32().

Here is the call graph for this function:

Member Data Documentation

interfaceAddresses

std::vector<Ipv4Address> ns3::olsr::MessageHeader::Mid::interfaceAddresses

Interface Address container.

Definition at line 324 of file olsr-header.h.

Referenced by OlsrMidTestCase::DoRun(), GetSerializedSize(), ns3::olsr::RoutingProtocol::ProcessMid(), and ns3::olsr::RoutingProtocol::SendMid().

---

The documentation for this struct was generated from the following files:

• src/olsr/model/olsr-header.h
• src/olsr/model/olsr-header.cc
