ns3::McsGroup Struct Reference

Data structure to contain the information that defines a group. More...

#include "minstrel-ht-wifi-manager.h"

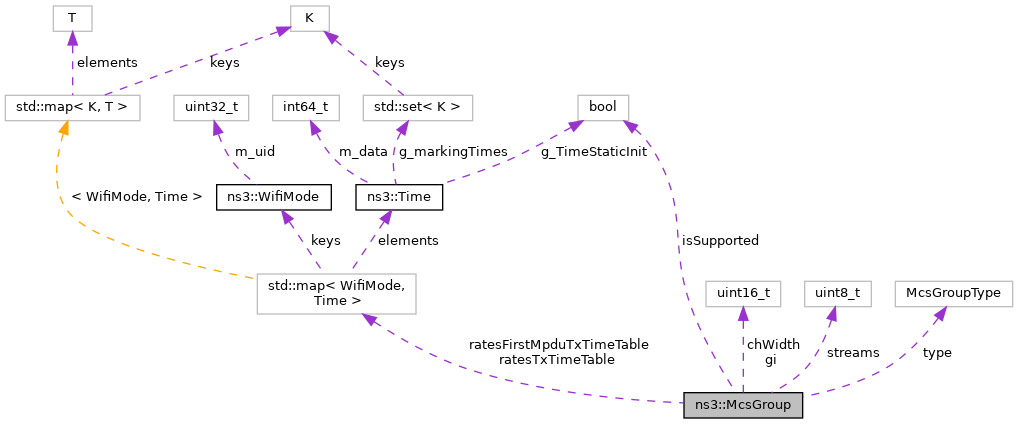

Collaboration diagram for ns3::McsGroup:

Public Attributes
uint16_t	chWidth
	channel width (MHz) More...
uint16_t	gi
	guard interval duration (nanoseconds) More...
bool	isSupported
	flag whether group is supported More...
TxTime	ratesFirstMpduTxTimeTable
	rates MPDU transmit time table More...
TxTime	ratesTxTimeTable
	rates transmit time table More...
uint8_t	streams
	number of spatial streams More...
McsGroupType	type
	identifies the group, More...

Detailed Description

Data structure to contain the information that defines a group.

It also contains the transmission times for all the MCS in the group. A group is a collection of MCS defined by the number of spatial streams, if it uses or not Short Guard Interval, and the channel width used.

Definition at line 81 of file minstrel-ht-wifi-manager.h.

Member Data Documentation

chWidth

uint16_t ns3::McsGroup::chWidth

channel width (MHz)

Definition at line 85 of file minstrel-ht-wifi-manager.h.

Referenced by ns3::MinstrelHtWifiManager::DoGetDataTxVector(), ns3::MinstrelHtWifiManager::StatsDump(), and ns3::MinstrelHtWifiManager::UpdateRateAfterAllowedWidth().

gi

uint16_t ns3::McsGroup::gi

guard interval duration (nanoseconds)

Definition at line 84 of file minstrel-ht-wifi-manager.h.

Referenced by ns3::MinstrelHtWifiManager::DoGetDataTxVector(), ns3::MinstrelHtWifiManager::StatsDump(), and ns3::MinstrelHtWifiManager::UpdateRateAfterAllowedWidth().

isSupported

bool ns3::McsGroup::isSupported

flag whether group is supported

Definition at line 87 of file minstrel-ht-wifi-manager.h.

Referenced by ns3::MinstrelHtWifiManager::UpdateRateAfterAllowedWidth().

ratesFirstMpduTxTimeTable

TxTime ns3::McsGroup::ratesFirstMpduTxTimeTable

rates MPDU transmit time table

Definition at line 91 of file minstrel-ht-wifi-manager.h.

ratesTxTimeTable

TxTime ns3::McsGroup::ratesTxTimeTable

rates transmit time table

Definition at line 90 of file minstrel-ht-wifi-manager.h.

streams

uint8_t ns3::McsGroup::streams

number of spatial streams

Definition at line 83 of file minstrel-ht-wifi-manager.h.

Referenced by ns3::MinstrelHtWifiManager::DoGetDataTxVector(), ns3::MinstrelHtWifiManager::StatsDump(), and ns3::MinstrelHtWifiManager::UpdateRateAfterAllowedWidth().

type

McsGroupType ns3::McsGroup::type

identifies the group,

See also

McsGroupType

Definition at line 86 of file minstrel-ht-wifi-manager.h.

Referenced by ns3::MinstrelHtWifiManager::DoGetDataTxVector(), ns3::MinstrelHtWifiManager::StatsDump(), and ns3::MinstrelHtWifiManager::UpdateRateAfterAllowedWidth().

---

The documentation for this struct was generated from the following file:

• src/wifi/model/rate-control/minstrel-ht-wifi-manager.h
