This class implements the UL-MAP_IE message as described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems" 8.2.1.8.2 Compressed UL-MAP, page 404. More...

#include "ul-mac-messages.h"

Inheritance diagram for ns3::UlMap:

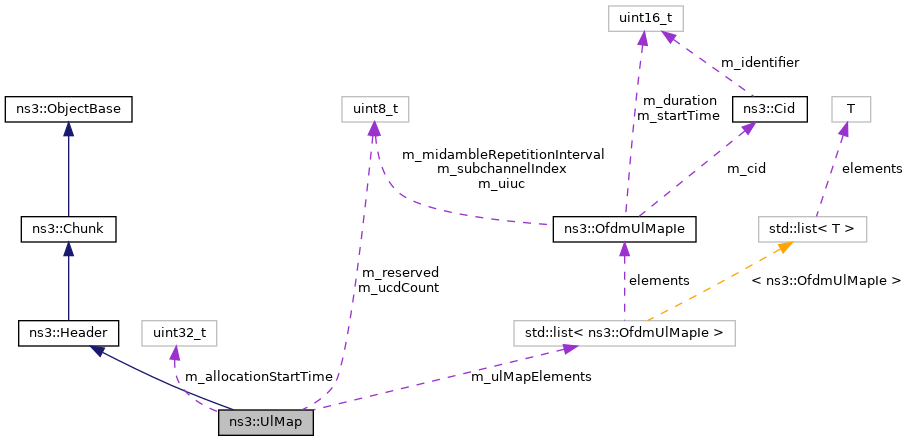

Collaboration diagram for ns3::UlMap:

Public Member Functions
	UlMap ()

	~UlMap () override

void	AddUlMapElement (OfdmUlMapIe ulMapElement)
	Add UL map element. More...

uint32_t	Deserialize (Buffer::Iterator start) override

uint32_t	GetAllocationStartTime () const
	Get allocation start time. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

std::string	GetName () const
	Get name. More...

uint32_t	GetSerializedSize () const override

uint8_t	GetUcdCount () const
	Get UCD count. More...

std::list< OfdmUlMapIe >	GetUlMapElements () const
	Get UL map elements. More...

void	Print (std::ostream &os) const override

void	Serialize (Buffer::Iterator start) const override

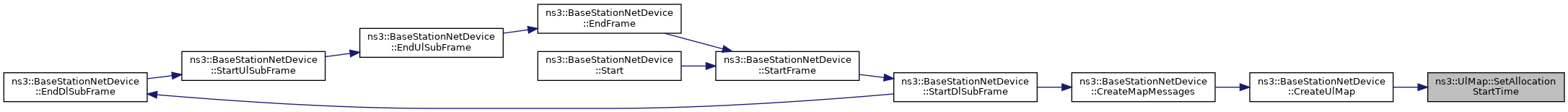

void	SetAllocationStartTime (uint32_t allocationStartTime)
	Set allocation start time. More...

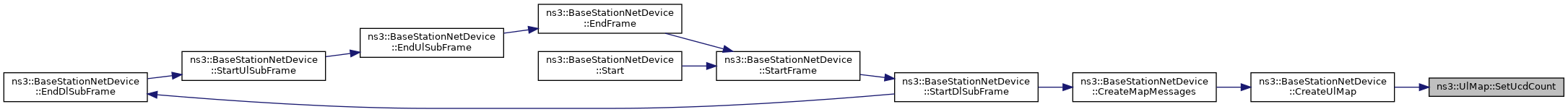

void	SetUcdCount (uint8_t ucdCount)
	Set UCD count. More...

Public Member Functions inherited from ns3::Header
	~Header () override

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator. More...

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::Chunk
virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Private Attributes
uint32_t	m_allocationStartTime
	allocation start time More...

uint8_t	m_reserved
	changed as per the amendment 802.16e-2005 More...

uint8_t	m_ucdCount
	UCD count. More...

std::list< OfdmUlMapIe >	m_ulMapElements
	UL map elements. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

This class implements the UL-MAP_IE message as described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems" 8.2.1.8.2 Compressed UL-MAP, page 404.

Definition at line 587 of file ul-mac-messages.h.

Constructor & Destructor Documentation

◆ UlMap()

ns3::UlMap::UlMap ( )

Definition at line 573 of file ul-mac-messages.cc.

◆ ~UlMap()

ns3::UlMap::~UlMap ( )

override

Definition at line 580 of file ul-mac-messages.cc.

Member Function Documentation

◆ AddUlMapElement()

void ns3::UlMap::AddUlMapElement ( OfdmUlMapIe ulMapElement )

Add UL map element.

Parameters

ulMapElement the UL map element

Definition at line 597 of file ul-mac-messages.cc.

References m_ulMapElements.

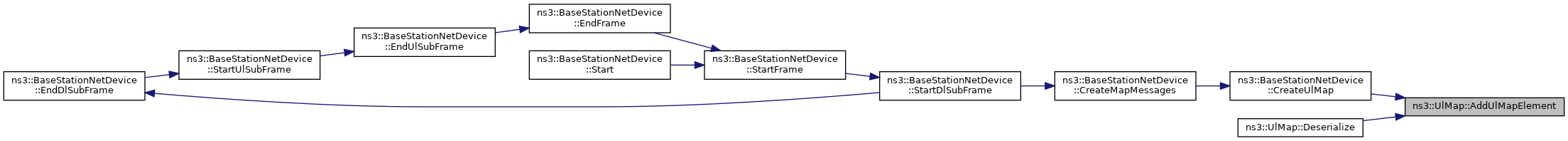

Referenced by ns3::BaseStationNetDevice::CreateUlMap(), and Deserialize().

Here is the caller graph for this function:

◆ Deserialize()

uint32_t ns3::UlMap::Deserialize ( Buffer::Iterator start )

overridevirtual

Parameters

start an iterator which points to where the header should read from.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 676 of file ul-mac-messages.cc.

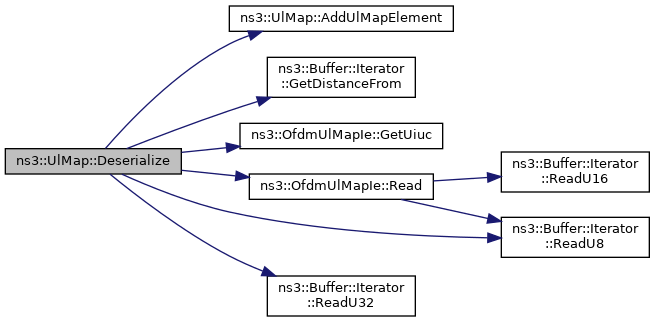

References AddUlMapElement(), ns3::Buffer::Iterator::GetDistanceFrom(), ns3::OfdmUlMapIe::GetUiuc(), m_allocationStartTime, m_reserved, m_ucdCount, m_ulMapElements, ns3::OfdmUlMapIe::Read(), ns3::Buffer::Iterator::ReadU32(), ns3::Buffer::Iterator::ReadU8(), and two-ray-to-three-gpp-ch-calibration::start.

Here is the call graph for this function:

◆ GetAllocationStartTime()

uint32_t ns3::UlMap::GetAllocationStartTime ( ) const

Get allocation start time.

Returns: the allocation start time

Definition at line 609 of file ul-mac-messages.cc.

References m_allocationStartTime.

Referenced by ns3::SubscriberStationNetDevice::ProcessUlMap().

Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::UlMap::GetInstanceTypeId ( ) const

overridevirtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns: The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 635 of file ul-mac-messages.cc.

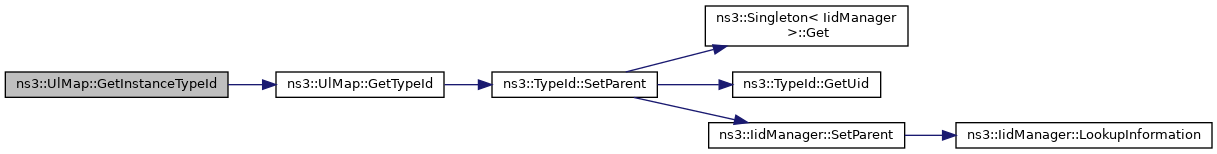

References GetTypeId().

Here is the call graph for this function:

◆ GetName()

std::string ns3::UlMap::GetName ( ) const

Get name.

Returns: the name

Definition at line 621 of file ul-mac-messages.cc.

◆ GetSerializedSize()

uint32_t ns3::UlMap::GetSerializedSize ( ) const

overridevirtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 649 of file ul-mac-messages.cc.

References m_ulMapElements.

◆ GetTypeId()

TypeId ns3::UlMap::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 627 of file ul-mac-messages.cc.

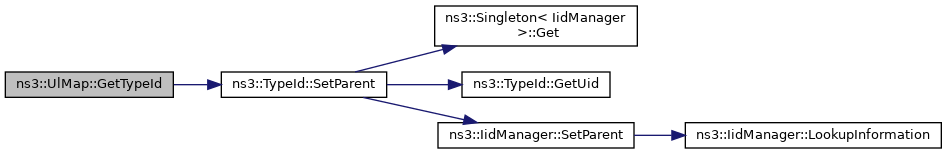

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetUcdCount()

uint8_t ns3::UlMap::GetUcdCount ( ) const

Get UCD count.

Returns: the UCD count

Definition at line 603 of file ul-mac-messages.cc.

References m_ucdCount.

Referenced by ns3::SubscriberStationNetDevice::ProcessUlMap().

Here is the caller graph for this function:

◆ GetUlMapElements()

std::list< OfdmUlMapIe > ns3::UlMap::GetUlMapElements ( ) const

Get UL map elements.

Returns: the UL map elements

Definition at line 615 of file ul-mac-messages.cc.

References m_ulMapElements.

Referenced by ns3::SubscriberStationNetDevice::ProcessUlMap().

Here is the caller graph for this function:

◆ Print()

void ns3::UlMap::Print ( std::ostream & os ) const

overridevirtual

Parameters

os output stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 641 of file ul-mac-messages.cc.

References m_allocationStartTime, m_ucdCount, and m_ulMapElements.

◆ Serialize()

void ns3::UlMap::Serialize ( Buffer::Iterator start ) const

overridevirtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 662 of file ul-mac-messages.cc.

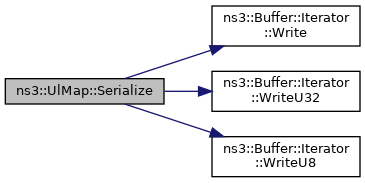

References m_allocationStartTime, m_reserved, m_ucdCount, m_ulMapElements, two-ray-to-three-gpp-ch-calibration::start, ns3::Buffer::Iterator::Write(), ns3::Buffer::Iterator::WriteU32(), and ns3::Buffer::Iterator::WriteU8().

Here is the call graph for this function:
