ns3::UdpEchoServerHelper Class Reference

Create a server application which waits for input UDP packets and sends them back to the original sender. More...

#include "udp-echo-helper.h"

Collaboration diagram for ns3::UdpEchoServerHelper:

Public Member Functions
	UdpEchoServerHelper (uint16_t port)
	Create UdpEchoServerHelper which will make life easier for people trying to set up simulations with echos. More...
ApplicationContainer	Install (NodeContainer c) const
ApplicationContainer	Install (Ptr< Node > node) const
	Create a UdpEchoServerApplication on the specified Node. More...
ApplicationContainer	Install (std::string nodeName) const
	Create a UdpEchoServerApplication on specified node. More...
void	SetAttribute (std::string name, const AttributeValue &value)
	Record an attribute to be set in each Application after it is is created. More...

Private Member Functions
Ptr< Application >	InstallPriv (Ptr< Node > node) const
	Install an ns3::UdpEchoServer on the node configured with all the attributes set with SetAttribute. More...

Private Attributes
ObjectFactory	m_factory
	Object factory. More...

Detailed Description

Create a server application which waits for input UDP packets and sends them back to the original sender.

Definition at line 38 of file udp-echo-helper.h.

Constructor & Destructor Documentation

UdpEchoServerHelper()

ns3::UdpEchoServerHelper::UdpEchoServerHelper

(

uint16_t

port

)

Create UdpEchoServerHelper which will make life easier for people trying to set up simulations with echos.

Parameters

port	The port the server will wait on for incoming packets

Definition at line 29 of file udp-echo-helper.cc.

References ns3::UdpEchoServer::GetTypeId(), m_factory, port, SetAttribute(), and ns3::ObjectFactory::SetTypeId().

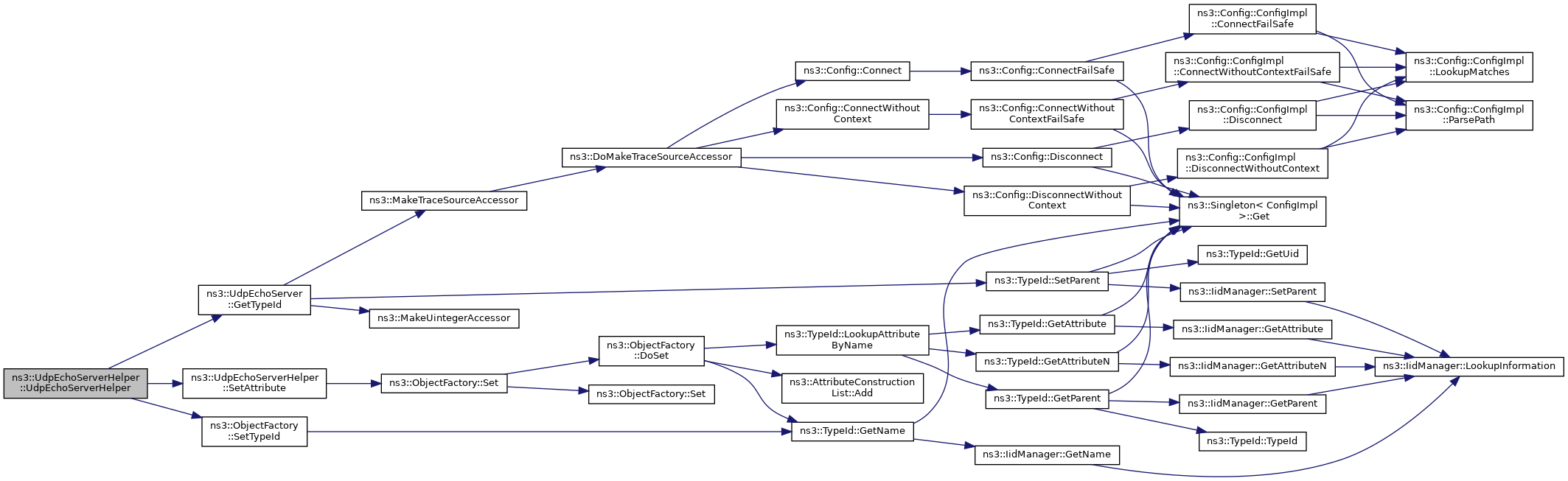

Here is the call graph for this function:

Member Function Documentation

Install() [1/3]

ApplicationContainer ns3::UdpEchoServerHelper::Install

(

NodeContainer

c

)

const

Parameters

c	The nodes on which to create the Applications. The nodes are specified by a NodeContainer.

Create one udp echo server application on each of the Nodes in the NodeContainer.

Returns

The applications created, one Application per Node in the NodeContainer.

Definition at line 55 of file udp-echo-helper.cc.

References ns3::ApplicationContainer::Add(), ns3::NodeContainer::Begin(), ns3::NodeContainer::End(), and InstallPriv().

Here is the call graph for this function:

Install() [2/3]

ApplicationContainer ns3::UdpEchoServerHelper::Install

(

Ptr< Node >

node

)

const

Create a UdpEchoServerApplication on the specified Node.

Parameters

node	The node on which to create the Application. The node is specified by a Ptr<Node>.

Returns

An ApplicationContainer holding the Application created,

Definition at line 42 of file udp-echo-helper.cc.

References InstallPriv().

Referenced by LteIpv6RoutingTestCase::DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

Install() [3/3]

ApplicationContainer ns3::UdpEchoServerHelper::Install

(

std::string

nodeName

)

const

Create a UdpEchoServerApplication on specified node.

Parameters

nodeName

The node on which to create the application. The node is specified by a node name previously registered with the Object Name Service.

Returns

An ApplicationContainer holding the Application created.

Definition at line 48 of file udp-echo-helper.cc.

References InstallPriv().

Here is the call graph for this function:

InstallPriv()

Ptr< Application > ns3::UdpEchoServerHelper::InstallPriv ( Ptr< Node >  node ) const

private

Install an ns3::UdpEchoServer on the node configured with all the attributes set with SetAttribute.

Parameters

node	The node on which an UdpEchoServer will be installed.

Returns

Ptr to the application installed.

Definition at line 67 of file udp-echo-helper.cc.

References ns3::Node::AddApplication(), openflow-switch::app, ns3::ObjectFactory::Create(), and m_factory.

Referenced by Install().

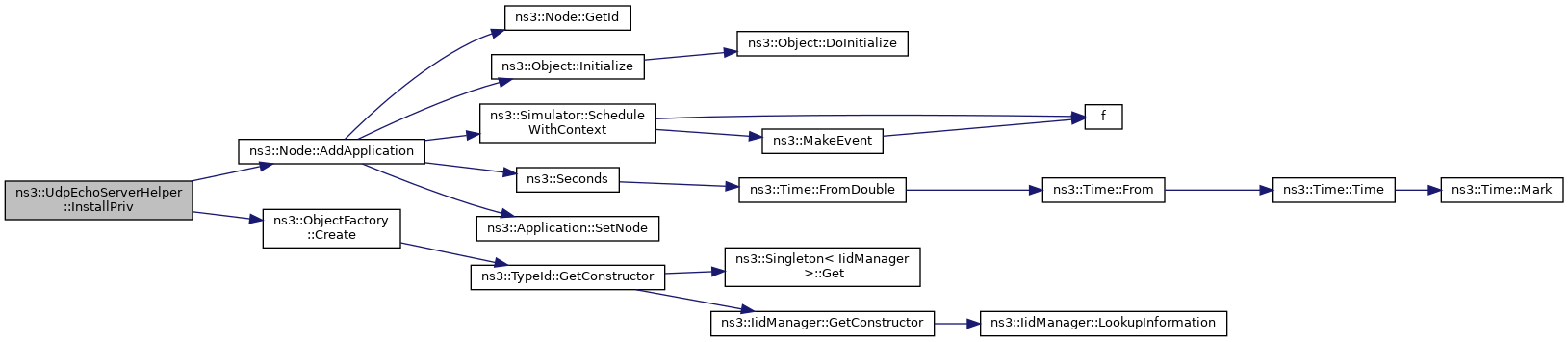

Here is the call graph for this function:

Here is the caller graph for this function:

SetAttribute()

void ns3::UdpEchoServerHelper::SetAttribute	(	std::string	name,
		const AttributeValue &	value
	)

Record an attribute to be set in each Application after it is is created.

Parameters

name	the name of the attribute to set
value	the value of the attribute to set

Definition at line 36 of file udp-echo-helper.cc.

References m_factory, and ns3::ObjectFactory::Set().

Referenced by UdpEchoServerHelper().

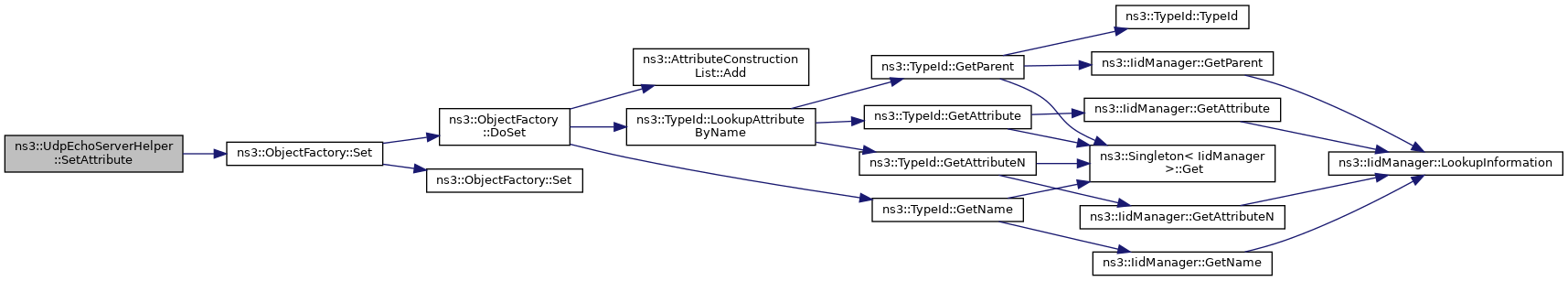

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

m_factory

ObjectFactory ns3::UdpEchoServerHelper::m_factory

private

Object factory.

Definition at line 100 of file udp-echo-helper.h.

Referenced by UdpEchoServerHelper(), InstallPriv(), and SetAttribute().

---

The documentation for this class was generated from the following files:

• src/applications/helper/udp-echo-helper.h
• src/applications/helper/udp-echo-helper.cc
