ns3::TidToLinkMapping::Control Struct Reference

TID-to-Link Mapping Control subfield IEEE 802.11be D3.1 Figure 9-1002ap. More...

#include "tid-to-link-mapping-element.h"

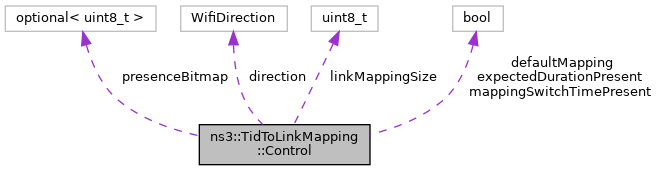

Collaboration diagram for ns3::TidToLinkMapping::Control:

Public Member Functions
uint16_t	Deserialize (Buffer::Iterator start)
	Deserialize the TID-to-Link Mapping Control subfield. More...
uint16_t	GetSubfieldSize () const
void	Serialize (Buffer::Iterator &start) const
	Serialize the TID-to-Link Mapping Control subfield. More...

Public Attributes
bool	defaultMapping {DEFAULT_WIFI_TID_LINK_MAPPING}
	Default link mapping. More...
WifiDirection	direction {DEFAULT_WIFI_TID_LINK_MAP_DIR}
	Direction. More...

Private Attributes
bool	expectedDurationPresent {false}
	Expected Duration Present. More...
uint8_t	linkMappingSize {1}
	length of the Link Mapping Of TID n field in octets More...
bool	mappingSwitchTimePresent {false}
	These members are private to prevent users to manipulate them directly (their values depend on the values of other fields) More...
std::optional< uint8_t >	presenceBitmap
	Link Mapping Presence Indicator. More...

Friends
class	TidToLinkMapping

Detailed Description

TID-to-Link Mapping Control subfield IEEE 802.11be D3.1 Figure 9-1002ap.

Definition at line 60 of file tid-to-link-mapping-element.h.

Member Function Documentation

Deserialize()

uint16_t ns3::TidToLinkMapping::Control::Deserialize

(

Buffer::Iterator

start

)

Deserialize the TID-to-Link Mapping Control subfield.

Parameters

start

iterator pointing to where the subfield should be read from

Returns

the number of octets read

Definition at line 62 of file tid-to-link-mapping-element.cc.

References two-ray-to-three-gpp-ch-calibration::start.

Referenced by ns3::TidToLinkMapping::DeserializeInformationField().

Here is the caller graph for this function:

GetSubfieldSize()

uint16_t ns3::TidToLinkMapping::Control::GetSubfieldSize

(

)

const

Returns

Serialized size of TID-to-Link Mapping Control in octets

Definition at line 32 of file tid-to-link-mapping-element.cc.

References defaultMapping, NS_ASSERT_MSG, presenceBitmap, ns3::WIFI_LINK_MAPPING_PRESENCE_IND_SIZE_B, and ns3::WIFI_TID_TO_LINK_MAPPING_CONTROL_BASIC_SIZE_B.

Referenced by ns3::TidToLinkMapping::GetInformationFieldSize().

Here is the caller graph for this function:

Serialize()

void ns3::TidToLinkMapping::Control::Serialize

(

Buffer::Iterator &

start

)

const

Serialize the TID-to-Link Mapping Control subfield.

Parameters

start

iterator pointing to where the subfield should be written to

Definition at line 46 of file tid-to-link-mapping-element.cc.

References NS_ASSERT_MSG, and two-ray-to-three-gpp-ch-calibration::start.

Referenced by ns3::TidToLinkMapping::SerializeInformationField().

Here is the caller graph for this function:

Friends And Related Function Documentation

TidToLinkMapping

friend class TidToLinkMapping

friend

Definition at line 62 of file tid-to-link-mapping-element.h.

Member Data Documentation

defaultMapping

bool ns3::TidToLinkMapping::Control::defaultMapping {DEFAULT_WIFI_TID_LINK_MAPPING}

Default link mapping.

Definition at line 65 of file tid-to-link-mapping-element.h.

Referenced by ns3::TidToLinkMapping::DeserializeInformationField(), TidToLinkMappingElementTest::DoSetup(), ns3::TidToLinkMapping::GetInformationFieldSize(), GetSubfieldSize(), ns3::ApWifiMac::ReceiveAssocRequest(), ns3::TidToLinkMapping::SerializeInformationField(), and ns3::TidToLinkMapping::SetLinkMappingOfTid().

direction

WifiDirection ns3::TidToLinkMapping::Control::direction {DEFAULT_WIFI_TID_LINK_MAP_DIR}

Direction.

Definition at line 64 of file tid-to-link-mapping-element.h.

Referenced by TidToLinkMappingElementTest::DoSetup().

expectedDurationPresent

bool ns3::TidToLinkMapping::Control::expectedDurationPresent {false}

private

Expected Duration Present.

Definition at line 90 of file tid-to-link-mapping-element.h.

Referenced by ns3::TidToLinkMapping::DeserializeInformationField(), ns3::TidToLinkMapping::GetExpectedDuration(), ns3::TidToLinkMapping::GetInformationFieldSize(), ns3::TidToLinkMapping::SerializeInformationField(), and ns3::TidToLinkMapping::SetExpectedDuration().

linkMappingSize

uint8_t ns3::TidToLinkMapping::Control::linkMappingSize {1}

private

length of the Link Mapping Of TID n field in octets

Definition at line 91 of file tid-to-link-mapping-element.h.

Referenced by ns3::TidToLinkMapping::DeserializeInformationField(), ns3::TidToLinkMapping::GetInformationFieldSize(), ns3::TidToLinkMapping::SerializeInformationField(), and ns3::TidToLinkMapping::SetLinkMappingOfTid().

mappingSwitchTimePresent

bool ns3::TidToLinkMapping::Control::mappingSwitchTimePresent {false}

private

These members are private to prevent users to manipulate them directly (their values depend on the values of other fields)

Mapping Switch Time Present

Definition at line 89 of file tid-to-link-mapping-element.h.

Referenced by ns3::TidToLinkMapping::DeserializeInformationField(), ns3::TidToLinkMapping::GetInformationFieldSize(), ns3::TidToLinkMapping::GetMappingSwitchTime(), ns3::TidToLinkMapping::SerializeInformationField(), and ns3::TidToLinkMapping::SetMappingSwitchTime().

presenceBitmap

std::optional<uint8_t> ns3::TidToLinkMapping::Control::presenceBitmap

private

Link Mapping Presence Indicator.

Definition at line 92 of file tid-to-link-mapping-element.h.

Referenced by ns3::TidToLinkMapping::DeserializeInformationField(), GetSubfieldSize(), and ns3::TidToLinkMapping::SetLinkMappingOfTid().

---

The documentation for this struct was generated from the following files:

• src/wifi/model/eht/tid-to-link-mapping-element.h
• src/wifi/model/eht/tid-to-link-mapping-element.cc
