Describes Mesh Configuration Element see 7.3.2.86 of 802.11s draft 3.0. More...

#include "ie-dot11s-configuration.h"

Inheritance diagram for ns3::dot11s::IeConfiguration:

Collaboration diagram for ns3::dot11s::IeConfiguration:

Public Member Functions
	IeConfiguration ()

uint16_t	DeserializeInformationField (Buffer::Iterator i, uint16_t length) override
	Deserialize information (i.e., the body of the IE, not including the Element ID and length octets) More...

WifiInformationElementId	ElementId () const override
	Get the wifi information element ID. More...

uint16_t	GetInformationFieldSize () const override
	Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets. More...

uint8_t	GetNeighborCount () const
	Get neighbor count. More...

bool	IsAirtime ()
	Is airtime function. More...

bool	IsHWMP ()
	Is HWMP function. More...

const Dot11sMeshCapability &	MeshCapability ()
	Mesh capability. More...

void	Print (std::ostream &os) const override
	Generate human-readable form of IE. More...

void	SerializeInformationField (Buffer::Iterator i) const override
	Serialize information (i.e., the body of the IE, not including the Element ID and length octets) More...

void	SetMetric (Dot11sPathSelectionMetric metricId)
	Set metric value. More...

void	SetNeighborCount (uint8_t neighbors)
	Set neighbor count. More...

void	SetRouting (Dot11sPathSelectionProtocol routingId)
	Set routing value. More...

Public Member Functions inherited from ns3::WifiInformationElement
virtual	~WifiInformationElement ()

Buffer::Iterator	Deserialize (Buffer::Iterator i)
	Deserialize entire IE (which may possibly be fragmented into multiple elements), which must be present. More...

Buffer::Iterator	DeserializeIfPresent (Buffer::Iterator i)
	Deserialize entire IE (which may possibly be fragmented into multiple elements) if it is present. More...

virtual WifiInformationElementId	ElementIdExt () const
	Get the wifi information element ID extension. More...

uint16_t	GetSerializedSize () const
	Get the size of the serialized IE including Element ID and length fields (for every element this IE is possibly fragmented into). More...

virtual bool	operator== (const WifiInformationElement &a) const
	Compare two IEs for equality by ID & Length, and then through memcmp of serialised version. More...

Buffer::Iterator	Serialize (Buffer::Iterator i) const
	Serialize entire IE including Element ID and length fields. More...

Public Member Functions inherited from ns3::SimpleRefCount< WifiInformationElement >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Private Attributes
Dot11sAuthenticationProtocol	m_APId
	Auth protocol ID. More...

Dot11sPathSelectionMetric	m_APSMId
	Active Path Metric ID. More...

Dot11sPathSelectionProtocol	m_APSPId
	Active Path Selection Protocol ID. More...

Dot11sCongestionControlMode	m_CCMId
	Congestion Control Mode ID. More...

Dot11sMeshCapability	m_meshCap
	Mesh capability. More...

uint8_t	m_neighbors
	neighbors More...

Dot11sSynchronizationProtocolIdentifier	m_SPId
	Sync protocol ID. More...

Friends
bool	operator== (const IeConfiguration &a, const IeConfiguration &b)
	equality operator More...

Detailed Description

Describes Mesh Configuration Element see 7.3.2.86 of 802.11s draft 3.0.

Definition at line 129 of file ie-dot11s-configuration.h.

Constructor & Destructor Documentation

◆ IeConfiguration()

ns3::dot11s::IeConfiguration::IeConfiguration ( )

Definition at line 119 of file ie-dot11s-configuration.cc.

Member Function Documentation

◆ DeserializeInformationField()

uint16_t ns3::dot11s::IeConfiguration::DeserializeInformationField	(	Buffer::Iterator	start,
		uint16_t	length
	)

overridevirtual

Deserialize information (i.e., the body of the IE, not including the Element ID and length octets)

Parameters

start	an iterator which points to where the information should be written.
length	the expected number of bytes to read

Returns: the number of bytes read

Implements ns3::WifiInformationElement.

Definition at line 160 of file ie-dot11s-configuration.cc.

References ns3::dot11s::Dot11sMeshCapability::Deserialize(), ns3::Buffer::Iterator::GetDistanceFrom(), m_APId, m_APSMId, m_APSPId, m_CCMId, m_meshCap, m_neighbors, m_SPId, ns3::Buffer::Iterator::ReadU8(), and two-ray-to-three-gpp-ch-calibration::start.

Referenced by ns3::dot11s::PeerLinkOpenStart::Deserialize(), and ns3::dot11s::PeerLinkConfirmStart::Deserialize().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ElementId()

WifiInformationElementId ns3::dot11s::IeConfiguration::ElementId ( ) const

overridevirtual

Get the wifi information element ID.

Returns: the wifi information element ID

Implements ns3::WifiInformationElement.

Definition at line 114 of file ie-dot11s-configuration.cc.

References IE_MESH_CONFIGURATION.

Referenced by ns3::dot11s::PeerLinkOpenStart::Deserialize(), and ns3::dot11s::PeerLinkConfirmStart::Deserialize().

Here is the caller graph for this function:

◆ GetInformationFieldSize()

uint16_t ns3::dot11s::IeConfiguration::GetInformationFieldSize ( ) const

overridevirtual

Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets.

This is the value that will appear in the second octet of the entire IE - the length field - if the IE is not fragmented)

Returns: the length of serialized information

Implements ns3::WifiInformationElement.

Definition at line 130 of file ie-dot11s-configuration.cc.

References ns3::dot11s::Dot11sMeshCapability::GetSerializedSize(), and m_meshCap.

Referenced by ns3::dot11s::PeerLinkOpenStart::Deserialize(), ns3::dot11s::PeerLinkConfirmStart::Deserialize(), ns3::dot11s::PeerLinkOpenStart::GetSerializedSize(), and ns3::dot11s::PeerLinkConfirmStart::GetSerializedSize().

Here is the call graph for this function:

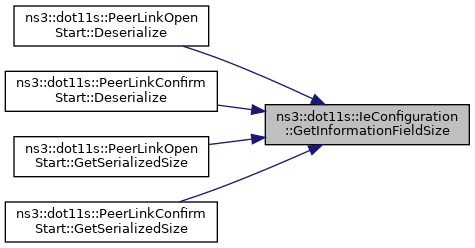

Here is the caller graph for this function:

◆ GetNeighborCount()

uint8_t ns3::dot11s::IeConfiguration::GetNeighborCount ( ) const

Get neighbor count.

Returns: the the neighbor count

Definition at line 220 of file ie-dot11s-configuration.cc.

References m_neighbors.

◆ IsAirtime()

bool ns3::dot11s::IeConfiguration::IsAirtime ( )

Is airtime function.

Returns: true if Active Path Selection Metric Identifier is set to airtime link metric

Definition at line 208 of file ie-dot11s-configuration.cc.

References m_APSMId, and ns3::dot11s::METRIC_AIRTIME.

◆ IsHWMP()

bool ns3::dot11s::IeConfiguration::IsHWMP ( )

Is HWMP function.

Returns: true if Active Path Selection Protocol Identifier field set to HWMP

Definition at line 202 of file ie-dot11s-configuration.cc.

References m_APSPId, and ns3::dot11s::PROTOCOL_HWMP.

◆ MeshCapability()

const Dot11sMeshCapability & ns3::dot11s::IeConfiguration::MeshCapability ( )

Mesh capability.

Returns: the dot11s mesh capability

Definition at line 226 of file ie-dot11s-configuration.cc.

References m_meshCap.

◆ Print()

void ns3::dot11s::IeConfiguration::Print ( std::ostream & os ) const

overridevirtual

Generate human-readable form of IE.

Parameters

os	output stream

Reimplemented from ns3::WifiInformationElement.

Definition at line 177 of file ie-dot11s-configuration.cc.

References ns3::dot11s::Dot11sMeshCapability::GetUint8(), m_APId, m_APSMId, m_APSPId, m_CCMId, m_meshCap, m_neighbors, and m_SPId.

Referenced by ns3::dot11s::operator<<(), ns3::dot11s::PeerLinkOpenStart::Print(), and ns3::dot11s::PeerLinkConfirmStart::Print().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SerializeInformationField()

void ns3::dot11s::IeConfiguration::SerializeInformationField ( Buffer::Iterator start ) const

overridevirtual

Serialize information (i.e., the body of the IE, not including the Element ID and length octets)

Parameters

start an iterator which points to where the information should be written.

Implements ns3::WifiInformationElement.

Definition at line 143 of file ie-dot11s-configuration.cc.

References m_APId, m_APSMId, m_APSPId, m_CCMId, m_meshCap, m_neighbors, m_SPId, ns3::dot11s::Dot11sMeshCapability::Serialize(), and ns3::Buffer::Iterator::WriteU8().

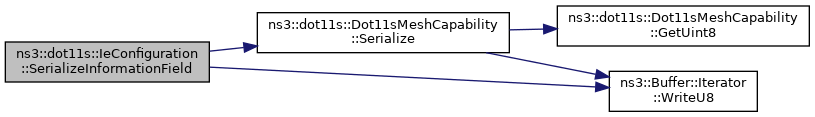

Here is the call graph for this function:

◆ SetMetric()

void ns3::dot11s::IeConfiguration::SetMetric ( Dot11sPathSelectionMetric metricId )

Set metric value.

Parameters

metricId the path selection metric

Definition at line 196 of file ie-dot11s-configuration.cc.

References m_APSMId.

◆ SetNeighborCount()

void ns3::dot11s::IeConfiguration::SetNeighborCount ( uint8_t neighbors )

Set neighbor count.

Parameters

neighbors the number of neighbors

Definition at line 214 of file ie-dot11s-configuration.cc.

References m_neighbors.

Referenced by ns3::dot11s::PeerManagementProtocolMac::SendPeerLinkManagementFrame().

Here is the caller graph for this function:

◆ SetRouting()

void ns3::dot11s::IeConfiguration::SetRouting ( Dot11sPathSelectionProtocol routingId )

Set routing value.

Parameters

routingId the routing ID

Definition at line 190 of file ie-dot11s-configuration.cc.

References m_APSPId.

Friends And Related Function Documentation

◆ operator==

bool operator==	(	const IeConfiguration &	a,
		const IeConfiguration &	b
	)

friend

equality operator

Parameters

a	lhs
b	rhs

Returns: true if equal

Definition at line 241 of file ie-dot11s-configuration.cc.

Member Data Documentation

◆ m_APId

Dot11sAuthenticationProtocol ns3::dot11s::IeConfiguration::m_APId

private

Auth protocol ID.

Definition at line 188 of file ie-dot11s-configuration.h.

Referenced by DeserializeInformationField(), Print(), and SerializeInformationField().

◆ m_APSMId

Dot11sPathSelectionMetric ns3::dot11s::IeConfiguration::m_APSMId

private

Active Path Metric ID.

Definition at line 182 of file ie-dot11s-configuration.h.

Referenced by DeserializeInformationField(), IsAirtime(), Print(), SerializeInformationField(), and SetMetric().

◆ m_APSPId

Dot11sPathSelectionProtocol ns3::dot11s::IeConfiguration::m_APSPId

private

Active Path Selection Protocol ID.

Definition at line 180 of file ie-dot11s-configuration.h.

Referenced by DeserializeInformationField(), IsHWMP(), Print(), SerializeInformationField(), and SetRouting().

◆ m_CCMId

Dot11sCongestionControlMode ns3::dot11s::IeConfiguration::m_CCMId

private

Congestion Control Mode ID.

Definition at line 184 of file ie-dot11s-configuration.h.

Referenced by DeserializeInformationField(), Print(), and SerializeInformationField().

◆ m_meshCap

Dot11sMeshCapability ns3::dot11s::IeConfiguration::m_meshCap

private

Mesh capability.

Definition at line 190 of file ie-dot11s-configuration.h.

Referenced by DeserializeInformationField(), GetInformationFieldSize(), MeshCapability(), Print(), and SerializeInformationField().

◆ m_neighbors

uint8_t ns3::dot11s::IeConfiguration::m_neighbors

private

neighbors

Definition at line 191 of file ie-dot11s-configuration.h.

Referenced by DeserializeInformationField(), GetNeighborCount(), Print(), SerializeInformationField(), and SetNeighborCount().

◆ m_SPId

Dot11sSynchronizationProtocolIdentifier ns3::dot11s::IeConfiguration::m_SPId

private

Sync protocol ID.

Definition at line 186 of file ie-dot11s-configuration.h.

Referenced by DeserializeInformationField(), Print(), and SerializeInformationField().

The documentation for this class was generated from the following files:

src/mesh/model/dot11s/ie-dot11s-configuration.h
src/mesh/model/dot11s/ie-dot11s-configuration.cc
