ns3::EpcX2SnStatusTransferHeader Class Reference

EpcX2SnStatusTransferHeader. More...

#include "epc-x2-header.h"

+ Inheritance diagram for ns3::EpcX2SnStatusTransferHeader:

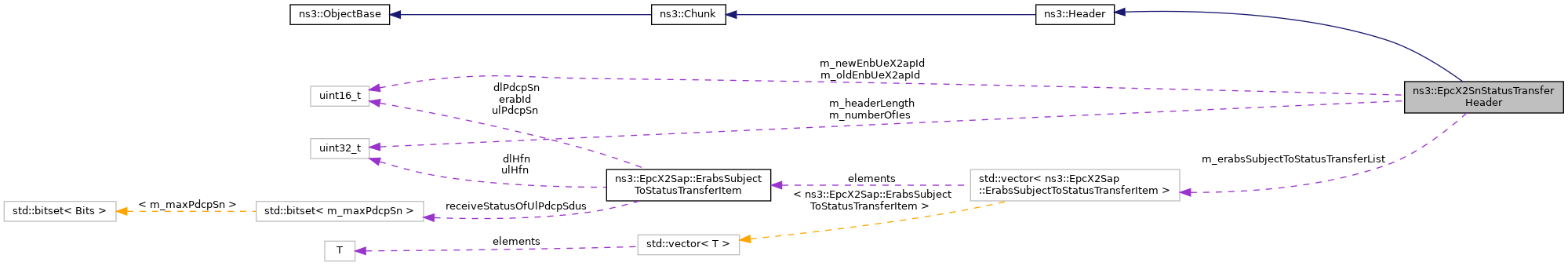

+ Collaboration diagram for ns3::EpcX2SnStatusTransferHeader:

Public Member Functions

 EpcX2SnStatusTransferHeader ()

 ~EpcX2SnStatusTransferHeader () override

uint32_t Deserialize (Buffer::Iterator start) override

std::vector< EpcX2Sap::ErabsSubjectToStatusTransferItemGetErabsSubjectToStatusTransferList () const
 Get ERABs subject to status transfer list function. More...

TypeId GetInstanceTypeId () const override
 Get the most derived TypeId for this Object. More...

uint32_t GetLengthOfIes () const
 Get length of IEs function. More...

uint16_t GetNewEnbUeX2apId () const
 Get new ENB UE X2 AP ID function. More...

uint32_t GetNumberOfIes () const
 Get number of IEs function. More...

uint16_t GetOldEnbUeX2apId () const
 Get old ENB UE X2 AP ID function. More...

uint32_t GetSerializedSize () const override

void Print (std::ostream &os) const override

void Serialize (Buffer::Iterator start) const override

void SetErabsSubjectToStatusTransferList (std::vector< EpcX2Sap::ErabsSubjectToStatusTransferItem > erabs)
 Set ERABs subject to status transfer list function. More...

void SetNewEnbUeX2apId (uint16_t x2apId)
 Set new ENB UE X2 AP ID function. More...

void SetOldEnbUeX2apId (uint16_t x2apId)
 Set old ENB UE X2 AP ID function. More...

- Public Member Functions inherited from ns3::Header
 ~Header () override

virtual uint32_t Deserialize (Buffer::Iterator start)=0
 Deserialize the object from a buffer iterator. More...

virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator. More...

- Public Member Functions inherited from ns3::Chunk
virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising errors. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId ()
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Header
static TypeId GetTypeId ()
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Chunk
static TypeId GetTypeId ()
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId ()
 Get the type ID. More...


Private Attributes

std::vector< EpcX2Sap::ErabsSubjectToStatusTransferItemm_erabsSubjectToStatusTransferList
 ERABs subject to status transfer list. More...

uint32_t m_headerLength
 header length More...

uint16_t m_newEnbUeX2apId
 new ENB UE X2 AP ID More...

uint32_t m_numberOfIes
 number of IEs More...

uint16_t m_oldEnbUeX2apId
 old ENB UE X2 AP ID More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted ()
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

EpcX2SnStatusTransferHeader.

Definition at line 391 of file epc-x2-header.h.

Constructor & Destructor Documentation

◆ EpcX2SnStatusTransferHeader()

ns3::EpcX2SnStatusTransferHeader::EpcX2SnStatusTransferHeader ( )

Definition at line 785 of file epc-x2-header.cc.

References m_erabsSubjectToStatusTransferList.

◆ ~EpcX2SnStatusTransferHeader()

ns3::EpcX2SnStatusTransferHeader::~EpcX2SnStatusTransferHeader ( )
override

Member Function Documentation

◆ Deserialize()

uint32_t ns3::EpcX2SnStatusTransferHeader::Deserialize ( Buffer::Iterator  start)
overridevirtual
Parameters
startan iterator which points to where the header should read from.
Returns
the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 862 of file epc-x2-header.cc.

References ns3::EpcX2Sap::ErabsSubjectToStatusTransferItem::dlHfn, ns3::EpcX2Sap::ErabsSubjectToStatusTransferItem::dlPdcpSn, ns3::EpcX2Sap::ErabsSubjectToStatusTransferItem::erabId, GetSerializedSize(), two-ray-to-three-gpp-ch-calibration::k, two-ray-to-three-gpp-ch-calibration::m, m_erabsSubjectToStatusTransferList, m_headerLength, ns3::EpcX2Sap::m_maxPdcpSn, m_newEnbUeX2apId, m_numberOfIes, m_oldEnbUeX2apId, ns3::Buffer::Iterator::ReadNtohU16(), ns3::Buffer::Iterator::ReadNtohU32(), ns3::Buffer::Iterator::ReadNtohU64(), ns3::EpcX2Sap::ErabsSubjectToStatusTransferItem::receiveStatusOfUlPdcpSdus, two-ray-to-three-gpp-ch-calibration::start, ns3::EpcX2Sap::ErabsSubjectToStatusTransferItem::ulHfn, and ns3::EpcX2Sap::ErabsSubjectToStatusTransferItem::ulPdcpSn.

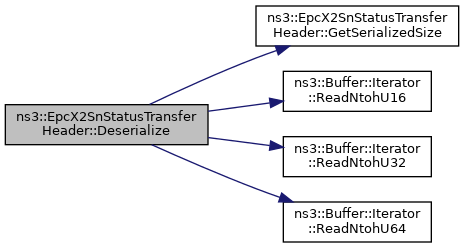

+ Here is the call graph for this function:

◆ GetErabsSubjectToStatusTransferList()

std::vector< EpcX2Sap::ErabsSubjectToStatusTransferItem > ns3::EpcX2SnStatusTransferHeader::GetErabsSubjectToStatusTransferList ( ) const

Get ERABs subject to status transfer list function.

Returns
std::vector <EpcX2Sap::ErabsSubjectToStatusTransferItem>

Definition at line 951 of file epc-x2-header.cc.

References m_erabsSubjectToStatusTransferList.

Referenced by ns3::EpcX2::RecvFromX2cSocket().

+ Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::EpcX2SnStatusTransferHeader::GetInstanceTypeId ( ) const
overridevirtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns
The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 814 of file epc-x2-header.cc.

References GetTypeId().

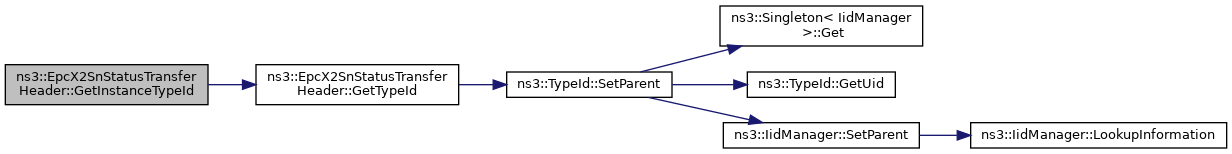

+ Here is the call graph for this function:

◆ GetLengthOfIes()

uint32_t ns3::EpcX2SnStatusTransferHeader::GetLengthOfIes ( ) const

Get length of IEs function.

Returns
the length of IEs

Definition at line 965 of file epc-x2-header.cc.

References m_headerLength.

Referenced by ns3::EpcX2::DoSendSnStatusTransfer().

+ Here is the caller graph for this function:

◆ GetNewEnbUeX2apId()

uint16_t ns3::EpcX2SnStatusTransferHeader::GetNewEnbUeX2apId ( ) const

Get new ENB UE X2 AP ID function.

Returns
the new ENB UE X2AP ID

Definition at line 939 of file epc-x2-header.cc.

References m_newEnbUeX2apId.

Referenced by ns3::EpcX2::RecvFromX2cSocket().

+ Here is the caller graph for this function:

◆ GetNumberOfIes()

uint32_t ns3::EpcX2SnStatusTransferHeader::GetNumberOfIes ( ) const

Get number of IEs function.

Returns
the number of IEs

Definition at line 971 of file epc-x2-header.cc.

References m_numberOfIes.

Referenced by ns3::EpcX2::DoSendSnStatusTransfer().

+ Here is the caller graph for this function:

◆ GetOldEnbUeX2apId()

uint16_t ns3::EpcX2SnStatusTransferHeader::GetOldEnbUeX2apId ( ) const

Get old ENB UE X2 AP ID function.

Returns
the old ENB UE X2 AP ID

Definition at line 927 of file epc-x2-header.cc.

References m_oldEnbUeX2apId.

Referenced by ns3::EpcX2::RecvFromX2cSocket().

+ Here is the caller graph for this function:

◆ GetSerializedSize()

uint32_t ns3::EpcX2SnStatusTransferHeader::GetSerializedSize ( ) const
overridevirtual
Returns
the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 820 of file epc-x2-header.cc.

References m_headerLength.

Referenced by Deserialize().

+ Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::EpcX2SnStatusTransferHeader::GetTypeId ( void  )
static

Get the type ID.

Returns
the object TypeId

Definition at line 804 of file epc-x2-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ Print()

void ns3::EpcX2SnStatusTransferHeader::Print ( std::ostream &  os) const
overridevirtual
Parameters
osoutput stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 900 of file epc-x2-header.cc.

References m_erabsSubjectToStatusTransferList, m_newEnbUeX2apId, and m_oldEnbUeX2apId.

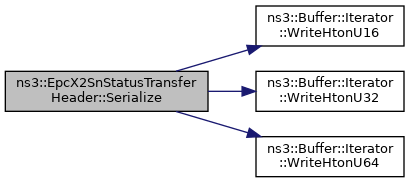

◆ Serialize()

◆ SetErabsSubjectToStatusTransferList()

void ns3::EpcX2SnStatusTransferHeader::SetErabsSubjectToStatusTransferList ( std::vector< EpcX2Sap::ErabsSubjectToStatusTransferItem erabs)

Set ERABs subject to status transfer list function.

Parameters
erabsstd::vector <EpcX2Sap::ErabsSubjectToStatusTransferItem>

Definition at line 957 of file epc-x2-header.cc.

References m_erabsSubjectToStatusTransferList, m_headerLength, and ns3::EpcX2Sap::m_maxPdcpSn.

Referenced by ns3::EpcX2::DoSendSnStatusTransfer().

+ Here is the caller graph for this function:

◆ SetNewEnbUeX2apId()

void ns3::EpcX2SnStatusTransferHeader::SetNewEnbUeX2apId ( uint16_t  x2apId)

Set new ENB UE X2 AP ID function.

Parameters
x2apIdthe new ENB UE X2AP ID

Definition at line 945 of file epc-x2-header.cc.

References m_newEnbUeX2apId.

Referenced by ns3::EpcX2::DoSendSnStatusTransfer().

+ Here is the caller graph for this function:

◆ SetOldEnbUeX2apId()

void ns3::EpcX2SnStatusTransferHeader::SetOldEnbUeX2apId ( uint16_t  x2apId)

Set old ENB UE X2 AP ID function.

Parameters
x2apIdthe old ENB UE X2 AP ID

Definition at line 933 of file epc-x2-header.cc.

References m_oldEnbUeX2apId.

Referenced by ns3::EpcX2::DoSendSnStatusTransfer().

+ Here is the caller graph for this function:

Member Data Documentation

◆ m_erabsSubjectToStatusTransferList

std::vector<EpcX2Sap::ErabsSubjectToStatusTransferItem> ns3::EpcX2SnStatusTransferHeader::m_erabsSubjectToStatusTransferList
private

◆ m_headerLength

uint32_t ns3::EpcX2SnStatusTransferHeader::m_headerLength
private

◆ m_newEnbUeX2apId

uint16_t ns3::EpcX2SnStatusTransferHeader::m_newEnbUeX2apId
private

new ENB UE X2 AP ID

Definition at line 459 of file epc-x2-header.h.

Referenced by ~EpcX2SnStatusTransferHeader(), Deserialize(), GetNewEnbUeX2apId(), Print(), Serialize(), and SetNewEnbUeX2apId().

◆ m_numberOfIes

uint32_t ns3::EpcX2SnStatusTransferHeader::m_numberOfIes
private

number of IEs

Definition at line 455 of file epc-x2-header.h.

Referenced by ~EpcX2SnStatusTransferHeader(), Deserialize(), and GetNumberOfIes().

◆ m_oldEnbUeX2apId

uint16_t ns3::EpcX2SnStatusTransferHeader::m_oldEnbUeX2apId
private

old ENB UE X2 AP ID

Definition at line 458 of file epc-x2-header.h.

Referenced by ~EpcX2SnStatusTransferHeader(), Deserialize(), GetOldEnbUeX2apId(), Print(), Serialize(), and SetOldEnbUeX2apId().


The documentation for this class was generated from the following files:
