High precision numerical type, implementing Q64.64 fixed precision. More...

#include "int64x64-cairo.h"

Collaboration diagram for ns3::int64x64_t:

Public Types
enum	impl_type { int128_impl , cairo_impl , ld_impl , int128_impl , cairo_impl , ld_impl }
	Type tag for the underlying implementation. More...

enum	impl_type { int128_impl , cairo_impl , ld_impl , int128_impl , cairo_impl , ld_impl }
	Type tag for the underlying implementation. More...

Public Member Functions
	int64x64_t ()
	Default constructor. More...

	int64x64_t ()
	Default constructor. More...

	int64x64_t (const int64_t hi, const uint64_t lo)
	Construct from explicit high and low values. More...

	int64x64_t (const int64x64_t &o)
	Copy constructor. More...

	int64x64_t (const int64x64_t &o)
	Copy constructor. More...

	int64x64_t (int64_t hi, uint64_t lo)
	Construct from explicit high and low values. More...

double	GetDouble () const
	Get this value as a double. More...

double	GetDouble () const
	Get this value as a double. More...

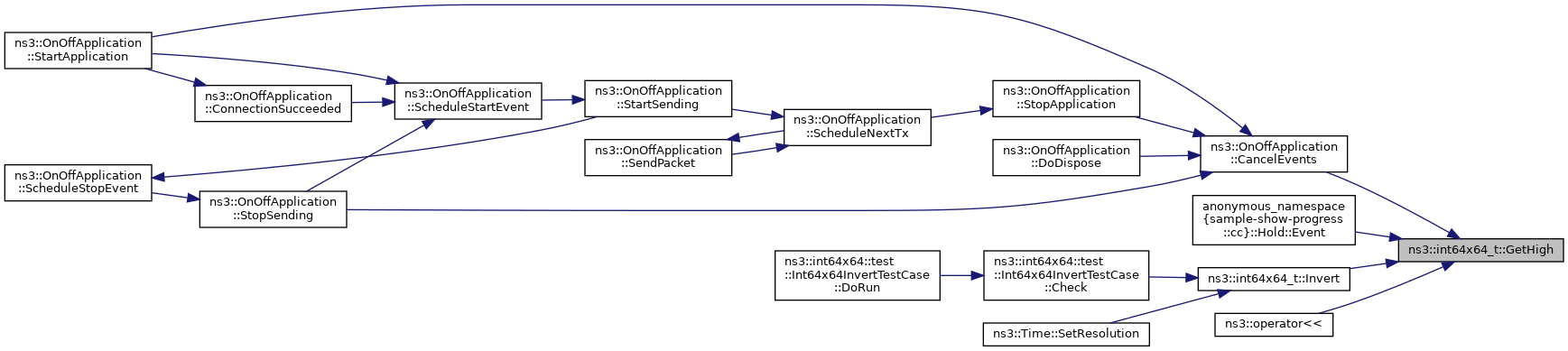

int64_t	GetHigh () const
	Get the integer portion. More...

int64_t	GetHigh () const
	Get the integer portion. More...

int64_t	GetInt () const
	Truncate to an integer. More...

int64_t	GetInt () const
	Truncate to an integer. More...

uint64_t	GetLow () const
	Get the fractional portion of this value, unscaled. More...

uint64_t	GetLow () const
	Get the fractional portion of this value, unscaled. More...

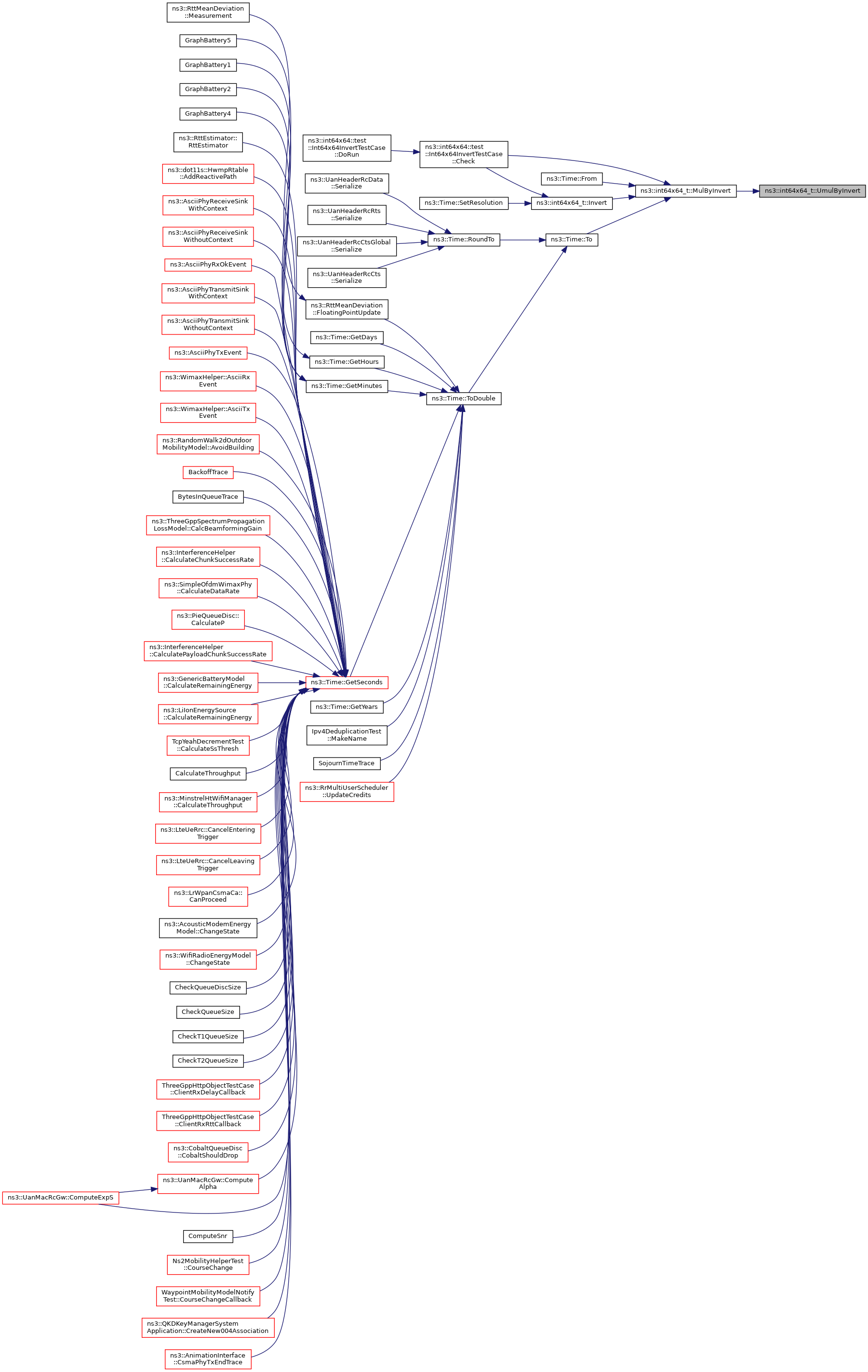

void	MulByInvert (const int64x64_t &o)
	Multiply this value by a Q0.128 value, presumably representing an inverse, completing a division operation. More...

void	MulByInvert (const int64x64_t &o)
	Multiply this value by a Q0.128 value, presumably representing an inverse, completing a division operation. More...

	operator bool () const
	Explicit bool conversion. More...

	operator bool () const
	Explicit bool conversion. More...

int64x64_t &	operator= (const int64x64_t &o)
	Assignment. More...

int64x64_t &	operator= (const int64x64_t &o)
	Assignment. More...

int64_t	Round () const
	Round to the nearest int. More...

int64_t	Round () const
	Round to the nearest int. More...

Construct from a floating point value.
	int64x64_t (const double value)
	Constructor from a floating point. More...

	int64x64_t (const long double value)
	Constructor from a floating point. More...

	int64x64_t (double value)
	Constructor from a floating point. More...

	int64x64_t (long double value)
	Constructor from a floating point. More...

Construct from an integral type.
	int64x64_t (const int v)
	Construct from an integral type. More...

	int64x64_t (const long int v)
	Construct from an integral type. More...

	int64x64_t (const long long int v)
	Construct from an integral type. More...

	int64x64_t (const unsigned int v)
	Construct from an integral type. More...

	int64x64_t (const unsigned long int v)
	Construct from an integral type. More...

	int64x64_t (const unsigned long long int v)
	Construct from an integral type. More...

	int64x64_t (int v)
	Construct from an integral type. More...

	int64x64_t (long int v)
	Construct from an integral type. More...

	int64x64_t (long long int v)
	Construct from an integral type. More...

	int64x64_t (unsigned int v)
	Construct from an integral type. More...

	int64x64_t (unsigned long int v)
	Construct from an integral type. More...

	int64x64_t (unsigned long long int v)
	Construct from an integral type. More...

Static Public Member Functions
static int64x64_t	Invert (const uint64_t v)
	Compute the inverse of an integer value. More...

static int64x64_t	Invert (uint64_t v)
	Compute the inverse of an integer value. More...

Static Public Attributes
static enum impl_type	implementation = cairo_impl
	Type tag for this implementation. More...

Private Member Functions
void	Div (const int64x64_t &o)
	Implement `/=`. More...

std::pair< int64_t, uint64_t >	GetHighLow () const
	Get the high and low portions of this value. More...

void	Mul (const int64x64_t &o)
	Implement `*=`. More...

Static Private Member Functions

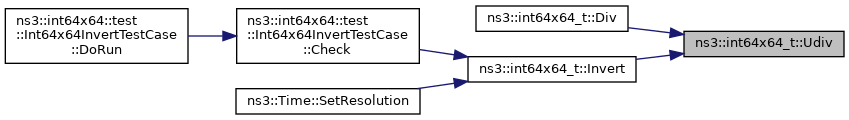

static cairo_uint128_t	Udiv (const cairo_uint128_t a, const cairo_uint128_t b)
	Unsigned division of Q64.64 values. More...

static cairo_uint128_t	Umul (const cairo_uint128_t a, const cairo_uint128_t b)
	Unsigned multiplication of Q64.64 values. More...

static cairo_uint128_t	UmulByInvert (const cairo_uint128_t a, const cairo_uint128_t b)
	Unsigned multiplication of Q64.64 and Q0.128 values. More...

Private Attributes
cairo_int128_t	_v
	The Q64.64 value. More...

long double	_v
	The Q64.64 value. More...

Static Private Attributes
static const uint64_t	HP_MASK_LO = 0xffffffffffffffffULL
	Mask for fraction part. More...

static const uint64_t	HPCAIRO_MASK_HI_BIT = (((uint64_t)1) << 63)
	High bit of fractional part. More...

Friends
Arithmetic Operators
Arithmetic operators for int64x64_t.
bool	operator== (const int64x64_t &lhs, const int64x64_t &rhs)
	Arithmetic operator. More...

bool	operator< (const int64x64_t &lhs, const int64x64_t &rhs)
	Arithmetic operator. More...

bool	operator> (const int64x64_t &lhs, const int64x64_t &rhs)
	Arithmetic operator. More...

int64x64_t &	operator+= (int64x64_t &lhs, const int64x64_t &rhs)
	Arithmetic operator. More...

int64x64_t &	operator-= (int64x64_t &lhs, const int64x64_t &rhs)
	Arithmetic operator. More...

int64x64_t &	operator*= (int64x64_t &lhs, const int64x64_t &rhs)
	Arithmetic operator. More...

int64x64_t &	operator/= (int64x64_t &lhs, const int64x64_t &rhs)
	Arithmetic operator. More...

bool	operator== (const int64x64_t &lhs, const int64x64_t &rhs)
	Arithmetic operator. More...

bool	operator< (const int64x64_t &lhs, const int64x64_t &rhs)
	Arithmetic operator. More...

bool	operator> (const int64x64_t &lhs, const int64x64_t &rhs)
	Arithmetic operator. More...

int64x64_t &	operator+= (int64x64_t &lhs, const int64x64_t &rhs)
	Arithmetic operator. More...

int64x64_t &	operator-= (int64x64_t &lhs, const int64x64_t &rhs)
	Arithmetic operator. More...

int64x64_t &	operator*= (int64x64_t &lhs, const int64x64_t &rhs)
	Arithmetic operator. More...

int64x64_t &	operator/= (int64x64_t &lhs, const int64x64_t &rhs)
	Arithmetic operator. More...

Unary Operators
Unary operators for int64x64_t.
int64x64_t	operator+ (const int64x64_t &lhs)
	Unary operator. More...

int64x64_t	operator- (const int64x64_t &lhs)
	Unary operator. More...

int64x64_t	operator! (const int64x64_t &lhs)
	Unary operator. More...

int64x64_t	operator+ (const int64x64_t &lhs)
	Unary operator. More...

int64x64_t	operator- (const int64x64_t &lhs)
	Unary operator. More...

int64x64_t	operator! (const int64x64_t &lhs)
	Unary operator. More...

Detailed Description

High precision numerical type, implementing Q64.64 fixed precision.

Internal:: The implementation documented here uses cairo 128-bit integers.

Internal:: The implementation documented here uses native long double.

Definition at line 41 of file int64x64-cairo.h.

Member Enumeration Documentation

◆ impl_type [1/2]

enum ns3::int64x64_t::impl_type

Type tag for the underlying implementation.

A few testcases are sensitive to implementation, specifically the double implementation. To handle this, we expose the underlying implementation type here.

Enumerator
int128_impl	Native int128_t implementation.
cairo_impl	cairo wideint implementation
ld_impl	long double implementation
int128_impl	Native int128_t implementation.
cairo_impl	cairo wideint implementation
ld_impl	long double implementation

Definition at line 69 of file int64x64-cairo.h.

◆ impl_type [2/2]

enum ns3::int64x64_t::impl_type

Type tag for the underlying implementation.

A few testcases are are sensitive to implementation, specifically the double implementation. To handle this, we expose the underlying implementation type here.

Enumerator
int128_impl	Native int128_t implementation.
cairo_impl	cairo wideint implementation
ld_impl	long double implementation
int128_impl	Native int128_t implementation.
cairo_impl	cairo wideint implementation
ld_impl	long double implementation

Definition at line 68 of file int64x64-double.h.

Constructor & Destructor Documentation

◆ int64x64_t() [1/22]

ns3::int64x64_t::int64x64_t ( )

inline

Default constructor.

Definition at line 80 of file int64x64-cairo.h.

References _v, cairo_int128_t::hi, and cairo_int128_t::lo.

◆ int64x64_t() [2/22]

ns3::int64x64_t::int64x64_t ( const double value )

inline

Constructor from a floating point.

Parameters

[in] value Floating value to represent.

Definition at line 95 of file int64x64-cairo.h.

References _v.

◆ int64x64_t() [3/22]

ns3::int64x64_t::int64x64_t ( const long double value )

inline

Constructor from a floating point.

Parameters

[in] value Floating value to represent.

Definition at line 101 of file int64x64-cairo.h.

References _cairo_int128_negate, _v, cairo_int128_t::hi, HP_MAX_64, and cairo_int128_t::lo.

◆ int64x64_t() [4/22]

ns3::int64x64_t::int64x64_t ( const int v )

inline

Construct from an integral type.

Parameters

[in] v Integer value to represent

Definition at line 141 of file int64x64-cairo.h.

References _v, cairo_int128_t::hi, and cairo_int128_t::lo.

◆ int64x64_t() [5/22]

ns3::int64x64_t::int64x64_t ( const long int v )

inline

Construct from an integral type.

Parameters

[in] v Integer value to represent

Definition at line 147 of file int64x64-cairo.h.

References _v, cairo_int128_t::hi, and cairo_int128_t::lo.

◆ int64x64_t() [6/22]

ns3::int64x64_t::int64x64_t ( const long long int v )

inline

Construct from an integral type.

Parameters

[in] v Integer value to represent

Definition at line 153 of file int64x64-cairo.h.

References _v, cairo_int128_t::hi, and cairo_int128_t::lo.

◆ int64x64_t() [7/22]

ns3::int64x64_t::int64x64_t ( const unsigned int v )

inline

Construct from an integral type.

Parameters

[in] v Integer value to represent

Definition at line 159 of file int64x64-cairo.h.

References _v, cairo_int128_t::hi, and cairo_int128_t::lo.

◆ int64x64_t() [8/22]

ns3::int64x64_t::int64x64_t ( const unsigned long int v )

inline

Construct from an integral type.

Parameters

[in] v Integer value to represent

Definition at line 165 of file int64x64-cairo.h.

References _v, cairo_int128_t::hi, and cairo_int128_t::lo.

◆ int64x64_t() [9/22]

ns3::int64x64_t::int64x64_t ( const unsigned long long int v )

inline

Construct from an integral type.

Parameters

[in] v Integer value to represent

Definition at line 171 of file int64x64-cairo.h.

References _v, cairo_int128_t::hi, and cairo_int128_t::lo.

◆ int64x64_t() [10/22]

ns3::int64x64_t::int64x64_t	(	const int64_t	hi,
		const uint64_t	lo
	)

inlineexplicit

Construct from explicit high and low values.

Parameters

[in]	hi	Integer portion.
[in]	lo	Fractional portion, already scaled to HP_MAX_64.

Definition at line 184 of file int64x64-cairo.h.

References _v, cairo_int128_t::hi, and cairo_int128_t::lo.

◆ int64x64_t() [11/22]

ns3::int64x64_t::int64x64_t ( const int64x64_t & o )

inline

Copy constructor.

Parameters

[in] o Value to copy.

Definition at line 195 of file int64x64-cairo.h.

◆ int64x64_t() [12/22]

ns3::int64x64_t::int64x64_t ( )

inline

Default constructor.

Definition at line 79 of file int64x64-double.h.

◆ int64x64_t() [13/22]

ns3::int64x64_t::int64x64_t ( double value )

inline

Constructor from a floating point.

Parameters

[in] value Floating value to represent.

Definition at line 93 of file int64x64-double.h.

◆ int64x64_t() [14/22]

ns3::int64x64_t::int64x64_t ( long double value )

inline

Constructor from a floating point.

Parameters

[in] value Floating value to represent.

Definition at line 98 of file int64x64-double.h.

◆ int64x64_t() [15/22]

ns3::int64x64_t::int64x64_t ( int v )

inline

Construct from an integral type.

Parameters

[in] v Integer value to represent

Definition at line 114 of file int64x64-double.h.

◆ int64x64_t() [16/22]

ns3::int64x64_t::int64x64_t ( long int v )

inline

Construct from an integral type.

Parameters

[in] v Integer value to represent

Definition at line 119 of file int64x64-double.h.

◆ int64x64_t() [17/22]

ns3::int64x64_t::int64x64_t ( long long int v )

inline

Construct from an integral type.

Parameters

[in] v Integer value to represent

Definition at line 124 of file int64x64-double.h.

◆ int64x64_t() [18/22]

ns3::int64x64_t::int64x64_t ( unsigned int v )

inline

Construct from an integral type.

Parameters

[in] v Integer value to represent

Definition at line 129 of file int64x64-double.h.

◆ int64x64_t() [19/22]

ns3::int64x64_t::int64x64_t ( unsigned long int v )

inline

Construct from an integral type.

Parameters

[in] v Integer value to represent

Definition at line 134 of file int64x64-double.h.

◆ int64x64_t() [20/22]

ns3::int64x64_t::int64x64_t ( unsigned long long int v )

inline

Construct from an integral type.

Parameters

[in] v Integer value to represent

Definition at line 139 of file int64x64-double.h.

◆ int64x64_t() [21/22]

ns3::int64x64_t::int64x64_t	(	int64_t	hi,
		uint64_t	lo
	)

inlineexplicit

Construct from explicit high and low values.

Parameters

[in]	hi	Integer portion.
[in]	lo	Fractional portion, already scaled to HP_MAX_64.

Definition at line 151 of file int64x64-double.h.

References _v, and HP_MAX_64.

◆ int64x64_t() [22/22]

ns3::int64x64_t::int64x64_t ( const int64x64_t & o )

inline

Copy constructor.

Parameters

[in] o Value to copy.

Definition at line 167 of file int64x64-double.h.

Member Function Documentation

◆ Div()

void ns3::int64x64_t::Div ( const int64x64_t & o )

private

Implement /=.

Parameters

[in] o The divisor.

Definition at line 114 of file int64x64-128.cc.

References _v, ns3::output_sign(), and Udiv().

Here is the call graph for this function:

◆ GetDouble() [1/2]

double ns3::int64x64_t::GetDouble ( ) const

inline

Get this value as a double.

Returns: This value in floating form.

Definition at line 223 of file int64x64-cairo.h.

References _cairo_int128_negate, _cairo_int128_negative, _v, and HP_MAX_64.

Referenced by ns3::int64x64::test::Int64x64Bug455TestCase::DoRun(), ns3::int64x64::test::Int64x64Bug863TestCase::DoRun(), ns3::ShowProgress::GiveFeedback(), and ns3::Time::ToDouble().

Here is the caller graph for this function:

◆ GetDouble() [2/2]

double ns3::int64x64_t::GetDouble ( ) const

inline

Get this value as a double.

Returns: This value in floating form.

Definition at line 195 of file int64x64-double.h.

References _v.

◆ GetHigh() [1/2]

int64_t ns3::int64x64_t::GetHigh ( ) const

inline

Get the integer portion.

Returns: The integer portion of this value.

Definition at line 240 of file int64x64-cairo.h.

References _v, and cairo_int128_t::hi.

Referenced by ns3::OnOffApplication::CancelEvents(), anonymous_namespace{sample-show-progress.cc}::Hold::Event(), Invert(), and ns3::operator<<().

Here is the caller graph for this function:

◆ GetHigh() [2/2]

int64_t ns3::int64x64_t::GetHigh ( ) const

inline

Get the integer portion.

Returns: The integer portion of this value.

Definition at line 248 of file int64x64-double.h.

References GetHighLow().

Here is the call graph for this function:

◆ GetHighLow()

std::pair<int64_t, uint64_t> ns3::int64x64_t::GetHighLow ( ) const

inlineprivate

Get the high and low portions of this value.

Returns: A pair of the high and low words

Definition at line 206 of file int64x64-double.h.

References _v, and HP_MAX_64.

Referenced by GetHigh(), and GetLow().

Here is the caller graph for this function:

◆ GetInt() [1/2]

int64_t ns3::int64x64_t::GetInt ( ) const

inline

Truncate to an integer.

Truncation is always toward zero,

Returns: The value truncated toward zero.

Definition at line 260 of file int64x64-cairo.h.

References _cairo_int128_negate, _cairo_int128_negative, and _v.

◆ GetInt() [2/2]

int64_t ns3::int64x64_t::GetInt ( ) const

inline

Truncate to an integer.

Truncation is always toward zero,

Returns: The value truncated toward zero.

Definition at line 268 of file int64x64-double.h.

References _v.

◆ GetLow() [1/2]

uint64_t ns3::int64x64_t::GetLow ( ) const

inline

Get the fractional portion of this value, unscaled.

Returns: The fractional portion, unscaled, as an integer.

Definition at line 250 of file int64x64-cairo.h.

References _v, and cairo_int128_t::lo.

Referenced by ns3::operator<<(), and ns3::ReadLoDigits().

Here is the caller graph for this function:

◆ GetLow() [2/2]

uint64_t ns3::int64x64_t::GetLow ( ) const

inline

Get the fractional portion of this value, unscaled.

Returns: The fractional portion, unscaled, as an integer.

Definition at line 258 of file int64x64-double.h.

References GetHighLow().

Here is the call graph for this function:

◆ Invert() [1/2]

int64x64_t ns3::int64x64_t::Invert ( const uint64_t v )

static

Compute the inverse of an integer value.

Ordinary division by an integer would be limited to 64 bits of precision. Instead, we multiply by the 128-bit inverse of the divisor. This function computes the inverse to 128-bit precision. MulByInvert() then completes the division.

(Really this should be a separate type representing Q0.128.)

Parameters

[in] v The value to compute the inverse of.

Returns: A Q0.128 representation of the inverse.

Definition at line 220 of file int64x64-128.cc.

References _v, GetHigh(), MulByInvert(), NS_ASSERT, and Udiv().

Referenced by ns3::int64x64::test::Int64x64InvertTestCase::Check(), and ns3::Time::SetResolution().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Invert() [2/2]

static int64x64_t ns3::int64x64_t::Invert ( uint64_t v )

inlinestatic

Compute the inverse of an integer value.

Parameters

[in] v The value to compute the inverse of.

Returns: The inverse.

Definition at line 306 of file int64x64-double.h.

◆ Mul()

void ns3::int64x64_t::Mul ( const int64x64_t & o )

private

Implement *=.

Parameters

[in] o The other factor.

Definition at line 61 of file int64x64-128.cc.

References _v, ns3::output_sign(), and Umul().

Here is the call graph for this function:

◆ MulByInvert() [1/2]

void ns3::int64x64_t::MulByInvert ( const int64x64_t & o )

Multiply this value by a Q0.128 value, presumably representing an inverse, completing a division operation.

Parameters

[in] o The inverse operand.

See also: Invert

Definition at line 189 of file int64x64-128.cc.

References _v, and UmulByInvert().

Referenced by ns3::int64x64::test::Int64x64InvertTestCase::Check(), ns3::Time::From(), Invert(), and ns3::Time::To().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ MulByInvert() [2/2]

void ns3::int64x64_t::MulByInvert ( const int64x64_t & o )

inline

Multiply this value by a Q0.128 value, presumably representing an inverse, completing a division operation.

Parameters

[in] o The inverse operand.

Note: There is no difference between Q64.64 and Q0.128 in this implementation, so this function is a simple multiply.

Definition at line 295 of file int64x64-double.h.

References _v.

◆ operator bool() [1/2]

ns3::int64x64_t::operator bool ( ) const

inlineexplicit

Explicit bool conversion.

Definition at line 213 of file int64x64-cairo.h.

References _v, cairo_int128_t::hi, and cairo_int128_t::lo.

◆ operator bool() [2/2]

ns3::int64x64_t::operator bool ( ) const

inlineexplicit

Explicit bool conversion.

Definition at line 185 of file int64x64-double.h.

References _v.

◆ operator=() [1/2]

int64x64_t& ns3::int64x64_t::operator= ( const int64x64_t & o )

inline

Assignment.

Parameters

[in] o Value to assign to this int64x64_t.

Returns: a copy of o

Definition at line 206 of file int64x64-cairo.h.

References _v.

◆ operator=() [2/2]

int64x64_t& ns3::int64x64_t::operator= ( const int64x64_t & o )

inline

Assignment.

Parameters

[in] o Value to assign to this int64x64_t.

Returns: a copy of o

Definition at line 178 of file int64x64-double.h.

References _v.

◆ Round() [1/2]

int64_t ns3::int64x64_t::Round ( ) const

inline

Round to the nearest int.

Similar to std::round this rounds halfway cases away from zero, regardless of the current (floating) rounding mode.

Returns: The value rounded to the nearest int.

Definition at line 275 of file int64x64-cairo.h.

References _cairo_int128_negate, _cairo_int128_negative, _cairo_uint128_add(), and _v.

Here is the call graph for this function:

◆ Round() [2/2]

int64_t ns3::int64x64_t::Round ( ) const

inline

Round to the nearest int.

Similar to std::round this rounds halfway cases away from zero, regardless of the current (floating) rounding mode.

Returns: The value rounded to the nearest int.

Definition at line 280 of file int64x64-double.h.

References _v.

◆ Udiv()

cairo_uint128_t ns3::int64x64_t::Udiv	(	const cairo_uint128_t	a,
		const cairo_uint128_t	b
	)

staticprivate

Unsigned division of Q64.64 values.

Parameters

[in]	a	Numerator.
[in]	b	Denominator.

Returns: The Q64.64 representation of a / b

Definition at line 124 of file int64x64-128.cc.

References NS_ASSERT_MSG.

Referenced by Div(), and Invert().

Here is the caller graph for this function:

◆ Umul()

cairo_uint128_t ns3::int64x64_t::Umul	(	const cairo_uint128_t	a,
		const cairo_uint128_t	b
	)

staticprivate

Unsigned multiplication of Q64.64 values.

Mathematically this should produce a Q128.128 value; we keep the central 128 bits, representing the Q64.64 result. We assert on integer overflow beyond the 64-bit integer portion.

Parameters

[in]	a	First factor.
[in]	b	Second factor.

Returns: The Q64.64 product.

Internal:

It might be tempting to just use a * b and be done with it, but it's not that simple. With a and b as 128-bit integers, a * b mathematically produces a 256-bit result, which the computer truncates to the lowest 128 bits. In our case, where a and b are interpreted as Q64.64 fixed point numbers, the multiplication mathematically produces a Q128.128 fixed point number. We want the middle 128 bits from the result, truncating both the high and low 64 bits. To achieve this, we carry out the multiplication explicitly with 64-bit operands and 128-bit intermediate results.

Definition at line 71 of file int64x64-128.cc.

References HP_MASK_LO, and NS_ABORT_MSG_IF.

Referenced by Mul().

Here is the caller graph for this function:

◆ UmulByInvert()

cairo_uint128_t ns3::int64x64_t::UmulByInvert	(	const cairo_uint128_t	a,
		const cairo_uint128_t	b
	)

staticprivate

Unsigned multiplication of Q64.64 and Q0.128 values.

Parameters

[in]	a	The numerator, a Q64.64 value.
[in]	b	The inverse of the denominator, a Q0.128 value

Returns: The product a * b, representing the ration a / b^-1

See also: Invert

Definition at line 199 of file int64x64-128.cc.

References HP_MASK_LO.

Referenced by MulByInvert().

Here is the caller graph for this function:

Friends And Related Function Documentation

◆ operator! [1/2]

int64x64_t operator! ( const int64x64_t & lhs )

friend

Unary operator.

Parameters

[in] lhs Left hand argument

Returns: The result of the operator.

Definition at line 387 of file int64x64-cairo.h.

◆ operator! [2/2]

int64x64_t operator! ( const int64x64_t & lhs )

friend

Unary operator.

Parameters

[in] lhs Left hand argument

Returns: The result of the operator.

Definition at line 386 of file int64x64-double.h.

◆ operator*= [1/2]

int64x64_t& operator*=	(	int64x64_t &	lhs,
		const int64x64_t &	rhs
	)

friend

Arithmetic operator.

Parameters

[in]	lhs	Left hand argument
[in]	rhs	Right hand argument

Returns: The result of the operator.

Definition at line 351 of file int64x64-cairo.h.

◆ operator*= [2/2]

int64x64_t& operator*=	(	int64x64_t &	lhs,
		const int64x64_t &	rhs
	)

friend

Arithmetic operator.

Parameters

[in]	lhs	Left hand argument
[in]	rhs	Right hand argument

Returns: The result of the operator.

Definition at line 352 of file int64x64-double.h.

◆ operator+ [1/2]

int64x64_t operator+ ( const int64x64_t & lhs )

friend

Unary operator.

Parameters

[in] lhs Left hand argument

Returns: The result of the operator.

Definition at line 375 of file int64x64-cairo.h.

◆ operator+ [2/2]

int64x64_t operator+ ( const int64x64_t & lhs )

friend

Unary operator.

Parameters

[in] lhs Left hand argument

Returns: The result of the operator.

Definition at line 376 of file int64x64-double.h.

◆ operator+= [1/2]

int64x64_t& operator+=	(	int64x64_t &	lhs,
		const int64x64_t &	rhs
	)

friend

Arithmetic operator.

Parameters

[in]	lhs	Left hand argument
[in]	rhs	Right hand argument

Returns: The result of the operator.

Definition at line 339 of file int64x64-cairo.h.

◆ operator+= [2/2]

int64x64_t& operator+=	(	int64x64_t &	lhs,
		const int64x64_t &	rhs
	)

friend

Arithmetic operator.

Parameters

[in]	lhs	Left hand argument
[in]	rhs	Right hand argument

Returns: The result of the operator.

Definition at line 340 of file int64x64-double.h.

◆ operator- [1/2]

int64x64_t operator- ( const int64x64_t & lhs )

friend

Unary operator.

Parameters

[in] lhs Left hand argument

Returns: The result of the operator.

Definition at line 380 of file int64x64-cairo.h.

◆ operator- [2/2]

int64x64_t operator- ( const int64x64_t & lhs )

friend

Unary operator.

Parameters

[in] lhs Left hand argument

Returns: The result of the operator.

Definition at line 381 of file int64x64-double.h.

◆ operator-= [1/2]

int64x64_t& operator-=	(	int64x64_t &	lhs,
		const int64x64_t &	rhs
	)

friend

Arithmetic operator.

Parameters

[in]	lhs	Left hand argument
[in]	rhs	Right hand argument

Returns: The result of the operator.

Definition at line 345 of file int64x64-cairo.h.

◆ operator-= [2/2]

int64x64_t& operator-=	(	int64x64_t &	lhs,
		const int64x64_t &	rhs
	)

friend

Arithmetic operator.

Parameters

[in]	lhs	Left hand argument
[in]	rhs	Right hand argument

Returns: The result of the operator.

Definition at line 346 of file int64x64-double.h.

◆ operator/= [1/2]

int64x64_t& operator/=	(	int64x64_t &	lhs,
		const int64x64_t &	rhs
	)

friend

Arithmetic operator.

Parameters

[in]	lhs	Left hand argument
[in]	rhs	Right hand argument

Returns: The result of the operator.

Definition at line 357 of file int64x64-cairo.h.

◆ operator/= [2/2]

int64x64_t& operator/=	(	int64x64_t &	lhs,
		const int64x64_t &	rhs
	)

friend

Arithmetic operator.

Parameters

[in]	lhs	Left hand argument
[in]	rhs	Right hand argument

Returns: The result of the operator.

Definition at line 358 of file int64x64-double.h.

◆ operator< [1/2]

bool operator<	(	const int64x64_t &	lhs,
		const int64x64_t &	rhs
	)

friend

Arithmetic operator.

Parameters

[in]	lhs	Left hand argument
[in]	rhs	Right hand argument

Returns: The result of the operator.

Definition at line 329 of file int64x64-cairo.h.

◆ operator< [2/2]

bool operator<	(	const int64x64_t &	lhs,
		const int64x64_t &	rhs
	)

friend

Arithmetic operator.

Parameters

[in]	lhs	Left hand argument
[in]	rhs	Right hand argument

Returns: The result of the operator.

Definition at line 330 of file int64x64-double.h.

◆ operator== [1/2]

bool operator==	(	const int64x64_t &	lhs,
		const int64x64_t &	rhs
	)

friend

Arithmetic operator.

Parameters

[in]	lhs	Left hand argument
[in]	rhs	Right hand argument

Returns: The result of the operator.

Definition at line 324 of file int64x64-cairo.h.

◆ operator== [2/2]

bool operator==	(	const int64x64_t &	lhs,
		const int64x64_t &	rhs
	)

friend

Arithmetic operator.

Parameters

[in]	lhs	Left hand argument
[in]	rhs	Right hand argument

Returns: The result of the operator.

Definition at line 325 of file int64x64-double.h.

◆ operator> [1/2]

bool operator>	(	const int64x64_t &	lhs,
		const int64x64_t &	rhs
	)

friend

Arithmetic operator.

Parameters

[in]	lhs	Left hand argument
[in]	rhs	Right hand argument

Returns: The result of the operator.

Definition at line 334 of file int64x64-cairo.h.

◆ operator> [2/2]

bool operator>	(	const int64x64_t &	lhs,
		const int64x64_t &	rhs
	)

friend

Arithmetic operator.

Parameters

[in]	lhs	Left hand argument
[in]	rhs	Right hand argument

Returns: The result of the operator.

Definition at line 335 of file int64x64-double.h.

Member Data Documentation

◆ _v [1/2]

cairo_int128_t ns3::int64x64_t::_v

private

The Q64.64 value.

Definition at line 450 of file int64x64-cairo.h.

Referenced by int64x64_t(), Div(), GetDouble(), GetHigh(), GetHighLow(), GetInt(), GetLow(), Invert(), Mul(), MulByInvert(), operator bool(), operator=(), and Round().

◆ _v [2/2]

long double ns3::int64x64_t::_v

private

The Q64.64 value.

Definition at line 393 of file int64x64-double.h.

◆ HP_MASK_LO

static const uint64_t ns3::int64x64_t::HP_MASK_LO = 0xffffffffffffffffULL

staticprivate

Mask for fraction part.

Definition at line 46 of file int64x64-cairo.h.

Referenced by Umul(), and UmulByInvert().

◆ HPCAIRO_MASK_HI_BIT

const uint64_t ns3::int64x64_t::HPCAIRO_MASK_HI_BIT = (((uint64_t)1) << 63)

staticprivate

High bit of fractional part.

Definition at line 44 of file int64x64-cairo.h.

◆ implementation

static enum impl_type ns3::int64x64_t::implementation = cairo_impl

static

Type tag for this implementation.

Definition at line 46 of file int64x64-cairo.h.

Referenced by ns3::int64x64::test::Int64x64InvertTestCase::Check(), ns3::int64x64::test::Int64x64HiLoTestCase::Check(), ns3::int64x64::test::Int64x64DoubleTestCase::Check(), ns3::int64x64::test::Int64x64HiLoTestCase::DoRun(), ns3::int64x64::test::Int64x64InputTestCase::DoRun(), ns3::int64x64::test::Int64x64InputOutputTestCase::DoRun(), ns3::int64x64::test::Int64x64Bug1786TestCase::DoRun(), and ns3::int64x64::test::Int64x64ImplTestCase::DoRun().

The documentation for this class was generated from the following files:

src/core/model/int64x64-cairo.h
src/core/model/int64x64-double.h
src/core/model/int64x64-128.cc
src/core/model/int64x64-cairo.cc

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Private Member Functions

Static Private Member Functions

Private Attributes

Static Private Attributes

Friends

Detailed Description

Member Enumeration Documentation

◆ impl_type [1/2]

◆ impl_type [2/2]

Constructor & Destructor Documentation

◆ int64x64_t() [1/22]

◆ int64x64_t() [2/22]

◆ int64x64_t() [3/22]

◆ int64x64_t() [4/22]

◆ int64x64_t() [5/22]

◆ int64x64_t() [6/22]

◆ int64x64_t() [7/22]

◆ int64x64_t() [8/22]

◆ int64x64_t() [9/22]

◆ int64x64_t() [10/22]

◆ int64x64_t() [11/22]

◆ int64x64_t() [12/22]

◆ int64x64_t() [13/22]

◆ int64x64_t() [14/22]

◆ int64x64_t() [15/22]

◆ int64x64_t() [16/22]

◆ int64x64_t() [17/22]

◆ int64x64_t() [18/22]

◆ int64x64_t() [19/22]

◆ int64x64_t() [20/22]

◆ int64x64_t() [21/22]

◆ int64x64_t() [22/22]

Member Function Documentation

◆ Div()

◆ GetDouble() [1/2]

◆ GetDouble() [2/2]

◆ GetHigh() [1/2]

◆ GetHigh() [2/2]

◆ GetHighLow()

◆ GetInt() [1/2]

◆ GetInt() [2/2]

◆ GetLow() [1/2]

◆ GetLow() [2/2]

◆ Invert() [1/2]

◆ Invert() [2/2]

◆ Mul()

◆ MulByInvert() [1/2]

◆ MulByInvert() [2/2]

◆ operator bool() [1/2]

◆ operator bool() [2/2]

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ Round() [1/2]

◆ Round() [2/2]

◆ Udiv()

◆ Umul()

◆ UmulByInvert()

Friends And Related Function Documentation

◆ operator! [1/2]

◆ operator! [2/2]

◆ operator*= [1/2]

◆ operator*= [2/2]

◆ operator+ [1/2]

◆ operator+ [2/2]

◆ operator+= [1/2]

◆ operator+= [2/2]

◆ operator- [1/2]

◆ operator- [2/2]

◆ operator-= [1/2]

◆ operator-= [2/2]

◆ operator/= [1/2]

◆ operator/= [2/2]

◆ operator< [1/2]

◆ operator< [2/2]

◆ operator== [1/2]

◆ operator== [2/2]
