Router prefix information. More...

#include "ipv6-autoconfigured-prefix.h"

Inheritance diagram for ns3::Ipv6AutoconfiguredPrefix:

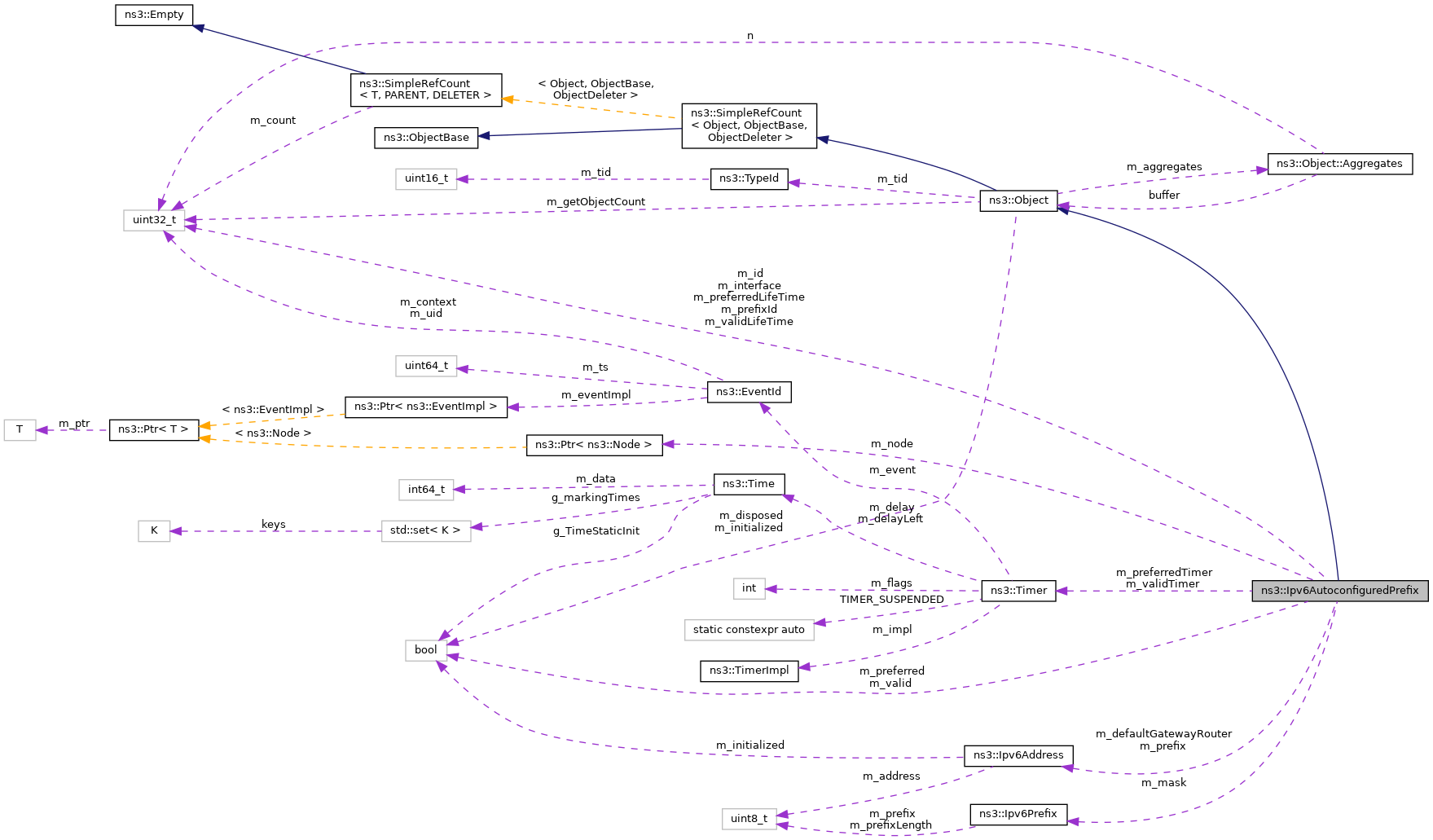

Collaboration diagram for ns3::Ipv6AutoconfiguredPrefix:

Public Member Functions
	Ipv6AutoconfiguredPrefix (Ptr< Node > node, uint32_t interface, Ipv6Address prefix, Ipv6Prefix mask, uint32_t preferredLifeTime, uint32_t validLifeTime, Ipv6Address router=Ipv6Address("::"))
	Constructor. More...

	~Ipv6AutoconfiguredPrefix () override
	Destructor. More...

void	FunctionPreferredTimeout ()
	Signal that the preferred time expired and start the valid timer. More...

void	FunctionValidTimeout ()
	Signal that the valid time expired. More...

Ipv6Address	GetDefaultGatewayRouter () const
	Get the default gateway address. More...

uint32_t	GetId () const
	Get the prefix identifier. More...

uint32_t	GetInterface () const
	Get the interface index. More...

Ipv6Prefix	GetMask () const
	Get the bitmask prefix. More...

uint32_t	GetPreferredLifeTime () const
	Get the prefix preferred life time. More...

Ipv6Address	GetPrefix () const
	Get the prefix address. More...

uint32_t	GetValidLifeTime () const
	Get the prefix valid life time. More...

bool	IsPreferred () const
	Test if the prefix is preferred. More...

bool	IsValid () const
	Test if the prefix is valid. More...

void	MarkPreferredTime ()
	Set the prefix as preferred. More...

void	MarkValidTime ()
	Set the prefix as valid. More...

void	RemoveMe ()
	Remove this prefix from the prefix list. More...

void	SetDefaultGatewayRouter (Ipv6Address router)
	Set the default gateway router. More...

void	SetInterface (uint32_t interface)
	Set the interface. More...

void	SetMask (Ipv6Prefix mask)
	Set the bitmask prefix. More...

void	SetPreferred ()
	Set the prefix as preferred. More...

void	SetPreferredLifeTime (uint32_t p)
	Set the prefix preferred life time. More...

void	SetPrefix (Ipv6Address prefix)
	Set the prefix address. More...

void	SetValid ()
	Set the prefix as valid. More...

void	SetValidLifeTime (uint32_t v)
	Set the prefix valid life time. More...

void	StartPreferredTimer ()
	Start the preferred timer. More...

void	StartValidTimer ()
	Start the valid timer. More...

void	StopPreferredTimer ()
	Stop the preferred timer. More...

void	StopValidTimer ()
	Stop the valid timer. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Private Attributes
Ipv6Address	m_defaultGatewayRouter
	Default gateway router. More...

uint32_t	m_id
	the identifier of this prefix. More...

uint32_t	m_interface
	The interface index (which is stored the address corresponding of the prefix). More...

Ipv6Prefix	m_mask
	The prefix bitmask (length). More...

Ptr< Node >	m_node
	The node. More...

bool	m_preferred
	true if the prefix is preferred. More...

uint32_t	m_preferredLifeTime
	the preferred life time. More...

Timer	m_preferredTimer
	the timer for preferred life time. More...

Ipv6Address	m_prefix
	The prefix IPv6 address. More...

bool	m_valid
	true if the prefix is valid. More...

uint32_t	m_validLifeTime
	the valid life time. More...

Timer	m_validTimer
	the timer for valid life time. More...

Static Private Attributes
static uint32_t	m_prefixId = 0
	a static identifier. More...

Additional Inherited Members
Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoDispose ()
	Destructor implementation. More...

virtual void	DoInitialize ()
	Initialize() implementation. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Router prefix information.

Definition at line 40 of file ipv6-autoconfigured-prefix.h.

Constructor & Destructor Documentation

◆ Ipv6AutoconfiguredPrefix()

ns3::Ipv6AutoconfiguredPrefix::Ipv6AutoconfiguredPrefix	(	Ptr< Node >	node,
		uint32_t	interface,
		Ipv6Address	prefix,
		Ipv6Prefix	mask,
		uint32_t	preferredLifeTime,
		uint32_t	validLifeTime,
		Ipv6Address	router = `Ipv6Address("::")`
	)

Constructor.

Parameters

node	node
interface	interface index
prefix	IPv6 address
mask	bitmask prefix
preferredLifeTime	the preferred life time
validLifeTime	the valid life time
router	if it the prefix that configure the default gateway

Definition at line 34 of file ipv6-autoconfigured-prefix.cc.

References m_defaultGatewayRouter, m_id, m_interface, m_mask, m_node, m_preferred, m_preferredLifeTime, m_prefix, m_prefixId, m_valid, m_validLifeTime, and NS_LOG_WARN.

◆ ~Ipv6AutoconfiguredPrefix()

ns3::Ipv6AutoconfiguredPrefix::~Ipv6AutoconfiguredPrefix ( )

override

Destructor.

Definition at line 60 of file ipv6-autoconfigured-prefix.cc.

Member Function Documentation

◆ FunctionPreferredTimeout()

void ns3::Ipv6AutoconfiguredPrefix::FunctionPreferredTimeout ( )

Signal that the preferred time expired and start the valid timer.

Definition at line 136 of file ipv6-autoconfigured-prefix.cc.

References m_preferred, m_prefix, MarkValidTime(), NS_LOG_INFO, and StartValidTimer().

Referenced by StartPreferredTimer().

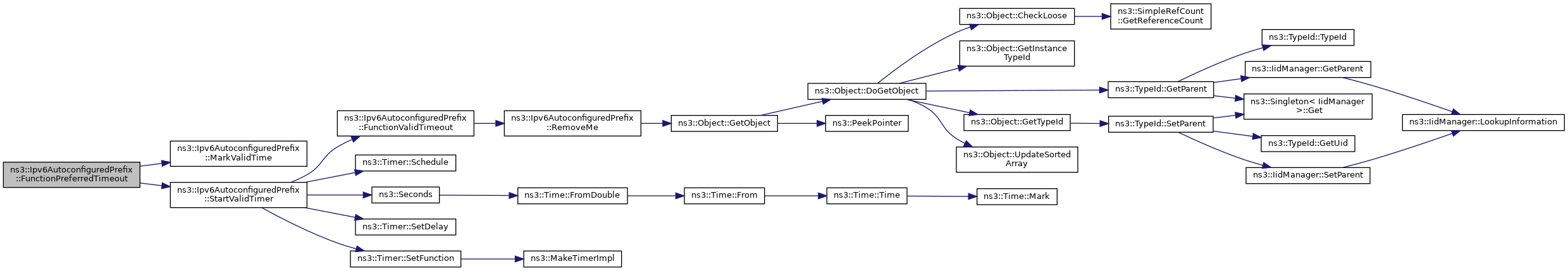

Here is the call graph for this function:

Here is the caller graph for this function:

◆ FunctionValidTimeout()

void ns3::Ipv6AutoconfiguredPrefix::FunctionValidTimeout ( )

Signal that the valid time expired.

Definition at line 145 of file ipv6-autoconfigured-prefix.cc.

References m_prefix, m_valid, NS_LOG_INFO, and RemoveMe().

Referenced by StartValidTimer().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetDefaultGatewayRouter()

Ipv6Address ns3::Ipv6AutoconfiguredPrefix::GetDefaultGatewayRouter ( ) const

Get the default gateway address.

Returns: IPv6 link-local address of the default router

Definition at line 71 of file ipv6-autoconfigured-prefix.cc.

References m_defaultGatewayRouter.

◆ GetId()

uint32_t ns3::Ipv6AutoconfiguredPrefix::GetId ( void ) const

Get the prefix identifier.

Returns: id of the prefix.

Definition at line 218 of file ipv6-autoconfigured-prefix.cc.

References m_id.

◆ GetInterface()

uint32_t ns3::Ipv6AutoconfiguredPrefix::GetInterface ( ) const

Get the interface index.

Returns: interface index

Definition at line 83 of file ipv6-autoconfigured-prefix.cc.

References m_interface.

◆ GetMask()

Ipv6Prefix ns3::Ipv6AutoconfiguredPrefix::GetMask ( ) const

Get the bitmask prefix.

Returns: bitmask prefix

Definition at line 248 of file ipv6-autoconfigured-prefix.cc.

References m_mask.

◆ GetPreferredLifeTime()

uint32_t ns3::Ipv6AutoconfiguredPrefix::GetPreferredLifeTime ( ) const

Get the prefix preferred life time.

Returns: preferred life time

Definition at line 100 of file ipv6-autoconfigured-prefix.cc.

References m_preferredLifeTime.

◆ GetPrefix()

Ipv6Address ns3::Ipv6AutoconfiguredPrefix::GetPrefix ( ) const

Get the prefix address.

Returns: prefix address

Definition at line 236 of file ipv6-autoconfigured-prefix.cc.

References m_prefix.

◆ GetValidLifeTime()

uint32_t ns3::Ipv6AutoconfiguredPrefix::GetValidLifeTime ( ) const

Get the prefix valid life time.

Returns: valid life time

Definition at line 117 of file ipv6-autoconfigured-prefix.cc.

References m_validLifeTime.

◆ IsPreferred()

bool ns3::Ipv6AutoconfiguredPrefix::IsPreferred ( ) const

Test if the prefix is preferred.

Returns: true if prefix is in preferred state, false otherwise

Definition at line 224 of file ipv6-autoconfigured-prefix.cc.

References m_preferred.

◆ IsValid()

bool ns3::Ipv6AutoconfiguredPrefix::IsValid ( ) const

Test if the prefix is valid.

Returns: true if prefix is in valid state, false otherwise

Definition at line 230 of file ipv6-autoconfigured-prefix.cc.

References m_valid.

◆ MarkPreferredTime()

void ns3::Ipv6AutoconfiguredPrefix::MarkPreferredTime ( )

Set the prefix as preferred.

Definition at line 123 of file ipv6-autoconfigured-prefix.cc.

References m_preferred.

◆ MarkValidTime()

void ns3::Ipv6AutoconfiguredPrefix::MarkValidTime ( )

Set the prefix as valid.

Definition at line 129 of file ipv6-autoconfigured-prefix.cc.

References m_preferred, and m_valid.

Referenced by FunctionPreferredTimeout().

Here is the caller graph for this function:

◆ RemoveMe()

void ns3::Ipv6AutoconfiguredPrefix::RemoveMe ( )

Remove this prefix from the prefix list.

Definition at line 197 of file ipv6-autoconfigured-prefix.cc.

References ns3::Object::GetObject(), m_defaultGatewayRouter, m_interface, m_mask, m_node, m_prefix, and NS_LOG_INFO.

Referenced by FunctionValidTimeout().

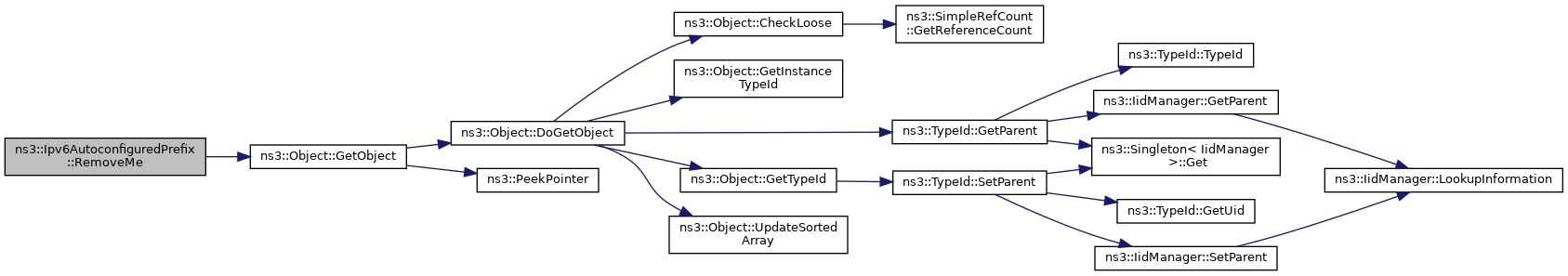

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetDefaultGatewayRouter()

void ns3::Ipv6AutoconfiguredPrefix::SetDefaultGatewayRouter ( Ipv6Address router )

Set the default gateway router.

Parameters

router IPv6 link-local address of the default router

Definition at line 65 of file ipv6-autoconfigured-prefix.cc.

References m_defaultGatewayRouter.

◆ SetInterface()

void ns3::Ipv6AutoconfiguredPrefix::SetInterface ( uint32_t interface )

Set the interface.

Parameters

interface interface index to set

Definition at line 77 of file ipv6-autoconfigured-prefix.cc.

References m_interface.

◆ SetMask()

void ns3::Ipv6AutoconfiguredPrefix::SetMask ( Ipv6Prefix mask )

Set the bitmask prefix.

Parameters

mask prefix

Definition at line 254 of file ipv6-autoconfigured-prefix.cc.

References m_mask.

◆ SetPreferred()

void ns3::Ipv6AutoconfiguredPrefix::SetPreferred ( )

Set the prefix as preferred.

Definition at line 205 of file ipv6-autoconfigured-prefix.cc.

References m_preferred.

◆ SetPreferredLifeTime()

void ns3::Ipv6AutoconfiguredPrefix::SetPreferredLifeTime ( uint32_t p )

Set the prefix preferred life time.

Parameters

p	the prefix preferred life time

Definition at line 89 of file ipv6-autoconfigured-prefix.cc.

References m_preferredLifeTime, m_validLifeTime, and NS_LOG_WARN.

◆ SetPrefix()

void ns3::Ipv6AutoconfiguredPrefix::SetPrefix ( Ipv6Address prefix )

Set the prefix address.

Parameters

prefix prefix address to set

Definition at line 242 of file ipv6-autoconfigured-prefix.cc.

References m_prefix.

◆ SetValid()

void ns3::Ipv6AutoconfiguredPrefix::SetValid ( )

Set the prefix as valid.

Definition at line 211 of file ipv6-autoconfigured-prefix.cc.

References m_preferred, and m_valid.

◆ SetValidLifeTime()

void ns3::Ipv6AutoconfiguredPrefix::SetValidLifeTime ( uint32_t v )

Set the prefix valid life time.

Parameters

v	the prefix valid life time

Definition at line 106 of file ipv6-autoconfigured-prefix.cc.

References m_preferredLifeTime, m_validLifeTime, and NS_LOG_WARN.

◆ StartPreferredTimer()

void ns3::Ipv6AutoconfiguredPrefix::StartPreferredTimer ( )

Start the preferred timer.

Definition at line 153 of file ipv6-autoconfigured-prefix.cc.

References FunctionPreferredTimeout(), m_preferredLifeTime, m_preferredTimer, m_prefix, NS_LOG_INFO, ns3::Timer::Schedule(), ns3::Seconds(), ns3::Timer::SetDelay(), and ns3::Timer::SetFunction().

Referenced by ns3::Ipv6L3Protocol::AddAutoconfiguredAddress().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ StartValidTimer()

void ns3::Ipv6AutoconfiguredPrefix::StartValidTimer ( )

Start the valid timer.

Definition at line 165 of file ipv6-autoconfigured-prefix.cc.

References FunctionValidTimeout(), m_preferredLifeTime, m_prefix, m_validLifeTime, m_validTimer, NS_LOG_INFO, ns3::Timer::Schedule(), ns3::Seconds(), ns3::Timer::SetDelay(), and ns3::Timer::SetFunction().

Referenced by FunctionPreferredTimeout().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ StopPreferredTimer()

void ns3::Ipv6AutoconfiguredPrefix::StopPreferredTimer ( )

Stop the preferred timer.

Definition at line 177 of file ipv6-autoconfigured-prefix.cc.

References ns3::Timer::Cancel(), ns3::Timer::IsRunning(), m_preferredTimer, m_prefix, and NS_LOG_INFO.

Here is the call graph for this function:

◆ StopValidTimer()

void ns3::Ipv6AutoconfiguredPrefix::StopValidTimer ( )

Stop the valid timer.

Definition at line 187 of file ipv6-autoconfigured-prefix.cc.

References ns3::Timer::Cancel(), ns3::Timer::IsRunning(), m_prefix, m_validTimer, and NS_LOG_INFO.

Here is the call graph for this function:

Member Data Documentation

◆ m_defaultGatewayRouter

Ipv6Address ns3::Ipv6AutoconfiguredPrefix::m_defaultGatewayRouter

private

Default gateway router.

If the RA received also configured the default gateway, this variable has the link-local address. Otherwise this is "::"

Definition at line 244 of file ipv6-autoconfigured-prefix.h.

Referenced by Ipv6AutoconfiguredPrefix(), GetDefaultGatewayRouter(), RemoveMe(), and SetDefaultGatewayRouter().

◆ m_id

uint32_t ns3::Ipv6AutoconfiguredPrefix::m_id

private

the identifier of this prefix.

Definition at line 220 of file ipv6-autoconfigured-prefix.h.

Referenced by Ipv6AutoconfiguredPrefix(), and GetId().

◆ m_interface

uint32_t ns3::Ipv6AutoconfiguredPrefix::m_interface

private

The interface index (which is stored the address corresponding of the prefix).

Definition at line 250 of file ipv6-autoconfigured-prefix.h.

Referenced by Ipv6AutoconfiguredPrefix(), GetInterface(), RemoveMe(), and SetInterface().

◆ m_mask

Ipv6Prefix ns3::Ipv6AutoconfiguredPrefix::m_mask

private

The prefix bitmask (length).

Definition at line 235 of file ipv6-autoconfigured-prefix.h.

Referenced by Ipv6AutoconfiguredPrefix(), GetMask(), RemoveMe(), and SetMask().

◆ m_node

Ptr<Node> ns3::Ipv6AutoconfiguredPrefix::m_node

private

The node.

Definition at line 225 of file ipv6-autoconfigured-prefix.h.

Referenced by Ipv6AutoconfiguredPrefix(), and RemoveMe().

◆ m_preferred

bool ns3::Ipv6AutoconfiguredPrefix::m_preferred

private

true if the prefix is preferred.

Definition at line 265 of file ipv6-autoconfigured-prefix.h.

Referenced by Ipv6AutoconfiguredPrefix(), FunctionPreferredTimeout(), IsPreferred(), MarkPreferredTime(), MarkValidTime(), SetPreferred(), and SetValid().

◆ m_preferredLifeTime

uint32_t ns3::Ipv6AutoconfiguredPrefix::m_preferredLifeTime

private

the preferred life time.

Definition at line 260 of file ipv6-autoconfigured-prefix.h.

Referenced by Ipv6AutoconfiguredPrefix(), GetPreferredLifeTime(), SetPreferredLifeTime(), SetValidLifeTime(), StartPreferredTimer(), and StartValidTimer().

◆ m_preferredTimer

Timer ns3::Ipv6AutoconfiguredPrefix::m_preferredTimer

private

the timer for preferred life time.

Definition at line 275 of file ipv6-autoconfigured-prefix.h.

Referenced by StartPreferredTimer(), and StopPreferredTimer().

◆ m_prefix

Ipv6Address ns3::Ipv6AutoconfiguredPrefix::m_prefix

private

The prefix IPv6 address.

Definition at line 230 of file ipv6-autoconfigured-prefix.h.

Referenced by Ipv6AutoconfiguredPrefix(), FunctionPreferredTimeout(), FunctionValidTimeout(), GetPrefix(), RemoveMe(), SetPrefix(), StartPreferredTimer(), StartValidTimer(), StopPreferredTimer(), and StopValidTimer().

◆ m_prefixId

uint32_t ns3::Ipv6AutoconfiguredPrefix::m_prefixId = 0

staticprivate

a static identifier.

Definition at line 215 of file ipv6-autoconfigured-prefix.h.

Referenced by Ipv6AutoconfiguredPrefix().

◆ m_valid

bool ns3::Ipv6AutoconfiguredPrefix::m_valid

private

true if the prefix is valid.

Definition at line 270 of file ipv6-autoconfigured-prefix.h.

Referenced by Ipv6AutoconfiguredPrefix(), FunctionValidTimeout(), IsValid(), MarkValidTime(), and SetValid().

◆ m_validLifeTime

uint32_t ns3::Ipv6AutoconfiguredPrefix::m_validLifeTime

private

the valid life time.

Definition at line 255 of file ipv6-autoconfigured-prefix.h.

Referenced by Ipv6AutoconfiguredPrefix(), GetValidLifeTime(), SetPreferredLifeTime(), SetValidLifeTime(), and StartValidTimer().

◆ m_validTimer

Timer ns3::Ipv6AutoconfiguredPrefix::m_validTimer

private

the timer for valid life time.

Definition at line 280 of file ipv6-autoconfigured-prefix.h.

Referenced by StartValidTimer(), and StopValidTimer().

The documentation for this class was generated from the following files:

src/internet/model/ipv6-autoconfigured-prefix.h
src/internet/model/ipv6-autoconfigured-prefix.cc

Public Member Functions

Private Attributes

Static Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ Ipv6AutoconfiguredPrefix()

◆ ~Ipv6AutoconfiguredPrefix()

Member Function Documentation

◆ FunctionPreferredTimeout()

◆ FunctionValidTimeout()

◆ GetDefaultGatewayRouter()

◆ GetId()

◆ GetInterface()

◆ GetMask()

◆ GetPreferredLifeTime()

◆ GetPrefix()

◆ GetValidLifeTime()

◆ IsPreferred()

◆ IsValid()

◆ MarkPreferredTime()

◆ MarkValidTime()

◆ RemoveMe()

◆ SetDefaultGatewayRouter()

◆ SetInterface()

◆ SetMask()

◆ SetPreferred()

◆ SetPreferredLifeTime()

◆ SetPrefix()

◆ SetValid()

◆ SetValidLifeTime()

◆ StartPreferredTimer()

◆ StartValidTimer()

◆ StopPreferredTimer()

◆ StopValidTimer()

Member Data Documentation

◆ m_defaultGatewayRouter

◆ m_id

◆ m_interface

◆ m_mask

◆ m_node

◆ m_preferred

◆ m_preferredLifeTime

◆ m_preferredTimer

◆ m_prefix

◆ m_prefixId

◆ m_valid

◆ m_validLifeTime

◆ m_validTimer
