ns3::DsrMainHelper Class Reference

Helper class that adds DSR routing to nodes. More...

#include "dsr-main-helper.h"

Collaboration diagram for ns3::DsrMainHelper:

Public Member Functions
	DsrMainHelper ()
	Create an DsrMainHelper that makes life easier for people who want to install DSR routing to nodes. More...
	DsrMainHelper (const DsrMainHelper &o)
	Construct an DsrMainHelper from another previously initialized instance (Copy Constructor). More...
	~DsrMainHelper ()
void	Install (DsrHelper &dsrHelper, NodeContainer nodes)
	Install routing to the nodes. More...
void	SetDsrHelper (DsrHelper &dsrHelper)
	Set the helper class. More...

Private Member Functions
void	Install (Ptr< Node > node)
	Install routing to a node. More...
DsrMainHelper &	operator= (const DsrMainHelper &o)
	Assignment operator declared private and not implemented to disallow assignment and prevent the compiler from happily inserting its own. More...

Private Attributes
const DsrHelper *	m_dsrHelper
	helper class More...

Detailed Description

Helper class that adds DSR routing to nodes.

Definition at line 49 of file dsr-main-helper.h.

Constructor & Destructor Documentation

DsrMainHelper() [1/2]

ns3::DsrMainHelper::DsrMainHelper

(

)

Create an DsrMainHelper that makes life easier for people who want to install DSR routing to nodes.

Definition at line 49 of file dsr-main-helper.cc.

References NS_LOG_FUNCTION.

~DsrMainHelper()

ns3::DsrMainHelper::~DsrMainHelper

(

)

Definition at line 61 of file dsr-main-helper.cc.

References m_dsrHelper, and NS_LOG_FUNCTION.

DsrMainHelper() [2/2]

ns3::DsrMainHelper::DsrMainHelper

(

const DsrMainHelper &

o

)

Construct an DsrMainHelper from another previously initialized instance (Copy Constructor).

Parameters

o	object to copy from

Definition at line 55 of file dsr-main-helper.cc.

References ns3::DsrHelper::Copy(), m_dsrHelper, and NS_LOG_FUNCTION.

Here is the call graph for this function:

Member Function Documentation

Install() [1/2]

void ns3::DsrMainHelper::Install	(	DsrHelper &	dsrHelper,
		NodeContainer	nodes
	)

Install routing to the nodes.

Parameters

dsrHelper	The DSR helper class
nodes	the collection of nodes

Definition at line 79 of file dsr-main-helper.cc.

References ns3::DsrHelper::Copy(), m_dsrHelper, nodes, and NS_LOG_DEBUG.

Referenced by RoutingExperiment::Run().

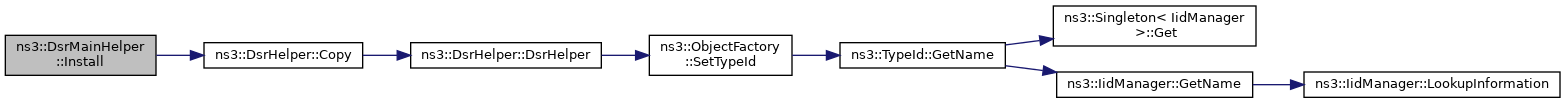

Here is the call graph for this function:

Here is the caller graph for this function:

Install() [2/2]

void ns3::DsrMainHelper::Install ( Ptr< Node >  node )

private

Install routing to a node.

Parameters

node	the node to install DSR routing

Definition at line 91 of file dsr-main-helper.cc.

References ns3::DsrHelper::Create(), m_dsrHelper, and NS_LOG_FUNCTION.

Here is the call graph for this function:

operator=()

DsrMainHelper & ns3::DsrMainHelper::operator= ( const DsrMainHelper &  o )

private

Assignment operator declared private and not implemented to disallow assignment and prevent the compiler from happily inserting its own.

Parameters

o	source object to assign

Returns

DsrHelper object

Definition at line 68 of file dsr-main-helper.cc.

References ns3::DsrHelper::Copy(), and m_dsrHelper.

Here is the call graph for this function:

SetDsrHelper()

void ns3::DsrMainHelper::SetDsrHelper

(

DsrHelper &

dsrHelper

)

Set the helper class.

Parameters

dsrHelper

the DSR helper class

Definition at line 105 of file dsr-main-helper.cc.

References ns3::DsrHelper::Copy(), m_dsrHelper, and NS_LOG_FUNCTION.

Here is the call graph for this function:

Member Data Documentation

m_dsrHelper

const DsrHelper* ns3::DsrMainHelper::m_dsrHelper

private

helper class

Definition at line 89 of file dsr-main-helper.h.

Referenced by DsrMainHelper(), ~DsrMainHelper(), Install(), operator=(), and SetDsrHelper().

---

The documentation for this class was generated from the following files:

• src/dsr/helper/dsr-main-helper.h
• src/dsr/helper/dsr-main-helper.cc
