ns3::EnergyHarvesterHelper Class Reference

Creates EnergyHarvester objects. More...

#include "energy-harvester-helper.h"

Inheritance diagram for ns3::EnergyHarvesterHelper:

Public Member Functions
virtual	~EnergyHarvesterHelper ()
EnergyHarvesterContainer	Install (EnergySourceContainer sourceContainer) const
EnergyHarvesterContainer	Install (Ptr< EnergySource > source) const
EnergyHarvesterContainer	Install (std::string sourceName) const
virtual void	Set (std::string name, const AttributeValue &v)=0

Private Member Functions
virtual Ptr< EnergyHarvester >	DoInstall (Ptr< EnergySource > source) const =0

Detailed Description

Creates EnergyHarvester objects.

This class creates and installs energy harvesters onto network nodes.

Definition at line 44 of file energy-harvester-helper.h.

Constructor & Destructor Documentation

~EnergyHarvesterHelper()

ns3::EnergyHarvesterHelper::~EnergyHarvesterHelper ( )

virtual

Definition at line 32 of file energy-harvester-helper.cc.

Member Function Documentation

DoInstall()

virtual Ptr<EnergyHarvester> ns3::EnergyHarvesterHelper::DoInstall ( Ptr< EnergySource >  source ) const

privatepure virtual

Parameters

source

Pointer to node where the energy harvester is to be installed.

Returns

Pointer to the created EnergyHarvester.

Child classes of EnergyHarvesterHelper only have to implement this function, to create and aggregate an EnergyHarvester object onto a single node. Rest of the installation process (eg. installing EnergyHarvester on set of nodes) is implemented in the EnergyHarvesterHelper base class.

Implemented in ns3::BasicEnergyHarvesterHelper.

Referenced by Install().

Here is the caller graph for this function:

Install() [1/3]

EnergyHarvesterContainer ns3::EnergyHarvesterHelper::Install

(

EnergySourceContainer

sourceContainer

)

const

Parameters

sourceContainer

List of nodes where EnergyHarvester will be installed.

Returns

An EnergyHarvesterContainer which contains all the EnergyHarvester.

This function installs an EnergyHarvester onto a list of energy sources.

Definition at line 43 of file energy-harvester-helper.cc.

References ns3::Object::AggregateObject(), ns3::EnergySourceContainer::Begin(), openflow-switch::container, ns3::ObjectFactory::Create(), DoInstall(), ns3::EnergySourceContainer::End(), ns3::Object::GetObject(), and ns3::ObjectFactory::SetTypeId().

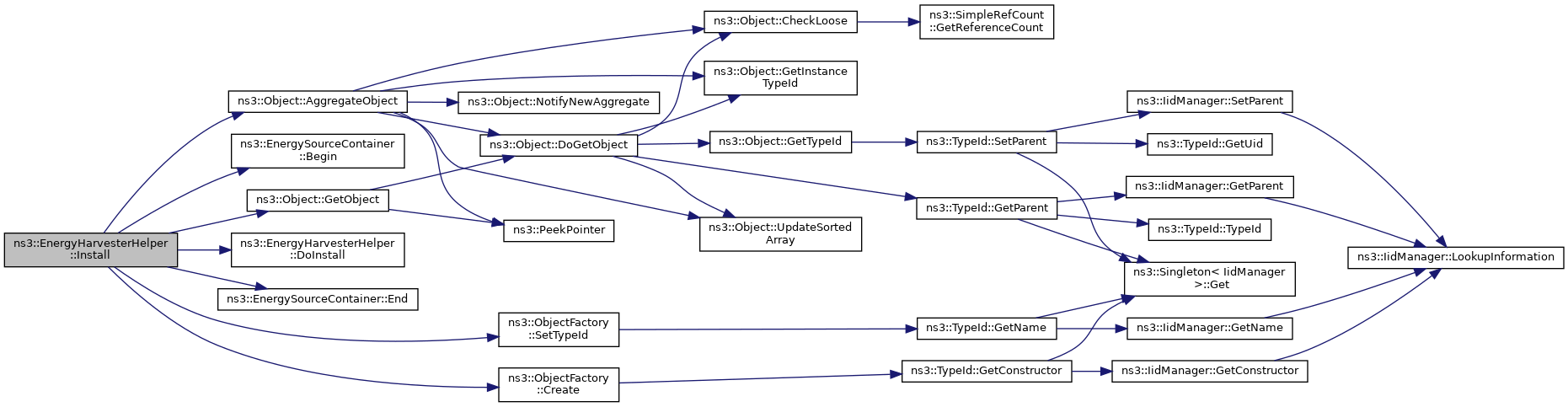

Here is the call graph for this function:

Install() [2/3]

EnergyHarvesterContainer ns3::EnergyHarvesterHelper::Install

(

Ptr< EnergySource >

source

)

const

Parameters

source

Pointer to the energy source where EnergyHarvester will be installed.

Returns

An EnergyHarvesterContainer which contains all the EnergyHarvesters.

This function installs an EnergyHarvester onto an energy source.

Definition at line 37 of file energy-harvester-helper.cc.

Referenced by Install().

Here is the caller graph for this function:

Install() [3/3]

EnergyHarvesterContainer ns3::EnergyHarvesterHelper::Install

(

std::string

sourceName

)

const

Parameters

sourceName

Name of node where EnergyHarvester will be installed.

Returns

An EnergyHarvesterContainer which contains all the EnergyHarvesters.

This function installs an EnergyHarvester onto a node.

Definition at line 74 of file energy-harvester-helper.cc.

References Install().

Here is the call graph for this function:

Set()

virtual void ns3::EnergyHarvesterHelper::Set ( std::string  name, const AttributeValue &  v  )

pure virtual

Parameters

name	Name of attribute to set.
v	Value of the attribute.

Sets one of the attributes of underlying EnergyHarvester.

Implemented in ns3::BasicEnergyHarvesterHelper.

---

The documentation for this class was generated from the following files:

• src/energy/helper/energy-harvester-helper.h
• src/energy/helper/energy-harvester-helper.cc
