Part of the RRC protocol. More...

#include "lte-rrc-sap.h"

Inheritance diagram for ns3::LteUeRrcSapProvider:

Collaboration diagram for ns3::LteUeRrcSapProvider:

Classes
struct	CompleteSetupParameters
	CompleteSetupParameters structure. More...

Public Member Functions
virtual void	CompleteSetup (CompleteSetupParameters params)=0
	Complete setup function. More...

virtual void	RecvRrcConnectionReconfiguration (RrcConnectionReconfiguration msg)=0
	Receive an RRCConnectionReconfiguration message from the serving eNodeB during an RRC connection reconfiguration procedure (Section 5.3.5 of TS 36.331). More...

virtual void	RecvRrcConnectionReestablishment (RrcConnectionReestablishment msg)=0
	Receive an RRCConnectionReestablishment message from the serving eNodeB during an RRC connection re-establishment procedure (Section 5.3.7 of TS 36.331). More...

virtual void	RecvRrcConnectionReestablishmentReject (RrcConnectionReestablishmentReject msg)=0
	Receive an RRCConnectionReestablishmentReject message from the serving eNodeB during an RRC connection re-establishment procedure (Section 5.3.7 of TS 36.331). More...

virtual void	RecvRrcConnectionReject (RrcConnectionReject msg)=0
	Receive an RRCConnectionReject message from the serving eNodeB during an RRC connection establishment procedure (Section 5.3.3 of TS 36.331). More...

virtual void	RecvRrcConnectionRelease (RrcConnectionRelease msg)=0
	Receive an RRCConnectionRelease message from the serving eNodeB during an RRC connection release procedure (Section 5.3.8 of TS 36.331). More...

virtual void	RecvRrcConnectionSetup (RrcConnectionSetup msg)=0
	Receive an RRCConnectionSetup message from the serving eNodeB during an RRC connection establishment procedure (Section 5.3.3 of TS 36.331). More...

virtual void	RecvSystemInformation (SystemInformation msg)=0
	Receive a SystemInformation message from the serving eNodeB during a system information acquisition procedure (Section 5.2.2 of TS 36.331). More...

Public Member Functions inherited from ns3::LteRrcSap
virtual	~LteRrcSap ()

Additional Inherited Members
Public Types inherited from ns3::LteRrcSap
enum	ReestablishmentCause { RECONFIGURATION_FAILURE , HANDOVER_FAILURE , OTHER_FAILURE }
	ReestablishmentCause enumeration. More...

Static Public Member Functions inherited from ns3::LteRrcSap
static double	ConvertPdschConfigDedicated2Double (PdschConfigDedicated pdschConfigDedicated)
	Convert PDSCH config dedicated function. More...

Static Public Attributes inherited from ns3::LteRrcSap
static const uint8_t	MaxReportCells = 8
	Constraint values. More...

Detailed Description

Part of the RRC protocol.

This Service Access Point (SAP) is used to let the UE RRC receive a message from the eNB RRC. Each method defined in this class corresponds to the reception of a message that is defined in Section 6.2.2 of TS 36.331.

Definition at line 1044 of file lte-rrc-sap.h.

Member Function Documentation

◆ CompleteSetup()

virtual void ns3::LteUeRrcSapProvider::CompleteSetup ( CompleteSetupParameters params )

pure virtual

Complete setup function.

Parameters

params the complete setup parameters

Implemented in ns3::MemberLteUeRrcSapProvider< C >.

Referenced by ns3::LteUeRrcProtocolReal::DoSetup().

Here is the caller graph for this function:

◆ RecvRrcConnectionReconfiguration()

virtual void ns3::LteUeRrcSapProvider::RecvRrcConnectionReconfiguration ( RrcConnectionReconfiguration msg )

pure virtual

Receive an RRCConnectionReconfiguration message from the serving eNodeB during an RRC connection reconfiguration procedure (Section 5.3.5 of TS 36.331).

Parameters

msg	the message

Implemented in ns3::MemberLteUeRrcSapProvider< C >.

Referenced by ns3::LteUeRrcProtocolReal::DoReceivePdcpSdu(), and ns3::LteEnbRrcProtocolIdeal::DoSendRrcConnectionReconfiguration().

Here is the caller graph for this function:

◆ RecvRrcConnectionReestablishment()

virtual void ns3::LteUeRrcSapProvider::RecvRrcConnectionReestablishment ( RrcConnectionReestablishment msg )

pure virtual

Receive an RRCConnectionReestablishment message from the serving eNodeB during an RRC connection re-establishment procedure (Section 5.3.7 of TS 36.331).

Parameters

msg	the message

Implemented in ns3::MemberLteUeRrcSapProvider< C >.

Referenced by ns3::LteUeRrcProtocolReal::DoReceivePdcpPdu(), and ns3::LteEnbRrcProtocolIdeal::DoSendRrcConnectionReestablishment().

Here is the caller graph for this function:

◆ RecvRrcConnectionReestablishmentReject()

virtual void ns3::LteUeRrcSapProvider::RecvRrcConnectionReestablishmentReject ( RrcConnectionReestablishmentReject msg )

pure virtual

Receive an RRCConnectionReestablishmentReject message from the serving eNodeB during an RRC connection re-establishment procedure (Section 5.3.7 of TS 36.331).

Parameters

msg	the message

Implemented in ns3::MemberLteUeRrcSapProvider< C >.

Referenced by ns3::LteEnbRrcProtocolIdeal::DoSendRrcConnectionReestablishmentReject().

Here is the caller graph for this function:

◆ RecvRrcConnectionReject()

virtual void ns3::LteUeRrcSapProvider::RecvRrcConnectionReject ( RrcConnectionReject msg )

pure virtual

Receive an RRCConnectionReject message from the serving eNodeB during an RRC connection establishment procedure (Section 5.3.3 of TS 36.331).

Parameters

msg	the message

Implemented in ns3::MemberLteUeRrcSapProvider< C >.

Referenced by ns3::LteUeRrcProtocolReal::DoReceivePdcpPdu(), and ns3::LteEnbRrcProtocolIdeal::DoSendRrcConnectionReject().

Here is the caller graph for this function:

◆ RecvRrcConnectionRelease()

virtual void ns3::LteUeRrcSapProvider::RecvRrcConnectionRelease ( RrcConnectionRelease msg )

pure virtual

Receive an RRCConnectionRelease message from the serving eNodeB during an RRC connection release procedure (Section 5.3.8 of TS 36.331).

Parameters

msg	the message

Implemented in ns3::MemberLteUeRrcSapProvider< C >.

Referenced by ns3::LteEnbRrcProtocolIdeal::DoSendRrcConnectionRelease(), and ns3::LteEnbRrcProtocolReal::DoSendRrcConnectionRelease().

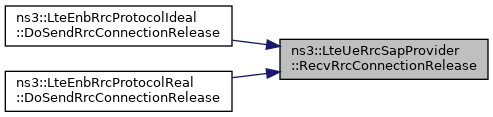

Here is the caller graph for this function:

◆ RecvRrcConnectionSetup()

virtual void ns3::LteUeRrcSapProvider::RecvRrcConnectionSetup ( RrcConnectionSetup msg )

pure virtual

Receive an RRCConnectionSetup message from the serving eNodeB during an RRC connection establishment procedure (Section 5.3.3 of TS 36.331).

Parameters

msg	the message

Implemented in ns3::MemberLteUeRrcSapProvider< C >.

Referenced by ns3::LteUeRrcProtocolReal::DoReceivePdcpPdu(), and ns3::LteEnbRrcProtocolIdeal::DoSendRrcConnectionSetup().

Here is the caller graph for this function:

◆ RecvSystemInformation()

virtual void ns3::LteUeRrcSapProvider::RecvSystemInformation ( SystemInformation msg )

pure virtual

Receive a SystemInformation message from the serving eNodeB during a system information acquisition procedure (Section 5.2.2 of TS 36.331).

Parameters

msg	the message

Implemented in ns3::MemberLteUeRrcSapProvider< C >.

Referenced by ns3::LteEnbRrcProtocolIdeal::DoSendSystemInformation(), and ns3::LteEnbRrcProtocolReal::DoSendSystemInformation().

Here is the caller graph for this function:

The documentation for this class was generated from the following file:

src/lte/model/lte-rrc-sap.h
