Service Access Point (SAP) offered by the UE component carrier manager to the UE RRC. More...

#include "lte-ue-ccm-rrc-sap.h"

Inheritance diagram for ns3::LteUeCcmRrcSapProvider:

Classes
struct	LcsConfig
	LcsConfig structure. More...

Public Member Functions
virtual	~LteUeCcmRrcSapProvider ()

virtual std::vector< LteUeCcmRrcSapProvider::LcsConfig >	AddLc (uint8_t lcId, LteUeCmacSapProvider::LogicalChannelConfig lcConfig, LteMacSapUser *msu)=0
	add a new Logical Channel (LC) More...

virtual LteMacSapUser *	ConfigureSignalBearer (uint8_t lcid, LteUeCmacSapProvider::LogicalChannelConfig lcConfig, LteMacSapUser *msu)=0
	Add the Signal Bearer for a specific Ue in LteUeComponenCarrierManager. More...

virtual void	NotifyConnectionReconfigurationMsg ()=0
	Notify reconfiguration msg function. More...

virtual std::vector< uint16_t >	RemoveLc (uint8_t lcid)=0
	Remove an existing Logical Channel for a Ue in the LteUeComponentCarrierManager. More...

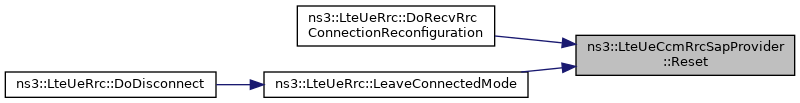

virtual void	Reset ()=0
	Reset LC maps. More...

Friends
class	LteMacSapUser
	allow LteMacSapUser class friend access More...

Detailed Description

Service Access Point (SAP) offered by the UE component carrier manager to the UE RRC.

This is the Component Carrier Management SAP Provider, i.e., the part of the SAP that contains the component carrier manager methods called by the Ue RRC instance.

Definition at line 42 of file lte-ue-ccm-rrc-sap.h.

Constructor & Destructor Documentation

◆ ~LteUeCcmRrcSapProvider()

ns3::LteUeCcmRrcSapProvider::~LteUeCcmRrcSapProvider ( )

virtual

Definition at line 26 of file lte-ue-ccm-rrc-sap.cc.

Member Function Documentation

◆ AddLc()

virtual std::vector<LteUeCcmRrcSapProvider::LcsConfig> ns3::LteUeCcmRrcSapProvider::AddLc	(	uint8_t	lcId,
		LteUeCmacSapProvider::LogicalChannelConfig	lcConfig,
		LteMacSapUser *	msu
	)

pure virtual

add a new Logical Channel (LC)

Parameters

lcId	is the Logical Channel Id
lcConfig	is a single structure contains logical Channel Id, Logical Channel config and Component Carrier Id
msu	is the pointer to LteMacSapUser related to the Rlc instance

Returns: vector of LcsConfig contains the lc configuration for each Mac the size of the vector is equal to the number of component carrier enabled.

The Logical Channel configurations for each component carrier depend on the algorithm used to split the traffic between the component carriers themself.

Implemented in ns3::MemberLteUeCcmRrcSapProvider< C >.

Referenced by ns3::LteUeRrc::ApplyRadioResourceConfigDedicated().

Here is the caller graph for this function:

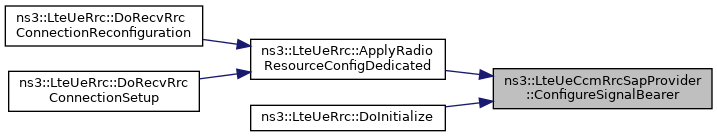

◆ ConfigureSignalBearer()

virtual LteMacSapUser* ns3::LteUeCcmRrcSapProvider::ConfigureSignalBearer	(	uint8_t	lcid,
		LteUeCmacSapProvider::LogicalChannelConfig	lcConfig,
		LteMacSapUser *	msu
	)
