A packet or message TLV. More...

#include "packetbb.h"

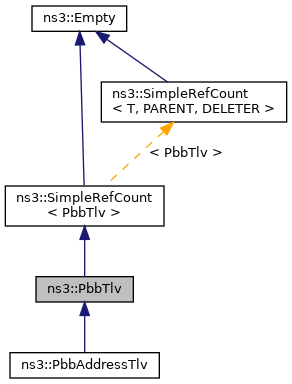

Inheritance diagram for ns3::PbbTlv:

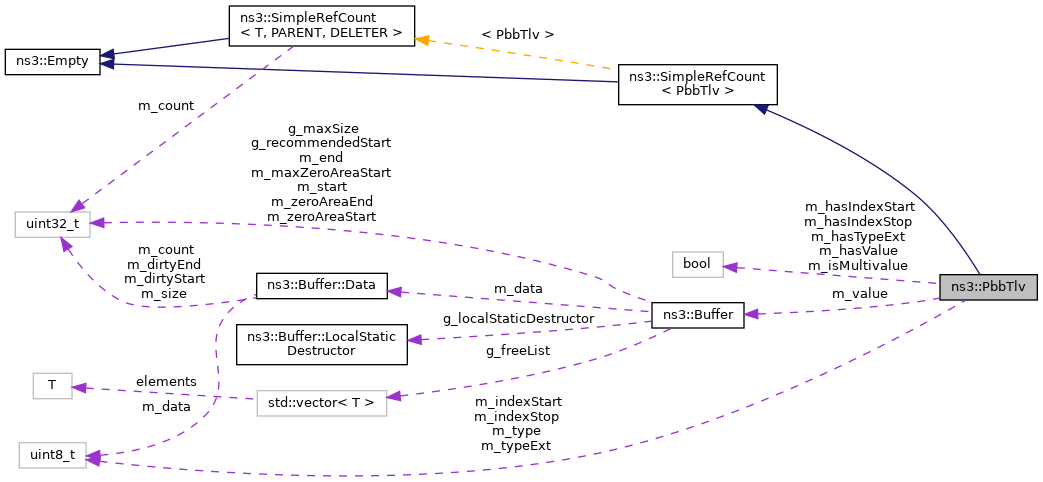

Collaboration diagram for ns3::PbbTlv:

Public Member Functions
	PbbTlv ()

virtual	~PbbTlv ()

void	Deserialize (Buffer::Iterator &start)
	Deserializes a TLV from the specified buffer. More...

uint32_t	GetSerializedSize () const

uint8_t	GetType () const

uint8_t	GetTypeExt () const

Buffer	GetValue () const

bool	HasTypeExt () const
	Tests whether or not this TLV has a type extension. More...

bool	HasValue () const
	Tests whether or not this TLV has a value. More...

bool	operator!= (const PbbTlv &other) const
	Inequality operator for PbbTlv. More...

bool	operator== (const PbbTlv &other) const
	Equality operator for PbbTlv. More...

void	Print (std::ostream &os) const
	Pretty-prints the contents of this TLV. More...

void	Print (std::ostream &os, int level) const
	Pretty-prints the contents of this TLV, with specified indentation. More...

void	Serialize (Buffer::Iterator &start) const
	Serializes this TLV into the specified buffer. More...

void	SetType (uint8_t type)
	Sets the type of this TLV. More...

void	SetTypeExt (uint8_t type)
	Sets the type extension of this TLV. More...

void	SetValue (Buffer start)
	Sets the value of this message to the specified buffer. More...

void	SetValue (const uint8_t *buffer, uint32_t size)
	Sets the value of this message to a buffer with the specified data. More...

Public Member Functions inherited from ns3::SimpleRefCount< PbbTlv >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Protected Member Functions
uint8_t	GetIndexStart () const
	Get the starting point index. More...

uint8_t	GetIndexStop () const
	Get the stop point index. More...

bool	HasIndexStart () const
	Checks if there is a starting index. More...

bool	HasIndexStop () const
	Checks if there is a stop index. More...

bool	IsMultivalue () const
	Check the multivalue parameter. More...

void	SetIndexStart (uint8_t index)
	Set an index as starting point. More...

void	SetIndexStop (uint8_t index)
	Set an index as stop point. More...

void	SetMultivalue (bool isMultivalue)
	Set the multivalue parameter. More...

Private Attributes
bool	m_hasIndexStart
	Start index present. More...

bool	m_hasIndexStop
	Stop index present. More...

bool	m_hasTypeExt
	Extended type present. More...

bool	m_hasValue
	Has value. More...

uint8_t	m_indexStart
	Start index. More...

uint8_t	m_indexStop
	Stop index. More...

bool	m_isMultivalue
	Is multivalue. More...

uint8_t	m_type
	Type of this TLV. More...

uint8_t	m_typeExt
	Extended type. More...

Buffer	m_value
	Value. More...

Detailed Description

A packet or message TLV.

Definition at line 1656 of file packetbb.h.

Constructor & Destructor Documentation

◆ PbbTlv()

ns3::PbbTlv::PbbTlv ( )

Definition at line 2604 of file packetbb.cc.

References m_hasIndexStart, m_hasIndexStop, m_hasTypeExt, m_hasValue, m_isMultivalue, and NS_LOG_FUNCTION.

◆ ~PbbTlv()

ns3::PbbTlv::~PbbTlv ( )

virtual

Definition at line 2614 of file packetbb.cc.

References ns3::Buffer::GetSize(), m_value, NS_LOG_FUNCTION, and ns3::Buffer::RemoveAtEnd().

Here is the call graph for this function:

Member Function Documentation

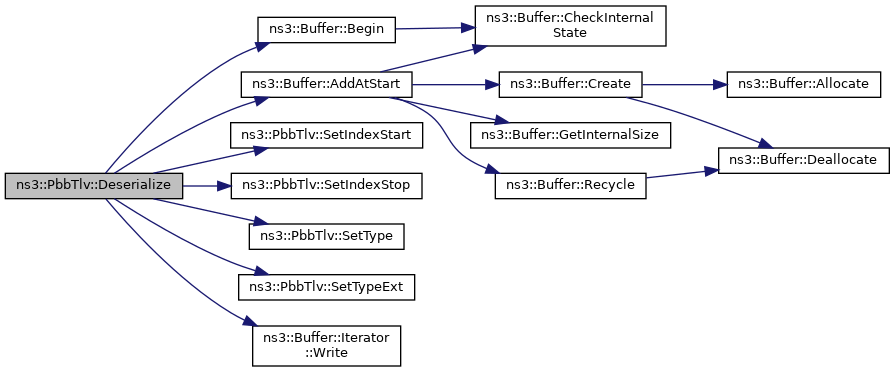

◆ Deserialize()

void ns3::PbbTlv::Deserialize ( Buffer::Iterator & start )

Deserializes a TLV from the specified buffer.

Parameters

start a reference to the point in a buffer to begin deserializing.

Users should not need to call this. TLVs will be deserialized by their containing blocks.

Definition at line 2845 of file packetbb.cc.

References ns3::Buffer::AddAtStart(), ns3::Buffer::Begin(), m_hasValue, m_value, NS_LOG_FUNCTION, SetIndexStart(), SetIndexStop(), SetType(), SetTypeExt(), two-ray-to-three-gpp-ch-calibration::start, THAS_EXT_LEN, THAS_MULTI_INDEX, THAS_SINGLE_INDEX, THAS_TYPE_EXT, THAS_VALUE, and ns3::Buffer::Iterator::Write().

Here is the call graph for this function:

◆ GetIndexStart()

uint8_t ns3::PbbTlv::GetIndexStart ( ) const

protected

Get the starting point index.

Returns: the starting index

Definition at line 2666 of file packetbb.cc.

References HasIndexStart(), m_indexStart, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ns3::PbbAddressTlv::GetIndexStart(), Print(), and Serialize().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetIndexStop()

uint8_t ns3::PbbTlv::GetIndexStop ( ) const

protected

Get the stop point index.

Returns: the stop index

Definition at line 2689 of file packetbb.cc.

References HasIndexStop(), m_indexStop, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ns3::PbbAddressTlv::GetIndexStop(), Print(), and Serialize().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetSerializedSize()

uint32_t ns3::PbbTlv::GetSerializedSize ( ) const

Returns: The size (in bytes) needed to serialize this TLV.

Definition at line 2750 of file packetbb.cc.

References ns3::Buffer::GetSize(), ns3::GetSize(), GetValue(), HasIndexStart(), HasIndexStop(), HasTypeExt(), HasValue(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

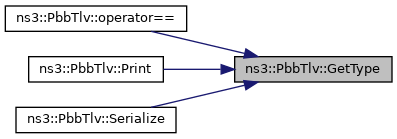

◆ GetType()

uint8_t ns3::PbbTlv::GetType ( ) const

Returns: the type of this TLV.

Definition at line 2628 of file packetbb.cc.

References m_type, and NS_LOG_FUNCTION.

Referenced by operator==(), Print(), and Serialize().

Here is the caller graph for this function:

◆ GetTypeExt()

uint8_t ns3::PbbTlv::GetTypeExt ( ) const

Returns: the type extension for this TLV.

Calling this while HasTypeExt is False is undefined. Make sure you check it first. This will be checked by an assert in debug builds.

Definition at line 2643 of file packetbb.cc.

References HasTypeExt(), m_typeExt, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by operator==(), Print(), and Serialize().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetValue()

Buffer ns3::PbbTlv::GetValue ( ) const

Returns: a Buffer pointing to the value of this TLV.

Calling this while HasValue is False is undefined. Make sure you check it first. This will be checked by an assert in debug builds.

Definition at line 2735 of file packetbb.cc.

References HasValue(), m_value, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by GetSerializedSize(), operator==(), Print(), and Serialize().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ HasIndexStart()

bool ns3::PbbTlv::HasIndexStart ( ) const

protected

Checks if there is a starting index.

Returns: true if the start index has been set

Definition at line 2674 of file packetbb.cc.

References m_hasIndexStart, and NS_LOG_FUNCTION.

Referenced by GetIndexStart(), GetSerializedSize(), ns3::PbbAddressTlv::HasIndexStart(), Print(), and Serialize().

Here is the caller graph for this function:

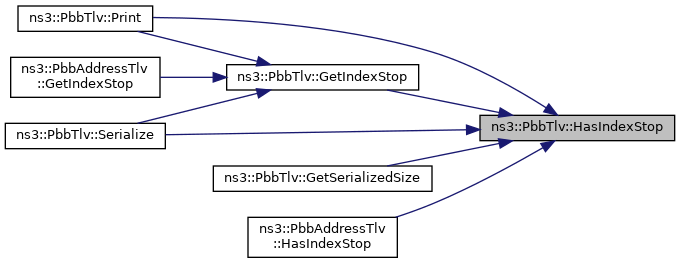

◆ HasIndexStop()

bool ns3::PbbTlv::HasIndexStop ( ) const

protected

Checks if there is a stop index.

Returns: true if the stop index has been set

Definition at line 2697 of file packetbb.cc.

References m_hasIndexStop, and NS_LOG_FUNCTION.

Referenced by GetIndexStop(), GetSerializedSize(), ns3::PbbAddressTlv::HasIndexStop(), Print(), and Serialize().

Here is the caller graph for this function:

◆ HasTypeExt()

bool ns3::PbbTlv::HasTypeExt ( ) const

Tests whether or not this TLV has a type extension.

Returns: true if this TLV has a type extension, false otherwise.

This should be called before calling GetTypeExt to make sure there actually is one.

Definition at line 2651 of file packetbb.cc.

References m_hasTypeExt, and NS_LOG_FUNCTION.

Referenced by GetSerializedSize(), GetTypeExt(), operator==(), Print(), and Serialize().

Here is the caller graph for this function:

◆ HasValue()

bool ns3::PbbTlv::HasValue ( ) const

Tests whether or not this TLV has a value.

Returns: true if this tlv has a TLV, false otherwise.

This should be called before calling GetTypeExt to make sure there actually is one.

Definition at line 2743 of file packetbb.cc.

References m_hasValue, and NS_LOG_FUNCTION.

Referenced by GetSerializedSize(), GetValue(), operator==(), Print(), and Serialize().

Here is the caller graph for this function:

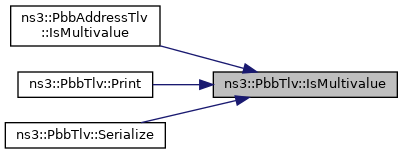

◆ IsMultivalue()

bool ns3::PbbTlv::IsMultivalue ( ) const

protected

Check the multivalue parameter.

Returns: the multivalue status

Definition at line 2711 of file packetbb.cc.

References m_isMultivalue, and NS_LOG_FUNCTION.

Referenced by ns3::PbbAddressTlv::IsMultivalue(), Print(), and Serialize().

Here is the caller graph for this function:

◆ operator!=()

bool ns3::PbbTlv::operator!= ( const PbbTlv & other ) const

Inequality operator for PbbTlv.

Parameters

other PbbTlv to compare to this one

Returns: true if PbbTlv are not equal

Definition at line 2980 of file packetbb.cc.

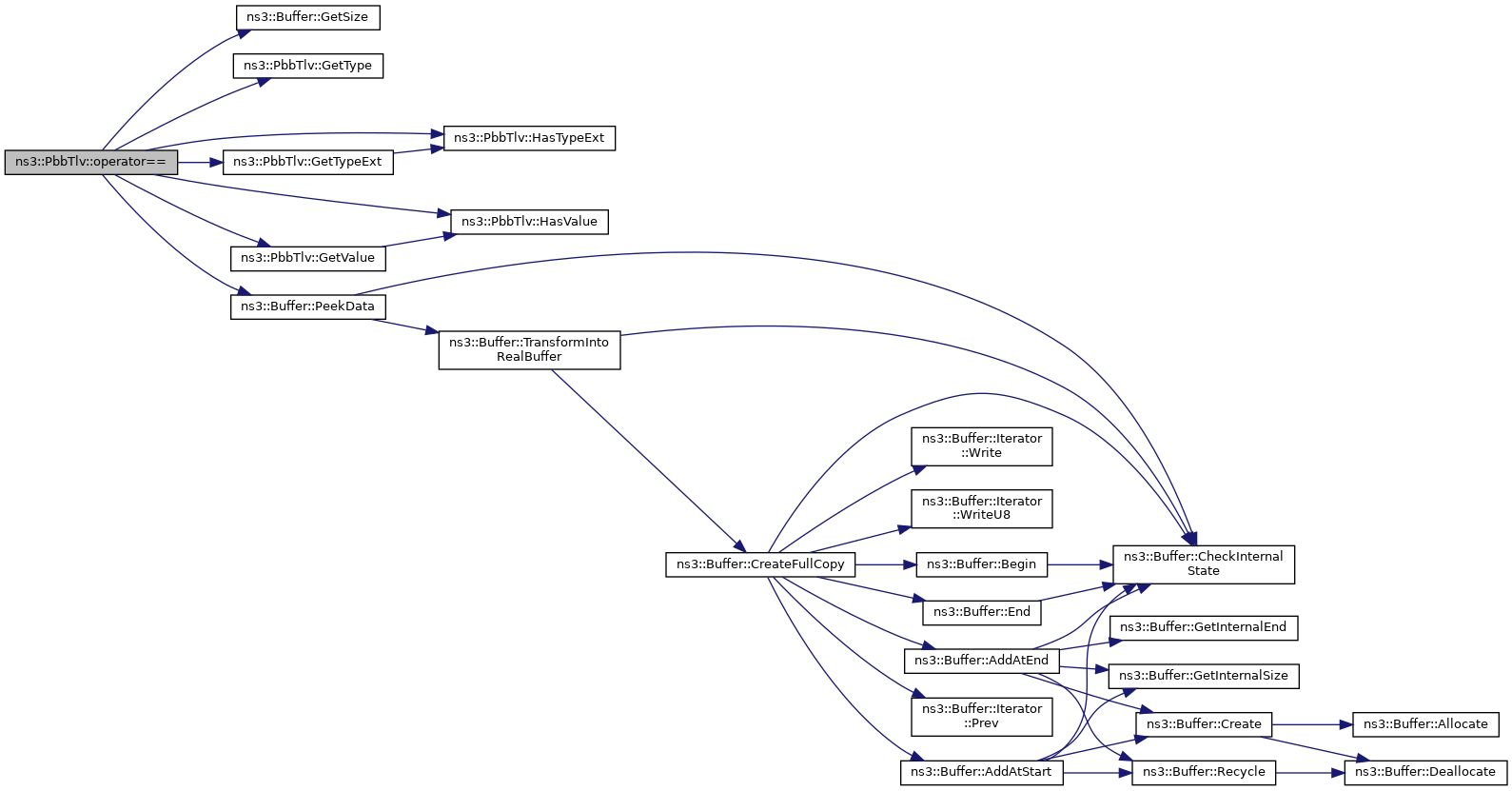

◆ operator==()

bool ns3::PbbTlv::operator== ( const PbbTlv & other ) const

Equality operator for PbbTlv.

Parameters

other PbbTlv to compare to this one

Returns: true if PbbTlv are equal

Definition at line 2935 of file packetbb.cc.

References ns3::Buffer::GetSize(), GetType(), GetTypeExt(), GetValue(), HasTypeExt(), HasValue(), and ns3::Buffer::PeekData().

Here is the call graph for this function:

◆ Print() [1/2]

void ns3::PbbTlv::Print ( std::ostream & os ) const

Pretty-prints the contents of this TLV.

Parameters

os	a stream object to print to.

Definition at line 2890 of file packetbb.cc.

References NS_LOG_FUNCTION.

◆ Print() [2/2]

void ns3::PbbTlv::Print	(	std::ostream &	os,
		int	level
	)		const

Pretty-prints the contents of this TLV, with specified indentation.

Parameters

os	a stream object to print to.
level	level of indentation.

This probably never needs to be called by users. This is used when recursively printing sub-objects.

Definition at line 2897 of file packetbb.cc.

References GetIndexStart(), GetIndexStop(), ns3::Buffer::GetSize(), GetType(), GetTypeExt(), GetValue(), HasIndexStart(), HasIndexStop(), HasTypeExt(), HasValue(), IsMultivalue(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ Serialize()

void ns3::PbbTlv::Serialize ( Buffer::Iterator & start ) const

Serializes this TLV into the specified buffer.

Parameters

start a reference to the point in a buffer to begin serializing.

Users should not need to call this. TLVs will be serialized by their containing blocks.

Definition at line 2788 of file packetbb.cc.

References GetIndexStart(), GetIndexStop(), ns3::Buffer::GetSize(), GetType(), GetTypeExt(), GetValue(), HasIndexStart(), HasIndexStop(), HasTypeExt(), HasValue(), IsMultivalue(), NS_LOG_FUNCTION, two-ray-to-three-gpp-ch-calibration::start, THAS_EXT_LEN, THAS_MULTI_INDEX, THAS_SINGLE_INDEX, THAS_TYPE_EXT, THAS_VALUE, TIS_MULTIVALUE, and ns3::Buffer::Iterator::WriteU8().

Here is the call graph for this function:

◆ SetIndexStart()

void ns3::PbbTlv::SetIndexStart ( uint8_t index )

protected

Set an index as starting point.

Parameters

index the starting index

Definition at line 2658 of file packetbb.cc.

References m_hasIndexStart, m_indexStart, and NS_LOG_FUNCTION.

Referenced by Deserialize(), and ns3::PbbAddressTlv::SetIndexStart().

Here is the caller graph for this function:

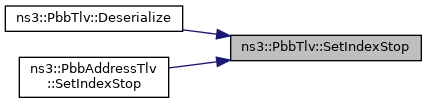

◆ SetIndexStop()

void ns3::PbbTlv::SetIndexStop ( uint8_t index )

protected

Set an index as stop point.

Parameters

index the stop index

Definition at line 2681 of file packetbb.cc.

References m_hasIndexStop, m_indexStop, and NS_LOG_FUNCTION.

Referenced by Deserialize(), and ns3::PbbAddressTlv::SetIndexStop().

Here is the caller graph for this function:

◆ SetMultivalue()

void ns3::PbbTlv::SetMultivalue ( bool isMultivalue )

protected

Set the multivalue parameter.

Parameters

isMultivalue the multivalue status

Definition at line 2704 of file packetbb.cc.

References m_isMultivalue, and NS_LOG_FUNCTION.

Referenced by ns3::PbbAddressTlv::SetMultivalue().

Here is the caller graph for this function:

◆ SetType()

void ns3::PbbTlv::SetType ( uint8_t type )

Sets the type of this TLV.

Parameters

type	the type value to set.

Definition at line 2621 of file packetbb.cc.

References m_type, NS_LOG_FUNCTION, and check-style-clang-format::type.

Referenced by Deserialize().

Here is the caller graph for this function:

◆ SetTypeExt()

void ns3::PbbTlv::SetTypeExt ( uint8_t type )

Sets the type extension of this TLV.

Parameters

type	the type extension value to set.

The type extension is like a sub-type used to further distinguish between TLVs of the same type.

Definition at line 2635 of file packetbb.cc.

References m_hasTypeExt, m_typeExt, and NS_LOG_FUNCTION.

Referenced by Deserialize().

Here is the caller graph for this function:

◆ SetValue() [1/2]

void ns3::PbbTlv::SetValue ( Buffer start )

Sets the value of this message to the specified buffer.

Parameters

start a buffer instance.

The buffer is not copied until this TLV is serialized. You should not change the contents of the buffer you pass in to this function.

Definition at line 2718 of file packetbb.cc.

References m_hasValue, m_value, NS_LOG_FUNCTION, and two-ray-to-three-gpp-ch-calibration::start.

◆ SetValue() [2/2]

void ns3::PbbTlv::SetValue	(	const uint8_t *	buffer,
		uint32_t	size
	)

Sets the value of this message to a buffer with the specified data.

Parameters

buffer	a pointer to data to put in the TLVs buffer.
size	the size of the buffer.

The buffer is copied into a new buffer instance. You can free the data in the buffer provided anytime you wish.

Definition at line 2726 of file packetbb.cc.

References ns3::Buffer::AddAtStart(), ns3::Buffer::Begin(), m_hasValue, m_value, NS_LOG_FUNCTION, and ns3::Buffer::Iterator::Write().

Here is the call graph for this function:

Member Data Documentation

◆ m_hasIndexStart

bool ns3::PbbTlv::m_hasIndexStart

private

Start index present.

Definition at line 1838 of file packetbb.h.

Referenced by PbbTlv(), HasIndexStart(), and SetIndexStart().

◆ m_hasIndexStop

bool ns3::PbbTlv::m_hasIndexStop

private

Stop index present.

Definition at line 1841 of file packetbb.h.

Referenced by PbbTlv(), HasIndexStop(), and SetIndexStop().

◆ m_hasTypeExt

bool ns3::PbbTlv::m_hasTypeExt

private

Extended type present.

Definition at line 1835 of file packetbb.h.

Referenced by PbbTlv(), HasTypeExt(), and SetTypeExt().

◆ m_hasValue

bool ns3::PbbTlv::m_hasValue

private

Has value.

Definition at line 1845 of file packetbb.h.

Referenced by PbbTlv(), Deserialize(), HasValue(), and SetValue().

◆ m_indexStart

uint8_t ns3::PbbTlv::m_indexStart

private

Start index.

Definition at line 1839 of file packetbb.h.

Referenced by GetIndexStart(), and SetIndexStart().

◆ m_indexStop

uint8_t ns3::PbbTlv::m_indexStop

private

Stop index.

Definition at line 1842 of file packetbb.h.

Referenced by GetIndexStop(), and SetIndexStop().

◆ m_isMultivalue

bool ns3::PbbTlv::m_isMultivalue

private

Is multivalue.

Definition at line 1844 of file packetbb.h.

Referenced by PbbTlv(), IsMultivalue(), and SetMultivalue().

◆ m_type

uint8_t ns3::PbbTlv::m_type

private

Type of this TLV.

Definition at line 1833 of file packetbb.h.

Referenced by GetType(), and SetType().

◆ m_typeExt

uint8_t ns3::PbbTlv::m_typeExt

private

Extended type.

Definition at line 1836 of file packetbb.h.

Referenced by GetTypeExt(), and SetTypeExt().

◆ m_value

Buffer ns3::PbbTlv::m_value

private

Value.

Definition at line 1846 of file packetbb.h.

Referenced by ~PbbTlv(), Deserialize(), GetValue(), and SetValue().

The documentation for this class was generated from the following files:

src/network/utils/packetbb.h
src/network/utils/packetbb.cc

Public Member Functions

Protected Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ PbbTlv()

◆ ~PbbTlv()

Member Function Documentation

◆ Deserialize()

◆ GetIndexStart()

◆ GetIndexStop()

◆ GetSerializedSize()

◆ GetType()

◆ GetTypeExt()

◆ GetValue()

◆ HasIndexStart()

◆ HasIndexStop()

◆ HasTypeExt()

◆ HasValue()

◆ IsMultivalue()

◆ operator!=()

◆ operator==()

◆ Print() [1/2]

◆ Print() [2/2]

◆ Serialize()

◆ SetIndexStart()

◆ SetIndexStop()

◆ SetMultivalue()

◆ SetType()

◆ SetTypeExt()

◆ SetValue() [1/2]

◆ SetValue() [2/2]

Member Data Documentation

◆ m_hasIndexStart

◆ m_hasIndexStop

◆ m_hasTypeExt

◆ m_hasValue

◆ m_indexStart

◆ m_indexStop

◆ m_isMultivalue

◆ m_type

◆ m_typeExt

◆ m_value
