Enhanced Fractional Frequency Reuse algorithm implementation. More...

#include "lte-ffr-enhanced-algorithm.h"

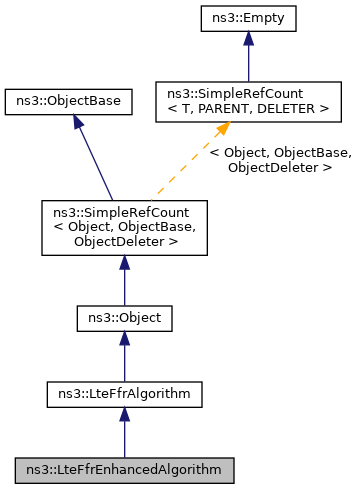

Inheritance diagram for ns3::LteFfrEnhancedAlgorithm:

Collaboration diagram for ns3::LteFfrEnhancedAlgorithm:

Public Member Functions
	LteFfrEnhancedAlgorithm ()
	Creates a trivial ffr algorithm instance. More...

	~LteFfrEnhancedAlgorithm () override

LteFfrRrcSapProvider *	GetLteFfrRrcSapProvider () override
	Export the "provider" part of the LteFfrRrcSap interface. More...

LteFfrSapProvider *	GetLteFfrSapProvider () override
	Export the "provider" part of the LteFfrSap interface. More...

void	SetLteFfrRrcSapUser (LteFfrRrcSapUser *s) override
	Set the "user" part of the LteFfrRrcSap interface that this frequency reuse algorithm instance will interact with. More...

void	SetLteFfrSapUser (LteFfrSapUser *s) override
	Set the "user" part of the LteFfrSap interface that this frequency reuse algorithm instance will interact with. More...

Public Member Functions inherited from ns3::LteFfrAlgorithm
	LteFfrAlgorithm ()

	~LteFfrAlgorithm () override

uint16_t	GetDlBandwidth () const

uint8_t	GetFrCellTypeId () const

uint16_t	GetUlBandwidth () const

void	SetDlBandwidth (uint16_t bw)

void	SetFrCellTypeId (uint8_t cellTypeId)

void	SetUlBandwidth (uint16_t bw)

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::LteFfrAlgorithm
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Protected Member Functions
void	DoDispose () override
	Destructor implementation. More...

std::vector< bool >	DoGetAvailableDlRbg () override
	Implementation of LteFfrSapProvider::GetAvailableDlRbg. More...

std::vector< bool >	DoGetAvailableUlRbg () override
	Implementation of LteFfrSapProvider::GetAvailableUlRbg. More...

uint16_t	DoGetMinContinuousUlBandwidth () override
	DoGetMinContinuousUlBandwidth in number of RB. More...

uint8_t	DoGetTpc (uint16_t rnti) override
	DoGetTpc for UE. More...

void	DoInitialize () override
	Initialize() implementation. More...

bool	DoIsDlRbgAvailableForUe (int i, uint16_t rnti) override
	Implementation of LteFfrSapProvider::IsDlRbgAvailableForUe. More...

bool	DoIsUlRbgAvailableForUe (int i, uint16_t rnti) override
	Implementation of LteFfrSapProvider::IsUlRbgAvailableForUe. More...

void	DoRecvLoadInformation (EpcX2Sap::LoadInformationParams params) override
	DoRecvLoadInformation. More...

void	DoReportDlCqiInfo (const FfMacSchedSapProvider::SchedDlCqiInfoReqParameters &params) override
	DoReportDlCqiInfo. More...

void	DoReportUeMeas (uint16_t rnti, LteRrcSap::MeasResults measResults) override
	Implementation of LteFfrRrcSapProvider::ReportUeMeas. More...

void	DoReportUlCqiInfo (const FfMacSchedSapProvider::SchedUlCqiInfoReqParameters &params) override
	DoReportUlCqiInfo. More...

void	DoReportUlCqiInfo (std::map< uint16_t, std::vector< double >> ulCqiMap) override
	DoReportUlCqiInfo. More...

void	Reconfigure () override
	Automatic FR reconfiguration. More...

Protected Member Functions inherited from ns3::LteFfrAlgorithm
virtual void	DoSetBandwidth (uint16_t ulBandwidth, uint16_t dlBandwidth)
	Implementation of LteFfrRrcSapProvider::SetBandwidth. More...

virtual void	DoSetCellId (uint16_t cellId)
	SetCellId. More...

int	GetRbgSize (int dlbandwidth)
	Get RBG size for DL Bandwidth according to table 7.1.6.1-1 of 36.213. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Private Types
enum	UePosition { AreaUnset , CenterArea , EdgeArea }
	UE Position enumeration. More...

Private Member Functions
double	EstimateUlSinr (uint16_t rnti, uint16_t rb, std::map< uint16_t, std::vector< double >> ulCqiMap)
	Initialize uplink RBG maps. More...

int	GetCqiFromSpectralEfficiency (double s)
	Get CQI from spectral efficiency. More...

void	InitializeDownlinkRbgMaps ()
	Initialize downlink RBG maps. More...

void	InitializeUplinkRbgMaps ()
	Initialize uplink RBG maps. More...

void	SetDownlinkConfiguration (uint16_t cellId, uint8_t bandwidth)
	Set downlink configuration. More...

void	SetUplinkConfiguration (uint16_t cellId, uint8_t bandwidth)
	Set uplink configuration. More...

Private Attributes
uint8_t	m_centerAreaPowerOffset
	Center area power offset. More...

uint8_t	m_centerAreaTpc
	Center area TPC. More...

std::map< uint16_t, SbMeasResult_s >	m_dlCqi
	Map of UE's DL CQI A30 received. More...

uint8_t	m_dlCqiThreshold
	DL CQI threshold. More...

std::vector< bool >	m_dlPrimarySegmentRbgMap
	DL primary segment RBG map. More...

std::map< uint16_t, std::vector< bool > >	m_dlRbgAvailableforUe
	DL RBG available for UE. More...

std::vector< bool >	m_dlRbgMap
	DL RBG map. More...

std::vector< bool >	m_dlReuse1RbgMap
	DL reuse 1 RBG map. More...

uint8_t	m_dlReuse1SubBandwidth
	DL reuse 1 subband bandwidth. More...

std::vector< bool >	m_dlReuse3RbgMap
	DL reuse 3 RBG map. More...

uint8_t	m_dlReuse3SubBandwidth
	DL reuse 3 subband bandwidth. More...

std::vector< bool >	m_dlSecondarySegmentRbgMap
	DL secondary segment RBG map. More...

uint8_t	m_dlSubBandOffset
	DL subband offset. More...

uint8_t	m_edgeAreaPowerOffset
	Edge area power offset. More...

uint8_t	m_edgeAreaTpc
	Edge are TPC. More...

LteFfrRrcSapProvider *	m_ffrRrcSapProvider
	FFR RRC SAP provider. More...

LteFfrRrcSapUser *	m_ffrRrcSapUser
	FFR RRC SAP user. More...

LteFfrSapProvider *	m_ffrSapProvider
	FFR SAP provider. More...

LteFfrSapUser *	m_ffrSapUser
	FFR SAP user. More...

uint8_t	m_measId
	The expected measurement identity. More...

uint8_t	m_rsrqThreshold
	RSRQ threshold. More...

std::map< uint16_t, uint8_t >	m_ues
	UEs. More...

std::map< uint16_t, std::vector< int > >	m_ulCqi
	UL CQI. More...

uint8_t	m_ulCqiThreshold
	UL CQI threshold. More...

std::vector< bool >	m_ulPrimarySegmentRbgMap
	UL primary segment RBG map. More...

std::map< uint16_t, std::vector< bool > >	m_ulRbAvailableforUe
	UL RB available for UE. More...

std::vector< bool >	m_ulRbgMap
	UL RBG Map. More...

std::vector< bool >	m_ulReuse1RbgMap
	UL reuse 1 RBG map. More...

uint8_t	m_ulReuse1SubBandwidth
	UL reuse 1 subbandwidth. More...

std::vector< bool >	m_ulReuse3RbgMap
	UL reuse 3 RBG map. More...

uint8_t	m_ulReuse3SubBandwidth
	UL reuse 3 subbandwidth. More...

std::vector< bool >	m_ulSecondarySegmentRbgMap
	UL secondary segment RBG map. More...

uint8_t	m_ulSubBandOffset
	UL subband offset. More...

Friends
class	MemberLteFfrRrcSapProvider< LteFfrEnhancedAlgorithm >
	let the forwarder class access the protected and private members More...

class	MemberLteFfrSapProvider< LteFfrEnhancedAlgorithm >
	let the forwarder class access the protected and private members More...

Additional Inherited Members
Protected Attributes inherited from ns3::LteFfrAlgorithm
uint16_t	m_cellId
	cell ID More...

uint8_t	m_dlBandwidth
	downlink bandwidth in RBs More...

bool	m_enabledInUplink
	If true FR algorithm will also work in Uplink. More...

uint8_t	m_frCellTypeId
	FFR cell type ID for automatic configuration. More...

bool	m_needReconfiguration
	If true FR algorithm will be reconfigured. More...

uint8_t	m_ulBandwidth
	uplink bandwidth in RBs More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Enhanced Fractional Frequency Reuse algorithm implementation.

Definition at line 41 of file lte-ffr-enhanced-algorithm.h.

Member Enumeration Documentation

◆ UePosition

enum ns3::LteFfrEnhancedAlgorithm::UePosition

private

UE Position enumeration.

Enumerator
AreaUnset
CenterArea
EdgeArea

Definition at line 165 of file lte-ffr-enhanced-algorithm.h.

Constructor & Destructor Documentation

◆ LteFfrEnhancedAlgorithm()

ns3::LteFfrEnhancedAlgorithm::LteFfrEnhancedAlgorithm ( )

Creates a trivial ffr algorithm instance.

Definition at line 118 of file lte-ffr-enhanced-algorithm.cc.

References m_ffrRrcSapProvider, m_ffrSapProvider, MemberLteFfrRrcSapProvider< LteFfrEnhancedAlgorithm >, MemberLteFfrSapProvider< LteFfrEnhancedAlgorithm >, and NS_LOG_FUNCTION.

◆ ~LteFfrEnhancedAlgorithm()

ns3::LteFfrEnhancedAlgorithm::~LteFfrEnhancedAlgorithm ( )

override

Definition at line 128 of file lte-ffr-enhanced-algorithm.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ DoDispose()

void ns3::LteFfrEnhancedAlgorithm::DoDispose ( void )

overrideprotectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::LteFfrAlgorithm.

Definition at line 134 of file lte-ffr-enhanced-algorithm.cc.

References m_ffrRrcSapProvider, m_ffrSapProvider, and NS_LOG_FUNCTION.

◆ DoGetAvailableDlRbg()

std::vector< bool > ns3::LteFfrEnhancedAlgorithm::DoGetAvailableDlRbg ( )

overrideprotectedvirtual

Implementation of LteFfrSapProvider::GetAvailableDlRbg.

Returns: vector of size (m_dlBandwidth/RbgSize); false indicates that RBG is free to use, true otherwise

Implements ns3::LteFfrAlgorithm.

Definition at line 465 of file lte-ffr-enhanced-algorithm.cc.

References InitializeDownlinkRbgMaps(), m_dlRbgAvailableforUe, m_dlRbgMap, ns3::LteFfrAlgorithm::m_needReconfiguration, NS_LOG_FUNCTION, NS_LOG_INFO, and Reconfigure().

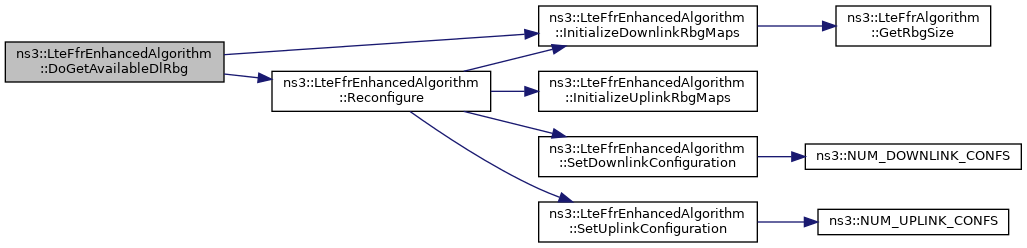

Here is the call graph for this function:

◆ DoGetAvailableUlRbg()

std::vector< bool > ns3::LteFfrEnhancedAlgorithm::DoGetAvailableUlRbg ( )

overrideprotectedvirtual

Implementation of LteFfrSapProvider::GetAvailableUlRbg.

Returns: vector of size m_ulBandwidth; false indicates that RB is free to use, true otherwise

Implements ns3::LteFfrAlgorithm.

Definition at line 560 of file lte-ffr-enhanced-algorithm.cc.

References InitializeUplinkRbgMaps(), ns3::LteFfrAlgorithm::m_enabledInUplink, m_ulRbAvailableforUe, m_ulRbgMap, NS_LOG_FUNCTION, and NS_LOG_INFO.

Here is the call graph for this function:

◆ DoGetMinContinuousUlBandwidth()

uint16_t ns3::LteFfrEnhancedAlgorithm::DoGetMinContinuousUlBandwidth ( )

overrideprotectedvirtual

DoGetMinContinuousUlBandwidth in number of RB.

Returns: number of RB in min continuous UL Bandwidth

Implements ns3::LteFfrAlgorithm.

Definition at line 860 of file lte-ffr-enhanced-algorithm.cc.

References ns3::LteFfrAlgorithm::m_enabledInUplink, ns3::LteFfrAlgorithm::m_ulBandwidth, m_ulReuse1SubBandwidth, m_ulReuse3SubBandwidth, NS_LOG_FUNCTION, and NS_LOG_INFO.

◆ DoGetTpc()

uint8_t ns3::LteFfrEnhancedAlgorithm::DoGetTpc ( uint16_t rnti )

overrideprotectedvirtual

DoGetTpc for UE.

Parameters

rnti

Returns: TPC value

Implements ns3::LteFfrAlgorithm.

Definition at line 821 of file lte-ffr-enhanced-algorithm.cc.

References EdgeArea, m_centerAreaTpc, m_edgeAreaTpc, ns3::LteFfrAlgorithm::m_enabledInUplink, m_ues, and NS_LOG_FUNCTION.

◆ DoInitialize()

void ns3::LteFfrEnhancedAlgorithm::DoInitialize ( void )

overrideprotectedvirtual

Initialize() implementation.

This method is called only once by Initialize(). If the user calls Initialize() multiple times, DoInitialize() is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 258 of file lte-ffr-enhanced-algorithm.cc.

References ns3::LteFfrRrcSapUser::AddUeMeasReportConfigForFfr(), ns3::LteRrcSap::ThresholdEutra::choice, ns3::Object::DoInitialize(), ns3::LteRrcSap::ReportConfigEutra::EVENT_A1, ns3::LteRrcSap::ReportConfigEutra::eventId, ns3::LteFfrAlgorithm::m_dlBandwidth, m_ffrRrcSapUser, ns3::LteFfrAlgorithm::m_frCellTypeId, m_measId, ns3::LteFfrAlgorithm::m_ulBandwidth, ns3::LteRrcSap::ReportConfigEutra::MS120, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::LteRrcSap::ThresholdEutra::range, ns3::LteRrcSap::ReportConfigEutra::reportInterval, ns3::LteRrcSap::ReportConfigEutra::RSRQ, SetDownlinkConfiguration(), SetUplinkConfiguration(), ns3::LteRrcSap::ReportConfigEutra::threshold1, ns3::LteRrcSap::ThresholdEutra::THRESHOLD_RSRQ, and ns3::LteRrcSap::ReportConfigEutra::triggerQuantity.

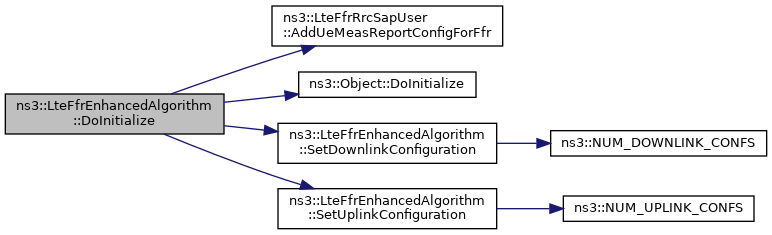

Here is the call graph for this function:

◆ DoIsDlRbgAvailableForUe()

bool ns3::LteFfrEnhancedAlgorithm::DoIsDlRbgAvailableForUe	(	int	rbId,
		uint16_t	rnti
	)

overrideprotectedvirtual

Implementation of LteFfrSapProvider::IsDlRbgAvailableForUe.

Parameters

rbId
rnti	Radio Network Temporary Identity, an integer identifying the UE where the report originates from

Returns: true if UE can be served on i-th RB, false otherwise

Implements ns3::LteFfrAlgorithm.

Definition at line 499 of file lte-ffr-enhanced-algorithm.cc.

References AreaUnset, CenterArea, EdgeArea, m_dlPrimarySegmentRbgMap, m_dlRbgAvailableforUe, m_dlReuse1RbgMap, m_dlReuse3RbgMap, m_dlSecondarySegmentRbgMap, m_ues, NS_LOG_FUNCTION, and NS_LOG_INFO.

◆ DoIsUlRbgAvailableForUe()

bool ns3::LteFfrEnhancedAlgorithm::DoIsUlRbgAvailableForUe	(	int	rbId,
		uint16_t	rnti
	)

overrideprotectedvirtual

Implementation of LteFfrSapProvider::IsUlRbgAvailableForUe.

Parameters

rbId
rnti	Radio Network Temporary Identity, an integer identifying the UE where the report originates from

Returns: true if UE can be served on i-th RB, false otherwise

Implements ns3::LteFfrAlgorithm.

Definition at line 594 of file lte-ffr-enhanced-algorithm.cc.

References AreaUnset, CenterArea, EdgeArea, ns3::LteFfrAlgorithm::m_enabledInUplink, m_ues, m_ulPrimarySegmentRbgMap, m_ulRbAvailableforUe, m_ulReuse1RbgMap, m_ulReuse3RbgMap, m_ulSecondarySegmentRbgMap, NS_LOG_FUNCTION, and NS_LOG_INFO.

◆ DoRecvLoadInformation()

void ns3::LteFfrEnhancedAlgorithm::DoRecvLoadInformation ( EpcX2Sap::LoadInformationParams params )

overrideprotectedvirtual

DoRecvLoadInformation.

Parameters

params

Implements ns3::LteFfrAlgorithm.

Definition at line 935 of file lte-ffr-enhanced-algorithm.cc.

References NS_LOG_FUNCTION, and NS_LOG_WARN.

◆ DoReportDlCqiInfo()

void ns3::LteFfrEnhancedAlgorithm::DoReportDlCqiInfo ( const FfMacSchedSapProvider::SchedDlCqiInfoReqParameters & params )

overrideprotectedvirtual

DoReportDlCqiInfo.

Parameters

params

Implements ns3::LteFfrAlgorithm.

Definition at line 659 of file lte-ffr-enhanced-algorithm.cc.

References ns3::CqiListElement_s::A30, CenterArea, ns3::LteFfrAlgorithm::GetRbgSize(), ns3::LteFfrAlgorithm::m_dlBandwidth, m_dlCqi, m_dlCqiThreshold, m_dlRbgAvailableforUe, m_dlSecondarySegmentRbgMap, m_ues, ns3::LteFfrAlgorithm::m_ulBandwidth, m_ulRbAvailableforUe, NS_LOG_ERROR, NS_LOG_FUNCTION, NS_LOG_INFO, and two-ray-to-three-gpp-ch-calibration::params.

Here is the call graph for this function:

◆ DoReportUeMeas()

void ns3::LteFfrEnhancedAlgorithm::DoReportUeMeas	(	uint16_t	rnti,
		LteRrcSap::MeasResults	measResults
	)

overrideprotectedvirtual

Implementation of LteFfrRrcSapProvider::ReportUeMeas.

Parameters

rnti	Radio Network Temporary Identity, an integer identifying the UE where the report originates from
measResults	a single report of one measurement identity

Implements ns3::LteFfrAlgorithm.

Definition at line 887 of file lte-ffr-enhanced-algorithm.cc.

References AreaUnset, CenterArea, EdgeArea, m_centerAreaPowerOffset, m_edgeAreaPowerOffset, m_ffrRrcSapUser, m_measId, m_rsrqThreshold, m_ues, ns3::LteRrcSap::MeasResults::measId, ns3::LteRrcSap::MeasResults::measResultPCell, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_WARN, ns3::LteRrcSap::PdschConfigDedicated::pa, ns3::LteRrcSap::MeasResultPCell::rsrpResult, ns3::LteRrcSap::MeasResultPCell::rsrqResult, and ns3::LteFfrRrcSapUser::SetPdschConfigDedicated().

Here is the call graph for this function:

◆ DoReportUlCqiInfo() [1/2]

void ns3::LteFfrEnhancedAlgorithm::DoReportUlCqiInfo ( const FfMacSchedSapProvider::SchedUlCqiInfoReqParameters & params )

overrideprotectedvirtual

DoReportUlCqiInfo.

Parameters

params

Implements ns3::LteFfrAlgorithm.

Definition at line 762 of file lte-ffr-enhanced-algorithm.cc.

References ns3::LteFfConverter::fpS11dot3toDouble(), GetCqiFromSpectralEfficiency(), ns3::LteFfrAlgorithm::m_ulBandwidth, NS_LOG_FUNCTION, NS_LOG_INFO, two-ray-to-three-gpp-ch-calibration::params, and ns3::UlCqi_s::SRS.

Here is the call graph for this function:

◆ DoReportUlCqiInfo() [2/2]

void ns3::LteFfrEnhancedAlgorithm::DoReportUlCqiInfo ( std::map< uint16_t, std::vector< double >> ulCqiMap )

overrideprotectedvirtual

DoReportUlCqiInfo.

Parameters

ulCqiMap

Implements ns3::LteFfrAlgorithm.

Definition at line 782 of file lte-ffr-enhanced-algorithm.cc.

References NS_LOG_FUNCTION, and NS_LOG_WARN.

◆ EstimateUlSinr()

double ns3::LteFfrEnhancedAlgorithm::EstimateUlSinr	(	uint16_t	rnti,
		uint16_t	rb,
		std::map< uint16_t, std::vector< double >>	ulCqiMap
	)

private

Initialize uplink RBG maps.

Parameters

rnti	the RNTI
rb	RB
ulCqiMap	UL CQI map

Returns: UL SINR

Definition at line 789 of file lte-ffr-enhanced-algorithm.cc.

References ns3::LteFfrAlgorithm::m_ulBandwidth, and ns3::NO_SINR.

◆ GetCqiFromSpectralEfficiency()

int ns3::LteFfrEnhancedAlgorithm::GetCqiFromSpectralEfficiency ( double s )

private

Get CQI from spectral efficiency.

Parameters

s	spectral efficiency

Returns: CQI

Definition at line 335 of file lte-ffr-enhanced-algorithm.cc.

References NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_LOGIC, and ns3::SpectralEfficiencyForCqi.

Referenced by DoReportUlCqiInfo().

Here is the caller graph for this function:

◆ GetLteFfrRrcSapProvider()

LteFfrRrcSapProvider * ns3::LteFfrEnhancedAlgorithm::GetLteFfrRrcSapProvider ( )

overridevirtual

Export the "provider" part of the LteFfrRrcSap interface.

Returns: the reference to the "provider" part of the interface, typically to be kept by an LteEnbRrc instance

Implements ns3::LteFfrAlgorithm.

Definition at line 251 of file lte-ffr-enhanced-algorithm.cc.

References m_ffrRrcSapProvider, and NS_LOG_FUNCTION.

◆ GetLteFfrSapProvider()

LteFfrSapProvider * ns3::LteFfrEnhancedAlgorithm::GetLteFfrSapProvider ( )

overridevirtual

Export the "provider" part of the LteFfrSap interface.

Returns: the reference to the "provider" part of the interface, typically to be kept by an Scheduler instance

Implements ns3::LteFfrAlgorithm.

Definition at line 237 of file lte-ffr-enhanced-algorithm.cc.

References m_ffrSapProvider, and NS_LOG_FUNCTION.

◆ GetTypeId()

TypeId ns3::LteFfrEnhancedAlgorithm::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 142 of file lte-ffr-enhanced-algorithm.cc.

References m_centerAreaPowerOffset, m_centerAreaTpc, m_dlCqiThreshold, m_dlReuse1SubBandwidth, m_dlReuse3SubBandwidth, m_dlSubBandOffset, m_edgeAreaPowerOffset, m_edgeAreaTpc, m_rsrqThreshold, m_ulCqiThreshold, m_ulReuse1SubBandwidth, m_ulReuse3SubBandwidth, m_ulSubBandOffset, ns3::MakeUintegerAccessor(), and ns3::TypeId::SetParent().

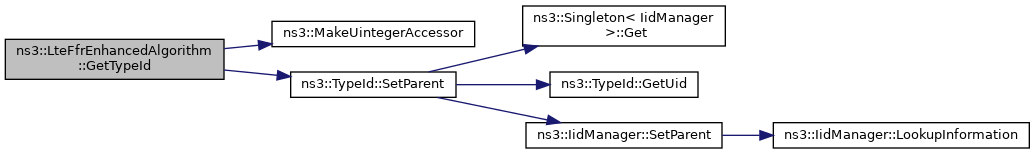

Here is the call graph for this function:

◆ InitializeDownlinkRbgMaps()

void ns3::LteFfrEnhancedAlgorithm::InitializeDownlinkRbgMaps ( )

private

Initialize downlink RBG maps.

Definition at line 349 of file lte-ffr-enhanced-algorithm.cc.

References ns3::LteFfrAlgorithm::GetRbgSize(), ns3::LteFfrAlgorithm::m_dlBandwidth, m_dlPrimarySegmentRbgMap, m_dlRbgMap, m_dlReuse1RbgMap, m_dlReuse1SubBandwidth, m_dlReuse3RbgMap, m_dlReuse3SubBandwidth, m_dlSecondarySegmentRbgMap, m_dlSubBandOffset, and NS_ASSERT_MSG.

Referenced by DoGetAvailableDlRbg(), and Reconfigure().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ InitializeUplinkRbgMaps()

void ns3::LteFfrEnhancedAlgorithm::InitializeUplinkRbgMaps ( )

private

Initialize uplink RBG maps.

Definition at line 405 of file lte-ffr-enhanced-algorithm.cc.

References ns3::LteFfrAlgorithm::m_enabledInUplink, ns3::LteFfrAlgorithm::m_ulBandwidth, m_ulPrimarySegmentRbgMap, m_ulRbgMap, m_ulReuse1RbgMap, m_ulReuse1SubBandwidth, m_ulReuse3RbgMap, m_ulReuse3SubBandwidth, m_ulSecondarySegmentRbgMap, m_ulSubBandOffset, and NS_ASSERT_MSG.

Referenced by DoGetAvailableUlRbg(), and Reconfigure().

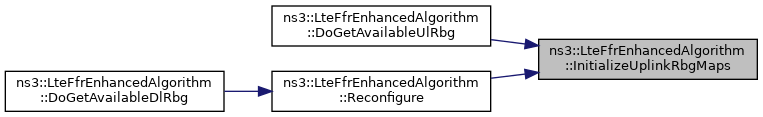

Here is the caller graph for this function:

◆ Reconfigure()

void ns3::LteFfrEnhancedAlgorithm::Reconfigure ( )

overrideprotectedvirtual

Automatic FR reconfiguration.

Implements ns3::LteFfrAlgorithm.

Definition at line 285 of file lte-ffr-enhanced-algorithm.cc.

References InitializeDownlinkRbgMaps(), InitializeUplinkRbgMaps(), ns3::LteFfrAlgorithm::m_dlBandwidth, ns3::LteFfrAlgorithm::m_frCellTypeId, ns3::LteFfrAlgorithm::m_needReconfiguration, ns3::LteFfrAlgorithm::m_ulBandwidth, NS_LOG_FUNCTION, SetDownlinkConfiguration(), and SetUplinkConfiguration().

Referenced by DoGetAvailableDlRbg().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetDownlinkConfiguration()

void ns3::LteFfrEnhancedAlgorithm::SetDownlinkConfiguration	(	uint16_t	cellId,
		uint8_t	bandwidth
	)

private

Set downlink configuration.

Parameters

cellId	the cell ID
bandwidth	the bandwidth

Definition at line 299 of file lte-ffr-enhanced-algorithm.cc.

References ns3::FfrEnhancedDownlinkDefaultConfiguration::dlReuse1SubBandwidth, ns3::FfrEnhancedDownlinkDefaultConfiguration::dlReuse3SubBandwidth, ns3::FfrEnhancedDownlinkDefaultConfiguration::dlSubBandOffset, ns3::g_ffrEnhancedDownlinkDefaultConfiguration, ns3::LteFfrAlgorithm::m_dlBandwidth, m_dlReuse1SubBandwidth, m_dlReuse3SubBandwidth, m_dlSubBandOffset, NS_LOG_FUNCTION, and ns3::NUM_DOWNLINK_CONFS().

Referenced by DoInitialize(), and Reconfigure().

Here is the call graph for this function:

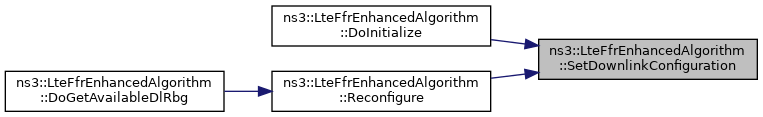

Here is the caller graph for this function:

◆ SetLteFfrRrcSapUser()

void ns3::LteFfrEnhancedAlgorithm::SetLteFfrRrcSapUser ( LteFfrRrcSapUser * s )

overridevirtual

Set the "user" part of the LteFfrRrcSap interface that this frequency reuse algorithm instance will interact with.

Parameters

s	a reference to the "user" part of the interface, typically a member of an LteEnbRrc instance

Implements ns3::LteFfrAlgorithm.

Definition at line 244 of file lte-ffr-enhanced-algorithm.cc.

References m_ffrRrcSapUser, and NS_LOG_FUNCTION.

◆ SetLteFfrSapUser()

void ns3::LteFfrEnhancedAlgorithm::SetLteFfrSapUser ( LteFfrSapUser * s )

overridevirtual

Set the "user" part of the LteFfrSap interface that this frequency reuse algorithm instance will interact with.

Parameters

s	a reference to the "user" part of the interface, typically a member of an Scheduler instance

Implements ns3::LteFfrAlgorithm.

Definition at line 230 of file lte-ffr-enhanced-algorithm.cc.

References m_ffrSapUser, and NS_LOG_FUNCTION.

◆ SetUplinkConfiguration()

void ns3::LteFfrEnhancedAlgorithm::SetUplinkConfiguration	(	uint16_t	cellId,
		uint8_t	bandwidth
	)

private

Set uplink configuration.

Parameters

cellId	the cell ID
bandwidth	the bandwidth

Definition at line 317 of file lte-ffr-enhanced-algorithm.cc.

References ns3::g_ffrEnhancedUplinkDefaultConfiguration, ns3::LteFfrAlgorithm::m_ulBandwidth, m_ulReuse1SubBandwidth, m_ulReuse3SubBandwidth, m_ulSubBandOffset, NS_LOG_FUNCTION, ns3::NUM_UPLINK_CONFS(), ns3::FfrEnhancedUplinkDefaultConfiguration::ulReuse1SubBandwidth, ns3::FfrEnhancedUplinkDefaultConfiguration::ulReuse3SubBandwidth, and ns3::FfrEnhancedUplinkDefaultConfiguration::ulSubBandOffset.

Referenced by DoInitialize(), and Reconfigure().

Here is the call graph for this function:

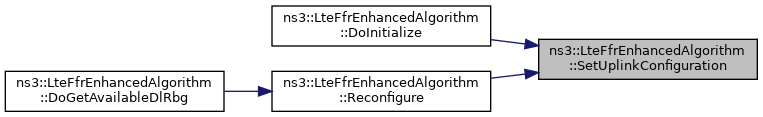

Here is the caller graph for this function:

Friends And Related Function Documentation

◆ MemberLteFfrRrcSapProvider< LteFfrEnhancedAlgorithm >

friend class MemberLteFfrRrcSapProvider< LteFfrEnhancedAlgorithm >

friend

let the forwarder class access the protected and private members

Definition at line 61 of file lte-ffr-enhanced-algorithm.h.

Referenced by LteFfrEnhancedAlgorithm().

◆ MemberLteFfrSapProvider< LteFfrEnhancedAlgorithm >

friend class MemberLteFfrSapProvider< LteFfrEnhancedAlgorithm >

friend

let the forwarder class access the protected and private members

Definition at line 61 of file lte-ffr-enhanced-algorithm.h.

Referenced by LteFfrEnhancedAlgorithm().

Member Data Documentation

◆ m_centerAreaPowerOffset

uint8_t ns3::LteFfrEnhancedAlgorithm::m_centerAreaPowerOffset

private

Center area power offset.

Definition at line 176 of file lte-ffr-enhanced-algorithm.h.

Referenced by DoReportUeMeas(), and GetTypeId().

◆ m_centerAreaTpc

uint8_t ns3::LteFfrEnhancedAlgorithm::m_centerAreaTpc

private

Center area TPC.

Definition at line 179 of file lte-ffr-enhanced-algorithm.h.

Referenced by DoGetTpc(), and GetTypeId().

◆ m_dlCqi

std::map<uint16_t, SbMeasResult_s> ns3::LteFfrEnhancedAlgorithm::m_dlCqi

private

Map of UE's DL CQI A30 received.

Definition at line 186 of file lte-ffr-enhanced-algorithm.h.

Referenced by DoReportDlCqiInfo().

◆ m_dlCqiThreshold

uint8_t ns3::LteFfrEnhancedAlgorithm::m_dlCqiThreshold

private

DL CQI threshold.

Definition at line 182 of file lte-ffr-enhanced-algorithm.h.

Referenced by DoReportDlCqiInfo(), and GetTypeId().

◆ m_dlPrimarySegmentRbgMap

std::vector<bool> ns3::LteFfrEnhancedAlgorithm::m_dlPrimarySegmentRbgMap

private

DL primary segment RBG map.

Definition at line 156 of file lte-ffr-enhanced-algorithm.h.

Referenced by DoIsDlRbgAvailableForUe(), and InitializeDownlinkRbgMaps().

◆ m_dlRbgAvailableforUe

std::map<uint16_t, std::vector<bool> > ns3::LteFfrEnhancedAlgorithm::m_dlRbgAvailableforUe

private

DL RBG available for UE.

Definition at line 187 of file lte-ffr-enhanced-algorithm.h.

Referenced by DoGetAvailableDlRbg(), DoIsDlRbgAvailableForUe(), and DoReportDlCqiInfo().

◆ m_dlRbgMap

std::vector<bool> ns3::LteFfrEnhancedAlgorithm::m_dlRbgMap

private

DL RBG map.

Definition at line 151 of file lte-ffr-enhanced-algorithm.h.

Referenced by DoGetAvailableDlRbg(), and InitializeDownlinkRbgMaps().

◆ m_dlReuse1RbgMap

std::vector<bool> ns3::LteFfrEnhancedAlgorithm::m_dlReuse1RbgMap

private

DL reuse 1 RBG map.

Definition at line 155 of file lte-ffr-enhanced-algorithm.h.

Referenced by DoIsDlRbgAvailableForUe(), and InitializeDownlinkRbgMaps().

◆ m_dlReuse1SubBandwidth

uint8_t ns3::LteFfrEnhancedAlgorithm::m_dlReuse1SubBandwidth

private

DL reuse 1 subband bandwidth.

Definition at line 145 of file lte-ffr-enhanced-algorithm.h.

Referenced by GetTypeId(), InitializeDownlinkRbgMaps(), and SetDownlinkConfiguration().

◆ m_dlReuse3RbgMap

std::vector<bool> ns3::LteFfrEnhancedAlgorithm::m_dlReuse3RbgMap

private

DL reuse 3 RBG map.

Definition at line 154 of file lte-ffr-enhanced-algorithm.h.

Referenced by DoIsDlRbgAvailableForUe(), and InitializeDownlinkRbgMaps().

◆ m_dlReuse3SubBandwidth

uint8_t ns3::LteFfrEnhancedAlgorithm::m_dlReuse3SubBandwidth

private

DL reuse 3 subband bandwidth.

Definition at line 144 of file lte-ffr-enhanced-algorithm.h.

Referenced by GetTypeId(), InitializeDownlinkRbgMaps(), and SetDownlinkConfiguration().

◆ m_dlSecondarySegmentRbgMap

std::vector<bool> ns3::LteFfrEnhancedAlgorithm::m_dlSecondarySegmentRbgMap

private

DL secondary segment RBG map.

Definition at line 157 of file lte-ffr-enhanced-algorithm.h.

Referenced by DoIsDlRbgAvailableForUe(), DoReportDlCqiInfo(), and InitializeDownlinkRbgMaps().

◆ m_dlSubBandOffset

uint8_t ns3::LteFfrEnhancedAlgorithm::m_dlSubBandOffset

private

DL subband offset.

Definition at line 143 of file lte-ffr-enhanced-algorithm.h.

Referenced by GetTypeId(), InitializeDownlinkRbgMaps(), and SetDownlinkConfiguration().

◆ m_edgeAreaPowerOffset

uint8_t ns3::LteFfrEnhancedAlgorithm::m_edgeAreaPowerOffset

private

Edge area power offset.

Definition at line 177 of file lte-ffr-enhanced-algorithm.h.

Referenced by DoReportUeMeas(), and GetTypeId().

◆ m_edgeAreaTpc

uint8_t ns3::LteFfrEnhancedAlgorithm::m_edgeAreaTpc

private

Edge are TPC.

Definition at line 180 of file lte-ffr-enhanced-algorithm.h.

Referenced by DoGetTpc(), and GetTypeId().

◆ m_ffrRrcSapProvider

LteFfrRrcSapProvider* ns3::LteFfrEnhancedAlgorithm::m_ffrRrcSapProvider

private

FFR RRC SAP provider.

Definition at line 141 of file lte-ffr-enhanced-algorithm.h.

Referenced by LteFfrEnhancedAlgorithm(), DoDispose(), and GetLteFfrRrcSapProvider().

◆ m_ffrRrcSapUser

LteFfrRrcSapUser* ns3::LteFfrEnhancedAlgorithm::m_ffrRrcSapUser

private

FFR RRC SAP user.

Definition at line 140 of file lte-ffr-enhanced-algorithm.h.

Referenced by DoInitialize(), DoReportUeMeas(), and SetLteFfrRrcSapUser().

◆ m_ffrSapProvider

LteFfrSapProvider* ns3::LteFfrEnhancedAlgorithm::m_ffrSapProvider

private

FFR SAP provider.

Definition at line 137 of file lte-ffr-enhanced-algorithm.h.

Referenced by LteFfrEnhancedAlgorithm(), DoDispose(), and GetLteFfrSapProvider().

◆ m_ffrSapUser

LteFfrSapUser* ns3::LteFfrEnhancedAlgorithm::m_ffrSapUser

private

FFR SAP user.

Definition at line 136 of file lte-ffr-enhanced-algorithm.h.

Referenced by SetLteFfrSapUser().

◆ m_measId

uint8_t ns3::LteFfrEnhancedAlgorithm::m_measId

private

The expected measurement identity.

Definition at line 194 of file lte-ffr-enhanced-algorithm.h.

Referenced by DoInitialize(), and DoReportUeMeas().

◆ m_rsrqThreshold

uint8_t ns3::LteFfrEnhancedAlgorithm::m_rsrqThreshold

private

RSRQ threshold.

Definition at line 174 of file lte-ffr-enhanced-algorithm.h.

Referenced by DoReportUeMeas(), and GetTypeId().

◆ m_ues

std::map<uint16_t, uint8_t> ns3::LteFfrEnhancedAlgorithm::m_ues

private

UEs.

Definition at line 172 of file lte-ffr-enhanced-algorithm.h.

Referenced by DoGetTpc(), DoIsDlRbgAvailableForUe(), DoIsUlRbgAvailableForUe(), DoReportDlCqiInfo(), and DoReportUeMeas().

◆ m_ulCqi

std::map<uint16_t, std::vector<int> > ns3::LteFfrEnhancedAlgorithm::m_ulCqi

private

UL CQI.

Definition at line 190 of file lte-ffr-enhanced-algorithm.h.

◆ m_ulCqiThreshold

uint8_t ns3::LteFfrEnhancedAlgorithm::m_ulCqiThreshold

private

UL CQI threshold.

Definition at line 189 of file lte-ffr-enhanced-algorithm.h.

Referenced by GetTypeId().

◆ m_ulPrimarySegmentRbgMap

std::vector<bool> ns3::LteFfrEnhancedAlgorithm::m_ulPrimarySegmentRbgMap

private

UL primary segment RBG map.

Definition at line 161 of file lte-ffr-enhanced-algorithm.h.

Referenced by DoIsUlRbgAvailableForUe(), and InitializeUplinkRbgMaps().

◆ m_ulRbAvailableforUe

std::map<uint16_t, std::vector<bool> > ns3::LteFfrEnhancedAlgorithm::m_ulRbAvailableforUe

private

UL RB available for UE.

Definition at line 191 of file lte-ffr-enhanced-algorithm.h.

Referenced by DoGetAvailableUlRbg(), DoIsUlRbgAvailableForUe(), and DoReportDlCqiInfo().

◆ m_ulRbgMap

std::vector<bool> ns3::LteFfrEnhancedAlgorithm::m_ulRbgMap

private

UL RBG Map.

Definition at line 152 of file lte-ffr-enhanced-algorithm.h.

Referenced by DoGetAvailableUlRbg(), and InitializeUplinkRbgMaps().

◆ m_ulReuse1RbgMap

std::vector<bool> ns3::LteFfrEnhancedAlgorithm::m_ulReuse1RbgMap

private

UL reuse 1 RBG map.

Definition at line 160 of file lte-ffr-enhanced-algorithm.h.

Referenced by DoIsUlRbgAvailableForUe(), and InitializeUplinkRbgMaps().

◆ m_ulReuse1SubBandwidth

uint8_t ns3::LteFfrEnhancedAlgorithm::m_ulReuse1SubBandwidth

private

UL reuse 1 subbandwidth.

Definition at line 149 of file lte-ffr-enhanced-algorithm.h.

Referenced by DoGetMinContinuousUlBandwidth(), GetTypeId(), InitializeUplinkRbgMaps(), and SetUplinkConfiguration().

◆ m_ulReuse3RbgMap

std::vector<bool> ns3::LteFfrEnhancedAlgorithm::m_ulReuse3RbgMap

private

UL reuse 3 RBG map.

Definition at line 159 of file lte-ffr-enhanced-algorithm.h.

Referenced by DoIsUlRbgAvailableForUe(), and InitializeUplinkRbgMaps().

◆ m_ulReuse3SubBandwidth

uint8_t ns3::LteFfrEnhancedAlgorithm::m_ulReuse3SubBandwidth

private

UL reuse 3 subbandwidth.

Definition at line 148 of file lte-ffr-enhanced-algorithm.h.

Referenced by DoGetMinContinuousUlBandwidth(), GetTypeId(), InitializeUplinkRbgMaps(), and SetUplinkConfiguration().

◆ m_ulSecondarySegmentRbgMap

std::vector<bool> ns3::LteFfrEnhancedAlgorithm::m_ulSecondarySegmentRbgMap

private

UL secondary segment RBG map.

Definition at line 162 of file lte-ffr-enhanced-algorithm.h.

Referenced by DoIsUlRbgAvailableForUe(), and InitializeUplinkRbgMaps().

◆ m_ulSubBandOffset

uint8_t ns3::LteFfrEnhancedAlgorithm::m_ulSubBandOffset

private

UL subband offset.

Definition at line 147 of file lte-ffr-enhanced-algorithm.h.

Referenced by GetTypeId(), InitializeUplinkRbgMaps(), and SetUplinkConfiguration().

The documentation for this class was generated from the following files:

src/lte/model/lte-ffr-enhanced-algorithm.h
src/lte/model/lte-ffr-enhanced-algorithm.cc

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Types

Private Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ UePosition

Constructor & Destructor Documentation

◆ LteFfrEnhancedAlgorithm()

◆ ~LteFfrEnhancedAlgorithm()

Member Function Documentation

◆ DoDispose()

◆ DoGetAvailableDlRbg()

◆ DoGetAvailableUlRbg()

◆ DoGetMinContinuousUlBandwidth()

◆ DoGetTpc()

◆ DoInitialize()

◆ DoIsDlRbgAvailableForUe()

◆ DoIsUlRbgAvailableForUe()

◆ DoRecvLoadInformation()

◆ DoReportDlCqiInfo()

◆ DoReportUeMeas()

◆ DoReportUlCqiInfo() [1/2]

◆ DoReportUlCqiInfo() [2/2]

◆ EstimateUlSinr()

◆ GetCqiFromSpectralEfficiency()

◆ GetLteFfrRrcSapProvider()

◆ GetLteFfrSapProvider()

◆ GetTypeId()

◆ InitializeDownlinkRbgMaps()

◆ InitializeUplinkRbgMaps()

◆ Reconfigure()

◆ SetDownlinkConfiguration()

◆ SetLteFfrRrcSapUser()

◆ SetLteFfrSapUser()

◆ SetUplinkConfiguration()

Friends And Related Function Documentation

◆ MemberLteFfrRrcSapProvider< LteFfrEnhancedAlgorithm >

◆ MemberLteFfrSapProvider< LteFfrEnhancedAlgorithm >

Member Data Documentation

◆ m_centerAreaPowerOffset

◆ m_centerAreaTpc

◆ m_dlCqi

◆ m_dlCqiThreshold

◆ m_dlPrimarySegmentRbgMap

◆ m_dlRbgAvailableforUe

◆ m_dlRbgMap

◆ m_dlReuse1RbgMap

◆ m_dlReuse1SubBandwidth

◆ m_dlReuse3RbgMap

◆ m_dlReuse3SubBandwidth

◆ m_dlSecondarySegmentRbgMap

◆ m_dlSubBandOffset

◆ m_edgeAreaPowerOffset

◆ m_edgeAreaTpc

◆ m_ffrRrcSapProvider

◆ m_ffrRrcSapUser

◆ m_ffrSapProvider

◆ m_ffrSapUser

◆ m_measId

◆ m_rsrqThreshold

◆ m_ues

◆ m_ulCqi

◆ m_ulCqiThreshold

◆ m_ulPrimarySegmentRbgMap

◆ m_ulRbAvailableforUe

◆ m_ulRbgMap

◆ m_ulReuse1RbgMap

◆ m_ulReuse1SubBandwidth

◆ m_ulReuse3RbgMap

◆ m_ulReuse3SubBandwidth

◆ m_ulSecondarySegmentRbgMap

◆ m_ulSubBandOffset
