Testing the initial cell selection procedure by UE at IDLE state in the beginning of simulation with multiple component carriers. More...

#include "lte-test-secondary-cell-selection.h"

Inheritance diagram for LteSecondaryCellSelectionTestCase:

Collaboration diagram for LteSecondaryCellSelectionTestCase:

Public Member Functions
	LteSecondaryCellSelectionTestCase (std::string name, bool isIdealRrc, uint64_t rngRun, uint8_t numberOfComponentCarriers)
	Creates an instance of the initial cell selection test case. More...

	~LteSecondaryCellSelectionTestCase () override

Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete

virtual	~TestCase ()
	Destructor. More...

std::string	GetName () const

TestCase &	operator= (const TestCase &)=delete

Private Member Functions
void	ConnectionEstablishedCallback (std::string context, uint64_t imsi, uint16_t cellId, uint16_t rnti)
	Connection established callback function. More...

void	DoRun () override
	Setup the simulation according to the configuration set by the class constructor, run it, and verify the result. More...

void	InitialSecondaryCellSelectionEndOkCallback (std::string context, uint64_t imsi, uint16_t cellId)
	Initial cell selection end ok callback function. More...

void	StateTransitionCallback (std::string context, uint64_t imsi, uint16_t cellId, uint16_t rnti, LteUeRrc::State oldState, LteUeRrc::State newState)
	State transition callback function. More...

Private Attributes
bool	m_isIdealRrc
	whether the LTE is configured to use ideal RRC More...

std::map< uint64_t, LteUeRrc::State >	m_lastState
	The current UE RRC state. More...

uint8_t	m_numberOfComponentCarriers
	number of component carriers More...

uint64_t	m_rngRun
	rng run More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...

void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...

TestCase *	GetParent () const
	Get the parent of this TestCase. More...

bool	IsStatusFailure () const
	Check if any tests failed. More...

bool	IsStatusSuccess () const
	Check if all tests passed. More...

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...

bool	MustAssertOnFailure () const
	Check if this run should assert on failure. More...

bool	MustContinueOnFailure () const
	Check if this run should continue on failure. More...

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

Testing the initial cell selection procedure by UE at IDLE state in the beginning of simulation with multiple component carriers.

Definition at line 56 of file lte-test-secondary-cell-selection.h.

Constructor & Destructor Documentation

◆ LteSecondaryCellSelectionTestCase()

LteSecondaryCellSelectionTestCase::LteSecondaryCellSelectionTestCase	(	std::string	name,
		bool	isIdealRrc,
		uint64_t	rngRun,
		uint8_t	numberOfComponentCarriers
	)

Creates an instance of the initial cell selection test case.

Parameters

name	name of this test
isIdealRrc	if true, simulation uses Ideal RRC protocol, otherwise simulation uses Real RRC protocol
rngRun	the number of run to be used by the random number generator
numberOfComponentCarriers	number of component carriers

Definition at line 80 of file lte-test-secondary-cell-selection.cc.

References ns3::TestCase::GetName(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ ~LteSecondaryCellSelectionTestCase()

LteSecondaryCellSelectionTestCase::~LteSecondaryCellSelectionTestCase ( )

override

Definition at line 93 of file lte-test-secondary-cell-selection.cc.

References ns3::TestCase::GetName(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

Member Function Documentation

◆ ConnectionEstablishedCallback()

void LteSecondaryCellSelectionTestCase::ConnectionEstablishedCallback	(	std::string	context,
		uint64_t	imsi,
		uint16_t	cellId,
		uint16_t	rnti
	)

private

Connection established callback function.

Parameters

context	the context string
imsi	the IMSI
cellId	the cell ID
rnti	the RNTI

Definition at line 193 of file lte-test-secondary-cell-selection.cc.

References NS_LOG_FUNCTION.

Referenced by DoRun().

Here is the caller graph for this function:

◆ DoRun()

void LteSecondaryCellSelectionTestCase::DoRun ( void )

overrideprivatevirtual

Setup the simulation according to the configuration set by the class constructor, run it, and verify the result.

Implements ns3::TestCase.

Definition at line 99 of file lte-test-secondary-cell-selection.cc.

References ns3::Config::Connect(), ConnectionEstablishedCallback(), ns3::NodeContainer::Create(), ns3::TestCase::GetName(), ns3::FriisSpectrumPropagationLossModel::GetTypeId(), nsclick-simple-lan::internet, m_isIdealRrc, m_lastState, m_numberOfComponentCarriers, m_rngRun, ns3::MakeCallback(), third::mobility, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_TEST_ASSERT_MSG_EQ, ns3::Seconds(), ns3::Config::SetGlobal(), and StateTransitionCallback().

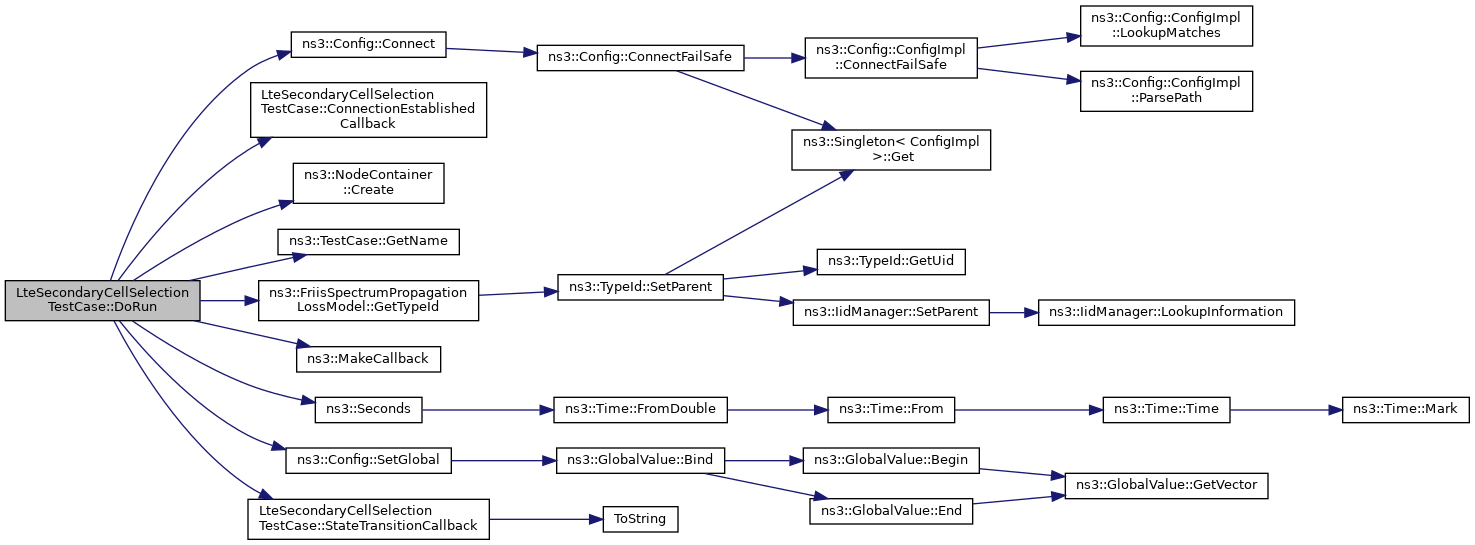

Here is the call graph for this function:

◆ InitialSecondaryCellSelectionEndOkCallback()

void LteSecondaryCellSelectionTestCase::InitialSecondaryCellSelectionEndOkCallback	(	std::string	context,
		uint64_t	imsi,
		uint16_t	cellId
	)

private

Initial cell selection end ok callback function.

Parameters

context	the context string
imsi	the IMSI
cellId	the cell ID

◆ StateTransitionCallback()

void LteSecondaryCellSelectionTestCase::StateTransitionCallback	(	std::string	context,
		uint64_t	imsi,
		uint16_t	cellId,
		uint16_t	rnti,
		LteUeRrc::State	oldState,
		LteUeRrc::State	newState
	)
