This class implements the MAC layer of the eNodeB device. More...

#include "lte-enb-mac.h"

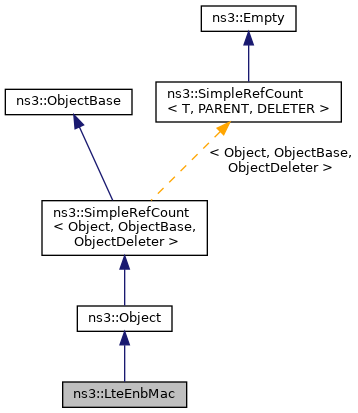

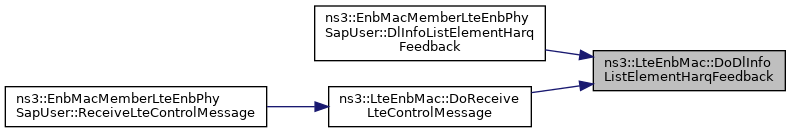

Inheritance diagram for ns3::LteEnbMac:

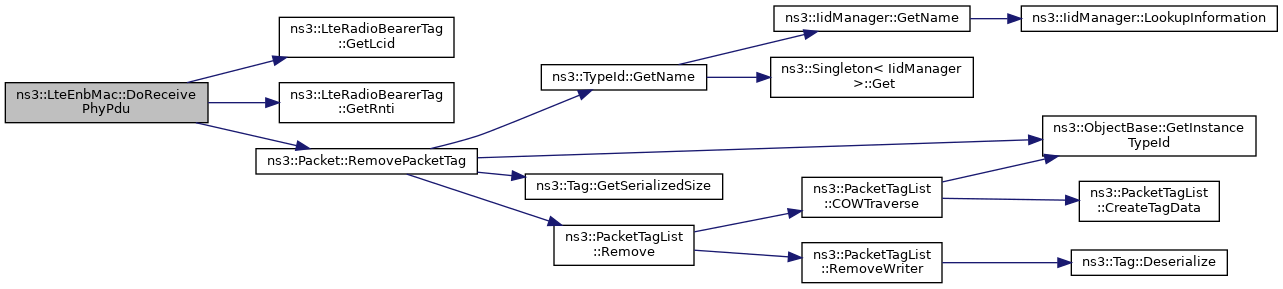

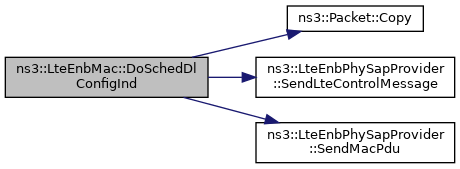

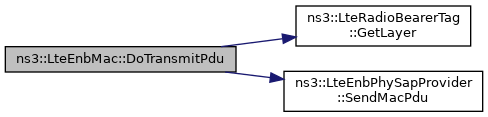

Collaboration diagram for ns3::LteEnbMac:

Classes
struct	NcRaPreambleInfo
	info associated with a preamble allocated for non-contention based RA More...

Public Types
typedef void(*	DlSchedulingTracedCallback) (const uint32_t frame, const uint32_t subframe, const uint16_t rnti, const uint8_t mcs0, const uint16_t tbs0Size, const uint8_t mcs1, const uint16_t tbs1Size, const uint8_t ccId)
	TracedCallback signature for DL scheduling events. More...

typedef void(*	UlSchedulingTracedCallback) (const uint32_t frame, const uint32_t subframe, const uint16_t rnti, const uint8_t mcs, const uint16_t tbsSize)
	TracedCallback signature for UL scheduling events. More...

Public Member Functions
	LteEnbMac ()

	~LteEnbMac () override

void	DoDispose () override
	Destructor implementation. More...

void	DoReceivePhyPdu (Ptr< Packet > p)
	legacy public for use the Phy callback More...

FfMacCschedSapUser *	GetFfMacCschedSapUser ()
	Get the control scheduler SAP user. More...

FfMacSchedSapUser *	GetFfMacSchedSapUser ()
	Get the scheduler SAP user. More...

LteCcmMacSapProvider *	GetLteCcmMacSapProvider ()
	Get the eNB-ComponentCarrierManager SAP User. More...

LteEnbCmacSapProvider *	GetLteEnbCmacSapProvider ()
	Get the control MAC SAP provider. More...

LteEnbPhySapUser *	GetLteEnbPhySapUser ()
	Get the eNB-PHY SAP User. More...

LteMacSapProvider *	GetLteMacSapProvider ()
	Get the MAC SAP provider. More...

void	SetComponentCarrierId (uint8_t index)
	Set the component carrier ID. More...

void	SetFfMacCschedSapProvider (FfMacCschedSapProvider *s)
	Set the control scheduler SAP provider. More...

void	SetFfMacSchedSapProvider (FfMacSchedSapProvider *s)
	Set the scheduler SAP provider. More...

void	SetLteCcmMacSapUser (LteCcmMacSapUser *s)
	Set the ComponentCarrierManager SAP user. More...

void	SetLteEnbCmacSapUser (LteEnbCmacSapUser *s)
	Set the control MAC SAP user. More...

void	SetLteEnbPhySapProvider (LteEnbPhySapProvider *s)
	Set the PHY SAP Provider. More...

void	SetLteMacSapUser (LteMacSapUser *s)
	Set the MAC SAP user. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Private Member Functions
void	DoAddLc (LteEnbCmacSapProvider::LcInfo lcinfo, LteMacSapUser *msu)
	Add LC function. More...

void	DoAddUe (uint16_t rnti)
	Add UE function. More...

LteEnbCmacSapProvider::AllocateNcRaPreambleReturnValue	DoAllocateNcRaPreamble (uint16_t rnti)
	Allocate NC RA preamble function. More...

void	DoConfigureMac (uint16_t ulBandwidth, uint16_t dlBandwidth)
	Configure MAC function. More...

void	DoCschedCellConfigCnf (FfMacCschedSapUser::CschedCellConfigCnfParameters params)
	CSched Cell Config configure function. More...

void	DoCschedCellConfigUpdateInd (FfMacCschedSapUser::CschedCellConfigUpdateIndParameters params)
	CSched Cell Config Update Indication function. More...

void	DoCschedLcConfigCnf (FfMacCschedSapUser::CschedLcConfigCnfParameters params)
	CSched LC Config configure function. More...

void	DoCschedLcReleaseCnf (FfMacCschedSapUser::CschedLcReleaseCnfParameters params)
	CSched LC Release configure function. More...

void	DoCschedUeConfigCnf (FfMacCschedSapUser::CschedUeConfigCnfParameters params)
	CSched UE Config configure function. More...

void	DoCschedUeConfigUpdateInd (FfMacCschedSapUser::CschedUeConfigUpdateIndParameters params)
	CSched UE Config Update Indication function. More...

void	DoCschedUeReleaseCnf (FfMacCschedSapUser::CschedUeReleaseCnfParameters params)
	CSched UE Release configure function. More...

void	DoDlInfoListElementHarqFeedback (DlInfoListElement_s params)
	DL Info List ELements HARQ Feedback function. More...

LteEnbCmacSapProvider::RachConfig	DoGetRachConfig () const
	Get RACH configuration function. More...

void	DoReceiveLteControlMessage (Ptr< LteControlMessage > msg)
	Receive a DL CQI ideal control message. More...

void	DoReceiveRachPreamble (uint8_t prachId)
	Receive RACH Preamble function. More...

void	DoReconfigureLc (LteEnbCmacSapProvider::LcInfo lcinfo)
	Reconfigure LC function. More...

void	DoReleaseLc (uint16_t rnti, uint8_t lcid)
	Release LC function. More...

void	DoRemoveUe (uint16_t rnti)
	Remove UE function. More...

void	DoReportBufferStatus (LteMacSapProvider::ReportBufferStatusParameters params)
	Report Buffer Status function. More...

void	DoReportMacCeToScheduler (MacCeListElement_s bsr)
	Report MAC CE to scheduler. More...

void	DoReportSrToScheduler (uint16_t rnti[[maybe_unused]])
	Report SR to scheduler. More...

void	DoSchedDlConfigInd (FfMacSchedSapUser::SchedDlConfigIndParameters ind)
	Sched DL Config Indication function. More...

void	DoSchedUlConfigInd (FfMacSchedSapUser::SchedUlConfigIndParameters params)
	Sched UL Config Indication function. More...

void	DoSubframeIndication (uint32_t frameNo, uint32_t subframeNo)
	Subrame Indication function. More...

void	DoTransmitPdu (LteMacSapProvider::TransmitPduParameters params)
	Transmit PDU function. More...

void	DoUeUpdateConfigurationReq (LteEnbCmacSapProvider::UeConfig params)
	UE Update configuration request function. More...

void	DoUlCqiReport (FfMacSchedSapProvider::SchedUlCqiInfoReqParameters ulcqi)
	UL CQI report. More...

void	DoUlInfoListElementHarqFeedback (UlInfoListElement_s params)
	UL Info List ELements HARQ Feedback function. More...

void	ReceiveBsrMessage (MacCeListElement_s bsr)
	Receive a CE element containing the buffer status report. More...

void	ReceiveDlCqiLteControlMessage (Ptr< DlCqiLteControlMessage > msg)
	Receive a DL CQI ideal control message. More...

Private Attributes
std::map< uint8_t, NcRaPreambleInfo >	m_allocatedNcRaPreambleMap
	map storing as key the random access preamble IDs allocated for non-contention based access, and as value the associated info More...

LteCcmMacSapProvider *	m_ccmMacSapProvider
	CCM MAC SAP provider. More...

LteCcmMacSapUser *	m_ccmMacSapUser
	CCM MAC SAP user. More...

LteEnbCmacSapProvider *	m_cmacSapProvider
	the CMAC SAP provider More...

LteEnbCmacSapUser *	m_cmacSapUser
	the CMAC SAP user More...

uint8_t	m_componentCarrierId
	component carrier Id used to address sap More...

uint8_t	m_connEstFailCount
	the counter value for T300 timer expiration More...

FfMacCschedSapProvider *	m_cschedSapProvider
	the Csched SAP provider More...

FfMacCschedSapUser *	m_cschedSapUser
	the CSched SAP user More...

std::vector< CqiListElement_s >	m_dlCqiReceived
	DL-CQI received. More...

std::vector< DlInfoListElement_s >	m_dlInfoListReceived
	DL HARQ feedback received. More...

TracedCallback< DlSchedulingCallbackInfo >	m_dlScheduling
	Trace information regarding DL scheduling Frame number, Subframe number, RNTI, MCS of TB1, size of TB1, MCS of TB2 (0 if not present), size of TB2 (0 if not present) More...

LteEnbPhySapProvider *	m_enbPhySapProvider
	the ENB Phy SAP provider More...

LteEnbPhySapUser *	m_enbPhySapUser
	the ENB Phy SAP user More...

uint32_t	m_frameNo
	frame number of current subframe indication More...

uint8_t	m_macChTtiDelay
	delay of MAC, PHY and channel in terms of TTIs More...

LteMacSapProvider *	m_macSapProvider
	the MAC SAP provider More...

LteMacSapUser *	m_macSapUser
	the MAC SAP user More...

std::map< uint16_t, DlHarqProcessesBuffer_t >	m_miDlHarqProcessesPackets
	Packet under transmission of the DL HARQ process. More...

uint8_t	m_numberOfRaPreambles
	number of RA preambles More...

uint8_t	m_preambleTransMax
	preamble transmit maximum More...

std::map< uint16_t, uint32_t >	m_rapIdRntiMap
	RAPID RNTI map. More...

uint8_t	m_raResponseWindowSize
	RA response window size. More...

std::map< uint8_t, uint32_t >	m_receivedRachPreambleCount
	received RACH preamble count More...

std::map< uint16_t, std::map< uint8_t, LteMacSapUser * > >	m_rlcAttached
	RNTI, LC ID, SAP of the RLC instance. More...

FfMacSchedSapProvider *	m_schedSapProvider
	the Sched SAP provider More...

FfMacSchedSapUser *	m_schedSapUser
	the Sched SAP user More...

uint32_t	m_subframeNo
	subframe number of current subframe indication More...

std::vector< MacCeListElement_s >	m_ulCeReceived
	CE received (BSR up to now) More...

std::vector< FfMacSchedSapProvider::SchedUlCqiInfoReqParameters >	m_ulCqiReceived
	UL-CQI received. More...

std::vector< UlInfoListElement_s >	m_ulInfoListReceived
	UL HARQ feedback received. More...

TracedCallback< uint32_t, uint32_t, uint16_t, uint8_t, uint16_t, uint8_t >	m_ulScheduling
	Trace information regarding UL scheduling Frame number, Subframe number, RNTI, MCS of TB, size of TB, component carrier id. More...

Friends
class	EnbMacMemberFfMacCschedSapUser
	allow EnbMacMemberFfMacCschedSapUser class friend access More...

class	EnbMacMemberFfMacSchedSapUser
	allow EnbMacMemberFfMacSchedSapUser class friend access More...

class	EnbMacMemberLteEnbCmacSapProvider
	allow EnbMacMemberLteEnbCmacSapProvider class friend access More...

class	EnbMacMemberLteEnbPhySapUser
	allow EnbMacMemberLteEnbPhySapUser class friend access More...

class	EnbMacMemberLteMacSapProvider< LteEnbMac >
	allow EnbMacMemberLteMacSapProvider<LteEnbMac> class friend access More...

class	MemberLteCcmMacSapProvider< LteEnbMac >
	allow MemberLteCcmMacSapProvider<LteEnbMac> class friend access More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize ()
	Initialize() implementation. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

This class implements the MAC layer of the eNodeB device.

Definition at line 57 of file lte-enb-mac.h.

Member Typedef Documentation

◆ DlSchedulingTracedCallback

typedef void(* ns3::LteEnbMac::DlSchedulingTracedCallback) (const uint32_t frame, const uint32_t subframe, const uint16_t rnti, const uint8_t mcs0, const uint16_t tbs0Size, const uint8_t mcs1, const uint16_t tbs1Size, const uint8_t ccId)

TracedCallback signature for DL scheduling events.

Parameters

[in]	frame	Frame number.
[in]	subframe	Subframe number.
[in]	rnti	The C-RNTI identifying the UE.
[in]	mcs0	The MCS for transport block..
[in]	tbs0Size
[in]	mcs1	The MCS for transport block.
[in]	tbs1Size
[in]	component	carrier id

Definition at line 166 of file lte-enb-mac.h.

◆ UlSchedulingTracedCallback

typedef void(* ns3::LteEnbMac::UlSchedulingTracedCallback) (const uint32_t frame, const uint32_t subframe, const uint16_t rnti, const uint8_t mcs, const uint16_t tbsSize)

TracedCallback signature for UL scheduling events.

Parameters

[in]	frame	Frame number.
[in]	subframe	Subframe number.
[in]	rnti	The C-RNTI identifying the UE.
[in]	mcs	The MCS for transport block
[in]	tbsSize

Definition at line 184 of file lte-enb-mac.h.

Constructor & Destructor Documentation

◆ LteEnbMac()

ns3::LteEnbMac::LteEnbMac ( )

Definition at line 362 of file lte-enb-mac.cc.

References EnbMacMemberFfMacCschedSapUser, EnbMacMemberFfMacSchedSapUser, EnbMacMemberLteEnbCmacSapProvider, EnbMacMemberLteEnbPhySapUser, EnbMacMemberLteMacSapProvider< LteEnbMac >, m_ccmMacSapProvider, m_cmacSapProvider, m_cschedSapUser, m_enbPhySapUser, m_macSapProvider, m_schedSapUser, MemberLteCcmMacSapProvider< LteEnbMac >, and NS_LOG_FUNCTION.

◆ ~LteEnbMac()

ns3::LteEnbMac::~LteEnbMac ( )

override

Definition at line 374 of file lte-enb-mac.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ DoAddLc()

void ns3::LteEnbMac::DoAddLc	(	LteEnbCmacSapProvider::LcInfo	lcinfo,
		LteMacSapUser *	msu
	)

private

Add LC function.

Parameters

lcinfo	the LC info
msu	the LTE MAC SAP user

Definition at line 865 of file lte-enb-mac.cc.

Referenced by ns3::EnbMacMemberLteEnbCmacSapProvider::AddLc().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoAddUe()

void ns3::LteEnbMac::DoAddUe ( uint16_t rnti )

private

Add UE function.

Parameters

rnti the RNTI

Definition at line 784 of file lte-enb-mac.cc.

References ns3::FfMacCschedSapProvider::CschedUeConfigReq(), m_cschedSapProvider, m_miDlHarqProcessesPackets, m_rlcAttached, NS_ASSERT_MSG, NS_LOG_FUNCTION, and two-ray-to-three-gpp-ch-calibration::params.

Referenced by ns3::EnbMacMemberLteEnbCmacSapProvider::AddUe().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoAllocateNcRaPreamble()

LteEnbCmacSapProvider::AllocateNcRaPreambleReturnValue ns3::LteEnbMac::DoAllocateNcRaPreamble ( uint16_t rnti )

private

Allocate NC RA preamble function.

Parameters

rnti the RNTI

Returns: LteEnbCmacSapProvider::AllocateNcRaPreambleReturnValue

Allocate preamble only if its free. The non-contention preamble assigned to UE during handover or PDCCH order is valid only until the time duration of the “expiryTime” of the preamble is reached. This timer value is only maintained at the eNodeB and the UE has no way of knowing if this timer has expired. If the UE tries to send the preamble again after the expiryTime and the preamble is re-assigned to another UE, it results in errors. This has been solved by re-assigning the preamble to another UE only if it is not being used (An UE can be using the preamble even after the expiryTime duration).

Definition at line 957 of file lte-enb-mac.cc.

References ns3::LteEnbMac::NcRaPreambleInfo::expiryTime, ns3::LteEnbCmacSapUser::IsRandomAccessCompleted(), m_allocatedNcRaPreambleMap, m_cmacSapUser, m_numberOfRaPreambles, m_preambleTransMax, m_raResponseWindowSize, ns3::MilliSeconds(), ns3::Simulator::Now(), NS_LOG_INFO, ns3::LteEnbCmacSapProvider::AllocateNcRaPreambleReturnValue::raPrachMaskIndex, ns3::LteEnbCmacSapProvider::AllocateNcRaPreambleReturnValue::raPreambleId, ns3::LteEnbMac::NcRaPreambleInfo::rnti, and ns3::LteEnbCmacSapProvider::AllocateNcRaPreambleReturnValue::valid.

Referenced by ns3::EnbMacMemberLteEnbCmacSapProvider::AllocateNcRaPreamble().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoConfigureMac()

void ns3::LteEnbMac::DoConfigureMac	(	uint16_t	ulBandwidth,
		uint16_t	dlBandwidth
	)

private

Configure MAC function.

Parameters

ulBandwidth	the UL bandwidth
dlBandwidth	the DL bandwidth

Definition at line 771 of file lte-enb-mac.cc.

References ns3::FfMacCschedSapProvider::CschedCellConfigReq(), ns3::LteEnbPhySapProvider::GetMacChTtiDelay(), m_cschedSapProvider, m_enbPhySapProvider, m_macChTtiDelay, NS_LOG_FUNCTION, and two-ray-to-three-gpp-ch-calibration::params.

Referenced by ns3::EnbMacMemberLteEnbCmacSapProvider::ConfigureMac().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoCschedCellConfigCnf()

void ns3::LteEnbMac::DoCschedCellConfigCnf ( FfMacCschedSapUser::CschedCellConfigCnfParameters params )

private

CSched Cell Config configure function.

Parameters

params FfMacCschedSapUser::CschedCellConfigCnfParameters

Definition at line 1234 of file lte-enb-mac.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::EnbMacMemberFfMacCschedSapUser::CschedCellConfigCnf().

Here is the caller graph for this function:

◆ DoCschedCellConfigUpdateInd()

void ns3::LteEnbMac::DoCschedCellConfigUpdateInd ( FfMacCschedSapUser::CschedCellConfigUpdateIndParameters params )

private

CSched Cell Config Update Indication function.

Parameters

params FfMacCschedSapUser::CschedCellConfigUpdateIndParameters

Definition at line 1277 of file lte-enb-mac.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::EnbMacMemberFfMacCschedSapUser::CschedCellConfigUpdateInd().

Here is the caller graph for this function:

◆ DoCschedLcConfigCnf()

void ns3::LteEnbMac::DoCschedLcConfigCnf ( FfMacCschedSapUser::CschedLcConfigCnfParameters params )

private

CSched LC Config configure function.

Parameters

params FfMacCschedSapUser::CschedLcConfigCnfParameters

Definition at line 1246 of file lte-enb-mac.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::EnbMacMemberFfMacCschedSapUser::CschedLcConfigCnf().

Here is the caller graph for this function:

◆ DoCschedLcReleaseCnf()

void ns3::LteEnbMac::DoCschedLcReleaseCnf ( FfMacCschedSapUser::CschedLcReleaseCnfParameters params )

private

CSched LC Release configure function.

Parameters

params FfMacCschedSapUser::CschedLcReleaseCnfParameters

Definition at line 1254 of file lte-enb-mac.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::EnbMacMemberFfMacCschedSapUser::CschedLcReleaseCnf().

Here is the caller graph for this function:

◆ DoCschedUeConfigCnf()

void ns3::LteEnbMac::DoCschedUeConfigCnf ( FfMacCschedSapUser::CschedUeConfigCnfParameters params )

private

CSched UE Config configure function.

Parameters

params FfMacCschedSapUser::CschedUeConfigCnfParameters

Definition at line 1240 of file lte-enb-mac.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::EnbMacMemberFfMacCschedSapUser::CschedUeConfigCnf().

Here is the caller graph for this function:

◆ DoCschedUeConfigUpdateInd()

void ns3::LteEnbMac::DoCschedUeConfigUpdateInd ( FfMacCschedSapUser::CschedUeConfigUpdateIndParameters params )

private

CSched UE Config Update Indication function.

Parameters

params FfMacCschedSapUser::CschedUeConfigUpdateIndParameters

Definition at line 1266 of file lte-enb-mac.cc.

References m_cmacSapUser, ns3::LteEnbCmacSapUser::UeConfig::m_rnti, ns3::LteEnbCmacSapUser::UeConfig::m_transmissionMode, NS_LOG_FUNCTION, two-ray-to-three-gpp-ch-calibration::params, and ns3::LteEnbCmacSapUser::RrcConfigurationUpdateInd().

Referenced by ns3::EnbMacMemberFfMacCschedSapUser::CschedUeConfigUpdateInd().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoCschedUeReleaseCnf()

void ns3::LteEnbMac::DoCschedUeReleaseCnf ( FfMacCschedSapUser::CschedUeReleaseCnfParameters params )

private

CSched UE Release configure function.

Parameters

params FfMacCschedSapUser::CschedUeReleaseCnfParameters

Definition at line 1260 of file lte-enb-mac.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::EnbMacMemberFfMacCschedSapUser::CschedUeReleaseCnf().

Here is the caller graph for this function:

◆ DoDispose()

void ns3::LteEnbMac::DoDispose ( void )

overridevirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 380 of file lte-enb-mac.cc.

References m_ccmMacSapProvider, m_cmacSapProvider, m_cschedSapUser, m_dlCqiReceived, m_dlInfoListReceived, m_enbPhySapUser, m_macSapProvider, m_miDlHarqProcessesPackets, m_schedSapUser, m_ulCeReceived, m_ulCqiReceived, m_ulInfoListReceived, and NS_LOG_FUNCTION.

◆ DoDlInfoListElementHarqFeedback()

void ns3::LteEnbMac::DoDlInfoListElementHarqFeedback ( DlInfoListElement_s params )

private

DL Info List ELements HARQ Feedback function.

Parameters

params DlInfoListElement_s

Definition at line 1291 of file lte-enb-mac.cc.

References ns3::DlInfoListElement_s::ACK, m_dlInfoListReceived, m_miDlHarqProcessesPackets, ns3::DlInfoListElement_s::NACK, NS_ASSERT, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_FUNCTION, and two-ray-to-three-gpp-ch-calibration::params.

Referenced by ns3::EnbMacMemberLteEnbPhySapUser::DlInfoListElementHarqFeedback(), and DoReceiveLteControlMessage().

Here is the caller graph for this function:

◆ DoGetRachConfig()

LteEnbCmacSapProvider::RachConfig ns3::LteEnbMac::DoGetRachConfig ( ) const

private

Get RACH configuration function.

Returns: LteEnbCmacSapProvider::RachConfig

Definition at line 946 of file lte-enb-mac.cc.

References m_connEstFailCount, m_numberOfRaPreambles, m_preambleTransMax, m_raResponseWindowSize, and two-ray-to-three-gpp-ch-calibration::rc.

Referenced by ns3::EnbMacMemberLteEnbCmacSapProvider::GetRachConfig().

Here is the caller graph for this function:

◆ DoReceiveLteControlMessage()

void ns3::LteEnbMac::DoReceiveLteControlMessage ( Ptr< LteControlMessage > msg )

private

Receive a DL CQI ideal control message.

Parameters

msg	the DL CQI message

Definition at line 631 of file lte-enb-mac.cc.

References ns3::LteControlMessage::BSR, ns3::LteControlMessage::DL_CQI, ns3::LteControlMessage::DL_HARQ, DoDlInfoListElementHarqFeedback(), NS_LOG_FUNCTION, NS_LOG_LOGIC, ReceiveBsrMessage(), and ReceiveDlCqiLteControlMessage().

Referenced by ns3::EnbMacMemberLteEnbPhySapUser::ReceiveLteControlMessage().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoReceivePhyPdu()

void ns3::LteEnbMac::DoReceivePhyPdu ( Ptr< Packet > p )

legacy public for use the Phy callback

Parameters

p packet

Definition at line 709 of file lte-enb-mac.cc.

References ns3::LteRadioBearerTag::GetLcid(), ns3::LteRadioBearerTag::GetRnti(), ns3::LteMacSapUser::ReceivePduParameters::lcid, m_rlcAttached, NS_ASSERT_MSG, NS_LOG_FUNCTION, ns3::LteMacSapUser::ReceivePduParameters::p, ns3::Packet::RemovePacketTag(), and ns3::LteMacSapUser::ReceivePduParameters::rnti.

Referenced by ns3::EnbMacMemberLteEnbPhySapUser::ReceivePhyPdu().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoReceiveRachPreamble()

void ns3::LteEnbMac::DoReceiveRachPreamble ( uint8_t prachId )

private

Receive RACH Preamble function.

Parameters

prachId PRACH ID number

Definition at line 658 of file lte-enb-mac.cc.

References m_receivedRachPreambleCount, and NS_LOG_FUNCTION.

Referenced by ns3::EnbMacMemberLteEnbPhySapUser::ReceiveRachPreamble().

Here is the caller graph for this function:

◆ DoReconfigureLc()

void ns3::LteEnbMac::DoReconfigureLc ( LteEnbCmacSapProvider::LcInfo lcinfo )

private

Reconfigure LC function.

Parameters

lcinfo the LC info

Definition at line 912 of file lte-enb-mac.cc.

References NS_FATAL_ERROR.

Referenced by ns3::EnbMacMemberLteEnbCmacSapProvider::ReconfigureLc().

Here is the caller graph for this function:

◆ DoReleaseLc()

void ns3::LteEnbMac::DoReleaseLc	(	uint16_t	rnti,
		uint8_t	lcid
	)

private

Release LC function.

Parameters

rnti	the RNTI
lcid	the LCID

Definition at line 918 of file lte-enb-mac.cc.

References ns3::FfMacCschedSapProvider::CschedLcReleaseReq(), m_cschedSapProvider, m_rlcAttached, NS_LOG_FUNCTION, and two-ray-to-three-gpp-ch-calibration::params.

Referenced by ns3::EnbMacMemberLteEnbCmacSapProvider::ReleaseLc().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoRemoveUe()

void ns3::LteEnbMac::DoRemoveUe ( uint16_t rnti )

private

Remove UE function.

Parameters

rnti the RNTI

Definition at line 821 of file lte-enb-mac.cc.

References ns3::FfMacCschedSapProvider::CschedUeReleaseReq(), m_allocatedNcRaPreambleMap, m_cschedSapProvider, m_miDlHarqProcessesPackets, m_receivedRachPreambleCount, m_rlcAttached, m_ulCeReceived, NS_LOG_DEBUG, NS_LOG_FUNCTION, and two-ray-to-three-gpp-ch-calibration::params.

Referenced by ns3::EnbMacMemberLteEnbCmacSapProvider::RemoveUe().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoReportBufferStatus()

void ns3::LteEnbMac::DoReportBufferStatus ( LteMacSapProvider::ReportBufferStatusParameters params )

private

Report Buffer Status function.

Parameters

params LteMacSapProvider::ReportBufferStatusParameters

Definition at line 1040 of file lte-enb-mac.cc.

Here is the call graph for this function:

◆ DoReportMacCeToScheduler()

void ns3::LteEnbMac::DoReportMacCeToScheduler ( MacCeListElement_s bsr )

private

Report MAC CE to scheduler.

Parameters

bsr the BSR

Definition at line 698 of file lte-enb-mac.cc.

References m_ulCeReceived, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

◆ DoReportSrToScheduler()

void ns3::LteEnbMac::DoReportSrToScheduler ( uint16_t rnti] [[maybe_unused] )

inlineprivate

Report SR to scheduler.

Parameters

rnti	RNTI of the UE that requested the SR

Since SR is not implemented in LTE, this method does nothing.

Definition at line 354 of file lte-enb-mac.h.

◆ DoSchedDlConfigInd()

void ns3::LteEnbMac::DoSchedDlConfigInd ( FfMacSchedSapUser::SchedDlConfigIndParameters ind )

private

Sched DL Config Indication function.

Parameters

ind	FfMacSchedSapUser::SchedDlConfigIndParameters

Definition at line 1059 of file lte-enb-mac.cc.

Referenced by ns3::EnbMacMemberFfMacSchedSapUser::SchedDlConfigInd().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoSchedUlConfigInd()

void ns3::LteEnbMac::DoSchedUlConfigInd ( FfMacSchedSapUser::SchedUlConfigIndParameters params )

private

Sched UL Config Indication function.

Parameters

params FfMacSchedSapUser::SchedUlConfigIndParameters

Definition at line 1205 of file lte-enb-mac.cc.

References m_componentCarrierId, ns3::FfMacSchedSapUser::SchedUlConfigIndParameters::m_dciList, m_enbPhySapProvider, m_frameNo, m_subframeNo, m_ulScheduling, NS_LOG_FUNCTION, and ns3::LteEnbPhySapProvider::SendLteControlMessage().

Referenced by ns3::EnbMacMemberFfMacSchedSapUser::SchedUlConfigInd().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoSubframeIndication()

void ns3::LteEnbMac::DoSubframeIndication	(	uint32_t	frameNo,
		uint32_t	subframeNo
	)

private

Subrame Indication function.

Parameters

frameNo	frame number
subframeNo	subframe number

Definition at line 476 of file lte-enb-mac.cc.

Referenced by ns3::EnbMacMemberLteEnbPhySapUser::SubframeIndication().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoTransmitPdu()

void ns3::LteEnbMac::DoTransmitPdu ( LteMacSapProvider::TransmitPduParameters params )

private

Transmit PDU function.

Parameters

params LteMacSapProvider::TransmitPduParameters

Definition at line 1022 of file lte-enb-mac.cc.

References ns3::LteRadioBearerTag::GetLayer(), m_componentCarrierId, m_enbPhySapProvider, m_miDlHarqProcessesPackets, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, two-ray-to-three-gpp-ch-calibration::params, and ns3::LteEnbPhySapProvider::SendMacPdu().

Here is the call graph for this function:

◆ DoUeUpdateConfigurationReq()

void ns3::LteEnbMac::DoUeUpdateConfigurationReq ( LteEnbCmacSapProvider::UeConfig params )

private

UE Update configuration request function.

Parameters

params LteEnbCmacSapProvider::UeConfig

Definition at line 933 of file lte-enb-mac.cc.

References ns3::FfMacCschedSapProvider::CschedUeConfigReq(), m_cschedSapProvider, ns3::FfMacCschedSapProvider::CschedUeConfigReqParameters::m_reconfigureFlag, ns3::FfMacCschedSapProvider::CschedUeConfigReqParameters::m_rnti, ns3::FfMacCschedSapProvider::CschedUeConfigReqParameters::m_transmissionMode, NS_LOG_FUNCTION, and two-ray-to-three-gpp-ch-calibration::params.

Referenced by ns3::EnbMacMemberLteEnbCmacSapProvider::UeUpdateConfigurationReq().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoUlCqiReport()

void ns3::LteEnbMac::DoUlCqiReport ( FfMacSchedSapProvider::SchedUlCqiInfoReqParameters ulcqi )

private

UL CQI report.

Parameters

ulcqi FfMacSchedSapProvider::SchedUlCqiInfoReqParameters

Definition at line 666 of file lte-enb-mac.cc.

References ns3::FfMacSchedSapProvider::SchedUlCqiInfoReqParameters::m_ulCqi, m_ulCqiReceived, NS_LOG_DEBUG, ns3::UlCqi_s::PUSCH, and ns3::UlCqi_s::SRS.

Referenced by ns3::EnbMacMemberLteEnbPhySapUser::UlCqiReport().

Here is the caller graph for this function:

◆ DoUlInfoListElementHarqFeedback()

void ns3::LteEnbMac::DoUlInfoListElementHarqFeedback ( UlInfoListElement_s params )

private

UL Info List ELements HARQ Feedback function.

Parameters

params UlInfoListElement_s

Definition at line 1284 of file lte-enb-mac.cc.

References m_ulInfoListReceived, NS_LOG_FUNCTION, and two-ray-to-three-gpp-ch-calibration::params.

Referenced by ns3::EnbMacMemberLteEnbPhySapUser::UlInfoListElementHarqFeedback().

Here is the caller graph for this function:

◆ GetFfMacCschedSapUser()

FfMacCschedSapUser * ns3::LteEnbMac::GetFfMacCschedSapUser ( )

Get the control scheduler SAP user.

Returns: a pointer to the control scheduler SAP user

Definition at line 422 of file lte-enb-mac.cc.

References m_cschedSapUser.

◆ GetFfMacSchedSapUser()

FfMacSchedSapUser * ns3::LteEnbMac::GetFfMacSchedSapUser ( )

Get the scheduler SAP user.

Returns: a pointer to the SAP user of the scheduler

Definition at line 410 of file lte-enb-mac.cc.

References m_schedSapUser.

◆ GetLteCcmMacSapProvider()

LteCcmMacSapProvider * ns3::LteEnbMac::GetLteCcmMacSapProvider ( )

Get the eNB-ComponentCarrierManager SAP User.

Returns: a pointer to the SAP User of the ComponentCarrierManager

Definition at line 470 of file lte-enb-mac.cc.

References m_ccmMacSapProvider.

◆ GetLteEnbCmacSapProvider()

LteEnbCmacSapProvider * ns3::LteEnbMac::GetLteEnbCmacSapProvider ( )

Get the control MAC SAP provider.

Returns: a pointer to the control MAC SAP provider

Definition at line 446 of file lte-enb-mac.cc.

References m_cmacSapProvider.

◆ GetLteEnbPhySapUser()

LteEnbPhySapUser * ns3::LteEnbMac::GetLteEnbPhySapUser ( )

Get the eNB-PHY SAP User.

Returns: a pointer to the SAP User of the PHY

Definition at line 458 of file lte-enb-mac.cc.

References m_enbPhySapUser.

◆ GetLteMacSapProvider()

LteMacSapProvider * ns3::LteEnbMac::GetLteMacSapProvider ( )

Get the MAC SAP provider.

Returns: a pointer to the SAP provider of the MAC

Definition at line 434 of file lte-enb-mac.cc.

References m_macSapProvider.

◆ GetTypeId()

TypeId ns3::LteEnbMac::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 316 of file lte-enb-mac.cc.

References m_componentCarrierId, m_connEstFailCount, m_dlScheduling, m_numberOfRaPreambles, m_preambleTransMax, m_raResponseWindowSize, m_ulScheduling, ns3::MakeTraceSourceAccessor(), ns3::MakeUintegerAccessor(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

◆ ReceiveBsrMessage()

void ns3::LteEnbMac::ReceiveBsrMessage ( MacCeListElement_s bsr )

private

Receive a CE element containing the buffer status report.

Parameters

bsr	the BSR message

Definition at line 691 of file lte-enb-mac.cc.

References m_ccmMacSapUser, m_componentCarrierId, NS_LOG_FUNCTION, and ns3::LteCcmMacSapUser::UlReceiveMacCe().

Referenced by DoReceiveLteControlMessage().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ReceiveDlCqiLteControlMessage()

void ns3::LteEnbMac::ReceiveDlCqiLteControlMessage ( Ptr< DlCqiLteControlMessage > msg )

private

Receive a DL CQI ideal control message.

Parameters

msg	the DL CQI message

Definition at line 680 of file lte-enb-mac.cc.

References m_dlCqiReceived, ns3::CqiListElement_s::m_rnti, NS_ASSERT, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by DoReceiveLteControlMessage().

Here is the caller graph for this function:

◆ SetComponentCarrierId()

void ns3::LteEnbMac::SetComponentCarrierId ( uint8_t index )

Set the component carrier ID.

Parameters

index the component carrier ID

Definition at line 398 of file lte-enb-mac.cc.

References m_componentCarrierId.

◆ SetFfMacCschedSapProvider()

void ns3::LteEnbMac::SetFfMacCschedSapProvider ( FfMacCschedSapProvider * s )

Set the control scheduler SAP provider.

Parameters

s	a pointer to the control scheduler SAP provider

Definition at line 416 of file lte-enb-mac.cc.

References m_cschedSapProvider.

◆ SetFfMacSchedSapProvider()

void ns3::LteEnbMac::SetFfMacSchedSapProvider ( FfMacSchedSapProvider * s )

Set the scheduler SAP provider.

Parameters

s	a pointer SAP provider of the FF packet scheduler

Definition at line 404 of file lte-enb-mac.cc.

References m_schedSapProvider.

◆ SetLteCcmMacSapUser()

void ns3::LteEnbMac::SetLteCcmMacSapUser ( LteCcmMacSapUser * s )

Set the ComponentCarrierManager SAP user.

Parameters

s	a pointer to the ComponentCarrierManager provider

Definition at line 464 of file lte-enb-mac.cc.

References m_ccmMacSapUser.

◆ SetLteEnbCmacSapUser()

void ns3::LteEnbMac::SetLteEnbCmacSapUser ( LteEnbCmacSapUser * s )

Set the control MAC SAP user.

Parameters

s	a pointer to the control MAC SAP user

Definition at line 440 of file lte-enb-mac.cc.

References m_cmacSapUser.

◆ SetLteEnbPhySapProvider()

void ns3::LteEnbMac::SetLteEnbPhySapProvider ( LteEnbPhySapProvider * s )

Set the PHY SAP Provider.

Parameters

s	a pointer to the PHY SAP provider

Definition at line 452 of file lte-enb-mac.cc.

References m_enbPhySapProvider.

◆ SetLteMacSapUser()

void ns3::LteEnbMac::SetLteMacSapUser ( LteMacSapUser * s )

Set the MAC SAP user.

Parameters

s	a pointer to the MAC SAP user

Definition at line 428 of file lte-enb-mac.cc.

References m_macSapUser.

Friends And Related Function Documentation

◆ EnbMacMemberFfMacCschedSapUser

friend class EnbMacMemberFfMacCschedSapUser

friend

allow EnbMacMemberFfMacCschedSapUser class friend access

Definition at line 66 of file lte-enb-mac.h.

Referenced by LteEnbMac().

◆ EnbMacMemberFfMacSchedSapUser

friend class EnbMacMemberFfMacSchedSapUser

friend

allow EnbMacMemberFfMacSchedSapUser class friend access

Definition at line 64 of file lte-enb-mac.h.

Referenced by LteEnbMac().

◆ EnbMacMemberLteEnbCmacSapProvider

friend class EnbMacMemberLteEnbCmacSapProvider

friend

allow EnbMacMemberLteEnbCmacSapProvider class friend access

Definition at line 60 of file lte-enb-mac.h.

Referenced by LteEnbMac().

◆ EnbMacMemberLteEnbPhySapUser

friend class EnbMacMemberLteEnbPhySapUser

friend

allow EnbMacMemberLteEnbPhySapUser class friend access

Definition at line 68 of file lte-enb-mac.h.

Referenced by LteEnbMac().

◆ EnbMacMemberLteMacSapProvider< LteEnbMac >

friend class EnbMacMemberLteMacSapProvider< LteEnbMac >

friend

allow EnbMacMemberLteMacSapProvider<LteEnbMac> class friend access

Definition at line 60 of file lte-enb-mac.h.

Referenced by LteEnbMac().

◆ MemberLteCcmMacSapProvider< LteEnbMac >

friend class MemberLteCcmMacSapProvider< LteEnbMac >

friend

allow MemberLteCcmMacSapProvider<LteEnbMac> class friend access

Definition at line 68 of file lte-enb-mac.h.

Referenced by LteEnbMac().

Member Data Documentation

◆ m_allocatedNcRaPreambleMap

std::map<uint8_t, NcRaPreambleInfo> ns3::LteEnbMac::m_allocatedNcRaPreambleMap

private

map storing as key the random access preamble IDs allocated for non-contention based access, and as value the associated info

Definition at line 458 of file lte-enb-mac.h.

Referenced by DoAllocateNcRaPreamble(), DoRemoveUe(), and DoSubframeIndication().

◆ m_ccmMacSapProvider

LteCcmMacSapProvider* ns3::LteEnbMac::m_ccmMacSapProvider

private

CCM MAC SAP provider.

Definition at line 409 of file lte-enb-mac.h.

Referenced by LteEnbMac(), DoDispose(), and GetLteCcmMacSapProvider().

◆ m_ccmMacSapUser

LteCcmMacSapUser* ns3::LteEnbMac::m_ccmMacSapUser

private

CCM MAC SAP user.

Definition at line 410 of file lte-enb-mac.h.

Referenced by ReceiveBsrMessage(), and SetLteCcmMacSapUser().

◆ m_cmacSapProvider

LteEnbCmacSapProvider* ns3::LteEnbMac::m_cmacSapProvider

private

the CMAC SAP provider

Definition at line 395 of file lte-enb-mac.h.

Referenced by LteEnbMac(), DoDispose(), and GetLteEnbCmacSapProvider().

◆ m_cmacSapUser

LteEnbCmacSapUser* ns3::LteEnbMac::m_cmacSapUser

private

the CMAC SAP user

Definition at line 397 of file lte-enb-mac.h.

Referenced by DoAllocateNcRaPreamble(), DoCschedUeConfigUpdateInd(), DoSubframeIndication(), and SetLteEnbCmacSapUser().

◆ m_componentCarrierId

uint8_t ns3::LteEnbMac::m_componentCarrierId

private

component carrier Id used to address sap

Definition at line 465 of file lte-enb-mac.h.

Referenced by DoSchedDlConfigInd(), DoSchedUlConfigInd(), DoTransmitPdu(), GetTypeId(), ReceiveBsrMessage(), and SetComponentCarrierId().

◆ m_connEstFailCount

uint8_t ns3::LteEnbMac::m_connEstFailCount

private

the counter value for T300 timer expiration

Definition at line 440 of file lte-enb-mac.h.

Referenced by DoGetRachConfig(), and GetTypeId().

◆ m_cschedSapProvider

FfMacCschedSapProvider* ns3::LteEnbMac::m_cschedSapProvider

private

the Csched SAP provider

Definition at line 400 of file lte-enb-mac.h.

Referenced by DoAddLc(), DoAddUe(), DoConfigureMac(), DoReleaseLc(), DoRemoveUe(), DoUeUpdateConfigurationReq(), and SetFfMacCschedSapProvider().

◆ m_cschedSapUser

FfMacCschedSapUser* ns3::LteEnbMac::m_cschedSapUser

private

the CSched SAP user

Definition at line 402 of file lte-enb-mac.h.

Referenced by LteEnbMac(), DoDispose(), and GetFfMacCschedSapUser().

◆ m_dlCqiReceived

std::vector<CqiListElement_s> ns3::LteEnbMac::m_dlCqiReceived

private

DL-CQI received.

Definition at line 380 of file lte-enb-mac.h.

Referenced by DoDispose(), DoSubframeIndication(), and ReceiveDlCqiLteControlMessage().

◆ m_dlInfoListReceived

std::vector<DlInfoListElement_s> ns3::LteEnbMac::m_dlInfoListReceived

private

DL HARQ feedback received.

Definition at line 385 of file lte-enb-mac.h.

Referenced by DoDispose(), DoDlInfoListElementHarqFeedback(), and DoSubframeIndication().

◆ m_dlScheduling

TracedCallback<DlSchedulingCallbackInfo> ns3::LteEnbMac::m_dlScheduling

private

Trace information regarding DL scheduling Frame number, Subframe number, RNTI, MCS of TB1, size of TB1, MCS of TB2 (0 if not present), size of TB2 (0 if not present)

Definition at line 424 of file lte-enb-mac.h.

Referenced by DoSchedDlConfigInd(), and GetTypeId().

◆ m_enbPhySapProvider

LteEnbPhySapProvider* ns3::LteEnbMac::m_enbPhySapProvider

private

the ENB Phy SAP provider

Definition at line 405 of file lte-enb-mac.h.

Referenced by DoConfigureMac(), DoSchedDlConfigInd(), DoSchedUlConfigInd(), DoTransmitPdu(), and SetLteEnbPhySapProvider().

◆ m_enbPhySapUser

LteEnbPhySapUser* ns3::LteEnbMac::m_enbPhySapUser

private

the ENB Phy SAP user

Definition at line 406 of file lte-enb-mac.h.

Referenced by LteEnbMac(), DoDispose(), and GetLteEnbPhySapUser().

◆ m_frameNo

uint32_t ns3::LteEnbMac::m_frameNo

private

frame number of current subframe indication

Definition at line 414 of file lte-enb-mac.h.

Referenced by DoSchedDlConfigInd(), DoSchedUlConfigInd(), and DoSubframeIndication().

◆ m_macChTtiDelay

uint8_t ns3::LteEnbMac::m_macChTtiDelay

private

delay of MAC, PHY and channel in terms of TTIs

Definition at line 432 of file lte-enb-mac.h.

Referenced by DoConfigureMac(), and DoSubframeIndication().

◆ m_macSapProvider

LteMacSapProvider* ns3::LteEnbMac::m_macSapProvider

private

the MAC SAP provider

Definition at line 394 of file lte-enb-mac.h.

Referenced by LteEnbMac(), DoDispose(), and GetLteMacSapProvider().

◆ m_macSapUser

LteMacSapUser* ns3::LteEnbMac::m_macSapUser

private

the MAC SAP user

Definition at line 396 of file lte-enb-mac.h.

Referenced by SetLteMacSapUser().

◆ m_miDlHarqProcessesPackets

std::map<uint16_t, DlHarqProcessesBuffer_t> ns3::LteEnbMac::m_miDlHarqProcessesPackets

private

Packet under transmission of the DL HARQ process.

Definition at line 435 of file lte-enb-mac.h.

Referenced by DoAddUe(), DoDispose(), DoDlInfoListElementHarqFeedback(), DoRemoveUe(), DoSchedDlConfigInd(), and DoTransmitPdu().

◆ m_numberOfRaPreambles

uint8_t ns3::LteEnbMac::m_numberOfRaPreambles

private

number of RA preambles

Definition at line 437 of file lte-enb-mac.h.

Referenced by DoAllocateNcRaPreamble(), DoGetRachConfig(), and GetTypeId().

◆ m_preambleTransMax

uint8_t ns3::LteEnbMac::m_preambleTransMax

private

preamble transmit maximum

Definition at line 438 of file lte-enb-mac.h.

Referenced by DoAllocateNcRaPreamble(), DoGetRachConfig(), and GetTypeId().

◆ m_rapIdRntiMap

std::map<uint16_t, uint32_t> ns3::LteEnbMac::m_rapIdRntiMap

private

RAPID RNTI map.

Definition at line 462 of file lte-enb-mac.h.

Referenced by DoSchedDlConfigInd(), and DoSubframeIndication().

◆ m_raResponseWindowSize

uint8_t ns3::LteEnbMac::m_raResponseWindowSize

private

RA response window size.

Definition at line 439 of file lte-enb-mac.h.

Referenced by DoAllocateNcRaPreamble(), DoGetRachConfig(), and GetTypeId().

◆ m_receivedRachPreambleCount

std::map<uint8_t, uint32_t> ns3::LteEnbMac::m_receivedRachPreambleCount

private

received RACH preamble count

Definition at line 460 of file lte-enb-mac.h.

Referenced by DoReceiveRachPreamble(), DoRemoveUe(), and DoSubframeIndication().

◆ m_rlcAttached

std::map<uint16_t, std::map<uint8_t, LteMacSapUser*> > ns3::LteEnbMac::m_rlcAttached

private

RNTI, LC ID, SAP of the RLC instance.

Definition at line 378 of file lte-enb-mac.h.

Referenced by DoAddLc(), DoAddUe(), DoReceivePhyPdu(), DoReleaseLc(), DoRemoveUe(), and DoSchedDlConfigInd().

◆ m_schedSapProvider

FfMacSchedSapProvider* ns3::LteEnbMac::m_schedSapProvider

private

the Sched SAP provider

Definition at line 399 of file lte-enb-mac.h.

Referenced by DoReportBufferStatus(), DoSubframeIndication(), and SetFfMacSchedSapProvider().

◆ m_schedSapUser

FfMacSchedSapUser* ns3::LteEnbMac::m_schedSapUser

private

the Sched SAP user

Definition at line 401 of file lte-enb-mac.h.

Referenced by LteEnbMac(), DoDispose(), and GetFfMacSchedSapUser().

◆ m_subframeNo

uint32_t ns3::LteEnbMac::m_subframeNo

private

subframe number of current subframe indication

Definition at line 418 of file lte-enb-mac.h.

Referenced by DoSchedDlConfigInd(), DoSchedUlConfigInd(), and DoSubframeIndication().

◆ m_ulCeReceived

std::vector<MacCeListElement_s> ns3::LteEnbMac::m_ulCeReceived

private

CE received (BSR up to now)

Definition at line 383 of file lte-enb-mac.h.

Referenced by DoDispose(), DoRemoveUe(), DoReportMacCeToScheduler(), and DoSubframeIndication().

◆ m_ulCqiReceived

std::vector<FfMacSchedSapProvider::SchedUlCqiInfoReqParameters> ns3::LteEnbMac::m_ulCqiReceived

private

UL-CQI received.

Definition at line 382 of file lte-enb-mac.h.

Referenced by DoDispose(), DoSubframeIndication(), and DoUlCqiReport().

◆ m_ulInfoListReceived

std::vector<UlInfoListElement_s> ns3::LteEnbMac::m_ulInfoListReceived

private

UL HARQ feedback received.

Definition at line 387 of file lte-enb-mac.h.

Referenced by DoDispose(), DoSubframeIndication(), and DoUlInfoListElementHarqFeedback().

◆ m_ulScheduling

TracedCallback<uint32_t, uint32_t, uint16_t, uint8_t, uint16_t, uint8_t> ns3::LteEnbMac::m_ulScheduling

private

Trace information regarding UL scheduling Frame number, Subframe number, RNTI, MCS of TB, size of TB, component carrier id.

Definition at line 430 of file lte-enb-mac.h.

Referenced by DoSchedUlConfigInd(), and GetTypeId().

The documentation for this class was generated from the following files:

src/lte/model/lte-enb-mac.h
src/lte/model/lte-enb-mac.cc

Classes

Public Types

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ DlSchedulingTracedCallback

◆ UlSchedulingTracedCallback

Constructor & Destructor Documentation

◆ LteEnbMac()

◆ ~LteEnbMac()

Member Function Documentation

◆ DoAddLc()

◆ DoAddUe()

◆ DoAllocateNcRaPreamble()

◆ DoConfigureMac()

◆ DoCschedCellConfigCnf()

◆ DoCschedCellConfigUpdateInd()

◆ DoCschedLcConfigCnf()

◆ DoCschedLcReleaseCnf()

◆ DoCschedUeConfigCnf()

◆ DoCschedUeConfigUpdateInd()

◆ DoCschedUeReleaseCnf()

◆ DoDispose()

◆ DoDlInfoListElementHarqFeedback()

◆ DoGetRachConfig()

◆ DoReceiveLteControlMessage()

◆ DoReceivePhyPdu()

◆ DoReceiveRachPreamble()

◆ DoReconfigureLc()

◆ DoReleaseLc()

◆ DoRemoveUe()

◆ DoReportBufferStatus()

◆ DoReportMacCeToScheduler()

◆ DoReportSrToScheduler()

◆ DoSchedDlConfigInd()

◆ DoSchedUlConfigInd()

◆ DoSubframeIndication()

◆ DoTransmitPdu()

◆ DoUeUpdateConfigurationReq()

◆ DoUlCqiReport()

◆ DoUlInfoListElementHarqFeedback()

◆ GetFfMacCschedSapUser()

◆ GetFfMacSchedSapUser()

◆ GetLteCcmMacSapProvider()

◆ GetLteEnbCmacSapProvider()

◆ GetLteEnbPhySapUser()

◆ GetLteMacSapProvider()

◆ GetTypeId()

◆ ReceiveBsrMessage()

◆ ReceiveDlCqiLteControlMessage()

◆ SetComponentCarrierId()

◆ SetFfMacCschedSapProvider()

◆ SetFfMacSchedSapProvider()

◆ SetLteCcmMacSapUser()

◆ SetLteEnbCmacSapUser()

◆ SetLteEnbPhySapProvider()

◆ SetLteMacSapUser()

Friends And Related Function Documentation

◆ EnbMacMemberFfMacCschedSapUser

◆ EnbMacMemberFfMacSchedSapUser

◆ EnbMacMemberLteEnbCmacSapProvider

◆ EnbMacMemberLteEnbPhySapUser

◆ EnbMacMemberLteMacSapProvider< LteEnbMac >

◆ MemberLteCcmMacSapProvider< LteEnbMac >

Member Data Documentation

◆ m_allocatedNcRaPreambleMap

◆ m_ccmMacSapProvider

◆ m_ccmMacSapUser

◆ m_cmacSapProvider

◆ m_cmacSapUser

◆ m_componentCarrierId

◆ m_connEstFailCount

◆ m_cschedSapProvider

◆ m_cschedSapUser

◆ m_dlCqiReceived
